AW-46-03-G-D-230-175

Description
Board Stacking Connector, 92 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size1MB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/
Environmental Compliance
Download Datasheet Parametric View All

AW-46-03-G-D-230-175 Overview

Board Stacking Connector, 92 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal, ROHS COMPLIANT

AW-46-03-G-D-230-175 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSAMTEC
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Connector typeBOARD STACKING CONNECTOR
Contact to complete cooperationGOLD (10) OVER NICKEL (50)
Contact completed and terminatedGOLD (10) OVER NICKEL (50)
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberAW
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch0.8 mm
Termination typeSURFACE MOUNT
Total number of contacts92
F-211
AW–10–03–G–D–130–175
AW–50–03–G–D–130–175
(0,80mm) .0315"
AW SERIES
AW–40–03–G–D–230–075

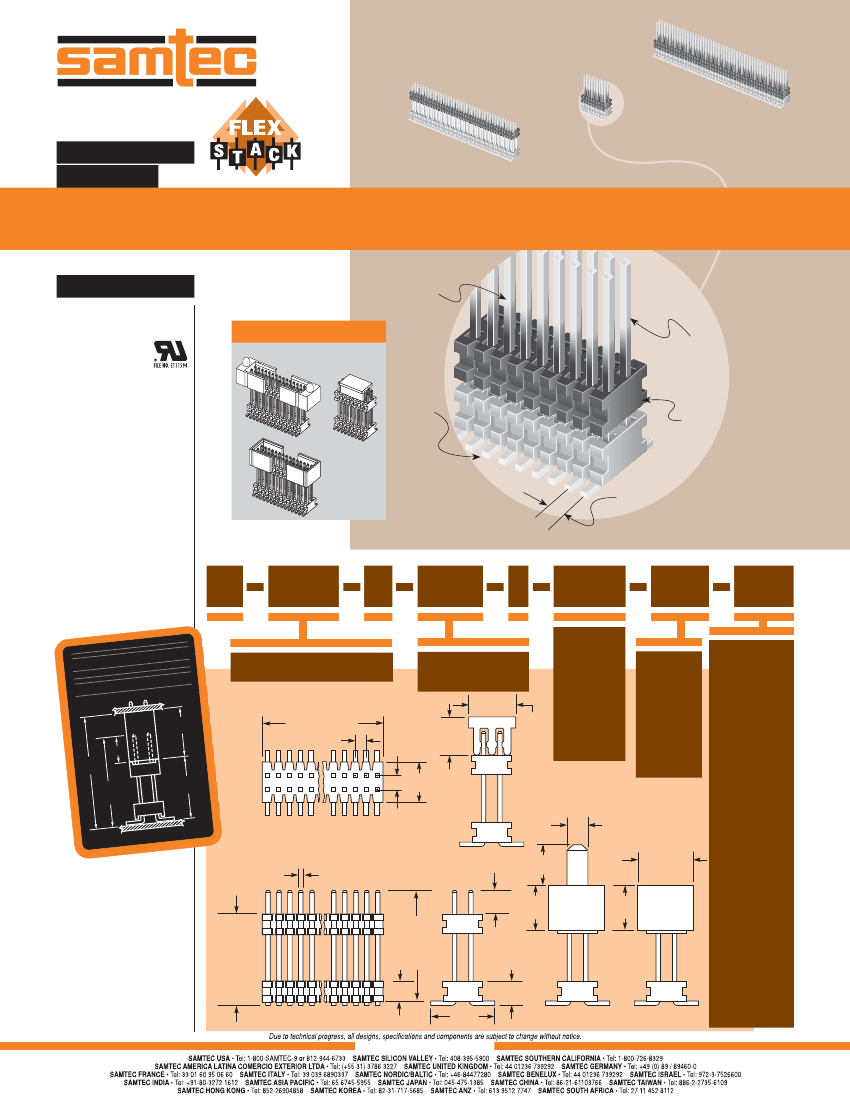

SMT MICRO BOARD STACKER
SPECIFICATIONS
For complete specifications and
recommended PCB layouts
see www.samtec.com?AW
Insulator Material:
Top: Black LCP
Bottom: Natural LCP
Terminal Material:
Phosphor Bronze
Plating:
Au over 50µ" (1,27µm) Ni
Current Rating:
.75A @ 80°C ambient
Operating Temp Range:
-55°C to +125°C
RoHS Compliant:
Yes
Mates with:
CLE
Choice of post heights
and board space
Ideal for
high density
skyscrapers
OPTIONS
–EP OPTION
Surface
Mount
Optional
End Shrouds
for blind mating
–P OPTION
Processing:
Lead-Free Solderable:
Yes
SMT Lead Coplanarity:
(0,10mm) .004" max (05-40)
(0,15mm) .006" max (41-90)
–ES OPTION
(0,80mm) .0315"
micro pitch
AW
NO. PINS
PER ROW
03
PLATING
OPTION
D
STACKER
HEIGHT
POST
HEIGHT
OPTION
B o a rd
S t a ck i n g
SO C K ET
PR O FI LE
PO ST
BO A RD
SP A C E
O V ER A LL
PI N
(O A L)
ST A C K ER
H EI G H T
–“XXX”
05 thru 90
No. of positions
x (0,80) .0315
(0,80) .0315
–G
= 10µ" (0,25µm) Gold
(5,08)
.200
X
(3,18)
.125
= Stacker
Height
(in inches)
(3,09) .122 to
(5,84) .230
Example:
–175
= (4,45mm)
.175"
–“XXX”
= Post Height
(in inches)
(1,91) .075
minimum
Example:
–075
= (1,91mm)
.075"
–ES
= End Shroud
11 pins/row min.
(–075 Post
Height only)
02
(3,18)
.125
–EP
= End Shroud
with Guide Post
(–075 Post
Height only)
11 pins/row min.
(3,05)
.120
(1,20)
.047
(1,91)
.075
DIA
–A
(4,17)
.164
01
–P OPTION
(0,30) .012 SQ
(3,81)
.150
POST (3,56)
HEIGHT .140
STACKER
HEIGHT
(3,09)
.122
to
(5,84)
.230
(7,75)
.305
MAX
OVERALL
LENGTH
(1,38)
.055
(4,57)
.180
(1,91)
.075
MIN
(3,56)
.140
= Alignment Pin
(4 positions min.)
(Available for
board stacks
between
(4,06) .160
to (5,84) .230)
Metal or plastic
at Samtec
discretion.
–P
= Pick & Place Pad
(8 positions min.)
(1,70)
.067
–TR
–EP OPTION
–ES OPTION
= Tape & Reel
(84 positions max.)
Note:
Some lengths,
styles and options are
non-standard, non-returnable.
WWW.SAMTEC.COM
