DSI45-16

Description
Rectifier Diode, 1 Element, 45A, 1600V V(RRM),
CategoryDiscrete semiconductor    diode
File Size94KB,3 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric View All

DSI45-16 Overview

Rectifier Diode, 1 Element, 45A, 1600V V(RRM),

DSI45-16 Parametric

Parameter NameAttribute value
MakerMicrosemi
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.2 V
Maximum non-repetitive peak forward current500 A
Number of components1
Maximum operating temperature150 °C
Maximum output current45 A
Maximum repetitive peak reverse voltage1600 V
surface mountNO

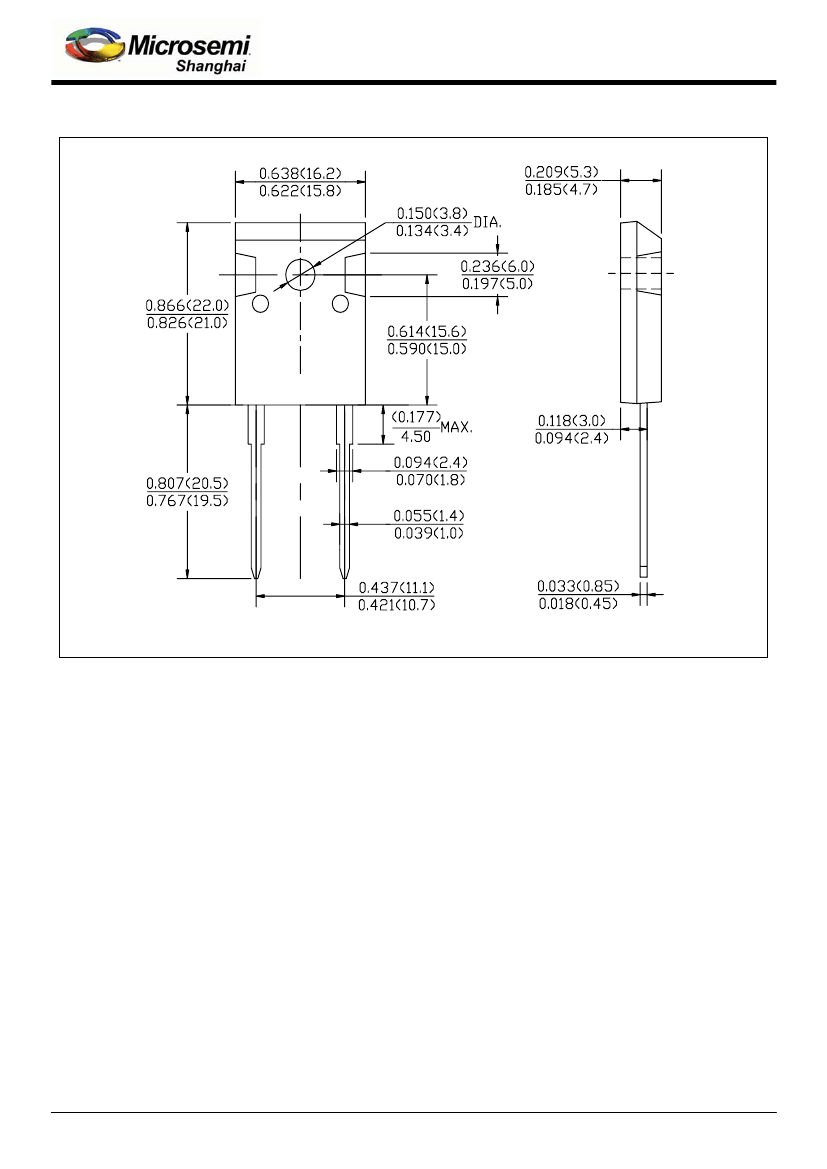

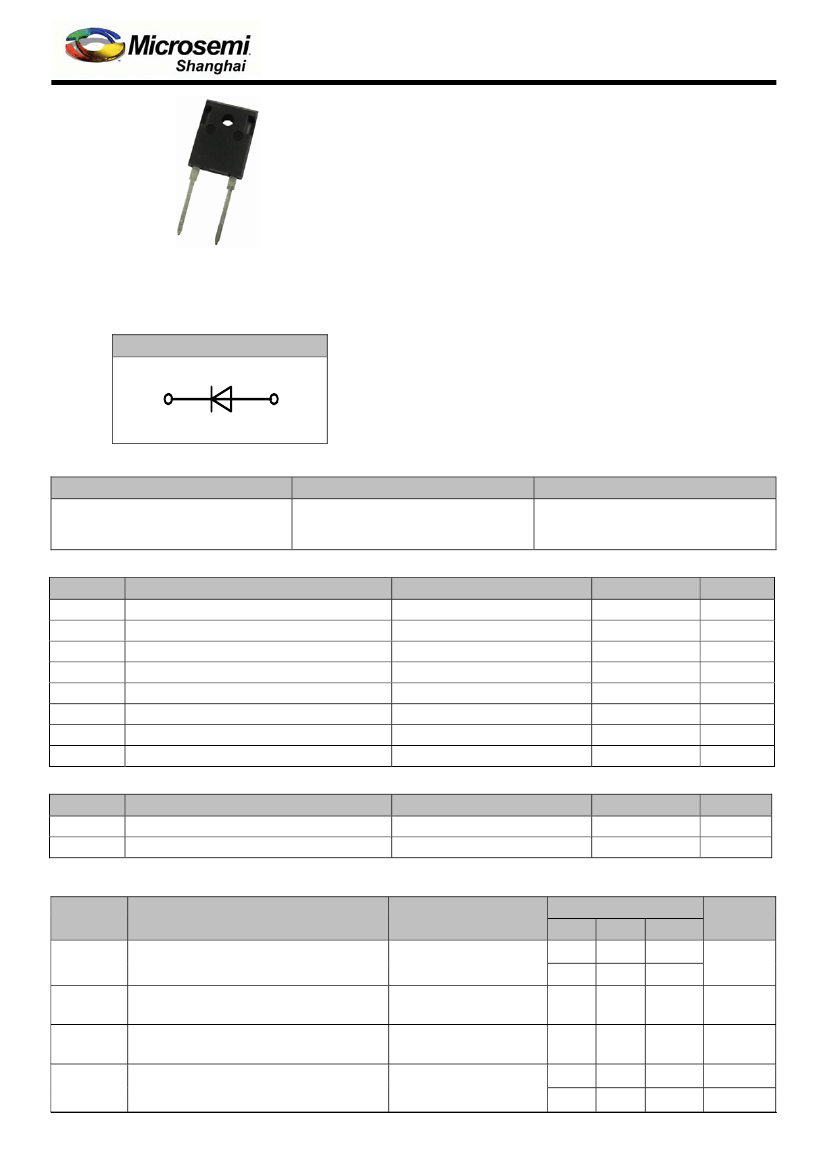

DSI45
Rectifier Diode
Reverse Voltage:
Forward Current:
Features:
C
A
800 to 1600V
45A
A=Anode C=Cathode
Circuit
Glass passivated chips
Low Leakage Current
Low Forward Voltage
RoHS Compliance
Input rectification
+
Module Type
TYPE
DSI45-08
DSI45-12
DSI45-16
Applications
Supplies for DC power equipment
DC supply for PWM inverter
Field supply for DC motors
Battery DC power supplies
V
RRM
800V
1200V
1600V
V
RSM
900V
1300V
1700V
Maximum Ratings
Symbol
Item
Average forward current
I
F(AV)
Forward surge current, max.
I
FSM
Value for fusing
i
2
t
Visol
Tvj
Tstg
Isolation Breakdown Voltage(R.M.S)
Operating Junction Temperature
Storage Temperature
Mounting torque
Conditions
Tc=100℃
t=10mS Tvj =45℃
a.c.50HZ;r.m.s.;1min
Values
45
500
1250
2500
-40 to +150
-40 to +150
0.8...1.2
6
Units
A
A
A
2
s
V
Nm
Md
Weight
Approximate Weight
g
Thermal Characteristics
Symbol
Item
R
th(j-c)
Thermal Impedance, max.
R
th(c-s)
Thermal Impedance, max.
Electrical Characteristics
Symbol
V
FM
Conditions
Junction to Case
Case to Heatsink
Values
0.65
0.20
Units
℃/W
℃/W
Item
Forward Voltage Drop, max.
Slope resistance
calculation only
Threshold voltage
calculation only
for
for
power
power
loss
loss
Conditions
T=25℃ I
F
=45A
T=150℃ I
F
=45A
T
j
=150℃
T
j
=150℃
T
vj
=25℃ V
RD
=V
RRM
T
vj
=150℃ V
RD
=V
RRM
1
Values
Min. Typ. Max.
1.1
1.28
1.20
7.7
0.76
5
3
Units
V
V
r
F
V
FO
µA
mA
I
RRM
Repetitive Peak Reverse Current, max.

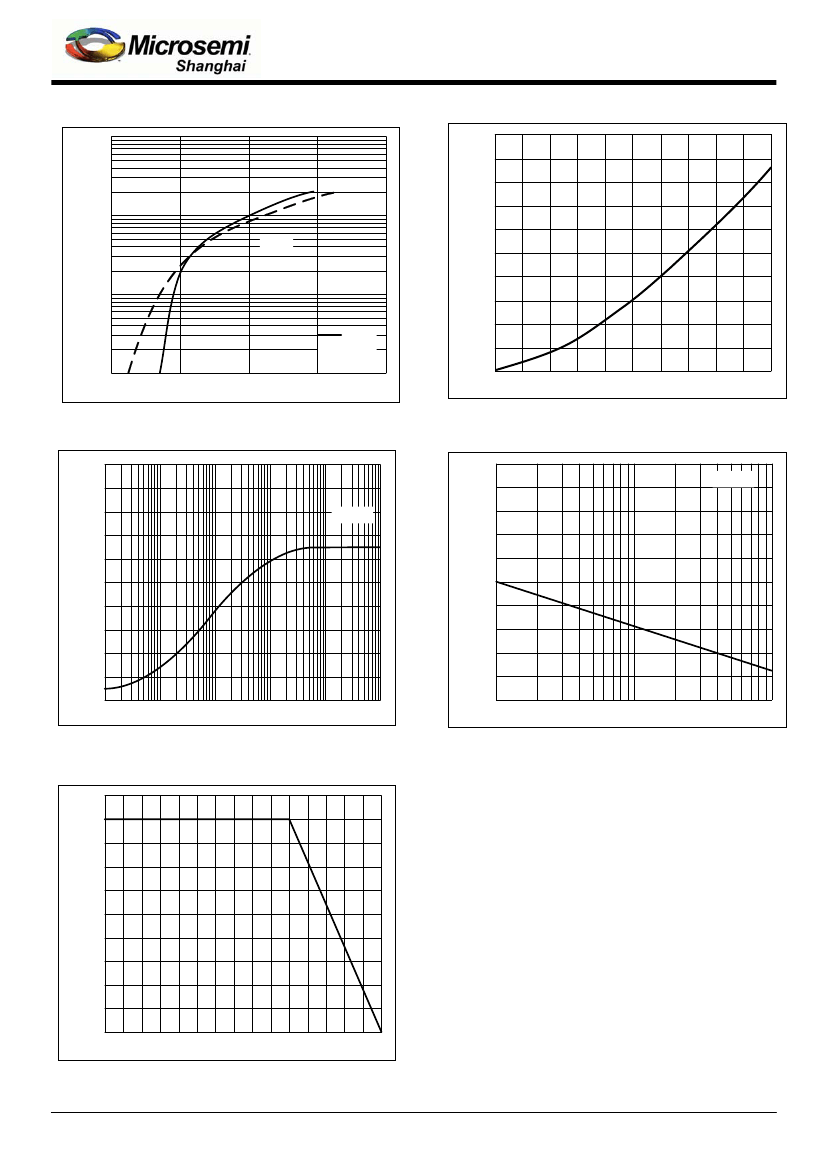

Document Number: DSI45
Apr.26, 2011
www.smsemi.com
