DM2023-1AL3 datasheet, PDF - EEWORLD Datasheet

DM2023-1AL3: DescriptionLCD DOT MATRIX CHARACTER MODULE,192 CHARACTERS; CategoryLED optoelectronic/LED photoelectric; File Size241KB，9 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

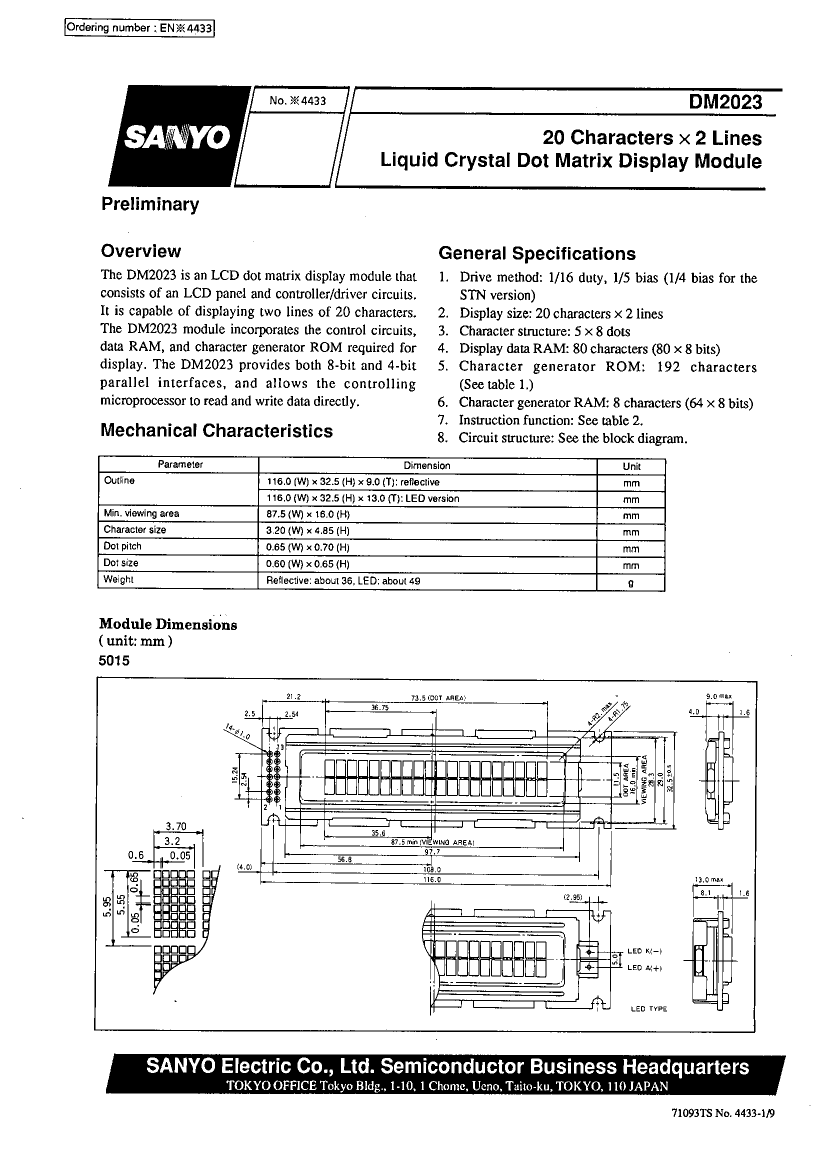

DM2023-1AL3 Overview

LCD DOT MATRIX CHARACTER MODULE,192 CHARACTERS

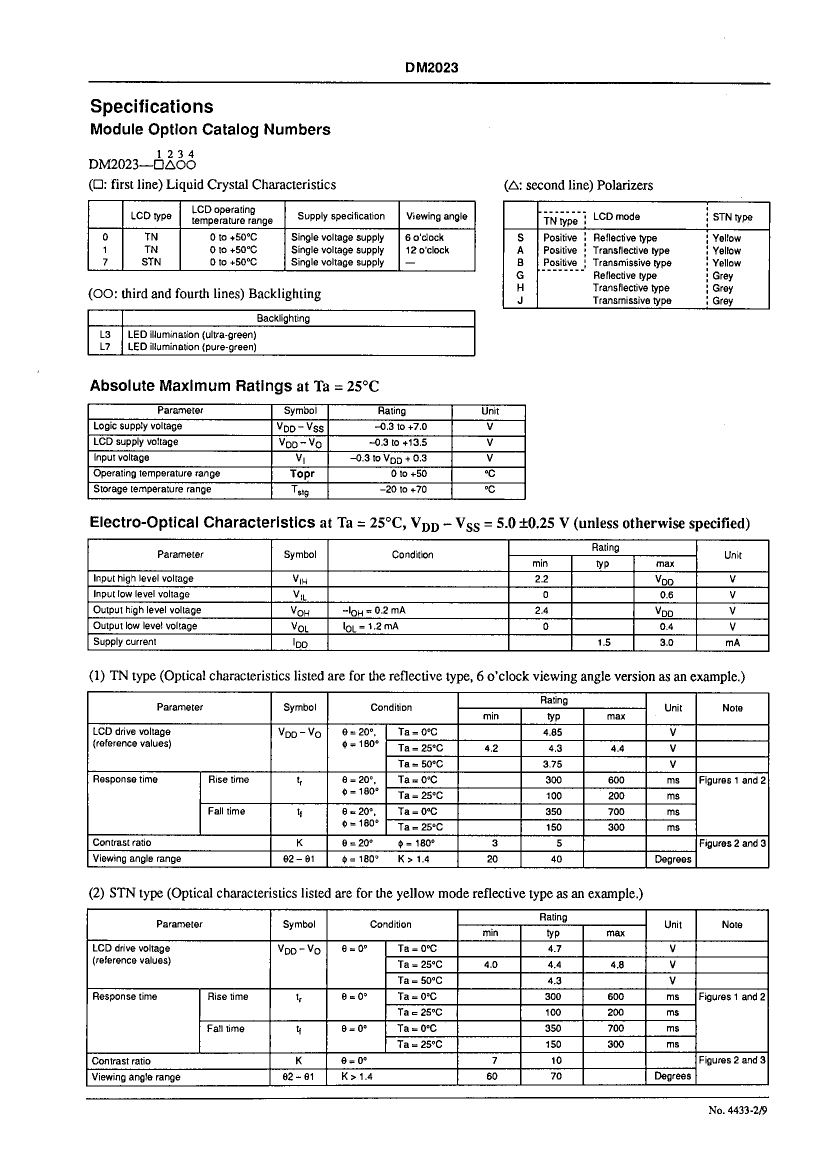

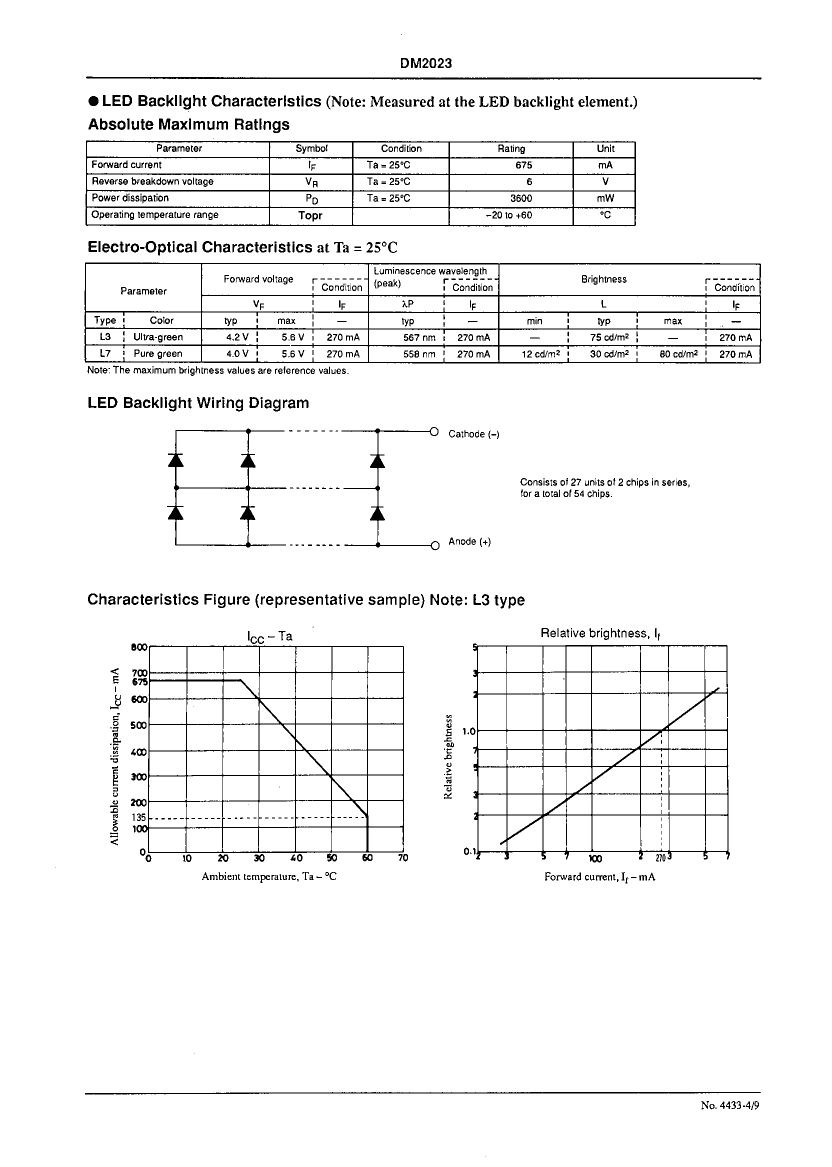

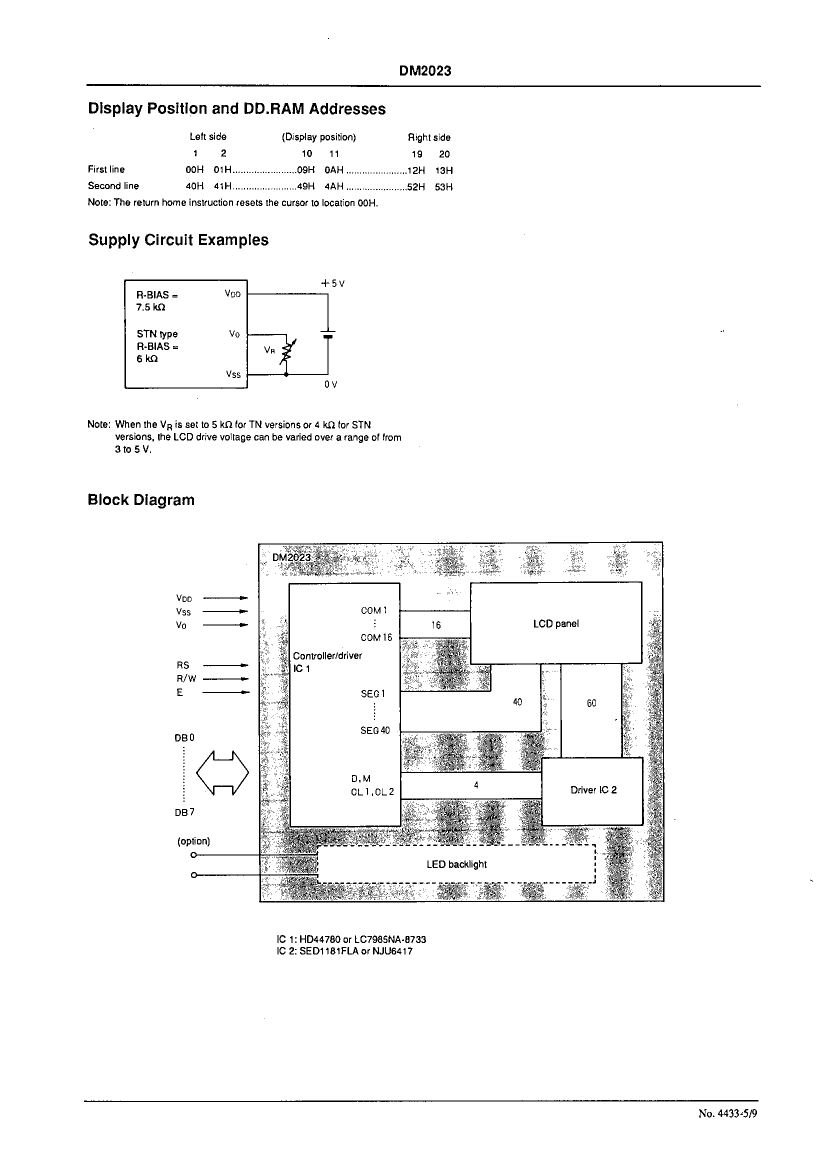

Parameter Name	Attribute value
Maker	ON Semiconductor
Reach Compliance Code	compliant
Character font type	5x8 Dot
Number of characters per line	20
Display height	4.85 mm
Maximum operating temperature	50 °C
Minimum operating temperature
total depth	13 mm
total height	32 mm
total length	116 mm
The number of rows displayed each time	2
Nominal supply voltage	5 V
Observation area height	16 mm
