FSBB15CH60BT Smart Power Module
July 2007
FSBB15CH60BT
Smart Power Module
Features
• UL Certified No.E209204(SPM27-CC package)
• Very low thermal resistance due to using DBC
• Easy PCB layout due to built in bootstrap diode
• 600V-15A 3-phase IGBT inverter bridge including control ICs
for gate driving and protection
• Divided negative dc-link terminals for inverter current sensing
applications
• Single-grounded power supply due to built-in HVIC
• Isolation rating of 2500Vrms/min.
Motion-SPM
General Description
TM
It is an advanced motion-smart power module (Motion-SPM
TM
)
that Fairchild has newly developed and designed to provide
very compact and high performance ac motor drives mainly tar-
geting low-power inverter-driven application like air conditioner
and washing machine. It combines optimized circuit protection
and drive matched to low-loss IGBTs. System reliability is fur-
ther enhanced by the integrated under-voltage lock-out and
short-circuit protection. The high speed built-in HVIC provides
opto-coupler-less single-supply IGBT gate driving capability that
further reduce the overall size of the inverter system design.
Each phase current of inverter can be monitored separately due
to the divided negative dc terminals.
Applications
• AC 100V ~ 253V three-phase inverter drive for small power
ac motor drives
• Home appliances applications like air conditioner and wash-
ing machine
Top View
Bottom View
44mm
26.8mm

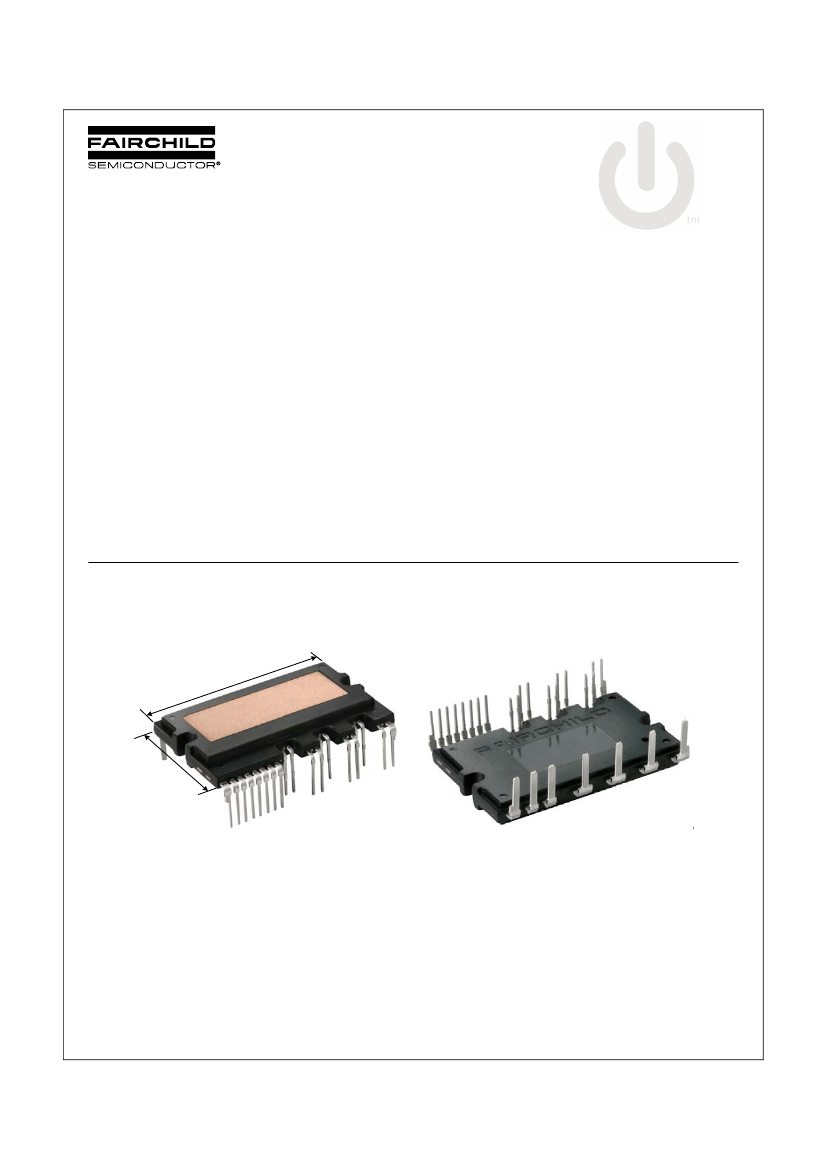

Figure 1.
©2007 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FSBB15CH60BT Rev. C
FSBB15CH60BT Smart Power Module
Integrated Power Functions
• 600V-15A IGBT inverter for three-phase DC/AC power conversion (Please refer to Figure 3)
Integrated Drive, Protection and System Control Functions
• For inverter high-side IGBTs: Gate drive circuit, High voltage isolated high-speed level shifting
Control circuit under-voltage (UV) protection
Note) Available bootstrap circuit example is given in Figures 12 and 13.
• For inverter low-side IGBTs: Gate drive circuit, Short circuit protection (SC)
Control supply circuit under-voltage (UV) protection
• Fault signaling: Corresponding to UV (Low-side supply) and SC faults
• Input interface: 3.3/5V CMOS/LSTTL compatible, Schmitt trigger input
Pin Configuration
Top View

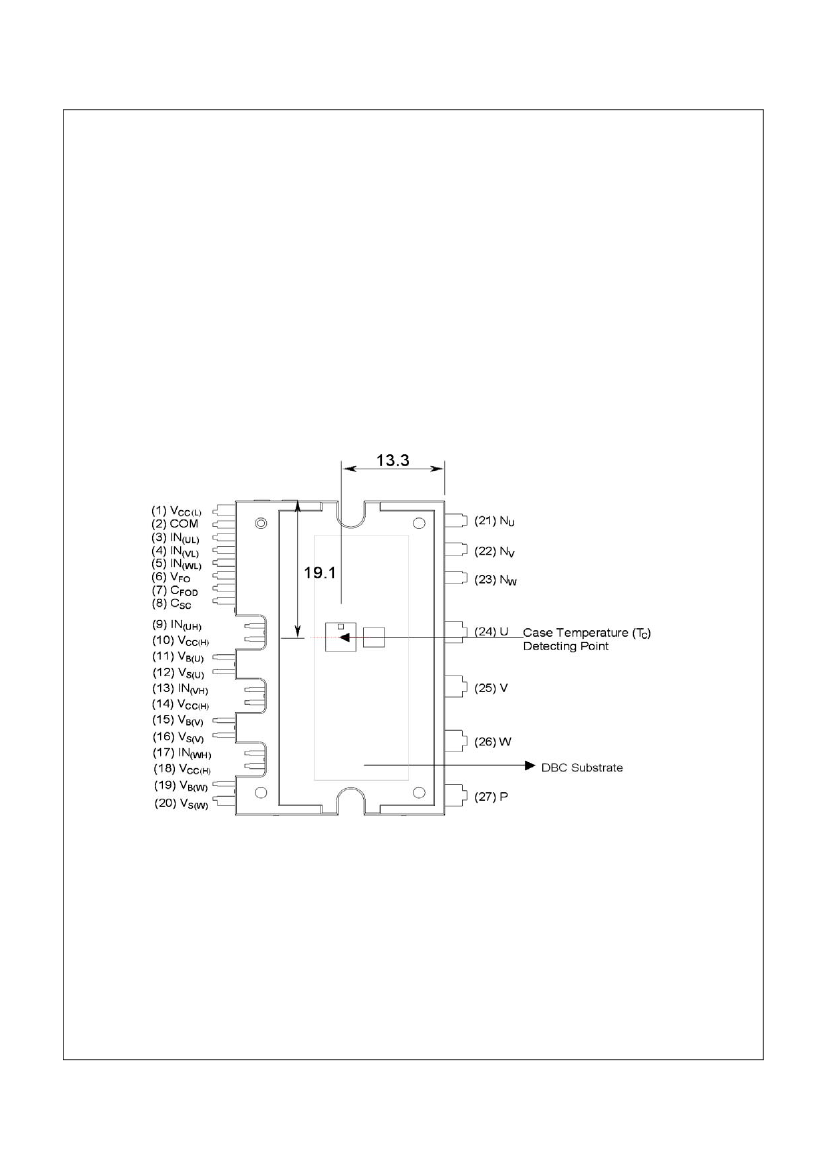

Figure 2.
2
FSBB15CH60BT Rev. C
www.fairchildsemi.com
FSBB15CH60BT Smart Power Module
Pin Descriptions
Pin Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Pin Name
V
CC(L)
COM
IN
(UL)
IN
(VL)
IN
(WL)
V
FO
C
FOD
C
SC
IN
(UH)
V
CC(H)
V
B(U)
V
S(U)
IN
(VH)
V
CC(H)
V
B(V)
V
S(V)
IN
(WH)
V
CC(H)
V
B(W)
V
S(W)
N
U
N
V
N
W
U
V
W
P
Common Supply Ground
Signal Input for Low-side U Phase
Signal Input for Low-side V Phase
Signal Input for Low-side W Phase
Fault Output
Pin Description
Low-side Common Bias Voltage for IC and IGBTs Driving
Capacitor for Fault Output Duration Time Selection
Capacitor (Low-pass Filter) for Short-Current Detection Input
Signal Input for High-side U Phase
High-side Common Bias Voltage for IC and IGBTs Driving
High-side Bias Voltage for U Phase IGBT Driving
High-side Bias Voltage Ground for U Phase IGBT Driving
Signal Input for High-side V Phase
High-side Common Bias Voltage for IC and IGBTs Driving
High-side Bias Voltage for V Phase IGBT Driving
High-side Bias Voltage Ground for V Phase IGBT Driving
Signal Input for High-side W Phase
High-side Common Bias Voltage for IC and IGBTs Driving
High-side Bias Voltage for W Phase IGBT Driving
High-side Bias Voltage Ground for W Phase IGBT Driving
Negative DC–Link Input for U Phase
Negative DC–Link Input for V Phase
Negative DC–Link Input for W Phase
Output for U Phase
Output for V Phase
Output for W Phase
Positive DC–Link Input
3
FSBB15CH60BT Rev. C
www.fairchildsemi.com
FSBB15CH60BT Smart Power Module
Internal Equivalent Circuit and Input/Output Pins
P (27)
(19) V
B(W)
(18) V
CC(H)
(17) IN
(WH)
(20) V
S(W)
(15) V
B(V)
(14) V
CC(H)
(13) IN
(VH)
(16) V
S(V)
(11) V
B(U)
(10) V
CC(H)
(9) IN
(UH)
(12) V
S(U)
VB
VCC
COM
IN
OUT
VS
W (26)
VB
VCC
COM
IN
OUT
VS
V (25)
VB
VCC
COM
IN
OUT
VS
U (24)
(8) C
SC
(7) C
FOD
(6) V
FO
C(SC) OUT(WL)
C(FOD)
VFO
IN(WL) OUT(VL)
IN(VL)
IN(UL)
COM
OUT(UL)
V
SL
N
U
(21)
N
V
(22)
N
W
(23)
(5) IN
(WL)
(4) IN
(VL)
(3) IN
(UL)
(2) COM
(1) V
CC(L)
VCC
Note:
1. Inverter low-side is composed of three IGBTs, freewheeling diodes for each IGBT and one control IC. It has gate drive and protection functions.
2. Inverter power side is composed of four inverter dc-link input terminals and three inverter output terminals.
3. Inverter high-side is composed of three IGBTs, freewheeling diodes and three drive ICs for each IGBT.
Figure 3.
4
FSBB15CH60BT Rev. C
www.fairchildsemi.com
