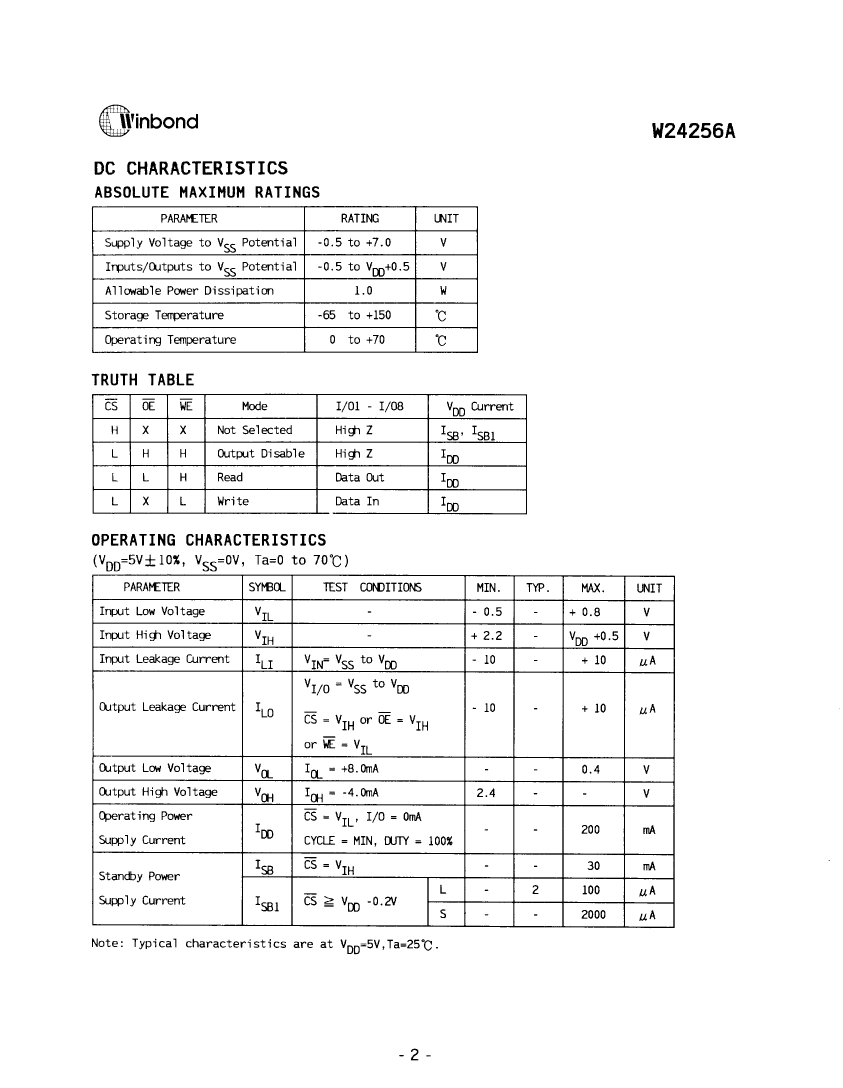

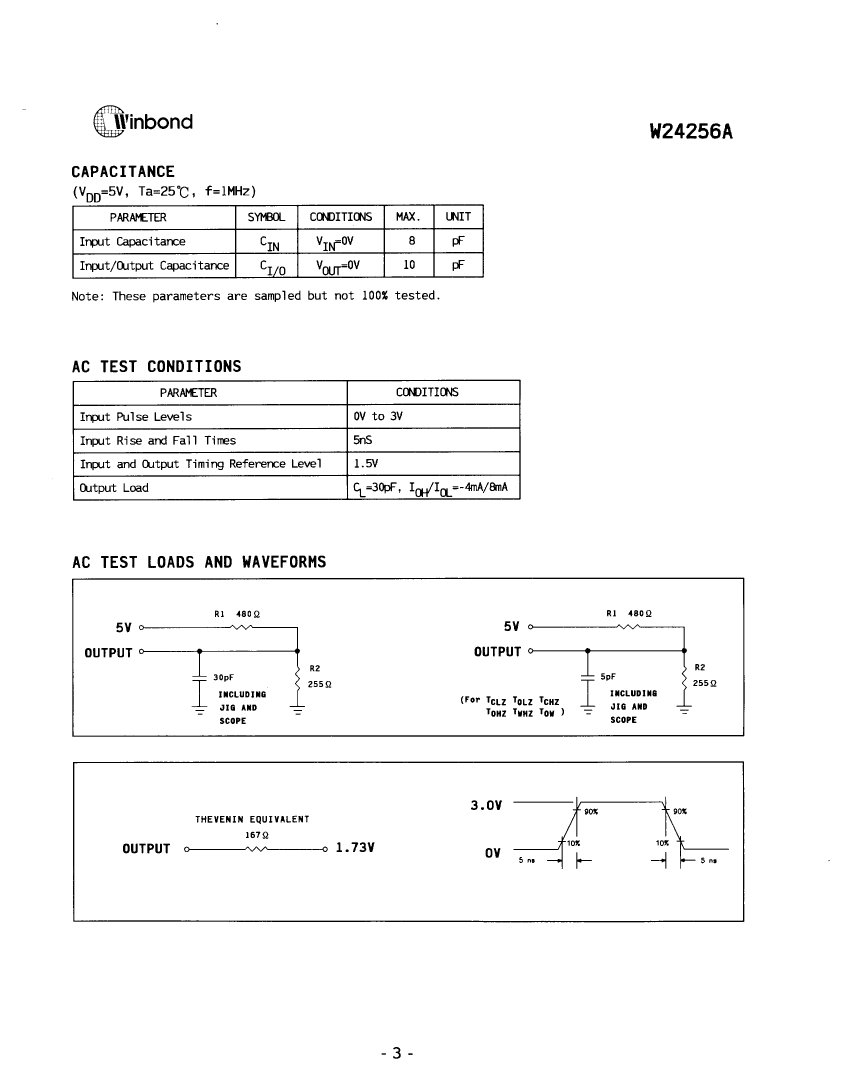

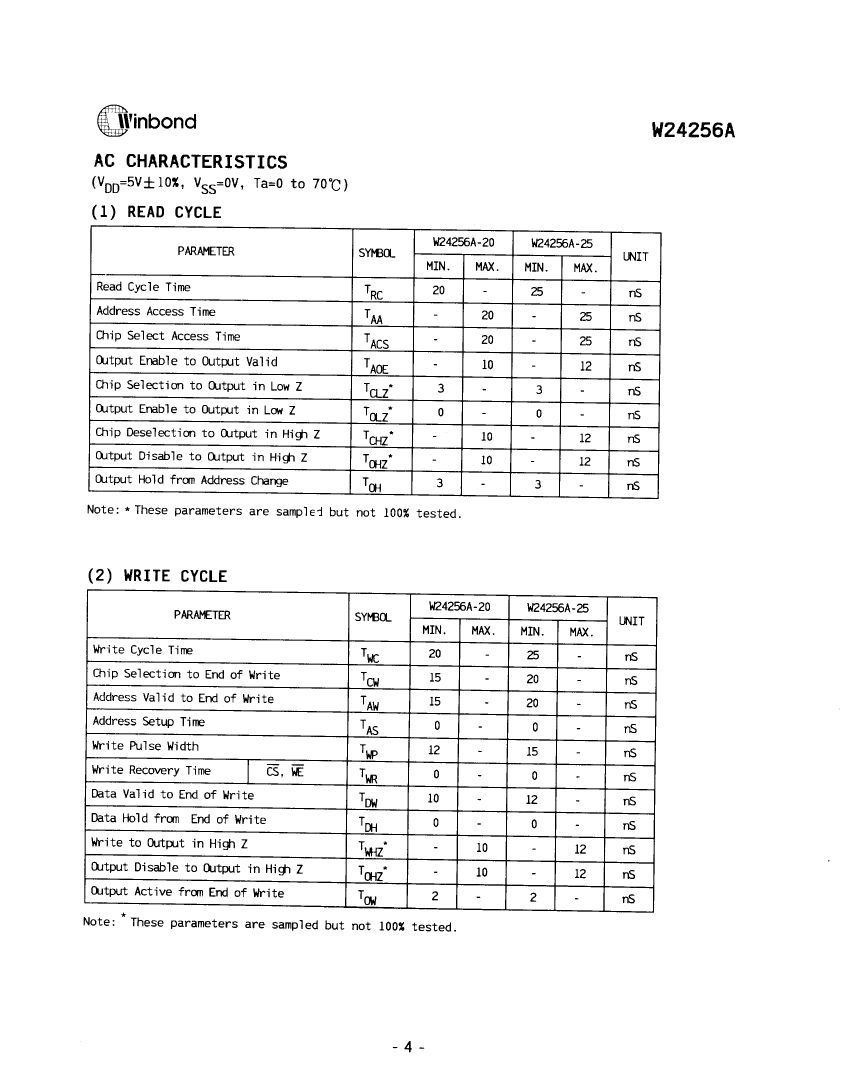

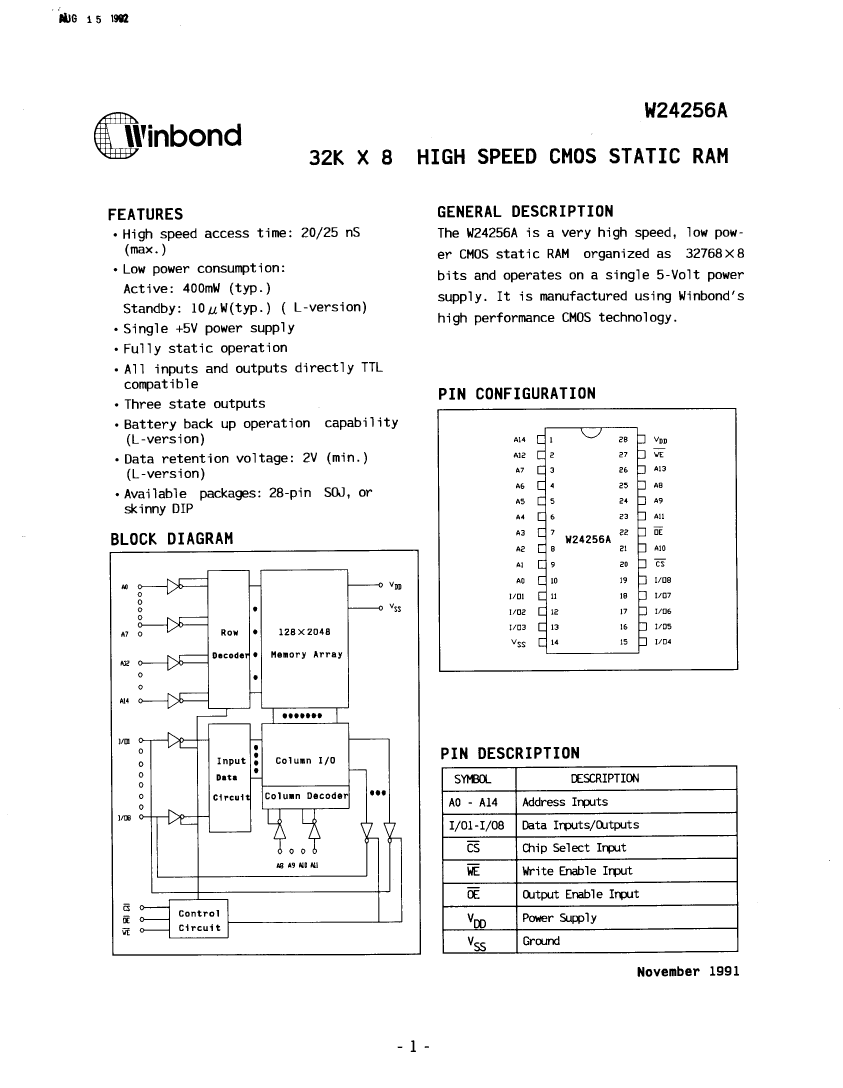

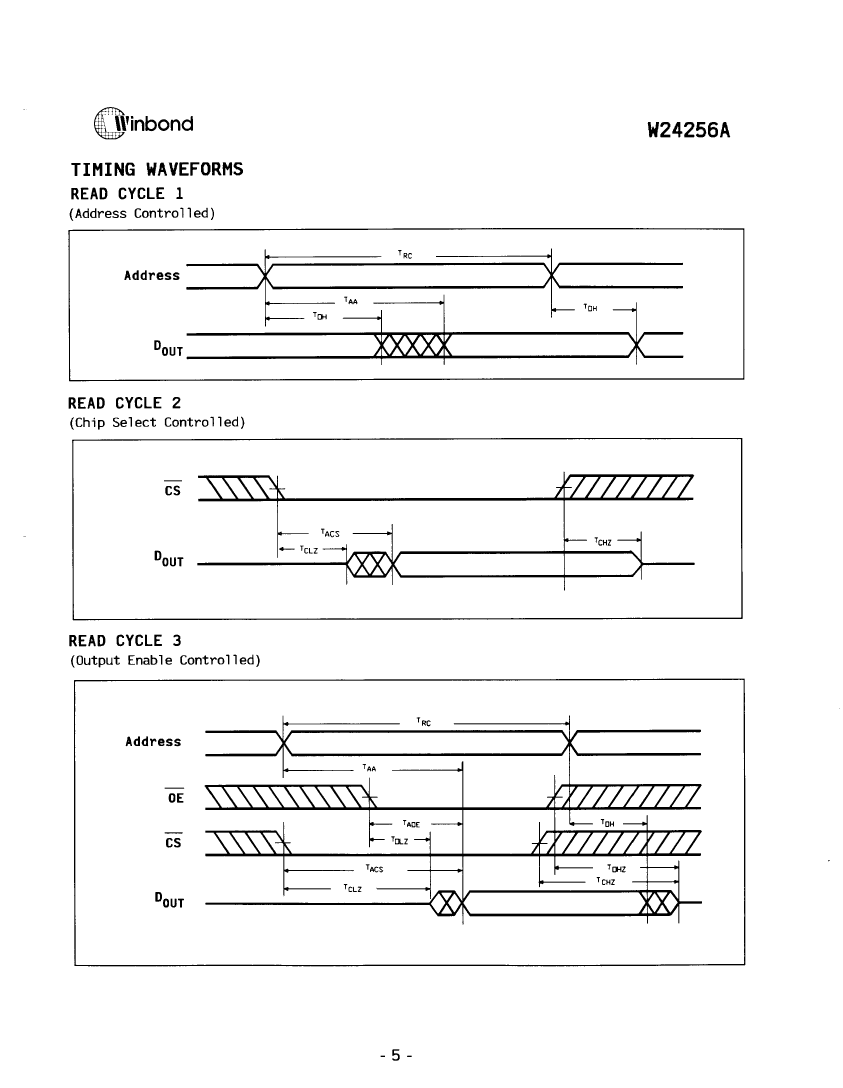

Preview

W24256AJ-20: DescriptionStandard SRAM, 32KX8, 20ns, CMOS, PDSO28; Categorystorage storage; File Size409KB，10 Pages; ManufacturerWinbond Electronics Corporation; Websitehttp://www.winbond.com.tw

Download Datasheet Parametric Compare View All

W24256AJ-20 Overview

Standard SRAM, 32KX8, 20ns, CMOS, PDSO28

W24256AJ-20 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Winbond Electronics Corporation
Reach Compliance Code	not_compliant
Maximum access time	20 ns
I/O type	COMMON
JESD-30 code	R-PDSO-J28
JESD-609 code	e0
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOJ
Encapsulate equivalent code	SOJ28,.34
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.002 A
Minimum standby current	4.5 V
Maximum slew rate	0.2 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

W24256AJ-20 Related Products

	W24256AJ-20	W24256AK-25L	W24256AK-25	W24256AJ-25L	W24256AJ-35L	W24256AJ-25	W24256-10	W24256-12	W24256-12L
Description	Standard SRAM, 32KX8, 20ns, CMOS, PDSO28	Standard SRAM, 32KX8, 25ns, CMOS, PDIP28	Standard SRAM, 32KX8, 25ns, CMOS, PDIP28	Standard SRAM, 32KX8, 25ns, CMOS, PDSO28	Standard SRAM, 32KX8, 35ns, CMOS, PDSO28	Standard SRAM, 32KX8, 25ns, CMOS, PDSO28	Standard SRAM, 32KX8, 100ns, CMOS, PDIP28	Standard SRAM, 32KX8, 120ns, CMOS, PDIP28	Standard SRAM, 32KX8, 120ns, CMOS, PDIP28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation	Winbond Electronics Corporation
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
Maximum access time	20 ns	25 ns	25 ns	25 ns	35 ns	25 ns	100 ns	120 ns	120 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-J28	R-PDIP-T28	R-PDIP-T28	R-PDSO-J28	R-PDSO-J28	R-PDSO-J28	R-PDIP-T28	R-PDIP-T28	R-PDIP-T28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
memory density	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8	8	8	8	8
Number of terminals	28	28	28	28	28	28	28	28	28
word count	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000	32000	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOJ	DIP	DIP	SOJ	SOJ	SOJ	DIP	DIP	DIP
Encapsulate equivalent code	SOJ28,.34	DIP28,.3	DIP28,.3	SOJ28,.34	SOJ28,.34	SOJ28,.34	DIP28,.6	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.002 A	0.0001 A	0.002 A	0.0001 A	0.0001 A	0.002 A	0.001 A	0.001 A	0.00005 A
Minimum standby current	4.5 V	2 V	4.5 V	2 V	2 V	4.5 V	4.5 V	4.5 V	2 V
Maximum slew rate	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.2 mA	0.08 mA	0.08 mA	0.08 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
