FQD13N06 / FQU13N06
May 2001
QFET
FQD13N06 / FQU13N06
60V N-Channel MOSFET

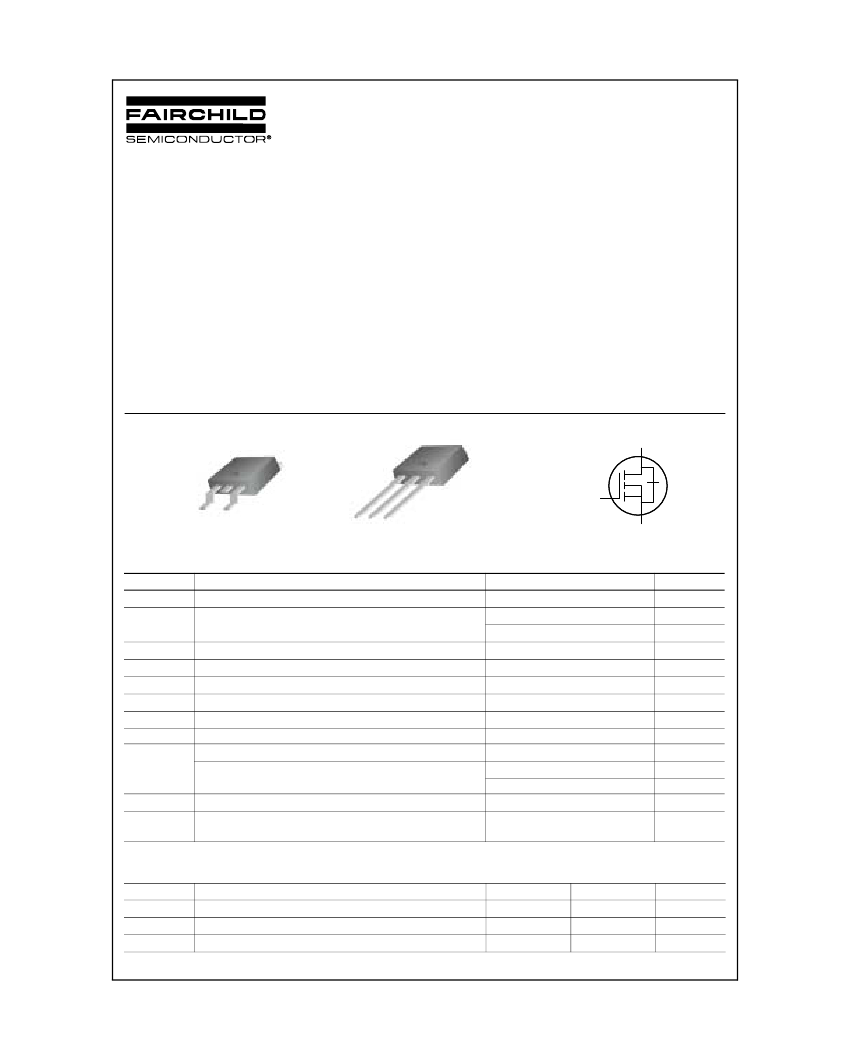

General Description
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary,
planar stripe, DMOS technology.
This advanced technology has been especially tailored to
minimize on-state resistance, provide superior switching
performance, and withstand high energy pulse in the
avalanche and commutation mode. These devices are well
suited for low voltage applications such as DC/DC
converters, high efficiency switching for power
management in portable and battery operated products.
TM
Features
•
•
•
•
•
•
10A, 60V, R
DS(on)
= 0.14Ω @V
GS
= 10 V
Low gate charge ( typical 5.8 nC)
Low Crss ( typical 15 pF)
Fast switching
100% avalanche tested
Improved dv/dt capability
D
D
!
"
G
!
G
S
! "
"
"
D-PAK
FQD Series
I-PAK
G D S
FQU Series
!
S
Absolute Maximum Ratings
Symbol
V
DSS
I
D
I
DM
V
GSS
E
AS
I
AR
E
AR
dv/dt
P
D
T
C
= 25°C unless otherwise noted
Parameter
Drain-Source Voltage
- Continuous (T
C
= 25°C)
Drain Current
- Continuous (T
C
= 100°C)
Drain Current
- Pulsed
(Note 1)
FQD13N06 / FQU13N06
60
10
6.3
40
±
25
(Note 2)
(Note 1)
(Note 1)
(Note 3)
Units
V
A
A
A
V
mJ
A
mJ
V/ns
W
W
W/°C
°C
°C
Gate-Source Voltage
Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Peak Diode Recovery dv/dt
Power Dissipation (T
A
= 25°C) *
Power Dissipation (T
C
= 25°C)
85
10
2.8
7.0
2.5
28
0.22
-55 to +150
300
T
J
, T
STG
T
L
- Derate above 25°C
Operating and Storage Temperature Range
Maximum lead temperature for soldering purposes,
1/8" from case for 5 seconds
Thermal Characteristics
Symbol
R
θJC
R
θJA
R
θJA
Parameter
Thermal Resistance, Junction-to-Case
Thermal Resistance, Junction-to-Ambient *
Thermal Resistance, Junction-to-Ambient
Typ
--
--
--
Max
4.5
50
110
Units
°C/W
°C/W
°C/W
* When mounted on the minimum pad size recommended (PCB Mount)
©2001 Fairchild Semiconductor Corporation
Rev. A1. May 2001
FQD13N06 / FQU13N06
Electrical Characteristics
Symbol
Parameter
T
C
= 25°C unless otherwise noted
Test Conditions
Min
Typ
Max
Units
Off Characteristics
BV
DSS
∆BV
DSS
/
∆T
J
I
DSS
I
GSSF
I
GSSR
Drain-Source Breakdown Voltage
Breakdown Voltage Temperature
Coefficient
Zero Gate Voltage Drain Current
Gate-Body Leakage Current, Forward
Gate-Body Leakage Current, Reverse
V
GS
= 0 V, I
D
= 250
µA
I
D
= 250
µA,
Referenced to
25°C
V
DS
= 60 V, V
GS
= 0 V
V
DS
= 48 V, T
C
= 125°C
V
GS
= 25 V, V
DS
= 0 V
V
GS
= -25 V, V
DS
= 0 V
60
--
--
--
--
--
--
0.06
--
--
--
--
--
--
1
10
100
-100
V
V/°C
µA
µA
nA
nA
On Characteristics
V
GS(th)
R
DS(on)
g
FS
Gate Threshold Voltage
Static Drain-Source On-Resistance
Forward Transconductance
V
DS
= V
GS
, I
D
= 250
µA
V
GS
= 10 V, I
D
= 5.0 A
V
DS
= 25 V, I
D
= 5.0 A
(Note 4)
2.0
--
--
--
0.11
4.9
4.0
0.14
--
V
Ω
S
Dynamic Characteristics
C
iss
C
oss
C
rss
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
V
DS
= 25 V, V
GS
= 0 V,
f = 1.0 MHz
--
--
--
240
90
15
310
120
20
pF
pF
pF
Switching Characteristics
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
gs
Q
gd
Turn-On Delay Time
Turn-On Rise Time
Turn-Off Delay Time
Turn-Off Fall Time
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
V
DS
= 48 V, I
D
= 13 A,
V
GS
= 10 V
(Note 4, 5)
V
DD
= 30 V, I
D
= 6.5 A,
R
G
= 25
Ω
(Note 4, 5)
--
--
--
--
--
--
--
5
25
8
15
5.8
2.0
2.5
20
60
25
40
7.5
--
--
ns
ns
ns
ns
nC
nC
nC
Drain-Source Diode Characteristics and Maximum Ratings
I
S
I
SM
V
SD
t
rr
Q
rr
Maximum Continuous Drain-Source Diode Forward Current
Maximum Pulsed Drain-Source Diode Forward Current
V
GS
= 0 V, I
S
= 10 A
Drain-Source Diode Forward Voltage
Reverse Recovery Time
Reverse Recovery Charge
V
GS
= 0 V, I
S
= 13 A,
dI
F
/ dt = 100 A/µs
(Note 4)
--
--
--
--
--
--
--
--
39
40
10
40
1.5
--
--
A
A
V
ns
nC
Notes:
1. Repetitive Rating : Pulse width limited by maximum junction temperature
2. L = 990
µ
H, I
AS
= 10A, V
DD
= 25V, R
G
= 25
Ω,
Starting T
J
= 25°C
3. I
SD
≤
13A, di/dt
≤
300A/us, V
DD
≤
BV
DSS,
Starting T
J
= 25°C
4. Pulse Test : Pulse width
≤
300µs, Duty cycle
≤
2%
5. Essentially independent of operating temperature
©2001 Fairchild Semiconductor Corporation
Rev. A1. May 2001
FQD13N06 / FQU13N06
Typical Characteristics
10
1
10
0
I
D
, Drain Current [A]
I
D
, Drain Current [A]
V
GS
15.0 V
10.0 V
8.0 V
7.0 V
6.0 V
5.5 V
5.0 V
Bottom : 4.5 V
Top :
10
1
10
0
150℃
10
-1
※
Notes :
1. 250μ s Pulse Test
2. T
C
= 25℃
25℃
-55℃
10
-1
※
Notes :
1. V
DS
= 25V
2. 250μ s Pulse Test
10
-1
10
0
10
1
2
4
6
8
10
V
DS
, Drain-Source Voltage [V]
V
GS
, Gate-Source Voltage [V]

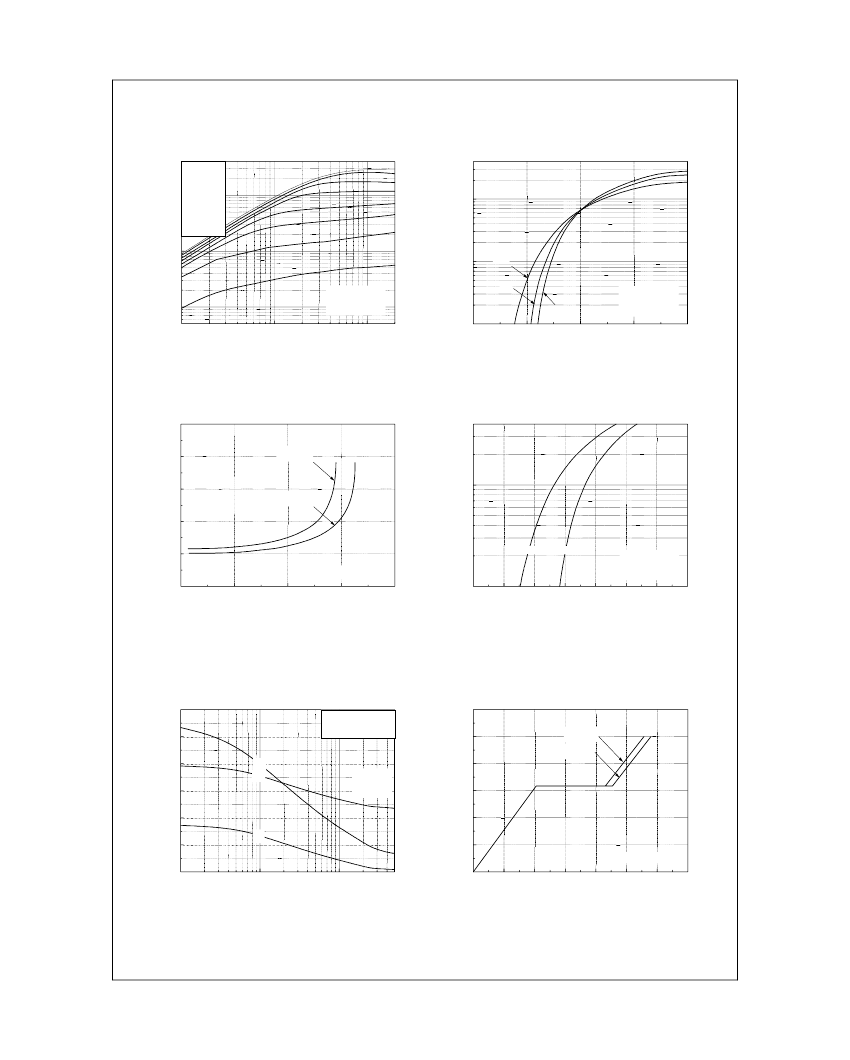

Figure 1. On-Region Characteristics
Figure 2. Transfer Characteristics
500
R
DS(ON)
[mΩ ],
Drain-Source On-Resistance
400
V
GS
= 10V
I
DR
, Reverse Drain Current [A]
300
10
1
V
GS
= 20V
200
100
※
Note : T
J
= 25℃
150℃
25℃
※
Notes :
1. V
GS
= 0V
2. 250μ s Pulse Test
0
0
10
20
30
40
10
0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
I
D
, Drain Current [A]
V
SD
, Source-Drain voltage [V]
Figure 3. On-Resistance Variation vs.
Drain Current and Gate Voltage
Figure 4. Body Diode Forward Voltage
Variation vs. Source Current
and Temperature
600
C
iss
= C
gs
+ C
gd
(C
ds
= shorted)
C
oss
= C
ds
+ C
gd
C
rss
= C
gd
12
500
10
V
DS
= 30V
V
DS
= 48V
400
C
iss
C
oss
※
Notes :
1. V
GS
= 0 V
2. f = 1 MHz
V
GS
, Gate-Source Voltage [V]
8
Capacitance [pF]
300
6
200
4
C
rss
100
2
※
Note : I
D
= 13 A
0
-1
10
0
10
0
10
1
0
1
2
3
4
5
6
7
V
DS
, Drain-Source Voltage [V]
Q
G
, Total Gate Charge [nC]
Figure 5. Capacitance Characteristics
Figure 6. Gate Charge Characteristics
©2001 Fairchild Semiconductor Corporation
Rev. A1. May 2001
FQD13N06 / FQU13N06
Typical Characteristics
(Continued)
1.2
2.5
BV
DSS
, (Normalized)
Drain-Source Breakdown Voltage
2.0
R
DS(ON)
, (Normalized)
Drain-Source On-Resistance
1.1
1.5
1.0
1.0
0.9
※
Notes :
1. V
GS
= 0 V
2. I
D
= 250
μ
A
0.5
※
Notes :
1. V
GS
= 10 V
2. I
D
= 5.0 A
0.8
-100
-50
0
50
100
o
150
200
0.0
-100
-50
0
50
100
o
150
200
T
J
, Junction Temperature [ C]
T
J
, Junction Temperature [ C]
Figure 7. Breakdown Voltage Variation
vs. Temperature
Figure 8. On-Resistance Variation
vs. Temperature
10
10
2
Operation in This Area
is Limited by R
DS(on)
8
100
µ
s
I
D
, Drain Current [A]
10
1
1 ms
10 ms
DC
I
D
, Drain Current [A]
2
6
4
10
0
※
Notes :
1. T
C
= 25 C
2. T
J
= 150 C
3. Single Pulse
o
o
2
10
-1
10
-1
10
0
10
1
10
0
25
50
75
100
125
150
V
DS
, Drain-Source Voltage [V]
T
C
, Case Temperature [
℃
]
Figure 9. Maximum Safe Operating Area
Figure 10. Maximum Drain Current
vs. Case Temperature
( t) , T h e r m a l R e s p o n s e
D = 0 .5
10
0
0 .2
0 .1
0 .0 5
0 .0 2
0 .0 1
s i n g le p u ls e
※
N o te s :
1 . Z
θ
J C
( t) = 4 .5
℃
/W M a x .
2 . D u ty F a c to r , D = t
1
/t
2
3 . T
J M
- T
C
= P
D M
* Z
θ
J C
( t)
JC
10
-1
P
DM
t
1
t
2
Z
θ
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
t
1
, S q u a r e W a v e P u ls e D u r a t io n [ s e c ]

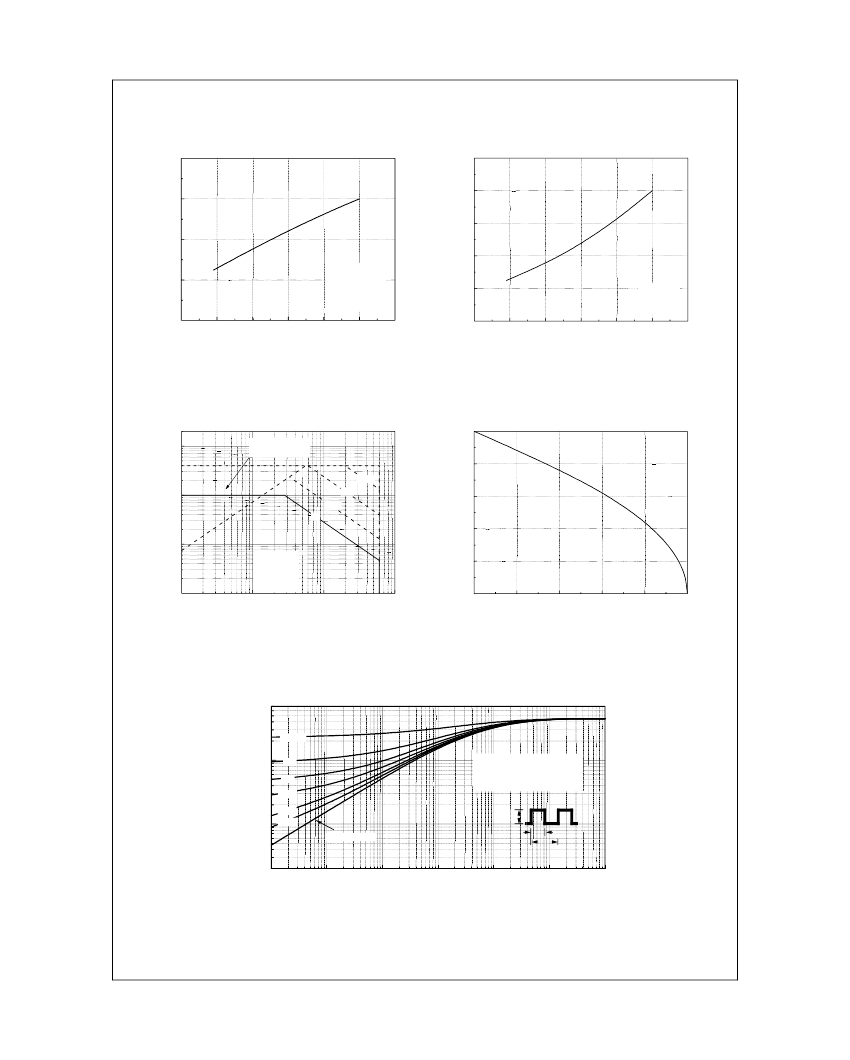

Figure 11. Transient Thermal Response Curve
©2001 Fairchild Semiconductor Corporation
Rev. A1. May 2001
FQD13N06 / FQU13N06
©2001 Fairchild Semiconductor Corporation
Rev. A1. May 2001
