FST16211 24-Bit Bus Switch

July 1997

Revised August 2000

FST16211

24-Bit Bus Switch

General Description

The Fairchild Switch FST16211 provides 24-bits of high-

speed CMOS TTL-compatible bus switching. The low on

resistance of the switch allows inputs to be connected to

outputs without adding propagation delay or generating

additional ground bounce noise.

The device is organized as a 12-bit or 24-bit bus switch.

When OE

is LOW, the switch is ON and Port 1A is con-

nected to Port 1B. When OE

is LOW, Port 2A is connected

to Port 2B. When OE

1/2

is HIGH, a high impedance state

exists between the A and B Ports.

Features

Ω

switch connection between two ports

Minimal propagation delay through the switch

Low l

Zero bounce in flow-through mode

Control inputs compatible with TTL level

Also packaged in plastic Fine Pitch Ball Grid Array

(FBGA)

Ordering Code:

Order Number

FST16211GX

(Note 1)

FST16211MEA

FST16211MTD

Package Number

BGA54A

Preliminary

MS56A

MTD56

Package Description

54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-195, 5.5mm Wide

[TAPE and REEL]

56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300 Wide

56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Note 1:

BGA package available in Tape and Reel only.

Logic Diagram

DS500037

www.fairchildsemi.com

FST16211

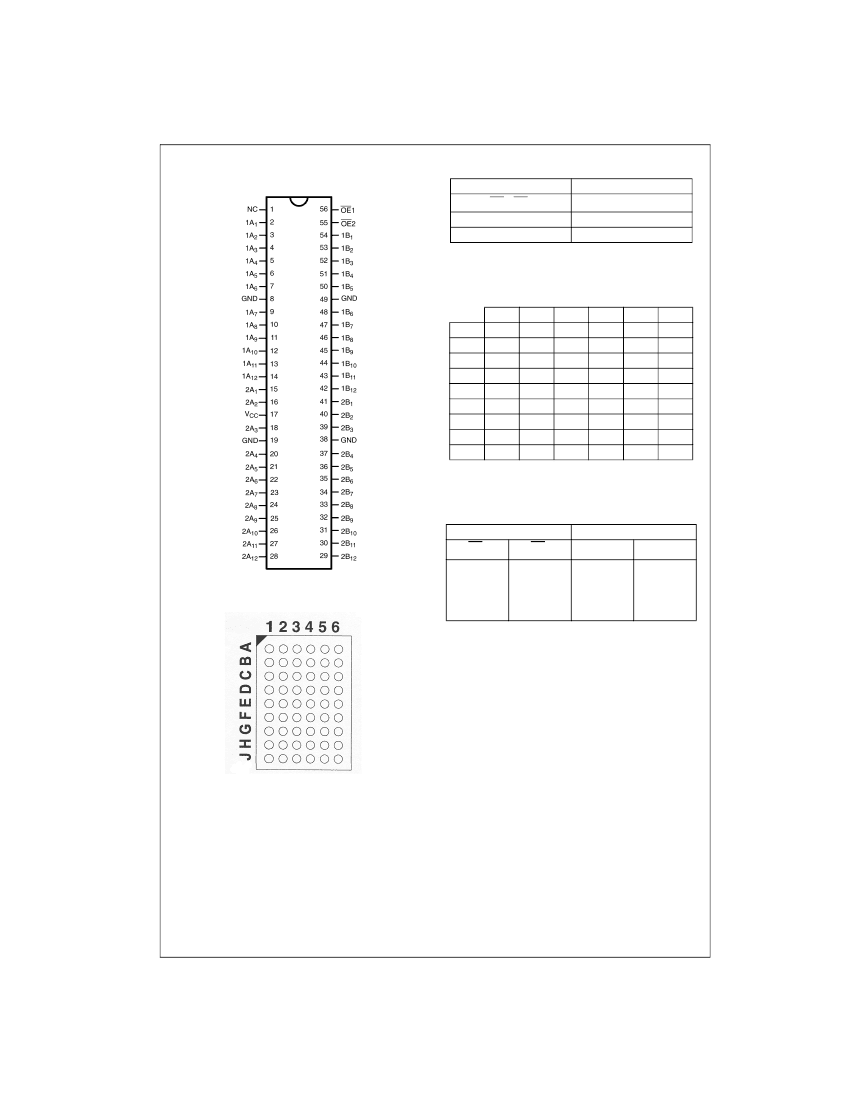

Connection Diagrams

Pin Assignment for SSOP and TSSOP

Pin Descriptions

Pin Name

, OE

1A, 2A

1B, 2B

Description

Bus Switch Enables

Bus A

Bus B

FBGA Pin Assignments

GND

Truth Table

Inputs

Pin Assignment for FBGA

Inputs/Outputs

1A, 1B

2A, 2B

TOP VIEW

www.fairchildsemi.com

FST16211

Absolute Maximum Ratings

(Note 2)

Supply Voltage (V

)

DC Switch Voltage (V

) (Note 3)

DC Input Voltage (V

) (Note 4)

DC Input Diode Current (l

) V

DC Output (I

OUT

) Sink Current

DC V

/GND Current (I

GND

)

Storage Temperature Range (T

STG

)

−

0.5V to

7.0V

−

0.5V to

7.0V

−

0.5V to

7.0V

−

50mA

128mA

Recommended Operating

Conditions

(Note 5)

Power Supply Operating (V

CC)

Input Voltage (V

)

Output Voltage (V

OUT

)

Input Rise and Fall Time (t

, t

)

Switch Control Input

Switch I/O

Free Air Operating Temperature (T

)

0nS/V to 5nS/V

0nS/V to DC

-40

C to

4.0V to 5.5V

0V to 5.5V

−

100mA

−

C to

150

Note 2:

The “Absolute Maximum Ratings” are those values beyond which

the safety of the device cannot be guaranteed. The device should not be

operated at these limits. The parametric values defined in the Electrical

Characteristics tables are not guaranteed at the absolute maximum rating.

The “Recommended Operating Conditions” table will define the conditions

for actual device operation.

Note 3:

is the voltage observed/applied at either A or B Ports across the

switch.

Note 4:

The input and output negative voltage ratings may be exceeded if

the input and output diode current ratings are observed.

Note 5:

Unused control inputs must be held HIGH or LOW. They may not

float.

DC Electrical Characteristics

Symbol

Parameter

Clamp Diode Voltage

HIGH Level Input Voltage

LOW Level Input Voltage

Input Leakage Current

OFF-STATE Leakage Current

Switch On Resistance

(Note 7)

(V)

4.5

4.0–5.5

5.5

4.5

4.0

∆

Quiescent Supply Current

Increase in I

per Input

5.5

2.0

0.8

±1.0

2.5

= −40 °C

+85 °C

Min

Typ

(Note 6)

Max

−1.2

Units

µA

Ω

µA

≤

5.5V

≤

A, B

≤

0V, I

64mA

0V, I

30mA

2.4V, I

15mA

2.4V, I

15mA

or GND, I

OUT

One input at 3.4V

Other inputs at V

or GND

Note 6:

Typical values are at V

5.0V and T

= +25°C

Note 7:

Measured by the voltage drop between A and B pins at the indicated current through the switch. On resistance is determined by the lower of the

voltages on the two (A or B) pins.

Conditions

= −18mA

www.fairchildsemi.com

FST16211

AC Electrical Characteristics

= −40 °C

+85 °C,

Symbol

Parameter

50pF, RU

500Ω

4.5 – 5.5V

Min

PHL

PLH

PZH

, t

PZL

PHZ

, t

PLZ

Prop Delay Bus to Bus (Note 8)

Output Enable Time

Output Disable Time

1.5

Max

0.25

6.0

7.0

4.0V

Min

Max

0.25

6.5

7.2

OPEN

7V for t

PZL

OPEN for t

PZH

7V for t

PLZ

OPEN for t

PHZ

Figures

1, 2

Figures

1, 2

Figures

1, 2

Units

Conditions

Figure

No.

Note 8:

This parameter is guaranteed by design but is not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On

resistance of the switch and the 50pF load capacitance, when driven by an ideal voltage source (zero output impedance).

Capacitance

Symbol

I/O

(Note 9)

Parameter

Typ

Max

Units

Conditions

5.0V

, OE

5.0V

Control Pin Input Capacitance

Input/Output Capacitance

Note 9:

= +25°C,

1 MHz, Capacitance is characterized but not tested.

AC Loading and Waveforms

Note:

Input driven by 50

Ω

source terminated in 50

Ω

Note:

includes load and stray capacitance

Note:

Input PRR

1.0 MHz, t

500 ns

FIGURE 1. AC Test Circuit

FIGURE 2. AC Waveforms

www.fairchildsemi.com

FST16211

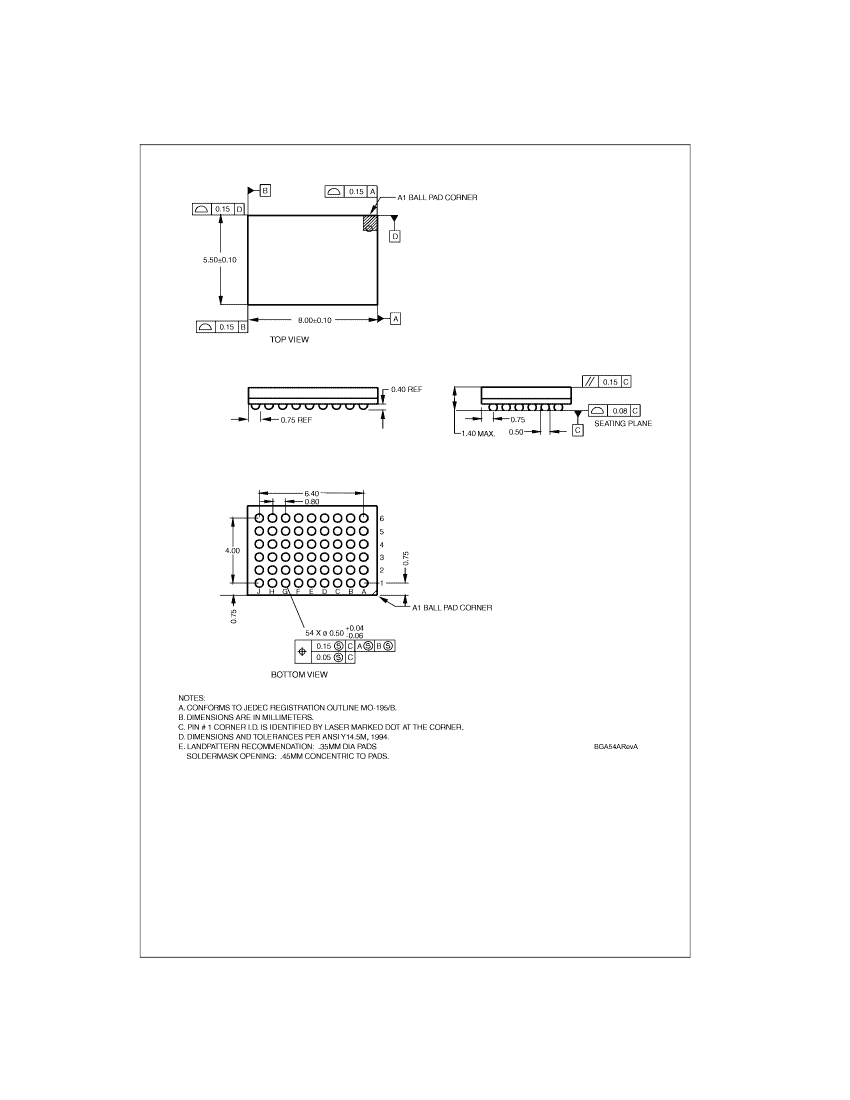

Physical Dimensions

inches (millimeters) unless otherwise noted

54-Ball Fine-Pitch Ball Grid Array (FBGA), JEDEC MO-195, 5.5mm Wide

Package Number BGA54A

Preliminary

www.fairchildsemi.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
