REVISION CD
1. C REPRESENTS A CRITICAL DIMENSION
2. MINIMUM PUSHOUT FORCE: .5LB (8 OZ)
3. ONE POSITON WILL BE LOST FOR EVERY CUT MADE ON A
SOCKET STRIP
4. TUBE PACKAGE POSITIONS 5-50 ONLY. POSITIONS 2-4 ARE
TO BE LAYERED PACKAGED.
5. SHEAR TAILS TO DIMENSIONS SHOWN
6. PARTS TO BE SYMMETRICAL ABOUT C WITHIN ±.0015[0.038].
L
7. ENDWALL AFTER CUTTING: .0185[0.470]±.0025[0.064]
8. VOID CORES MAY NOT BE PRESENT.
CD 9. HAND FILL USE C-106-01-XX.
AUTOMATION USE C-106-22-XX.
C-106-02-XX CAN BE
SUBBED FOR C-106-22-XX.
C
10. MAX CUT FLASH: .010[0.27] WITH NO FLASH ALLOWED IN
HOLES OR EXTENDING BELOW LEADS.
C
11. MAX BURR: .005[.13].
CLP-1XX-XX-XXX-D-XX
No OF POSITIONS PER ROW
-02 THRU -50
LEAD STYLE SPEC
-02: SURFACE MOUNT
(USE C-106-X2-XXX)
(SEE NOTE 9)
OPTION
-P: PICK & PLACE PAD (USE MPP-01)
(AVAILABLE ON POSITON -05 THRU -50 ONLY)
(NOT AVAILABLE WITH -PA OR -K OPTIONS)
(SEE FIG. 3, SHT 2)
-A: ALIGNMENT PIN (USE CLP-XX-D-XX)
(NOT AVAILABLE WITH -PA OPTION)
(SEE FIG. 3, SHT 2)
-TR: TAPE AND REEL
-BE: BOTTOM ENTRY ONLY (USE CLP-XX-DBE-XX)
-PA: PICK & PLACE PAD WITH ALIGNMENT PINS
(NOT AVAILABLE WITH -P, -A, OR -K OPTIONS)
(SEE SHT 2, TABLE 3)
-K: POLYIMIDE FILM PAD (POSITIONS -05 THRU -50 ONLY)
(USE K-500-300, SEE FIG. 5, SHT 2)
(.005[0.13] THICKNESS WITH SILICONE ADHESIVE)
(NOT AVAILABLE WITH -P OR -PA OPTIONS)
BODY SPEC
-D: DOUBLE ROW
(USE CLP-XX-D)
PLATING SPEC
(VALUES GIVEN ARE IN MICRO-INCHES)
-F: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-L: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-S: SELECTIVE, 30 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-G: GOLD, 10 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-H: HEAVY GOLD, 30 Au / 50 Ni MIN ON
CONTACT, 3 Au / 50 Ni MIN ON TAIL
-LM: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-FM: FLASH SELECTIVE, 3 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-SM: SELECTIVE, 30 Au / 50 Ni MIN ON
CONTACT, MATTE TIN TAIL
-LTL: LIGHT SELECTIVE, 10 Au / 50 Ni MIN ON
CONTACT, TIN/LEAD (90/10+/-5%) TAIL
No OF POS x .0500[1.270]) - .0500[1.270]
(TOLERANCE ACCUM ±.0020[0.051])
.034 0.85
REF
02
.050 1.27 REF
01
CLP-XX-D-XX
-D
-D-BE
CLP-XX-DBE-XX
C
C
(No OF POS X .0500[1.270]) + .017[0.43]±.008[0.20]
(SEE NOTE 3 AND 7)
.120 3.05
REF
"A"
.084 2.12 REF
"B"
"B"
-D-BE
.170±.010 4.31±0.25
.090
- .001
2.29
- 0.03
(MEASURE AT BEND)
+4
.004[[0.10] POS. 02-35
.006[0.15] POS. 36-50
-3
+.003
+0.08
"A"
-D
.016 0.41 x .005[0.13] REF
SECTION "B"-"B"
(-D-BE BODY: CLP-XX-DBE-XX)
(DIFFERENT AS SHOWN,
OTHERWISE SAME AS -D BODY)
2.5 MAX SWAY
(TYP)
C-106-22-XXX
(-D BODY: CLP-XX-D-XX)
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
SECTION "A"-"A"
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
-D
-D-BE
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 3:1
LOW PROFILE .050 x .050 DOUBLE ROW ASM
DWG. NO.
DESCRIPTION:

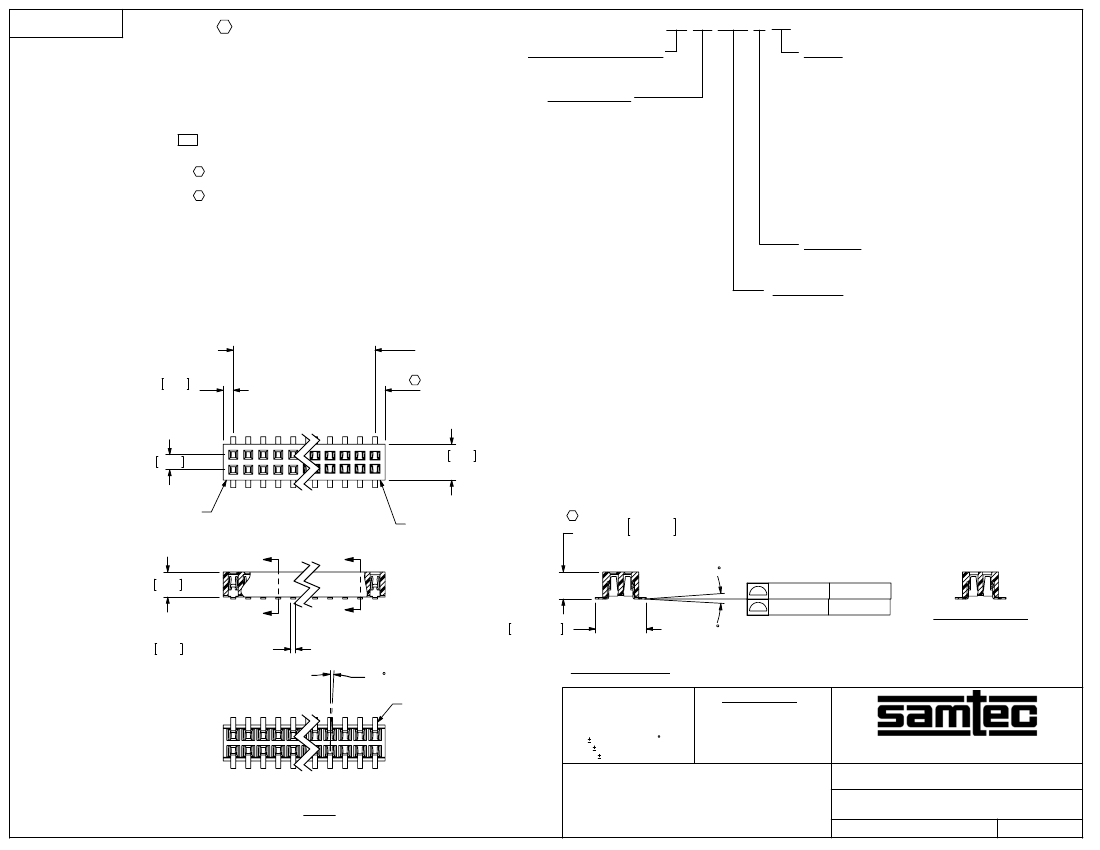

FIG. 1
INSULATOR: LCP, UL 94 VO, COLOR: BLACK
CONTACT: PHOS BRONZE
F:\DWG\MISC\MKTG\CLP-1XX-XX-XXX-D-XX-MKT.SLDDRW
CLP-1XX-XX-XXX-D-XX
01/31/1994
SHEET
1
OF
3
BY:
PURVIS
REVISION CD
C
"N" (SEE NOTE)
C

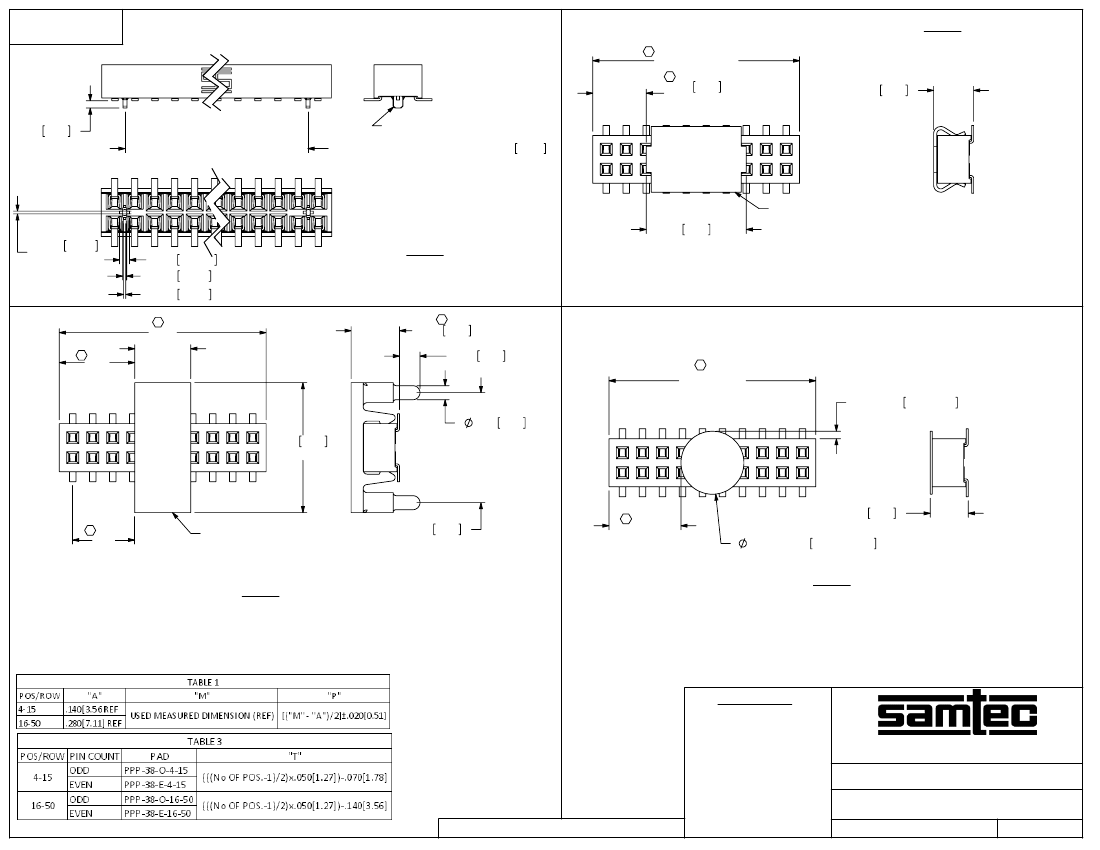

-P: PICK AND PLACE PAD
(AVAILABLE ON POSITION 05 THRU 50 ONLY)
(NOT AVAILABLE WITH -PA OR -K OPTIONS)
.100 2.54
FIG. 3
"Q" 3.45
(SEE NOTE)
.019 0.47
.005 X 45° REF (TYP 4 SIDES)
(No OF POS x .0500[1.270]) - .100[2.54] 22.86
MPP-01
.250 6.35 REF
.0070 0.178
REF (TYP)
.025 0.6350 REF (TYP)
.0100 0.254 REF (TYP)
.0050 0.127 REF (TYP)
"M"
C
C
-A: ALIGNMENT PIN
(3 POSITION MINIMUM)
(NOT AVAILABLE WITH -PA OPTION)
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1)
.121 3.07
.051 1.30
C
C
FIG. 2
AVAILABLE ON POSITIONS 05 THRU 50 ONLY
NOTE: "N" = USED MEASURED DIMENSION (REF)
"Q" = [("N" - .250[6.35])/2] ±.020[0.51]
"P"
"A"
"R"
(SEE NOTE)
.019±.010 0.48±0.25
.035 0.89 REF
.325 8.26
REF
C
"T"
PPP-38-X-X-XX
.275 6.99
"S"
(SEE NOTE)
C
.095 2.41
.1575±.0050 4.000±0.127
-PA: PICK & PLACE PAD WITH ALIGNMENT PINS
(NOT AVAILABLE WITH -P, -A OR -K OPTIONS)
FIG. 4
-K: POLYIMIDE FILM PAD
(AVAILABLE ON POSITION 05 THRU 50 ONLY)
(NOT AVAILABLE WITH -P OR -PA OPTIONS)
NOTE: "R" = USED MEASURED DIMENSION (REF)
"S" = {("R" - .1575[4.000])/2} ±.020[0.51]
FIG. 5
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
SHEET SCALE: 4:1
LOW PROFILE .050 x .050 DOUBLE ROW ASM
DWG. NO.
DESCRIPTION:
CLP-1XX-XX-XXX-D-XX
01/31/1994
SHEET
2
OF
3
F:\DWG\MISC\MKTG\CLP-1XX-XX-XXX-D-XX-MKT.SLDDRW
BY:
PURVIS
