Part Number:
XZMYH95W-2
APOLLO
PRELIMINARY SPEC
Features
PLCC-4 package.
Single color.
High luminance.
High power,operating current @350mA.
Suitable for all SMT assembly methods.
Package : 300pcs / reel.
Moisture sensitivity level : level 4.
RoHS compliant.
ATTENTION
OBSERVE PRECAUTIONS
FOR HANDLING
ELECTROSTATIC
DISCHARGE
SENSITIVE
DEVICES

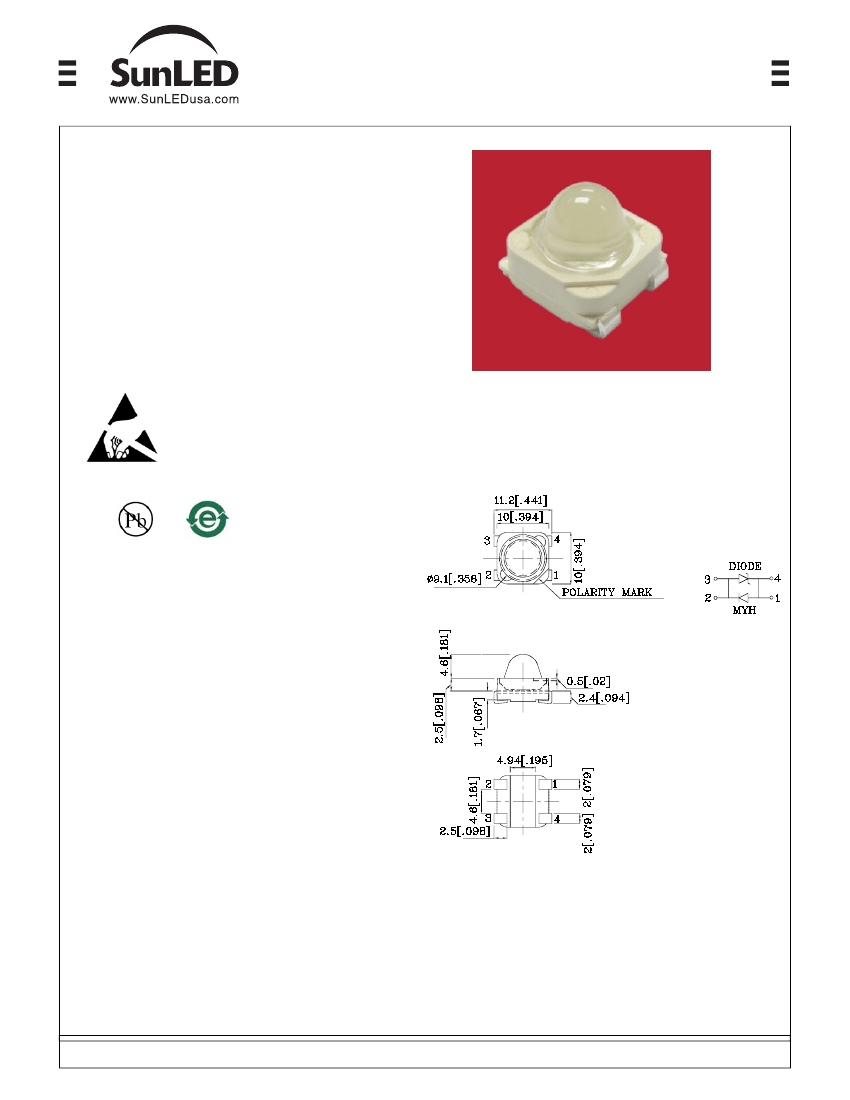

Outline Drawings
Applications
Traffic signaling.
Backlighting (illuminated advertising , general lighting).
Interior and exterior automotive lighting.
Substitution of micro incandescent lamps.
Portable light source (e.g. bicycle flashlight).
Signal and symbol luminaire for orientation.
Marker lights (e.g. steps, exit ways, etc).
Decorative and entertainment lighting .
Indoor and outdoor commercial and residential
architectural lighting.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±
0.25(0.01
") unless otherwise noted.
3. Specifications are subject to change without notice.
Published Date : NOV 13 , 2008
Drawing No : XDSA9257
V6
Checked : B.L.LIU
P. 1/5
Part Number:
XZMYH95W-2
APOLLO
Luminous
Intensity
(IF=350mA)
cd
min.
XZMYH95W-2
Yellow
InGaAlP
Water Clear
50
typ.
100
Luminous
Flux
(IF=350mA)
lm
min.
18
typ.
37
590
20
°
Wavelength
nm
λ
P
Viewing
Angle
2
θ
1/2 [2]
Part
Number
Emitting
Color
Emitting
Material
Lens-color
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power Dissipation
Junction Temperature
Operating Temperature
Storage Temperature
DC Forward Current[1]
Peak Forward Current [3]
Thermal resistance [1]
Symbol
P
t
T
J
Top
Tstg
I
F
I
FM
R
th
Value
1.2
110
-40 To +85
-40 To +85
350
500
80
Unit
W
°C
°C
°C
mA
mA
°C/W
Notes:
1.Results from mounting on PC board FR4(pad size
≥
100mm
2
per pad), mounted on pc board-metal core PCB is recommend
for lowest thermal Resistance.
2.θ 1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
3.1/10 Duty Cycle, 0.1ms Pulse Width.
Electrical / Optical Characteristics at T
A
=25°C
Parameter
Wavelength of peak emission
Dominant Wavelength
Spectral bandwidth at 50%
Φ
I
F
=350mA [Typ.]
Symbol
λ
peak
λ
dom
Δλ
Value
590
588
20
20
2.0
V
F
2.5
3.0
TC
λ
peak
TC
λ
dom
TC
V
0.15
0.13
-2.0
nm/
°
C
nm/
°
C
mV/
°
C
V
Unit
nm
nm
nm
I
F
=350mA [Typ.]
REL MAX
I
F
=350mA [Typ.]
Viewing angle at 50%
Φ
V
[Typ.]
Forward Voltage I
F
=350mA [Min.]
Forward Voltage I
F
=350mA [Typ.]
Forward Voltage I
F
=350mA [Max.]
Temperature coefficient of lpeak
I
F
=350mA, -10
°
C≤ T≤100
°
C [Typ.]
Temperature coefficient of ldom
I
F
=350mA, -10
°
C≤ T≤100
°
C [Typ.]
Temperature coefficient of V
F
I
F
=350mA, -10
°
C≤ T≤100
°
C [Typ.]
θ
°
Published Date : NOV 13 , 2008
Drawing No : XDSA9257
V6
Checked : B.L.LIU
P. 2/5
Part Number:
XZMYH95W-2
APOLLO

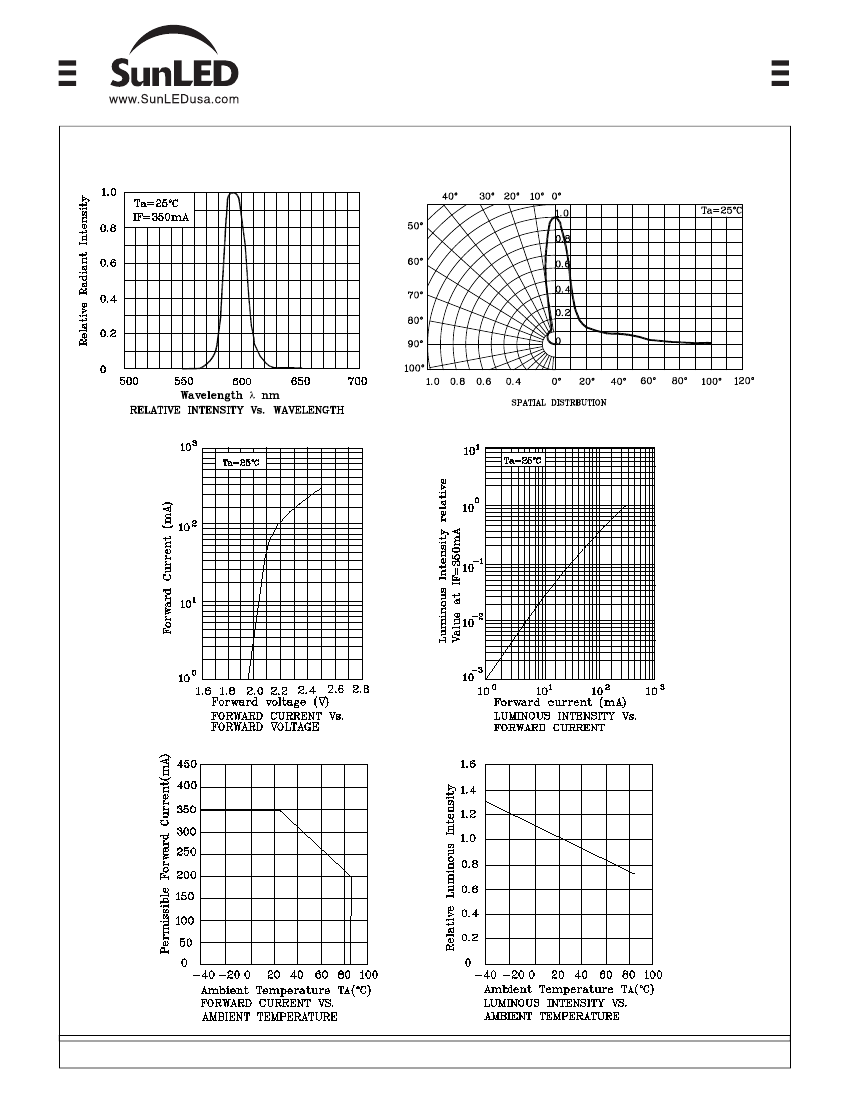

XZMYH95W-2
Published Date : NOV 13 , 2008
Drawing No : XDSA9257
V6
Checked : B.L.LIU
P. 3/5
Part Number:
XZMYH95W-2
APOLLO

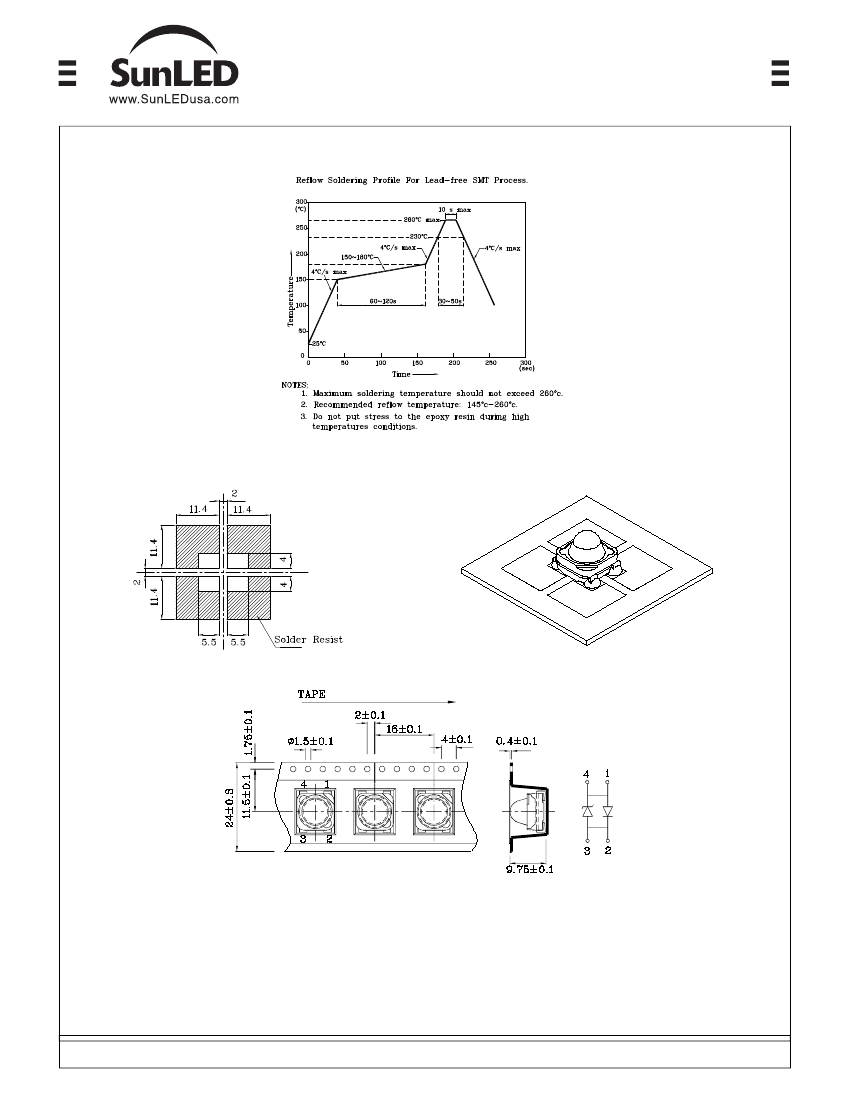

Reflow soldering is recommended and the soldering profile is shown below.
Other soldering methods are not recommended as they might cause damage to the product.
Recommended Soldering Pattern
(Units: mm ; Tolerance:
±0.1)
The device has a single mounting surface. The device
must be mounted according to the specifications.
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity / luminous flux or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity / Luminous Flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
Published Date : NOV 13 , 2008
Drawing No : XDSA9257
V6
Checked : B.L.LIU
P. 4/5
Part Number:
XZMYH95W-2
APOLLO

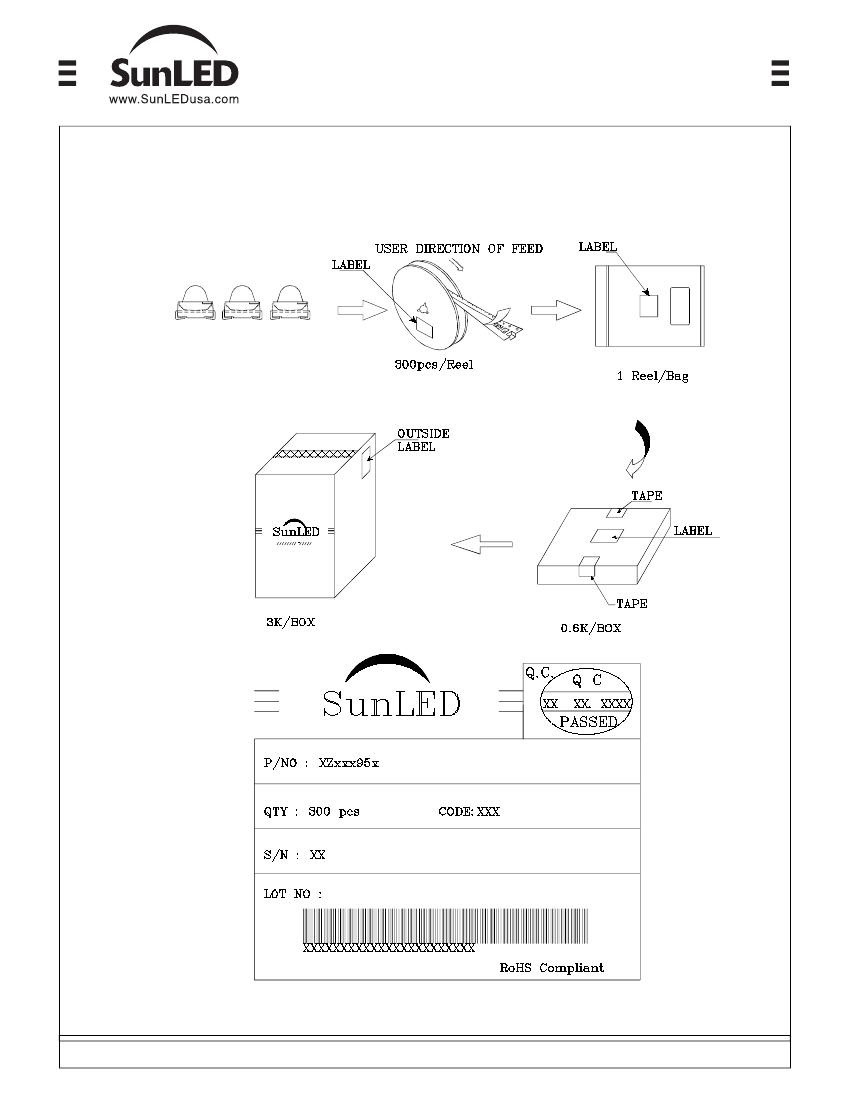

PACKING & LABEL SPECIFICATIONS
XZMYH95W-2
Published Date : NOV 13 , 2008
Drawing No : XDSA9257
V6
Checked : B.L.LIU
P. 5/5
