Datasheet> All Categories > Analog mixed-signal IC> filter> BLM15HB121SN1

Preview

BLM15HB121SN1: DescriptionChip Ferrite Bead for GHz Noise; CategoryAnalog mixed-signal IC filter; File Size181KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric Compare View All

BLM15HB121SN1 Overview

Chip Ferrite Bead for GHz Noise

BLM15HB121SN1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
ECCN code	EAR99
Maximum DC resistance	0.7 Ω
filter type	FERRITE CHIP
high	0.5 mm
JESD-609 code	e3
length	1 mm
Manufacturer's serial number	BLM15H
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	120 OHM Ω
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.3 A
Terminal surface	Tin (Sn)
width	0.5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Noise Suppression Products/EMI Suppression Filters > EMIFILr (Inductor type) > Chip Ferrite Bead for GHz Noise

Data Sheet

1

EMIFIL

r

(Inductor type)

Chip Ferrite Bead for GHz Noise

BLM15H Series (0402 Size)

c

Dimensions

0.25±0.1

c

Equivalent Circuit

1.0±0.05

0.5±0.05

(Resistance element becomes dominant

at high frequencies.)

: Electrode

(in mm)

c

Packaging

Code

D

J

B

Packaging

180mm Paper Tape

330mm Paper Tape

Bulk(Bag)

Minimum Quantity

10000

50000

1000

c

Rated Value (p: packaging code)

Part Number

BLM15HG601SN1p

BLM15HG102SN1p

BLM15HD601SN1p

BLM15HD102SN1p

BLM15HD182SN1p

BLM15HB121SN1p

BLM15HB221SN1p

Number of Circuits: 1

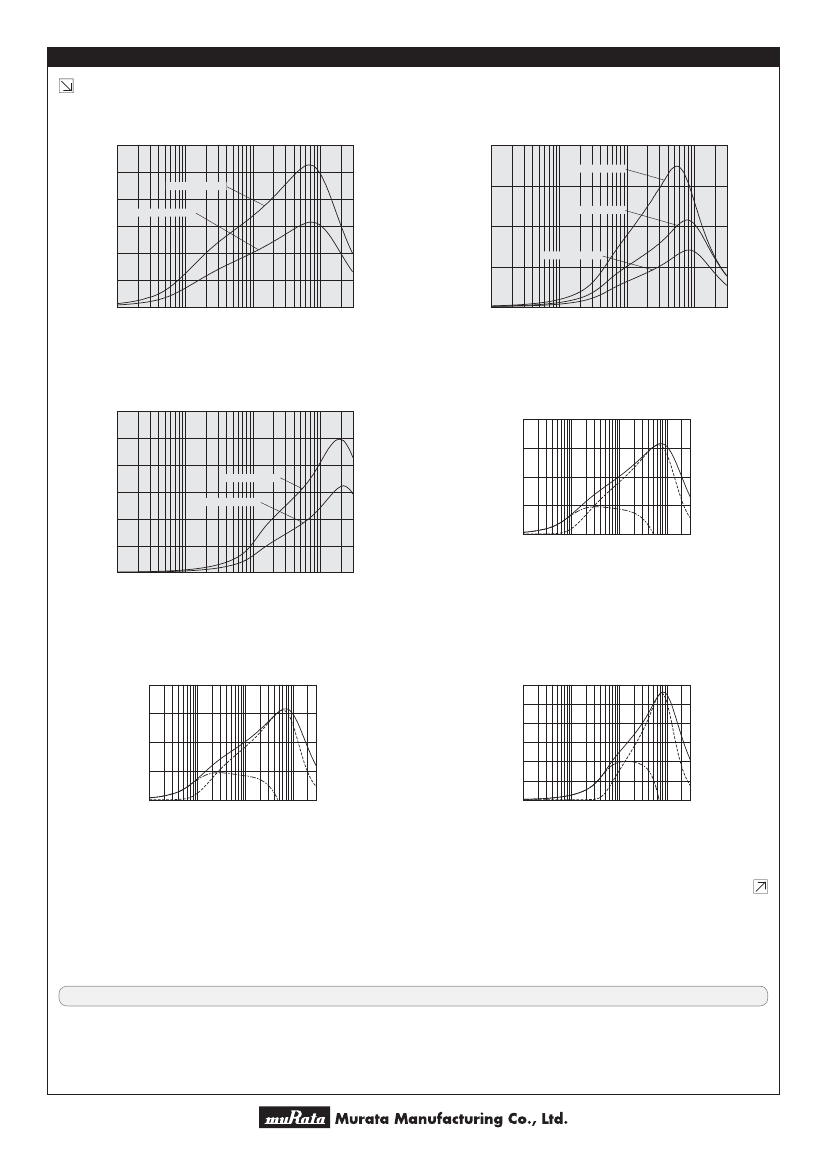

Continued on the following page.

Impedance

(at 100MHz/20°C)

600ohm ±25%

1000ohm ±25%

600ohm ±25%

1000ohm ±25%

1800ohm ±25%

120ohm ±25%

220ohm ±25%

Impedance

(at 1GHz/20°C)

1000ohm ±40%

1400ohm ±40%

2000ohm ±40%

2700ohm ±40%

500ohm ±40%

900ohm ±40%

Rated Current

300mA

250mA

300mA

250mA

200mA

300mA

250mA

DC Resistance

0.7ohm max.

1.1ohm max.

0.85ohm max.

1.25ohm max.

2.2ohm max.

0.7ohm max.

1.0ohm max.

Operating

Temperature Range

-55 to +125°C

oThis

data sheet is applied for CHIP FERRITE BEAD used for General Electronics equipment for your design.

!Note:

1. This datasheet is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s speciﬁcations are subject to change or our products in it

may be discontinued without advance notice. Please check with our sales representatives or product engineers before ordering.

2. This datasheet has only typical speciﬁcations because there is no space for detailed speciﬁcations. Therefore, please approve our product

speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

2012.9.6

http://www.murata.com/
