204886 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 204886

204886: DescriptionD Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug,; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

204886 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	204886	-	-	View	Buy Now

204886 Overview

D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, M3, Plug,

204886 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
body width	0.496 inch
subject depth	0.248 inch
body length	1.22 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	YES
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	YES
Mixed contacts	NO
Installation option 1	M3
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	6 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.067 inch
Terminal pitch	2.7432 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Evacuation force-minimum value	.3614 N

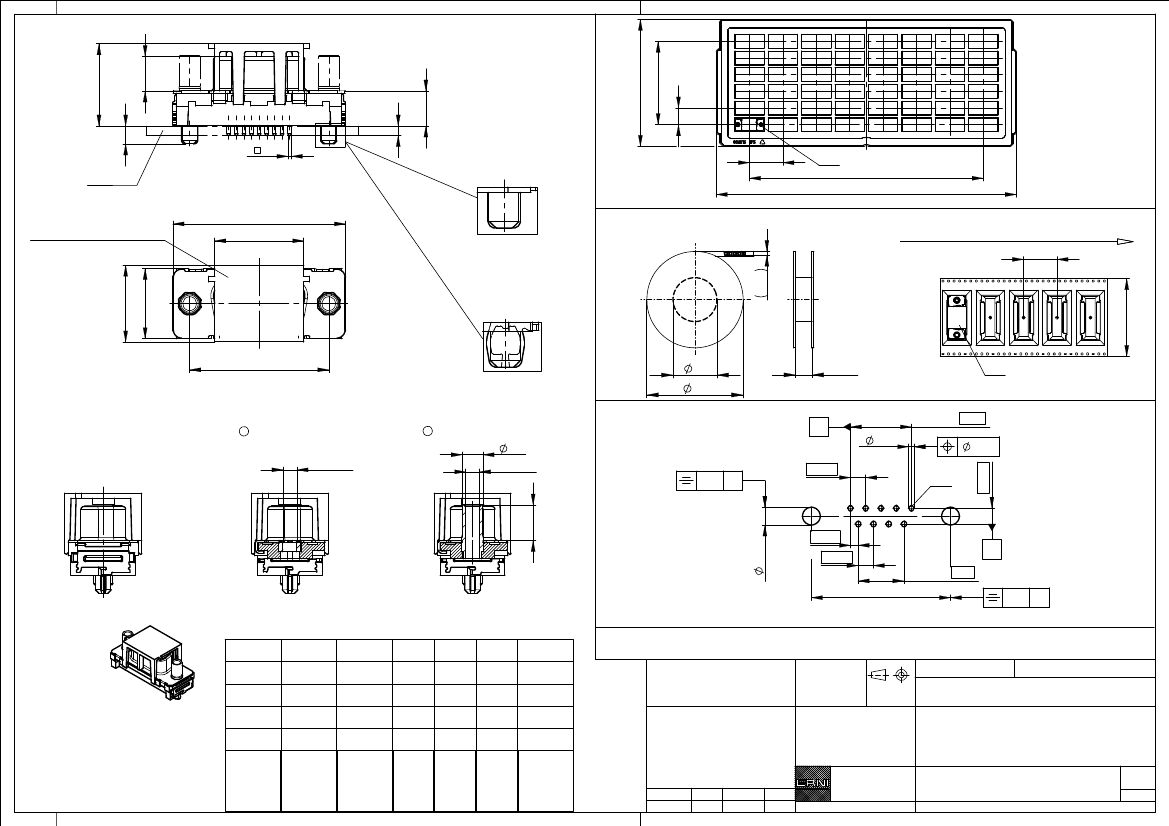

Preview

Download Datasheet

View All

Verpackt in Tray

Verpackungseinheit 48 St.

6,3

-0,25

5 x 18 = 90

max. 138

tray packaging

packaging unit 48 pcs

14,8

1,7

6,3

3,2

Variante 1

0,6

version 1

Bestückung kraftlos

powerless assembly

Leiterplatte

Pin 1

7 x 36 = 252

pcb

-0,4

+0,2

hood only on version 1

Ansaughaube nur bei Version 1

Variante 2

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel

off Direction

21,2

version 2

12,6

±0,3

13,8

Bestückung mit Kraft

assembly with force

±0,1

150

330

56,5

Pin 1

ohne /

without

max. Einschraubtiefe 3,7 mm

Mutter /

nut

Bolzen /

bolt

Layoutvorschlag:

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

thread depth max. 5,5 mm

3,7

recommended layout:

0,05

4 x 2,74 = 10,96

+0,09

-0,06

0,05 (9x)

Pin 1

2,84

Gewinde

/ thread

/ #4-40

Gewinde

/ thread

/ #4-40

2,74

6,4

3,2

±0,1

1,37

2,74

3 x 2,74 = 8,22

±0,05

0,05

Beschriftung nach Bedruckungsvorschrift 174538

M 1:1

Part marking according to specification 174538

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

204883 204888 204893

204887 204892 204897

204886 204891 204896

Anschlussbereich verzinnt

#4-40

ohne

without

Mutter

Bolzen Bemerkung

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

terminal area tin plating

Anforderungsstufe: 2

204885 204890 204895

204884 204889 204894

Ident-Nr.

part-no.

tape &reel

Variante 1

Ident.-Nr.

Variante 1

class: 2

part-no.

tray

Ident.-Nr.

Variante 2

part-no.

tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

25.01.2010

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-S 09-THR-1,7-6,3-BA8

TMC-S 09-THR-1,7-6,3-type 8

thread

bolt

remark

www.ERNI.com

Class

144970

TMCS

version 1

version 2
