204872: DescriptionD Subminiature Connector, 9 Contact(s), Male, Solder Terminal,; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

204872 Overview

D Subminiature Connector, 9 Contact(s), Male, Solder Terminal,

204872 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
Other features	STANDARDS: DIN 41652; IEC 807-3; MIL-C-24308
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	YES
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

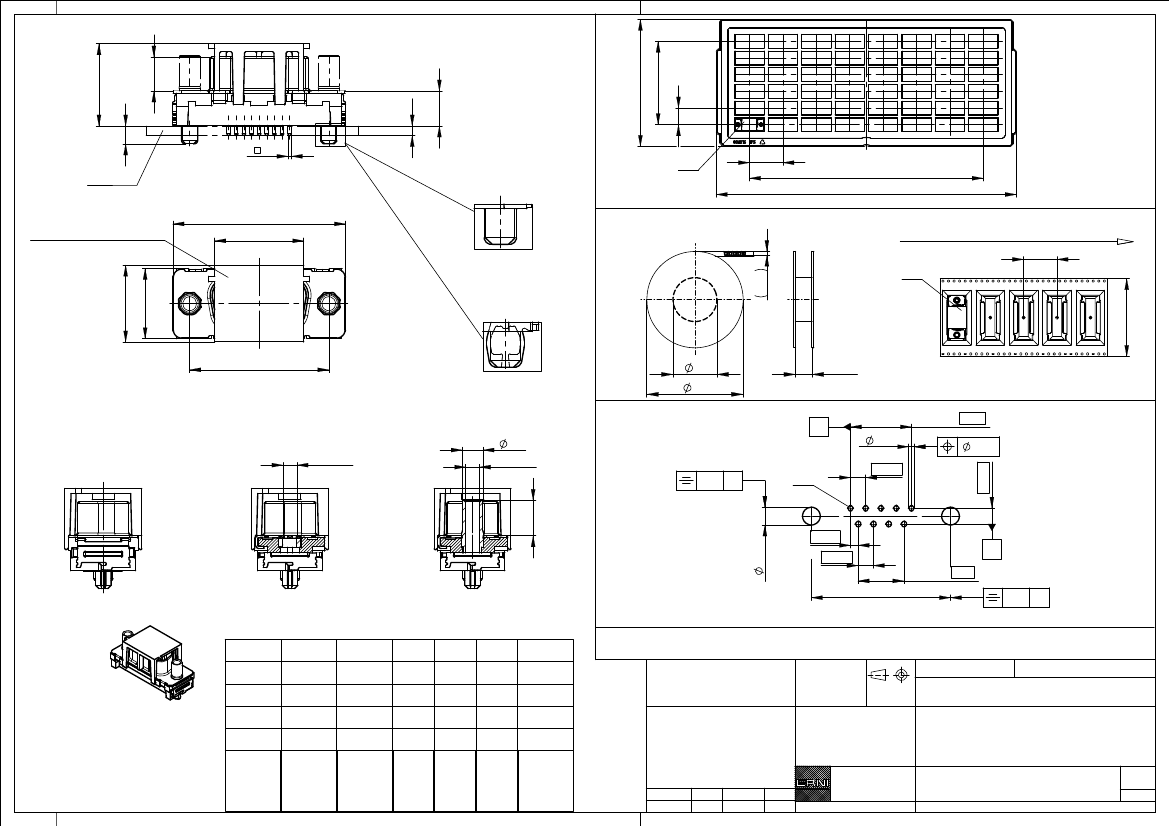

Verpackt in Tray

Verpackungseinheit 48 St.

+0,3

6,3

1,7

5 x 18 = 90

max. 138

tray packaging

packaging unit 48 pcs

14,8

5,8

3,2

0,6

Leiterplatte

Variante 1

version 1

Bestückung kraftlos

Pin 1

7 x 36 = 252

pcb

powerless assembly

-0,4

+0,2

hood only on version 1

Ansaughaube nur bei Version 1

Variante 2

max. 325

Sonstige Angaben siehe Zeichnung 204628 /

Additional indications according to drawing 204628

Verpackt in Gurtverpackung

Tape on Reel Packaging

Verpackungseinheit: 75 Stück -

Packaging unit: 75 pcs

Abspulrichtung -

Reel

off Direction

21,2

Pin 1

version 2

12,6

±0,3

13,8

Bestückung mit Kraft

assembly with force

±0,1

150

330

56,5

ohne /

without

max. Einschraubtiefe 3,7 mm

Mutter /

nut

thread depth max. 3,7 mm

max. Einschraubtiefe 5,5 mm

Bolzen /

bolt

Layoutvorschlag:

thread depth max. 5,5 mm

3,7

recommended layout:

0,05

Pin 1

4 x 2,74 = 10,96

+0,09

-0,06

6,4

3,2

±0,1

1,37

2,74

3 x 2,74 = 8,22

±0,05

2,84

Gewinde

/ thread

/ #4-40

0,05 (9x)

Gewinde

/ thread

/ #4-40

2,74

Beschriftung nach Bedruckungsvorschrift 174538

0,05

Part marking according to specification 174538

M 1:1

Sonstige Angaben siehe Zeichnung 204625 /

Additional indications according to drawing 204625

Fehlende Masse und Angaben siehe DIN 41652 /

Missing information and dimensions according to DIN 41652

Sonstige Angaben siehe Fertigungsunterlagen /

Additional indications according to the production documentation

Proprietary notice pursuant to ISO 16016 to be observed.

204868 204873 204878

204872 204877 204882

204871 204876 204881

Anschlussbereich verzinnt

#4-40

ohne

Mutter

Bolzen Bemerkung

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

terminal area tin plating

Anforderungsstufe: 2

204870 204875 204880

204869 204874 204879

part-no.

tape &reel

Variante 1

Ident-Nr

Ident.-Nr.

Variante 1

class: 2

part-no.

tray

Ident.-Nr.

Variante 2

part-no.

tray

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

26.11.2009

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

TMC-P 09-THR-1,7-6,3-BA8

TMC-P 09-THR-1,7-6,3-type 8

without

thread

bolt

remark

www.ERNI.com

Class

144966

TMCP

version 1

version 2
