EUPA15-2.4576MTR datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> EUPA15-2.4576MTR

EUPA15-2.4576MTR: DescriptionQUARTZ CRYSTAL RESONATOR; CategoryPassive components Crystal/resonator; File Size1MB，12 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

EUPA15-2.4576MTR Overview

QUARTZ CRYSTAL RESONATOR

EUPA15-2.4576MTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ECLIPTEK
Reach Compliance Code	compliant
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
JESD-609 code	e3
Manufacturer's serial number	EU
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

Ecliptek | EU Series Crystal

http://www.ecliptek.com/crystals/EU/

Log On

| 714-433-1200 |

Email Customer Support

Home

Products

Quick Quote

My Parts List

Site Map

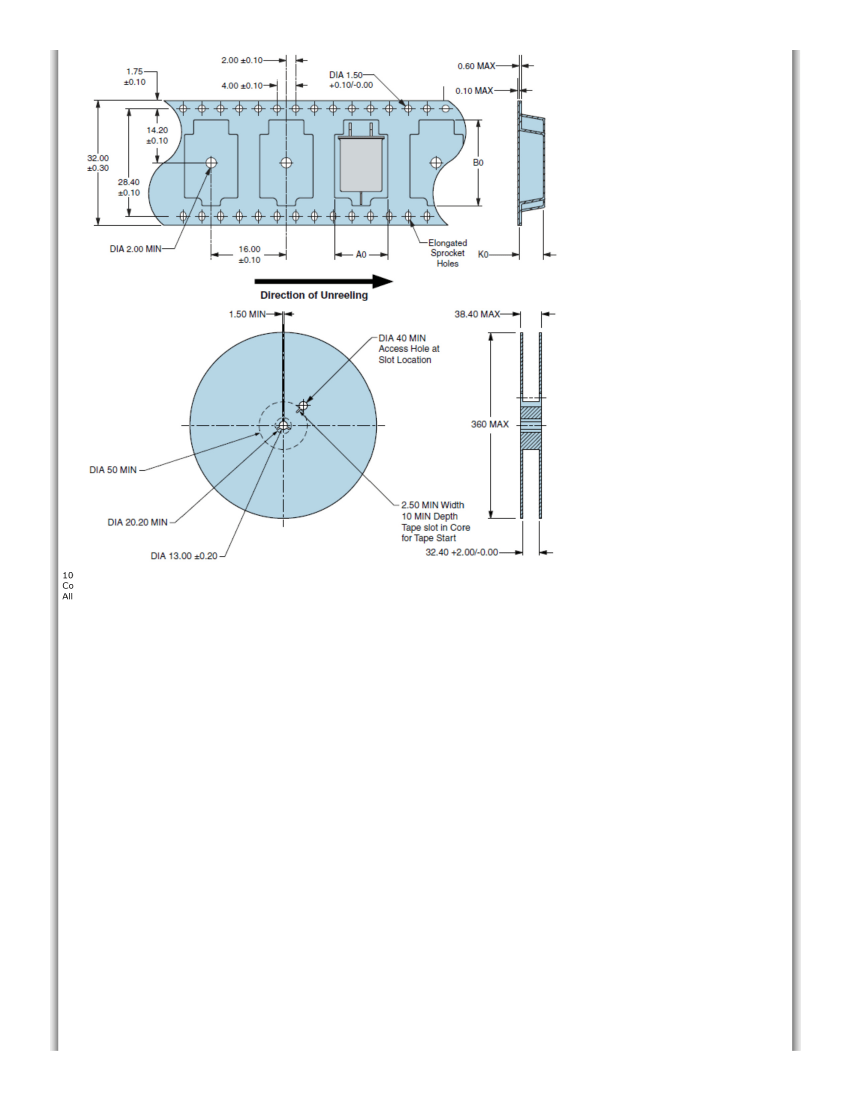

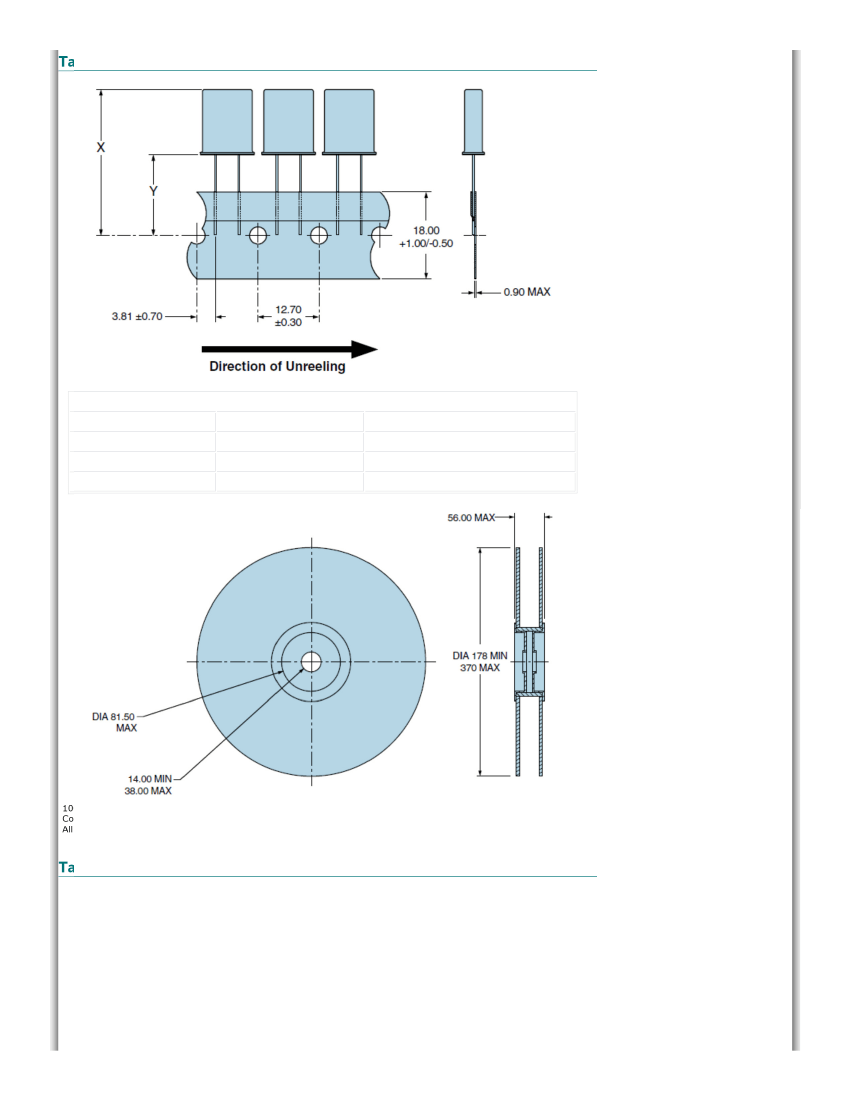

EU Series Crystal

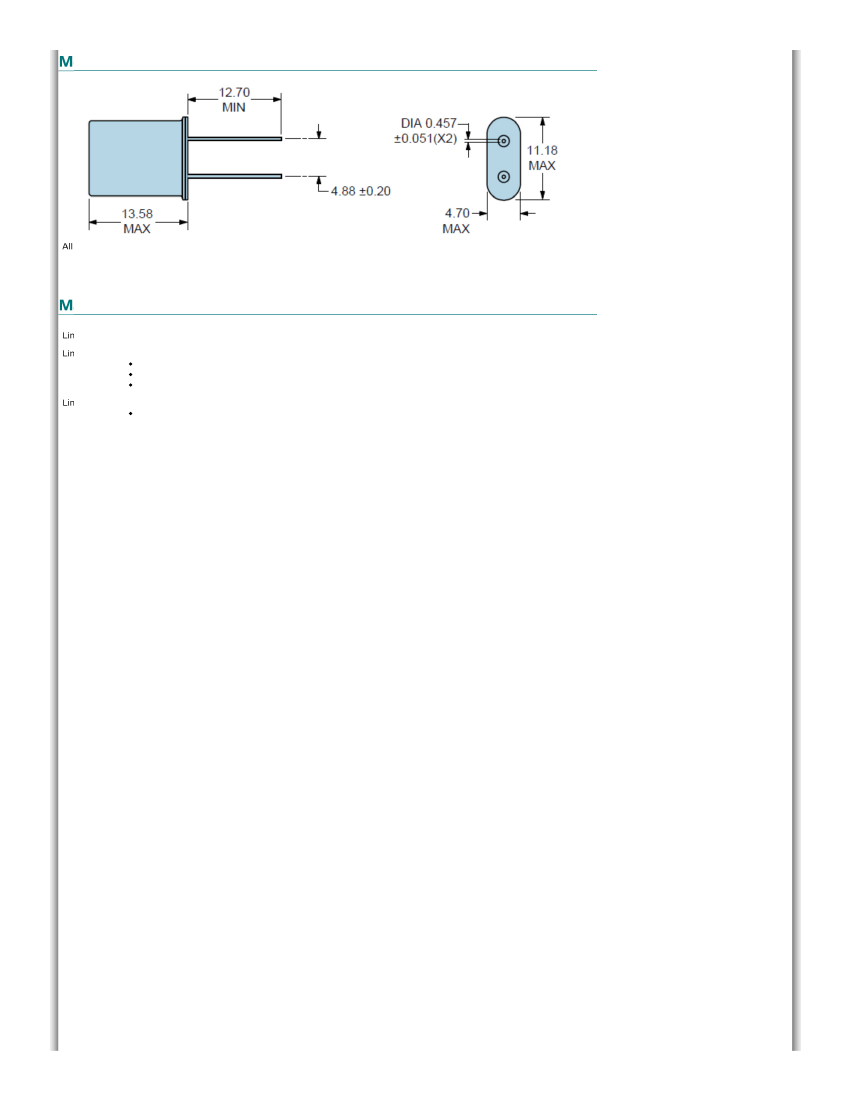

Quartz Crystal Resonator HC49/U Thru-Hole Metal Resistance Weld Seal

2011/65 +

2015/863

168 SVHC

Electrical Specifications

Nominal Frequency

1.8432MHz to 65.000MHz

Some frequencies within this range may not be available.

Revision G 10/26/2012

Frequency Tolerance (at 25°C)

±50ppm

±30ppm

±15ppm

±10ppm

Maximum

Frequency Stability

(over Operating Temperature Range)

±100ppm Maximum

±50ppm Maximum

±30ppm Maximum

±20ppm Maximum

±15ppm Maximum

0°C to +70°C

-20°C to +70°C

-40°C to +85°C

10pF to 50pF Parallel Resonant

Series Resonant

Click to Open ESR Table

7pF Maximum

Fundamental or Third Overtone

-40°C to +125°C

2mWatts Maximum

±5ppm/year Maximum

Measured at 100V

500 Megaohms Minimum

Operating Temperature Range

Load Capacitance

Equivalent Series Resistance

Shunt Capacitance

Mode of Operation

Crystal Cut

Storage Temperature Range

Drive Level

Aging (at 25°C)

Insulation Resistance

1 of 12

28-Jan-2016 2:51 PM
