DATA SHEET
MOS FIELD EFFECT TRANSISTOR
µ
PA1721
SWITCHING
N-CHANNEL POWER MOS FET
INDUSTRIAL USE
DESCRIPTION
The
µ
PA1721 is N-Channel MOS Field Effect
Transistor designed for DC/DC converters and power
management applications of notebook computers.
8
5
1,2,3 ; Source
; Gate
4
5,6,7,8 ; Drain

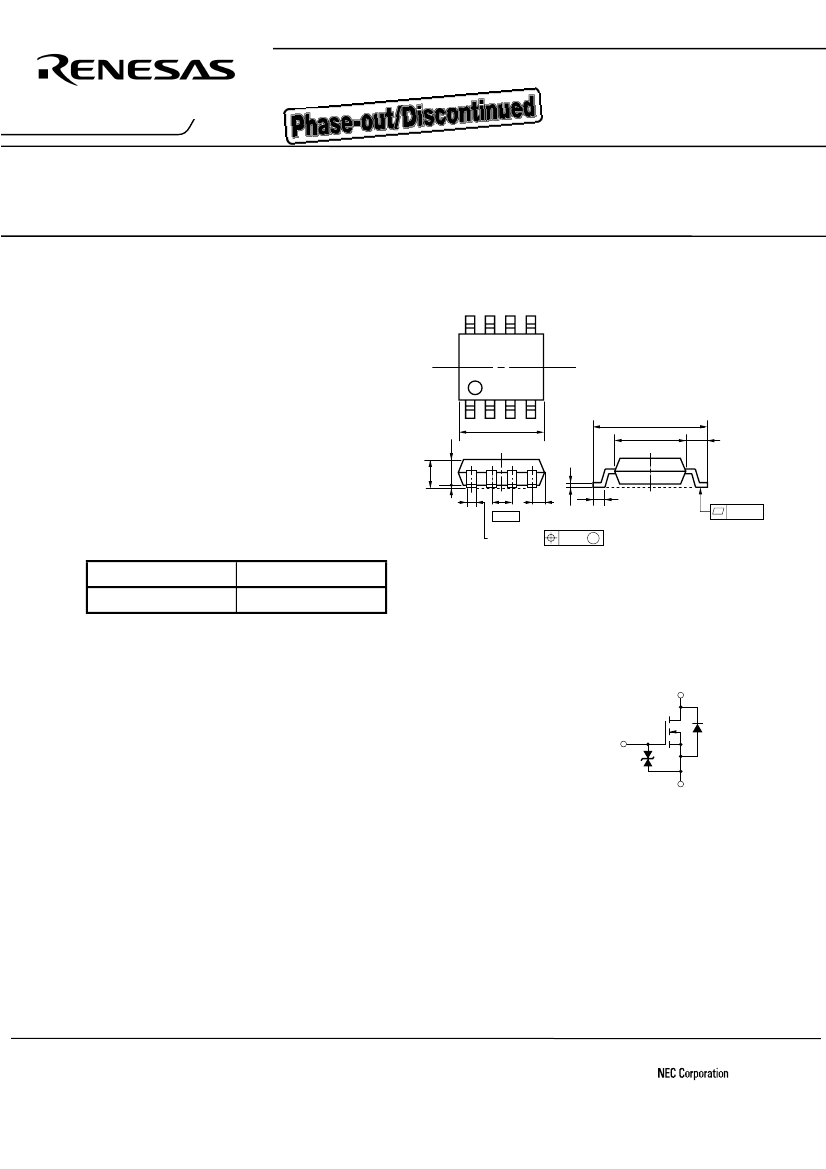

PACKAGE DRAWING (Unit : mm)
FEATURES
•
Low on-resistance
R
DS(on)1
= 10.5 mΩ MAX. (V
GS
= 10 V, I
D
= 5.0 A)
1.44
R
DS(on)2
= 14.0 mΩ MAX. (V
GS
= 4.5 V, I
D
= 5.0 A)
1.8 MAX.
1
5.37 MAX.
4
6.0 ±0.3
4.4
+0.10
–0.05
R
DS(on)3
= 17.0 mΩ MAX. (V
GS
= 4.0 V, I
D
= 5.0 A)
•
Low C
iss
: C
iss
= 2200 pF TYP.
•
Built-in G-S protection diode
•
Small and surface mount package (Power SOP8)
0.8
0.15
0.05 MIN.
0.5 ±0.2
0.10
1.27 0.78 MAX.
0.40
+0.10
–0.05
0.12 M
ORDERING INFORMATION
PART NUMBER
PACKAGE
Power SOP8
µ
PA1721G
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C, All terminals are connected.)
Drain to Source Voltage (V
GS
= 0 V)
Gate to Source Voltage (V
DS
= 0 V)
Drain Current (DC)
Drain Current (pulse)
Note1
Note2
EQUIVALENT CIRCUIT
Drain
V
DSS
V
GSS
I
D(DC)
I
D(pulse)
P
T
T
ch
T
stg
30
±20
±10
±40
2.0
150
–55 to +150
V
V
A
A
W
°C
°C
Gate
Protection
Diode
Source
Gate
Body
Diode
Total Power Dissipation (T
A
= 25°C)
Channel Temperature
Storage Temperature
Notes 1.
PW
≤
10
µ
s, Duty Cycle
≤
1 %
2.
Mounted on ceramic substrate of 1200 mm x 2.2 mm
Remark
The diode connected between the gate and source of the transistor serves as a protector against ESD.
When this device actually used, an additional protection circuit is externally required if a voltage
exceeding the rated voltage may be applied to this device.
2
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. G13889EJ2V0DS00 (2nd edition)
Date Published April 2001 NS CP(K)
Printed in Japan
