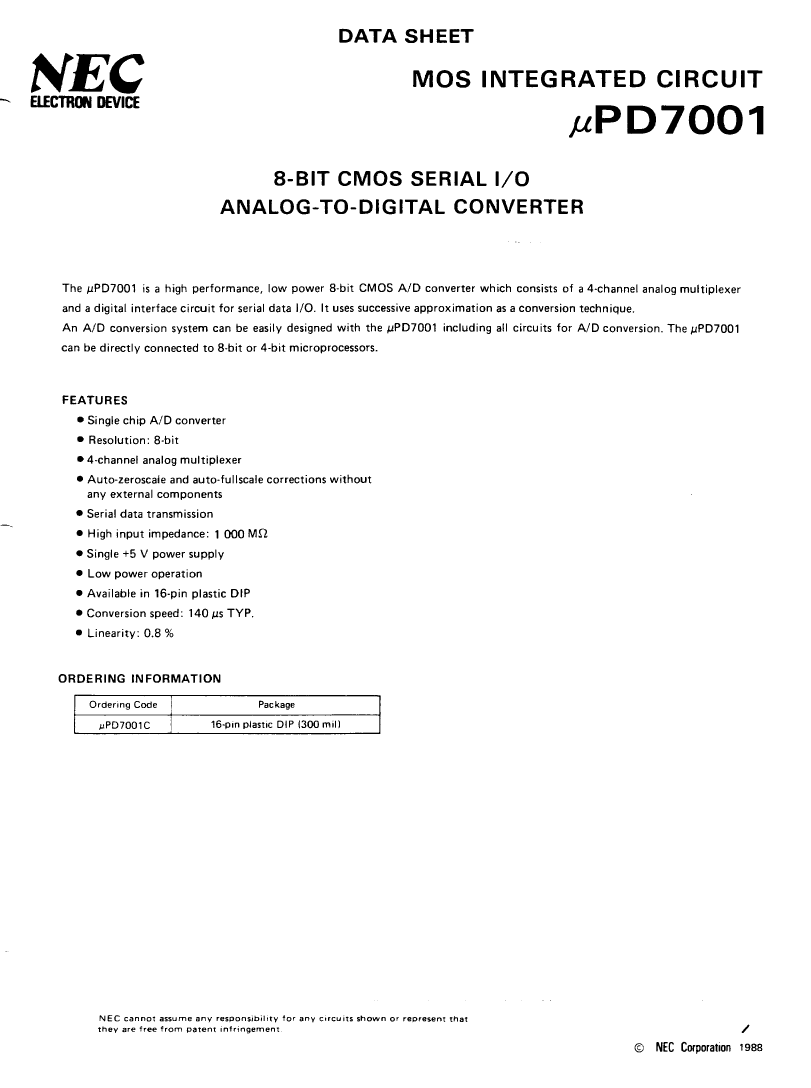

UPD7001P datasheet, PDF - EEWORLD Datasheet

UPD7001P: DescriptionIC,A/D CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN; CategoryAnalog mixed-signal IC converter; File Size498KB，10 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

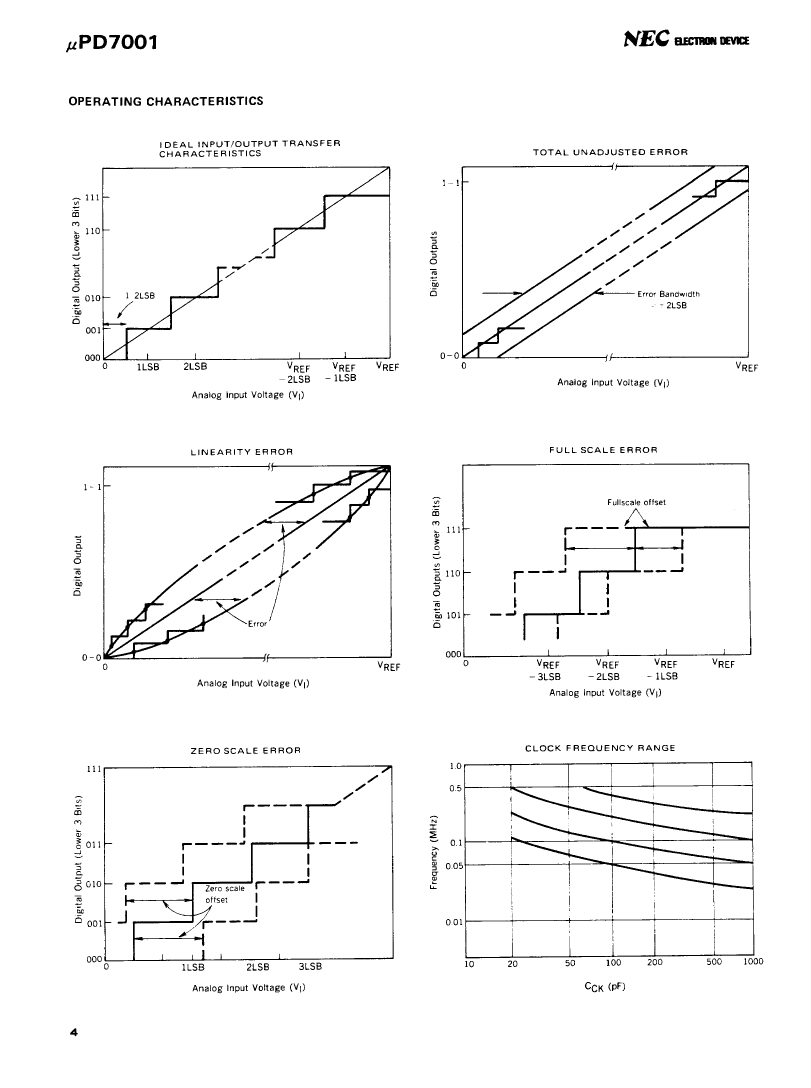

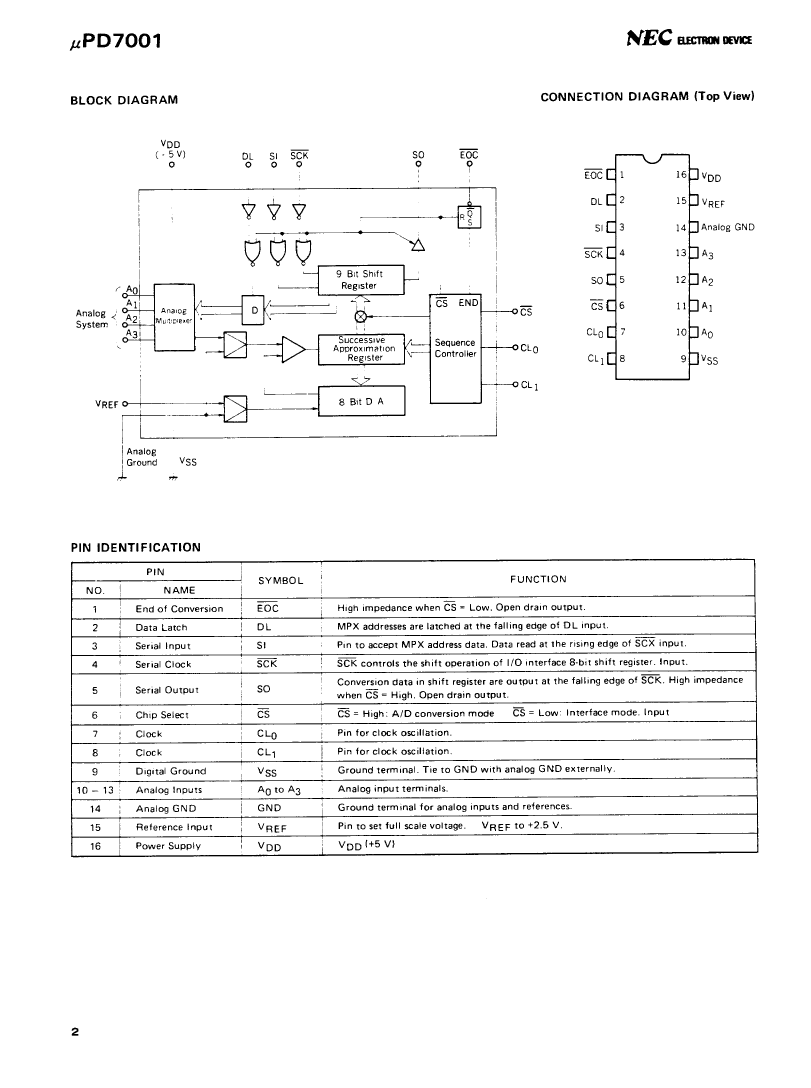

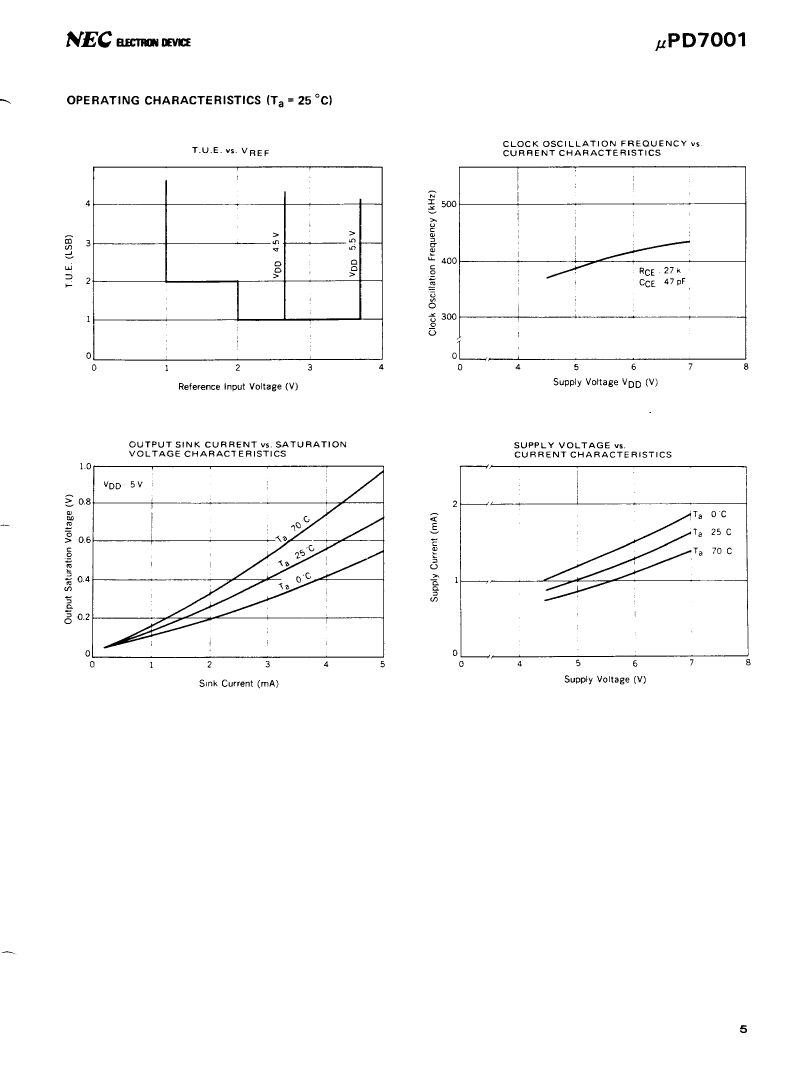

UPD7001P Overview

IC,A/D CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN

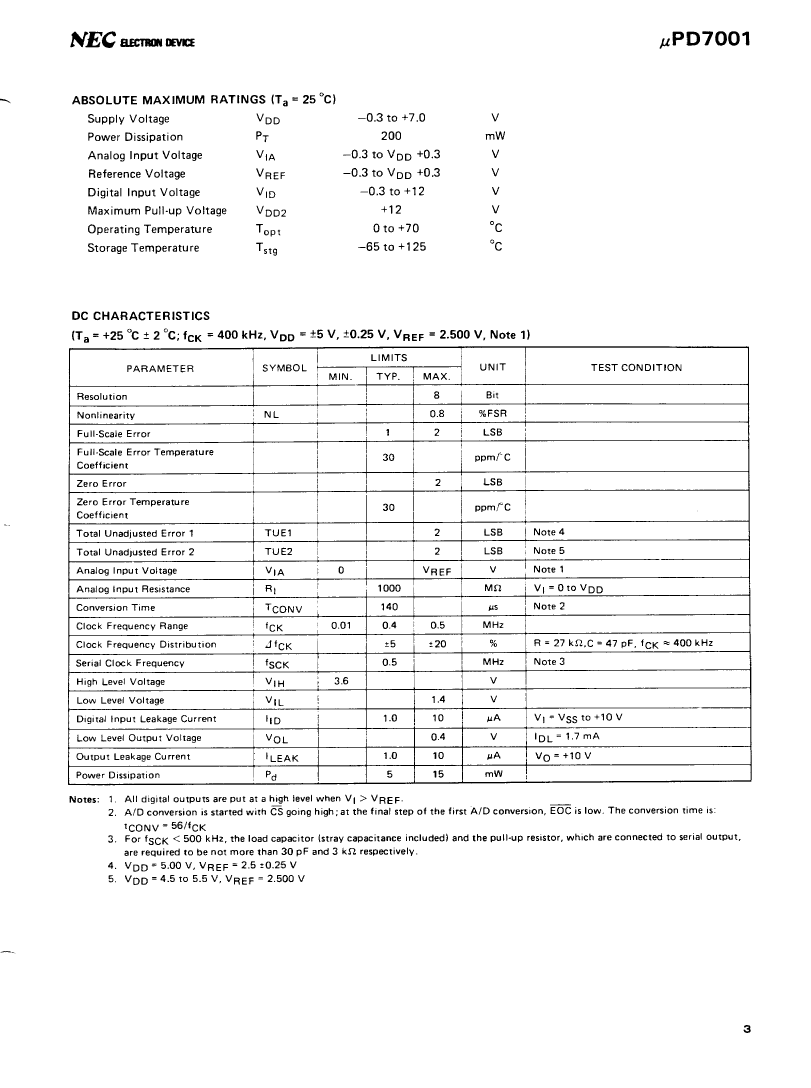

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Converter type	A/D CONVERTER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	UPD7001P	UPD7001C
Description	IC,A/D CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN	IC,A/D CONVERTER,SINGLE,8-BIT,CMOS,DIP,16PIN
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Reach Compliance Code	unknown	unknow
