RL-1123
DESCRIPTION
• Shielded Inductors
• Ferrite Coilform & Shell
CAUTION:
NOT RECOMMENDED
FOR DC APPLICATIONS
(DC SATURATION
CURRENTS VERY LOW)
SHIELDED INDUCTORS
FERRITE COILFORM & SHELL
FEATURES & APPLICATIONS
• Come in wide inductance and current ranges
• Small size makes them extremely useful in compact audio filters,
tone control circuits, amplifiers and wherever high
inductance coils are needed
• Typical applications include: low level power supplies, filters,
switching circuits and telecommunications
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 493
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-1123
A (MAX.)
0.550 (13.97)
B (MAX.)
1.00 (25.40)
C (MIN.)
1.00 (25.40)
PART WEIGHT
10.0g (0.35oz)

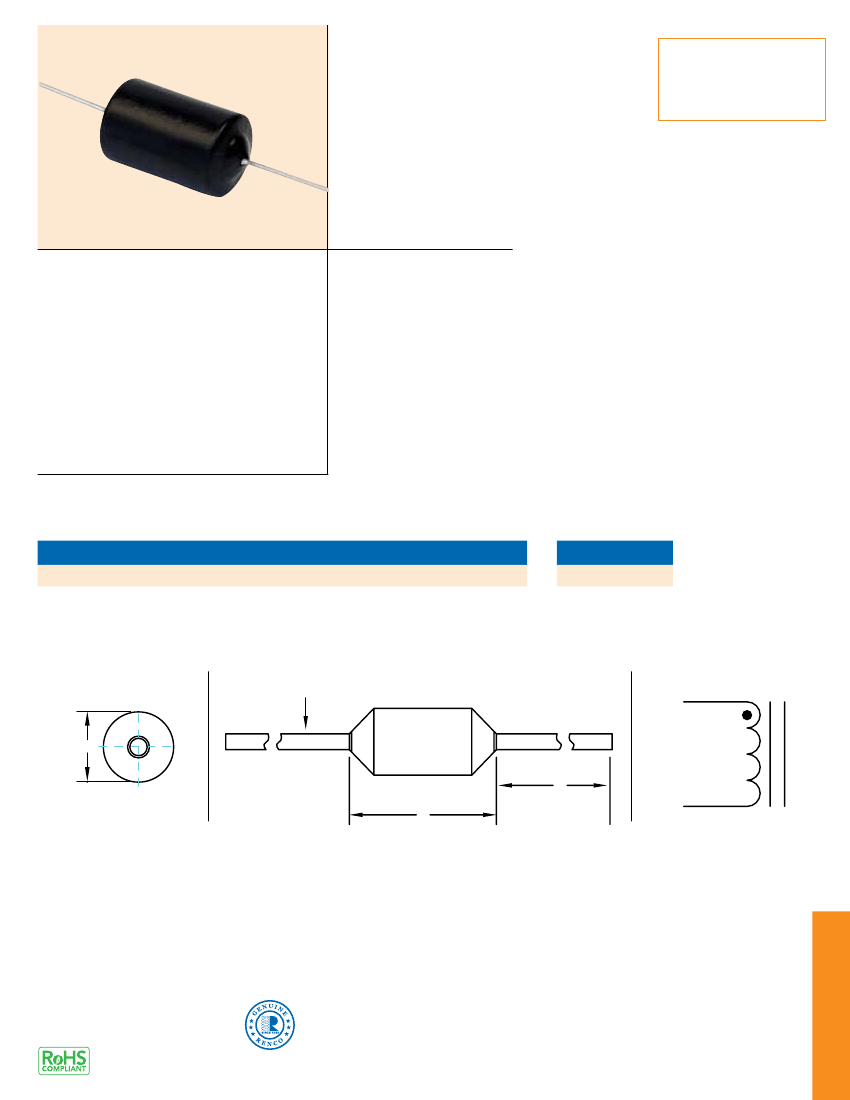

FRONT VIEW
PIN DIMENSION
0.032 (8.128) (2PL)
SIDE VIEW
ST
SCHEMATIC
A
C
B
FN
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
INDUCTORS
RL-1123
Renco Part No.
RL-1123
RL-1123-.0010
RL-1123-.0012
RL-1123-.0015
RL-1123-.0018
RL-1123-.0022
RL-1123-.0027
RL-1123-.0033
RL-1123-.0039
RL-1123-.0047
RL-1123-.0056
RL-1123-.0068
RL-1123-.0082
RL-1123-.0100
RL-1123-.0120
RL-1123-.0150
RL-1123-.0180
RL-1123-.0220
RL-1123-.0270
RL-1123-.0330
RL-1123-.0390
RL-1123-.0470
RL-1123-.0560
RL-1123-.0680
RL-1123-.0820
RL-1123-.1000
RL-1123-.1200
RL-1123-.1500
RL-1123-.1800
RL-1123-.2200
RL-1123-.2700
RL-1123-.3300
RL-1123-.3900
RL-1123-.4700
RL-1123-.5600
RL-1123-.6800
RL-1123-.8200
RL-1123-1.0
RL-1123-1.2
RL-1123-1.5
RL-1123-1.8
Inductance
1.0 µH
1.2 µH
1.5 µH
1.8 µH
2.2 µH
2.7 µH
3.3 µH
3.9 µH
4.7 µH
5.6 µH
6.8 µH
8.2 µH
10.0 µH
12.0 µH
15.0 µH
18.0 µH
22.0 µH
27.0 µH
33.0 µH
39.0 µH
47.0 µH
56.0 µH
68.0 µH
82.0 µH
100.0 µH
120.0 µH
150.0 µH
180.0 µH
220.0 µH
270.0 µH
330.0 µH
390.0 µH
470.0 µH
560.0 µH
680.0 µH
820.0 µH
1.0 mH
1.2 mH
1.5 mH
1.8 mH
DCR ±20%
(Ohms)
0.0066
0.008
0.008
0.008
0.008
0.009
0.009
0.009
0.012
0.012
0.012
0.013
0.013
0.013
0.014
0.017
0.020
0.020
0.022
0.023
0.024
0.027
0.028
0.029
0.030
0.034
0.036
0.044
0.047
0.049
0.052
0.053
0.058
0.063
0.068
0.080
0.091
0.110
0.116
0.130
Irms
(A)
1.5
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.4
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.35
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.25
1.25
1.25
Renco Part No.
RL-1123
RL-1123-2.2
RL-1123.2.7
RL-1123-3.3
RL-1123-3.9
RL-1123-4.7
RL-1123-5.6
RL-1123-6.8
RL-1123-8.2
RL-1123-10
RL-1123-12
RL-1123-15
RL-1123-18
RL-1123-22
RL-1123-27
RL-1123-33
RL-1123-39
RL-1123-47
RL-1123-56
RL-1123-68
RL-1123-82
RL-1123-100
RL-1123-120
RL-1123-150
RL-1123-180
RL-1123-220
RL-1123-270
RL-1123-330
RL-1123-390
RL-1123-470
RL-1123-560
RL-1123-680
RL-1123-820
RL-1123-1000
RL-1123-1200
RL-1123-1500
Inductance
2.2 mH
2.7 mH
3.3 mH
3.9 mH
4.7 mH
5.6 mH
6.8 mH
8.2 mH
10.0 mH
12.0 mH
15.0 mH
18.0 mH
22.0 mH
27.0 mH
33.0 mH
39.0 mH
47.0 mH
56.0 mH
68.0 mH
82.0 mH
100.0 mH
120.0 mH
150.0 mH
180.0 mH
220.0 mH
270.0 mH
330.0 mH
390.0 mH
470.0 mH
560.0 mH
680.0 mH
820.0 mH
1.0 H
1.2 H
1.5 H
DCR ±20%
(Ohms)
0.177
0.190
0.295
0.287
0.364
0.440
0.662
0.700
0.741
0.827
1.100
1.250
1.670
1.920
2.760
3.480
4.320
4.440
4.800
7.200
9.500
10.560
12.240
13.680
24.000
27.000
32.000
37.080
39.480
46.680
56.800
67.300
85.000
101.000
160.000
Irms
(A)
1.120
1.120
1.120
0.880
0.880
0.707
0.556
0.556
0.556
0.556
0.437
0.437
0.350
0.227
0.224
0.224
0.224
0.224
0.224
0.175
0.175
0.139
0.139
0.139
0.110
0.088
0.080
0.071
0.071
0.071
0.071
0.056
0.056
0.043
0.034
RL-1123 TABLE CONTINUES ON FOLLOWING PAGE
NOTES:
1. INDUCTANCE VALUES SHOWN IN
µH
= MICROHENRYS
mH = MILLIHENRYS AND H = HENRYS
2. ±20% TOLERANCE STANDARD
3. ±10% TOLERANCE OPTIONAL
4. INDUCTANCE TESTED AT 1.0 kHz, 0.1 Vrms
5. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO
RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
6. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
7. ENDS EPOXY SEALED
8. PART FINISHED WITH 135ºC POLYOLEFIN SLEEVING THAT
MEETS UL-224 VW-1
INDUCTORS
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
