P14TG-xxxxE/Z2:1(H35)LF
PM6-SERIES
Rev.09-2009
3 Watt
2:1
Wide Input
Regulated
DIP24
Plastic Case
1.5 or 3.5 KV
DC I/O Isolation
SINGLE
and
DUAL
Output
Continuous Short Circuit Prot.
Input Specifications
Voltage Range
Input Filter
Input Reflected Ripple Current¹
Output Specifications
Voltage Accuracy
Short Circuit Protection
Line Regulation
Load Regulation
Ripple and Noise
(20Mhz bandwidth)
Temperature Coefficient
General Specifications
Efficiency
I/O Isolation Voltage
(3 sec.)
I/O Isolation Capacity
I/O Isolation Resistance
Switching Frequency
(typical)
Humidity
Reliability Calculated MTBF
(MIL-HDBK-217F)
Physical Specifications
Case Material
Potting Material
Weight
Environment Specifications
Operating Temperature
Maximum Case Temperature
Storage Temperature
Cooling
RoHS Conform
Mainzer Straße 151–153
D-55299 Nackenheim
Tel. +49 6135 7026-0
Fax: +49 6135 931070
www.peak-electronics.de
peak@peak-electronics.de
The PM6 series P14TG-xxxxE/Z2:1(H30)LF is a family of cost effective 3W
single & dual output DC-DC converters with a wide input Voltage of 2:1.
These converters are encapsulated in an ultra miniature DIP24 plastic or
metal case. High performance features: 1500VDC up to 3500VDC
input/output isolation, high efficiency operation, output voltage accuracy of
±1% maximum, wide input range 2:1 and low output ripple and noise.
All specifications typical at Ta=25° nominal input voltage and full load unless otherwise specified
C,
2:1 Wide Input
Pi Type
35 mA pk-pk
± 1%
Indefinite
(automatic recovery)
± 0.5%
± 0.5% / ± 1.5%
(only 3.3 / ±3.3 Vout Models)
60 mV pk-pk
± 0.02% / °
C
See Table
1500 VDC
(3500 VDC optional)*
470 pF, typ.
1000 MOhm
266 kHz, typ.
95% rel H
> 1.121 Mhrs
Non Conductive Black Plastic
Epoxy
(UL94V-0 rated)
~ 13.5g, typ.
-40 to +85°
(ambient)
C
100°
C
-40 to +125°
C
Free Air Convection
Soldering 260° max.
(1.5mm from case 10s.)
C,
PM6-Series – P14TG-xxxxE/Z2:1(H35)LF – Single and Dual Output – DIP24 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 1/3
Selection Guide
Single/Dual
Output
)
)
)
mA)
(m A
(mA ad (mA
ad (
oad
d
o
Lo
DC)
C)
in. L
Lo a
ull L
u F)²
(VD
e (V
No
Full
nt F
nt M
)
ad (
t
t
e
ag
re
re
r Lo
rren
rren
y (%
ltag
Volt
Cur
Cur
t Vo
t Cu put Cu
ienc
acito
put
put
put
Inpu
Inpu
In
Out
Out
Out
Effic
Cap
Order #
SINGLE OUTPUT
P14TG-123R3E2:1LF
P14TG-1205E2:1LF
P14TG-1209E2:1LF
P14TG-1212E2:1LF
P14TG-1215E2:1LF
P14TG-1224E2:1LF
P14TG-243R3E2:1LF
P14TG-2405E2:1LF
P14TG-2409E2:1LF
P14TG-2412E2:1LF
P14TG-2415E2:1LF
P14TG-2424E2:1LF
P14TG-483R3E2:1LF
P14TG-4805E2:1LF
P14TG-4809E2:1LF
P14TG-4812E2:1LF
P14TG-4815E2:1LF
P14TG-4824E2:1LF
DUAL OUTPUT
P14TG-123R3Z2:1LF
P14TG-1205Z2:1LF
P14TG-1209Z2:1LF
P14TG-1212Z2:1LF
P14TG-1215Z2:1LF
P14TG-1224Z2:1LF
P14TG-243R3Z2:1LF
P14TG-2405Z2:1LF
P14TG-2409Z2:1LF
P14TG-2412Z2:1LF
P14TG-2415Z2:1LF
P14TG-2424Z2:1LF
P14TG-483R3Z2:1LF
P14TG-4805Z2:1LF
P14TG-4809Z2:1LF
P14TG-4812Z2:1LF
P14TG-4815Z2:1LF
P14TG-4824Z2:1LF
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
36-72
36-72
22
22
22
22
22
22
12
12
12
12
12
12
8
8
8
8
8
8
343
328
320
312
312
313
171
164
160
156
152
153
86
82
80
78
78
78
3.3
5
9
12
15
24
3.3
5
9
12
15
24
3.3
5
9
12
15
24
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
900
600
333
250
200
125
900
600
333
250
200
125
900
600
333
250
200
125
72
76
78
80
80
80
72
76
78
80
82
82
72
76
78
80
80
80
470
470
68
47
47
22
470
470
68
47
47
22
470
470
68
47
47
22
9-18
9-18
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
36-72
36-72
36-72
36-72
36-72
36-72
22
22
22
22
22
22
12
12
12
12
12
12
8
8
8
8
8
8
343
328
312
312
312
313
171
160
156
152
152
153
86
82
80
78
78
78
± 3.3
±5
±9
± 12
± 15
± 24
± 3.3
±5
±9
± 12
± 15
± 24
± 3.3
±5
±9
± 12
± 15
± 24
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
± 450
± 300
± 167
± 125
± 100
± 63
± 450
± 300
± 167
± 125
± 100
± 63
± 450
± 300
± 167
± 125
± 100
± 63
72
76
80
80
80
80
72
78
80
82
82
82
72
76
78
80
80
80
± 220
± 220
± 33
± 22
± 22
± 10
± 220
± 220
± 33
± 22
± 22
± 10
± 220
± 220
± 33
± 22
± 22
± 10
If you need other specifications, please enquire.
* For optional 3.5kV DC I/O Isolation, please add “H35” before LF!
Example: P14TG-1205Z2:1H35LF for 3.5kV
PM6-Series – P14TG-xxxxE/Z2:1(H35)LF – Single and Dual Output – DIP24 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 2/3

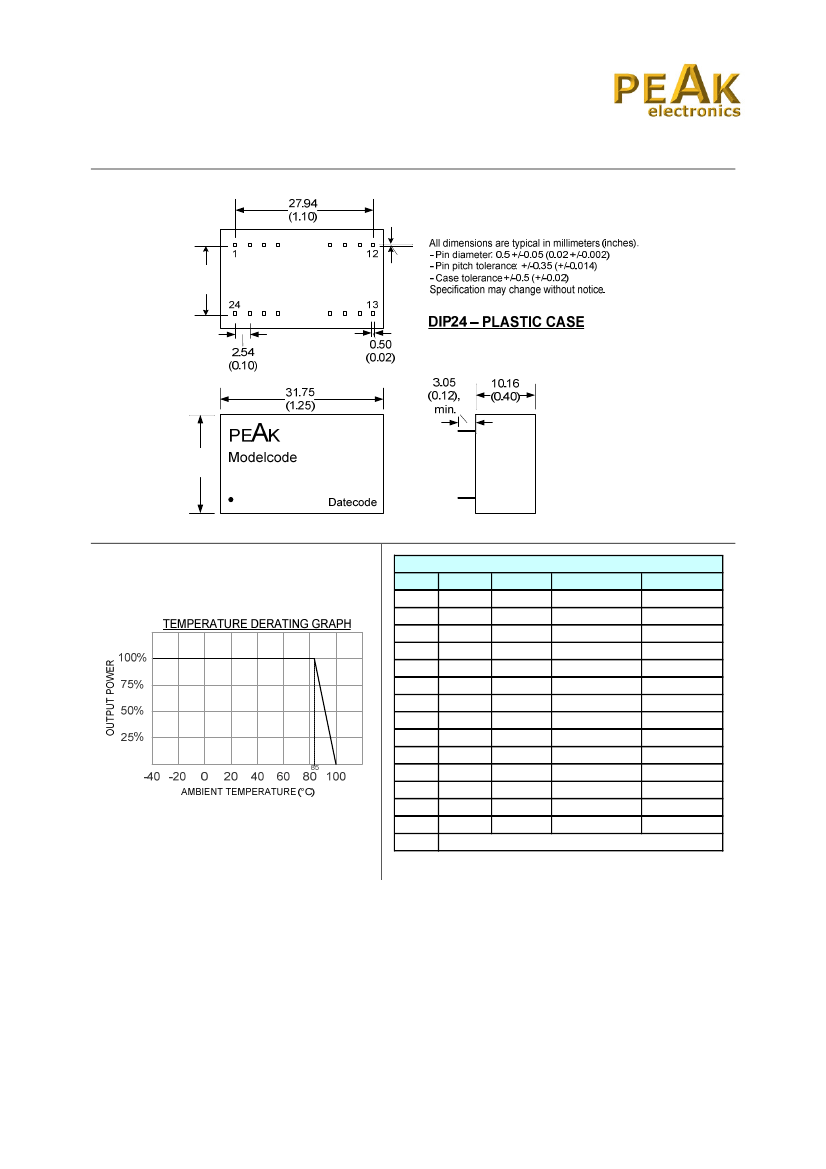

Package / Pinning / Derating
20.32
(0.80)
15.24
(0.60)
App Notes:
¹ =
Measured Input reflected ripple current with a simulated source inductance of 12uH.
² =
Tested by nominal Vin and constant resistive load.
PM6-Series – P14TG-xxxxE/Z2:1(H35)LF – Single and Dual Output – DIP24 - Plastic Case
Specification can change without a notice – We accept no liability for any inaccuracy or printing errors.
Page 3/3
0.25
(0.01)
PIN CONNECTIONS
#
SINGLE DUAL SINGLE
3.5KV
DUAL
3.5KV
1
+Vin
+Vin
Omitted
Omitted
2
N.C.
- Vout
- Vin
- Vin
3
N.C.
Common - Vin
- Vin
9
Omitted Omitted Omitted
Common
10
- Vout Common Omitted
Omitted
11
+Vout +Vout
N.C.
- Vout
12
- Vin
- Vin
Omitted
Omitted
13
- Vin
- Vin
Omitted
Omitted
14
+Vout +Vout
+Vout
+Vout
15
- Vout Common Omitted
Omitted
16
Omitted Omitted - Vout
Common
22
N.C.
Common +Vin
+Vin
23
N.C.
- Vout
+Vin
+Vin
24
+Vin
+Vin
Omitted
Omitted
others
Omitted
