015401.5DRTL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 015401.5DRTL

015401.5DRTL: DescriptionTIME LAG BLOW ELECTRIC FUSE, 1.5A, SURFACE MOUNT; CategoryCircuit protection Circuit protection; File Size357KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

015401.5DRTL Overview

TIME LAG BLOW ELECTRIC FUSE, 1.5A, SURFACE MOUNT

015401.5DRTL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Littelfuse
package instruction	HALOGEN FREE AND ROHS COMPLIANT
Reach Compliance Code	not_compliant
ECCN code	EAR99
Is Samacsys	N
Fusing characteristics	TIME LAG
body width	5.03 mm
body height	3.81 mm
Body length or diameter	9.73 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e4
Installation features	SURFACE MOUNT
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	9.73mm x 5.03mm x 3.81mm
Rated current	1.5 A
Guideline	CSA; METI; PSE; UL
surface mount	YES
Terminal surface	Silver (Ag)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

Surface Mount Fuses

NANO

2®

> 154 OMNI-BLOK

Fuse and Holder Combination

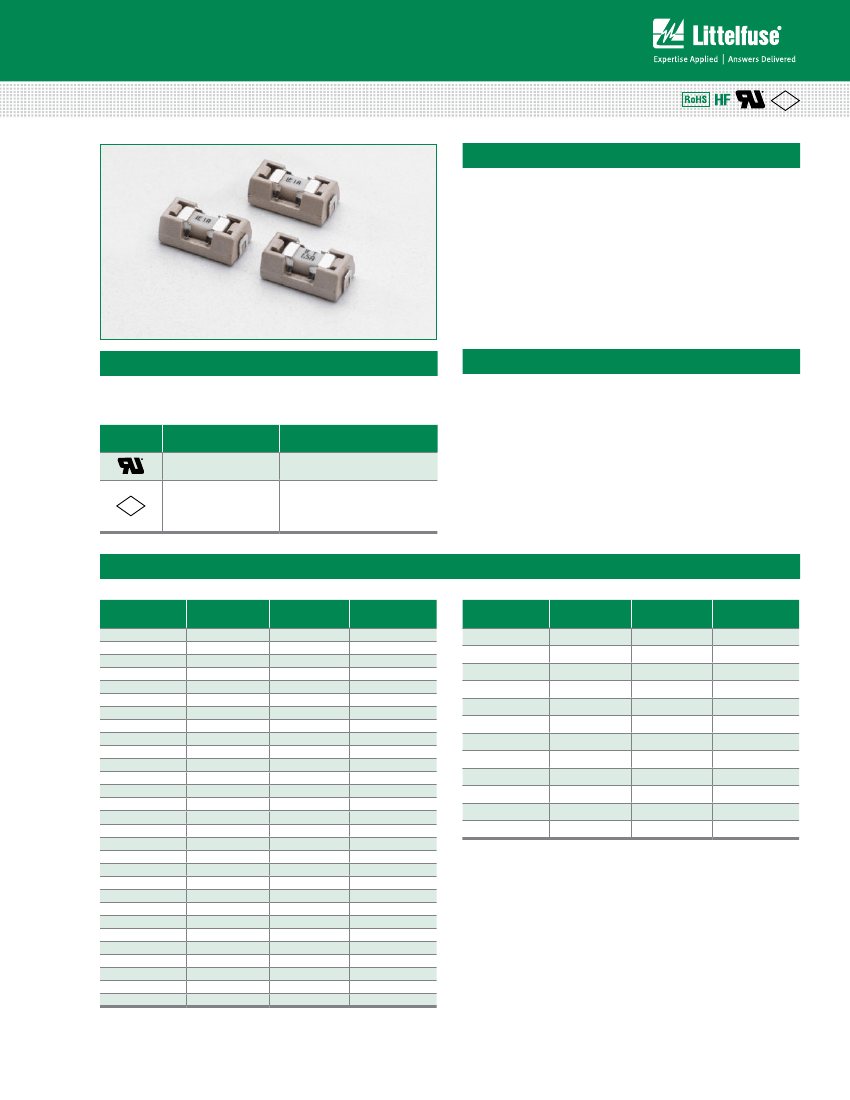

154/154T/154L/154TL Series OMNI-BLOK

Fuse and Holder Assembly

Description

154/154T (Tan color base like shown in this image)

154L/154TL (Black color base)

The RoHS compliant 154 Series OMNI-BLOK

offers a

solution for efficient installation and easy replacement of

miniature Nano

2®

surface mount fuses.

Offered in a tape and reel package, this fuse and holder

combination can be installed on a PC board as an efficient

single step. Fuse replacement can be accomplished

without exposing the PC board to the detrimental effects

of solder heat.

The fuse holder unit may be sold as a stand-alone item,

shipped in bulk quantity (not pre-packaged in tape and reel

cartridges) using part number 01550900. Please contact

Littelfuse for additional information.

Features

• Easy fuse replacement

• Miniature size

• RoHS compliant and

Halogen Free

• Very Fast-Acting and

Time-Lag options

available

• Holder sized to fit a range

of Nano

2®

type fuses

• Low fuse temperature

de-rating

• Wide range of current

rating available

- Fast-Acting: 62mA - 10A

- Time-Lag: 375mA - 5A

• Wide operating

temperature range

• Heat-resistant fuseholder,

UL94 V-0

• 260°C reflow capable

fuseholder

Agency Approvals

Recognized under the Components Program of Underwriters

Laboratories and Certified by CSA. Approved by METI from

1 through 5 amperes.

Agency

Agency File

Number

E14721

NBK030205-E10480A

Ampere Range

154 Fast-Acting: 0.062A - 10A

154 Time-Lag: 0.375A - 7A

154 Fast-Acting: 1A

154 Fast-Acting: 1A - 5A

154 Time-Lag: 1A - 5A

154 Fast-Acting: 6.3A - 10A

NBK030205-E10480B

NBK101105-E184655

Ordering Information

With Very Fast-Acting Fuse Installed

Catalog

Number

0154.062

0154.080

0154.100

0154.125

0154.160

0154.200

0154.250

0154.315

0154.375

0154.400

0154.500

0154.630

0154.750

0154.800

0154001.

01541.25

015401.5

015401.6

0154002.

015402.5

0154003.

01543.15

015403.5

0154004.

0154005.

015406.3

0154007

0154008.

0154010.

With Time-Lag (Slo-Blo

) Fuse Installed

Fuse

Furnished

0451.062

0451.080

0451.100

0451.125

0453.160

0453.200

0453.250

0453.315

0453.375

0453.400

0453.500

0453.630

0453.750

0453.800

0453001.

04531.25

045301.5

045301.6

0453002.

045302.5

0453003.

04533.15

045303.5

0453004.

0453005.

045306.3

0453007

0453008.

0453010.

Ampere

Rating (A)

0.062

0.08

0.1

0.125

0.16

0.2

0.25

0.315

0.375

0.4

0.5

0.63

0.75

0.8

1.25

1.5

1.6

2.5

3.15

3.5

6.3

Amp

Code

.062

.080

.100

.125

.160

.200

.250

.315

.375

.400

.500

.630

.750

.800

001.

1.25

01.5

01.6

002.

02.5

003.

3.15

03.5

004.

005.

06.3

007

008.

010.

Catalog

Number

154.375 T

154.500 T

154.750 T

154001. T

15401.5 T

154002. T

15402.5 T

154003. T

15403.5 T

154004. T

154005. T

154007 T

Ampere

Rating (A)

0.375

0.5

0.75

1.5

2.5

3.5

Amp

Code

.375

.500

.750

001.

01.5

002.

02.5

003.

03.5

004.

005.

007

Fuse

Furnished

0454.375

0454.500

0454.750

0454001.

045401.5

0454002.

045402.5

0454003.

045403.5

0454004.

0454005.

0454007

* The 453 and 454 Series fuses identified above have silver-plated end caps,

designed to accommodate solder reflow processes:

For 453 Series fuse replacement, either 451, 453 or 448 Series may be used.

For 454 Series fuse replacement, either 452, 454 or 449 Series may be used.

For detailed operating characteristic and performance information for each

of the fuse series mentioned above, please refer to their respective data

available online at www.littelfuse.com.

** 01550900 is UR approved and rated 125V, 10A.

Specifications are subject to change without notice.

Revised: 05/02/13
