BA-1E3Y6G1UI Overview

Triple Color LED, ROHS COMPLIANT PACKAGE-20

BA-1E3Y6G1UI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	BRIGHT
package instruction	ROHS COMPLIANT PACKAGE-20
Reach Compliance Code	unknown
Optoelectronic device types	TRIPLE COLOR LED

Preview

Download Datasheet

View All

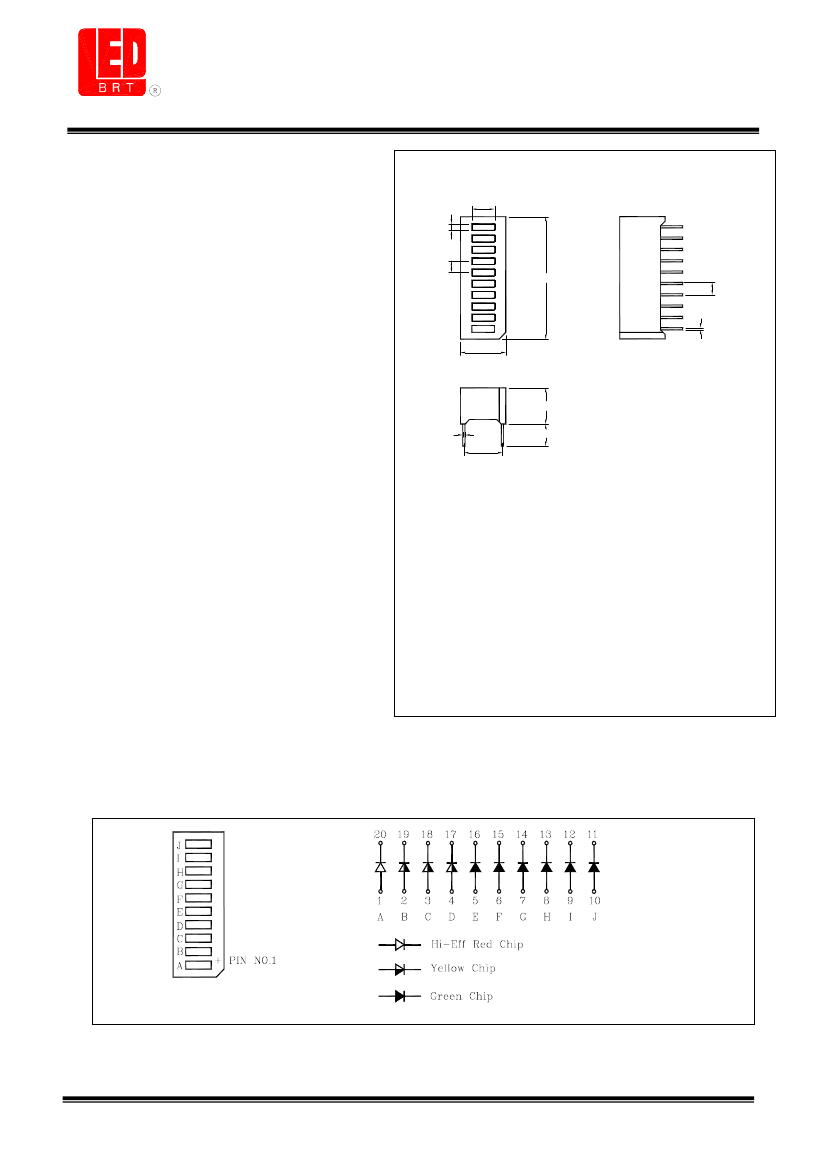

BRIGHT LED ELECTRONICS CORP.

SINCE 1981

BA-1E3Y6G1UI

●

Features :

Emitting area : 5.1×1.78×10（mm）

Low power requirement.

Excellent characters appearance.

Solid state reliability.

Categorized for luminous intensity.

Universal pin out.

●

Package Dimensions :

5.1(.200)

1.78(.070)

2.54(.100)

25.30(.996)

2.54(.100)

0.5(.020)

10.16(.400)

●

Description :

The BA-1E3Y6G1UI is 10 bar graph array

display.

This product use hi-eff red chips and

yellow chips and green chips, the hi-eff

red chips are made from GaAsPon GaP

substrate, the yellow chips are made from

GaAsP on GaP substrate, the green chips

are made from GaP on GaP substrate.

0.25(.010)

7.62(.300)

8.0(.315)

4.1±0.5(.161±020)

Notes:

1. All dimensions are in millimeters(inches).

2. Tolerance is ±0.25mm(.01")unless otherwise

specified.

3. Specifications are subject to change without

notice.

This product have a gray face and white

segments.

This product doesn't contain restriction

substance, comply ROHS standard.

●

Internal Circuit Diagram :

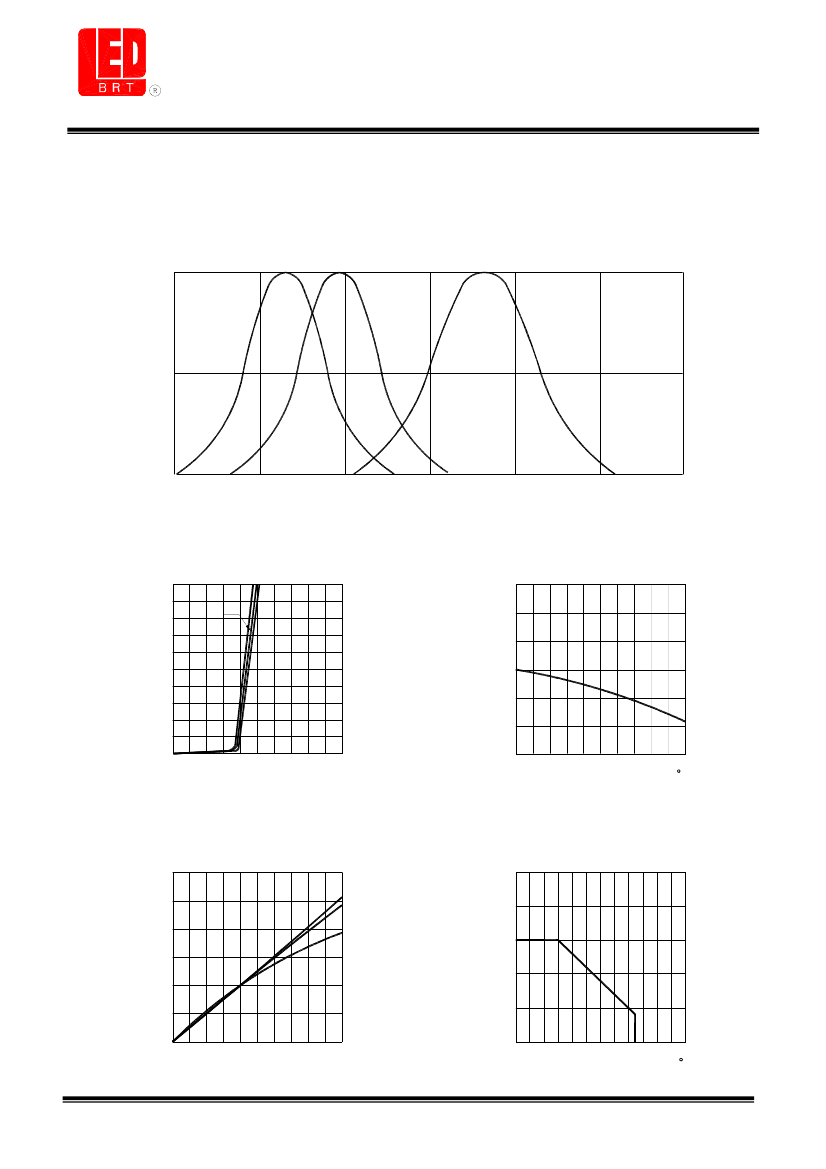

Ver.1.0 Page 1 of 4
