Datasheet> All Categories > Power/power management> BV020-5388.0
PDF
Preview

BV020-5388.0

Description
SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA
CategoryPower/power management
File Size64KB，1 Pages
ManufacturerPulse A Technitrol Company
Websitehttp://www.pulseeng.com
Download Datasheet Parametric Compare View All

BV020-5388.0 Overview

SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA

BV020-5388.0 Parametric

Parameter NameAttribute value
Operating frequency range50/60 HZ
Secondary current 10.0420 A
Processing package descriptionROHS COMPLIANT
stateDISCONTINUED
Installation featuresThrough holeMOUNTED
DimensionsL23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch)
Manufacturer SeriesEE20/10
Center Tap Feature 10.0
Center tap feature 20.0
Number of secondary coils2
Rated coilSingle 115V
Secondary current 20.0420 A
Secondary voltage 16 V
Secondary voltage 26 V
Transformer typesplit coil
Rated VA0.5000 VA

Preview

Download Datasheet

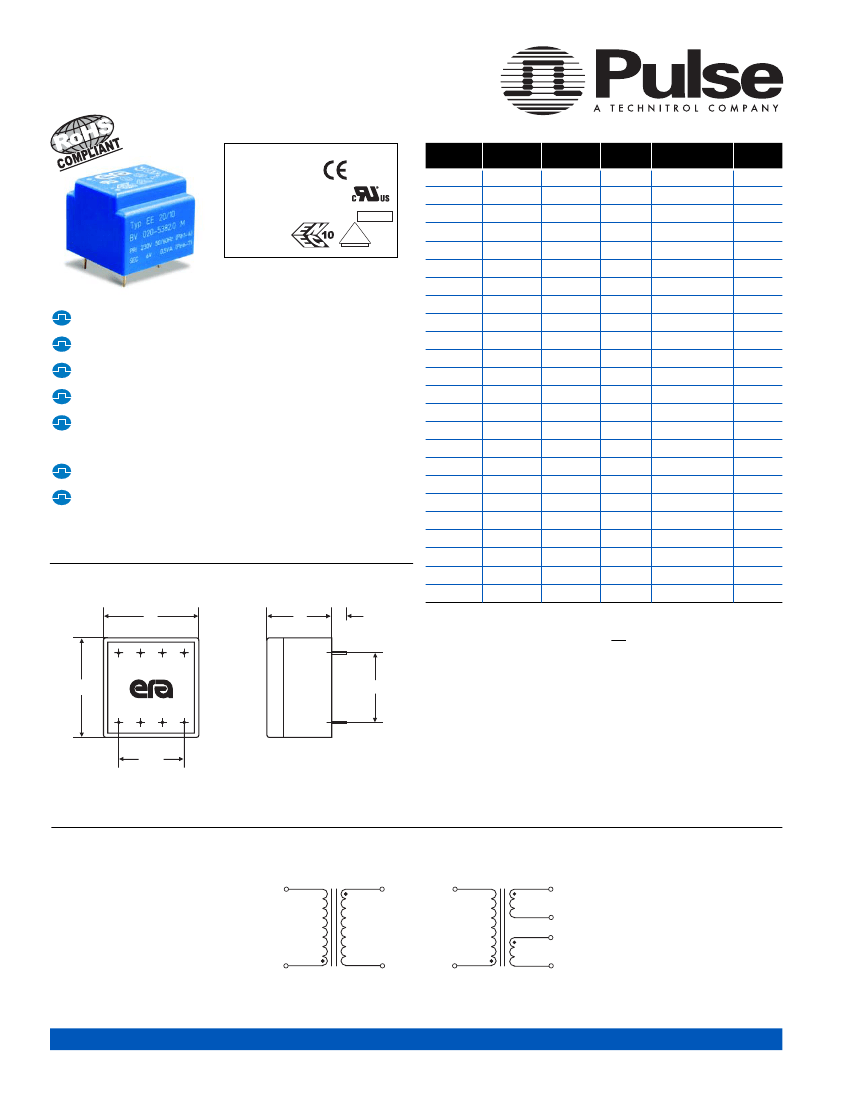

LAMINATED TRANSFORMERS
Type EE20 / 10
- 0.50VA
AGENCY
APPROVALS
1.
UL 506, File E113449
2.
UL 1585, File E175197
3.
EN61558
Class 2/3
Primary
(V)
230
230
230
230
230
230
230
230
V
DE
Secondary
(V / mA)
6 / 83
9 / 55
12 / 42
15 / 34
18 / 28
24 / 21
2x6 / 42
2x9 / 28
2x12 / 21
2x15 /16
2x18 / 14
2x24 / 10
6 / 83
9 / 55
12 / 42
15 / 34
18 / 28
24 / 21
2x6 / 42
2x9 / 28
2x12 / 21
2x15 / 16
2x18 / 14
2x24 /10
No-Load Schematic
Voltage
(V)
No.
8.90
13.50
19.40
24.60
29.50
39.60
2x9.60
2x15.20
2x19.10
2x23.30
2x29.2
2x38.8
8.90
13.50
19.40
24.60
29.50
39.60
2x9.60
2x15.20
2x19.10
2x23.30
2x29.20
2x38.80
1
1
1
1
1
1
2
2
2
2
2
2
1
1
1
1
1
1
2
2
2
2
2
2
Part
Number
020-5382.0
020-5383.0
020-5384.0
020-5385.0
020-5386.0
020-5387.0
020-5388.0
020-5389.0
020-5390.0
020-5391.0
020-5392.0
020-5393.0
020-5370.0
020-5371.0
020-5372.0
020-5373.0
020-5374.0
020-5375.0
020-5376.0
020-5377.0
020-5378.0
020-5379.0
020-5380.0
020-5381.0
Agency
Approvals
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1
1
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1/2/3*
1
1
Frequency 50/60Hz
Potted under vacuum
Split-bobbin
Temperature class ta 70°C/B
Short-circuit-proof (where noted:
1/2/3* under Agency Approvals)
Weight: 0.035kg
Packaging unit: 40 pieces (tray)
Mechanical
230
230
230
230
115
115
115
115
115
115
115
115
115
115
115
115
22
(0.87)
19
(0.75)
4,5
(0.177)
*NOTE:
When checking the approval status of this product with VDE, add the prefix
"BV" and the suffix "M" to the orderable Part Number (these letters will also be found
on the part label).
The prefix and suffix are not part of the orderable Part Number.
5
23
(0.90)
6
7
8
15
(0.60)
4
3
2
1
Pin Ø 0,6 mm
(Pin DIA. 0.024)
3x5
(3 x 0.20)
Schematics
No. 1
4
6
No. 2
4
5
6
7
1
7
1
8
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 769 85538070
•
Taiwan 886 3 4641811
www.pulseeng.com
4
LT2007 (9/07)

BV020-5388.0 Related Products

BV020-5388.0 020-5371.0 020-5376.0 020-5378.0 020-5379.0 020-5380.0 020-5386.0 020-5391.0 020-5393.0
Description SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA SPLIT BOBBIN POWER TRANSFORMER, 0.5 VA
Operating frequency range 50/60 HZ 50/60 HZ 50/60 HZ 50/60 HZ 50/60 HZ 50/60 HZ 50/60 HZ 50/60 HZ 50/60 HZ
Secondary current 1 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A
Processing package description ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT ROHS COMPLIANT
state DISCONTINUED DISCONTINUED DISCONTINUED DISCONTINUED DISCONTINUED DISCONTINUED DISCONTINUED DISCONTINUED DISCONTINUED
Installation features Through holeMOUNTED Through holeMOUNTED Through holeMOUNTED Through holeMOUNTED Through holeMOUNTED Through holeMOUNTED Through holeMOUNTED Through holeMOUNTED Through holeMOUNTED
Dimensions L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch) L23.0XB22.0XH19.0 (mm)/L0.906XB0.866XH0.748 (inch)
Manufacturer Series EE20/10 EE20/10 EE20/10 EE20/10 EE20/10 EE20/10 EE20/10 EE20/10 EE20/10
Center Tap Feature 1 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Center tap feature 2 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Number of secondary coils 2 2 2 2 2 2 2 2 2
Rated coil Single 115V Single 115V Single 115V Single 115V Single 115V Single 115V Single 115V Single 115V Single 115V
Secondary current 2 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A 0.0420 A
Secondary voltage 1 6 V 6 V 6 V 6 V 6 V 6 V 6 V 6 V 6 V
Secondary voltage 2 6 V 6 V 6 V 6 V 6 V 6 V 6 V 6 V 6 V
Transformer type split coil split coil split coil split coil split coil split coil split coil split coil split coil
Rated VA 0.5000 VA 0.5000 VA 0.5000 VA 0.5000 VA 0.5000 VA 0.5000 VA 0.5000 VA 0.5000 VA 0.5000 VA
