FST16233MTD_NL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> FST16233MTD_NL

FST16233MTD_NL: DescriptionMultiplexer And Demux/Decoder, CBT/FST/QS/5C/B Series, 16-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO56, 6.10 MM, LEAD FREE, MO-153, TSSOP-56; Categorylogic logic; File Size96KB，6 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

FST16233MTD_NL Overview

Multiplexer And Demux/Decoder, CBT/FST/QS/5C/B Series, 16-Func, 2 Line Input, 1 Line Output, Inverted Output, CMOS, PDSO56, 6.10 MM, LEAD FREE, MO-153, TSSOP-56

FST16233MTD_NL Parametric

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	TSSOP
package instruction	TSSOP,
Contacts	56
Reach Compliance Code	unknown
Other features	MUX/DMUX SWITCH
series	CBT/FST/QS/5C/B
JESD-30 code	R-PDSO-G56
length	14 mm
Logic integrated circuit type	MULTIPLEXER AND DEMUX/DECODER
Number of functions	16
Number of entries	2
Output times	1
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
propagation delay (tpd)	5 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
width	6.1 mm

Preview

Download Datasheet

View All

FST16233 16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch

September 1997

Revised November 2000

FST16233

16-Bit to 32-Bit Multiplexer/Demultiplexer Bus Switch

General Description

The Fairchild Switch FST16233 is a 16-bit to 32-bit high-

speed CMOS TTL-compatible multiplexer/demultiplexer

bus switch. The low on resistance of the switch allows

inputs to be connected to outputs without adding propaga-

tion delay or generating additional ground bounce noise.

The device can be used in applications where two buses

need to be addressed simultaneously. The FST16233 can

be used as two 8-bit to 16-bit multiplexers or as one 16-bit

to 32-bit multiplexer.

Two select (S

, S

) and two test (TEST

, TEST

) inputs

provide switch enable and multiplexer select control.

The FST16233 is designed to prevent through-current

when switching buses.

Features

Ω

switch connection between two ports.

Minimal propagation delay through the switch.

Low l

Zero bounce in flow-through mode.

Control inputs compatible with TTL level.

Ordering Code:

Order Number

FST16233MEA

FST16233MTD

Package Number

MS56A

MTD56

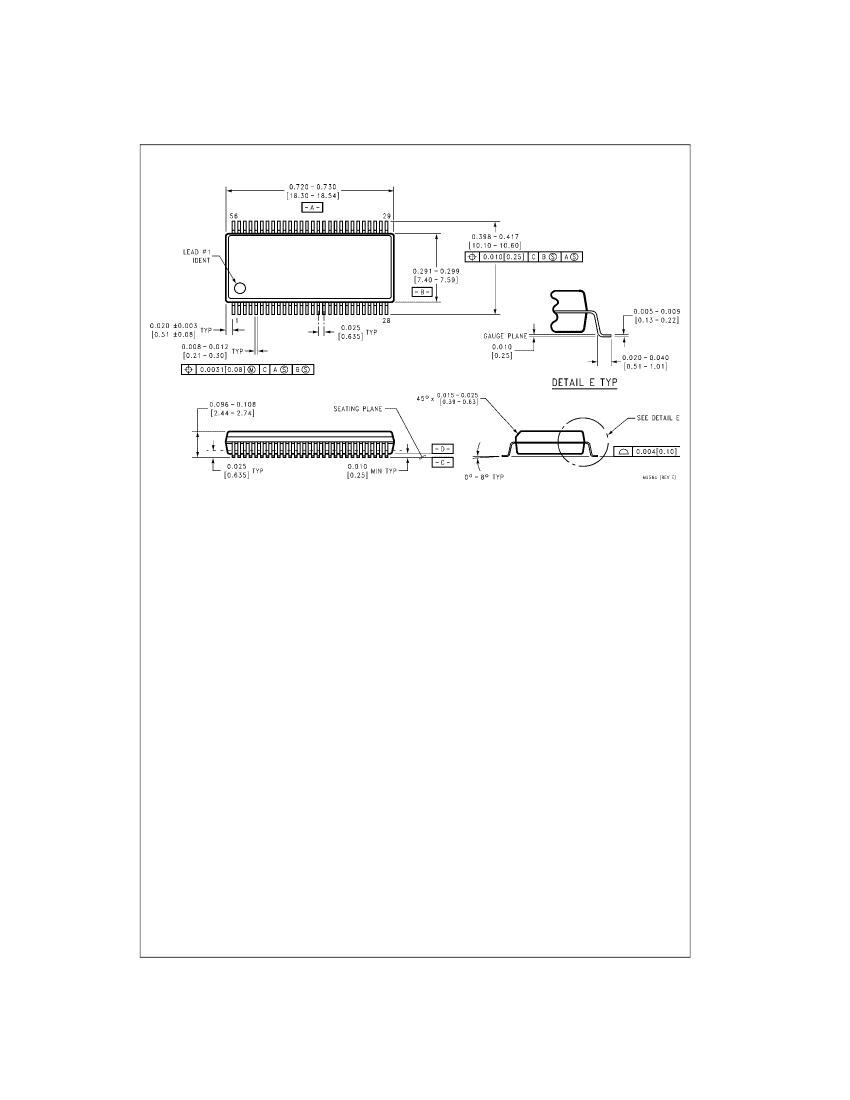

Package Description

56-Lead Shrink Small Outline Package (SSOP), JEDEC MO-118, 0.300 Wide

56-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 6.1mm Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

Logic Diagram

DS500055

www.fairchildsemi.com
