FT1008DH00TU

Description
4 Quadrant Logic Level TRIAC, 400V V(DRM), 10A I(T)RMS, TO-220AB, TO-220AB, 3 PIN
CategoryAnalog mixed-signal IC    Trigger device
File Size141KB，4 Pages
ManufacturerFagor Electrónica
Environmental Compliance
Download Datasheet Parametric Compare View All

FT1008DH00TU Overview

4 Quadrant Logic Level TRIAC, 400V V(DRM), 10A I(T)RMS, TO-220AB, TO-220AB, 3 PIN

FT1008DH00TU Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerFagor Electrónica
Parts packaging codeTO-220AB
package instructionTO-220AB, 3 PIN
Contacts3
Reach Compliance Codecompliant
Shell connectionMAIN TERMINAL 2
ConfigurationSINGLE
Critical rise rate of minimum off-state voltage40 V/us
Maximum DC gate trigger current10 mA
Maximum DC gate trigger voltage1.3 V
Maximum holding current15 mA
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
JESD-609 codee3
Maximum leakage current1 mA
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current10 A
Off-state repetitive peak voltage400 V
surface mountNO
Terminal surfaceTIN
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device type4 QUADRANT LOGIC LEVEL TRIAC

Preview

Download Datasheet

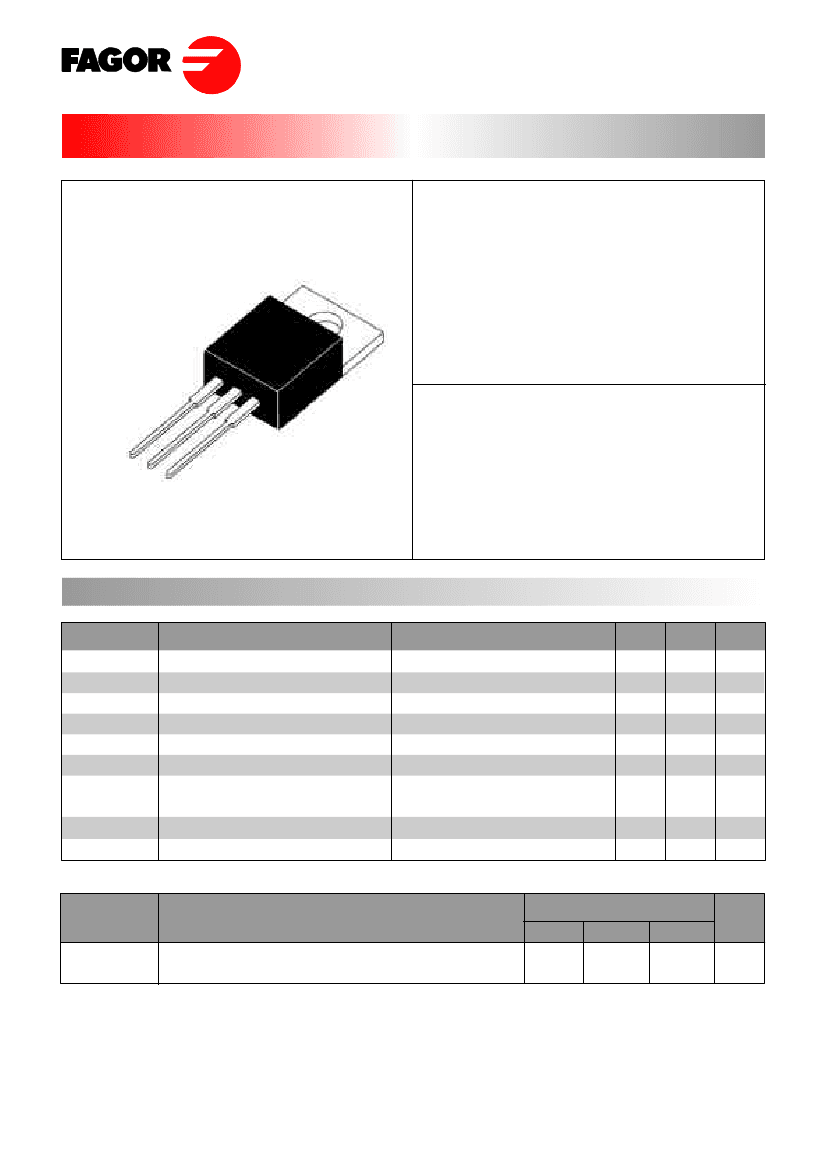

FT10...H
HIGH COMMUTATION TRIAC
TO220-AB
On-State Current
10 Amp
Gate Trigger Current
≤
10 mA to
≤
50 mA
Off-State Voltage
200 V ÷ 600 V
MT2
MT1
MT2
G
This series of
TRIACs
uses a high
performance PNPN technology.
These parts are intended for general
purpose AC switching applications with
highly inductive loads.
Absolute Maximum Ratings, according to IEC publication No. 134
SYMBOL
PARAMETER
RMS On-state Current
Non-repetitive On-State Current
Non-repetitive On-State Current
Fusing Current
Peak Gate Current
Average Gate Power Dissipation
Critical rate of rise of on-state current
Operating Temperature
Storage Temperature
CONDITIONS
All Conduction Angle, T
C
= 105 ºC
Full Cycle, 60 Hz
Full Cycle, 50 Hz
t
p
= 10 ms, Half Cycle
20 µs max.
T
j
=125ºC
T
j
=125ºC
I
G
= 2x I
GT
, t
r
≤100ns
f= 120 Hz, T
j
=125ºC
Min.
10
105
100
55
4
1
50
-40
-40
+125
+150
Max.
Unit
A
A
A
A
2
s
A
W
A/µs
ºC
ºC
I
T(RMS)
I
TSM
I
TSM
I
2
t
I
GM
P
G(AV)
di/dt
T
j
T
stg
SYMBOL
PARAMETER
Repetitive Peak Off State
Voltage
B
200
VOLTAGE
D
400
M
600
Unit
V
V
DRM
V
RRM
Jun - 02

FT1008DH00TU Related Products

FT1008DH00TU FT1011BH00TU FT1011DH00TU FT1011MH00TU FT1014BH00TU FT1016BH00TU FT1016DH00TU FT1016MH00TU FT1008BH00TU FT1008MH00TU
Description 4 Quadrant Logic Level TRIAC, 400V V(DRM), 10A I(T)RMS, TO-220AB, TO-220AB, 3 PIN TRIAC, 200V V(DRM), 10A I(T)RMS, TO-220AB, TRIAC, 400V V(DRM), 10A I(T)RMS, TO-220AB, TRIAC, 600V V(DRM), 10A I(T)RMS, TO-220AB, TRIAC, 200V V(DRM), 10A I(T)RMS, TO-220AB, TRIAC, 200V V(DRM), 10A I(T)RMS, TO-220AB, TRIAC, 400V V(DRM), 10A I(T)RMS, TO-220AB, TRIAC, 600V V(DRM), 10A I(T)RMS, TO-220AB, 4 Quadrant Logic Level TRIAC, 200V V(DRM), 10A I(T)RMS, TO-220AB, TO-220AB, 3 PIN 4 Quadrant Logic Level TRIAC, 600V V(DRM), 10A I(T)RMS, TO-220AB, TO-220AB, 3 PIN
Is it lead-free? Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica Fagor Electrónica
package instruction TO-220AB, 3 PIN FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 FLANGE MOUNT, R-PSFM-T3 TO-220AB, 3 PIN TO-220AB, 3 PIN
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
Shell connection MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2 MAIN TERMINAL 2
Configuration SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Critical rise rate of minimum off-state voltage 40 V/us 200 V/us 200 V/us 200 V/us 500 V/us 1000 V/us 1000 V/us 1000 V/us 40 V/us 40 V/us
Maximum DC gate trigger current 10 mA 25 mA 25 mA 25 mA 35 mA 50 mA 50 mA 50 mA 10 mA 10 mA
Maximum DC gate trigger voltage 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V 1.3 V
Maximum holding current 15 mA 25 mA 25 mA 25 mA 35 mA 50 mA 50 mA 50 mA 15 mA 15 mA
JEDEC-95 code TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB TO-220AB
JESD-30 code R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3 R-PSFM-T3
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3 e3
Maximum leakage current 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA 1 mA
Humidity sensitivity level 1 1 1 1 1 1 1 1 1 1
Number of components 1 1 1 1 1 1 1 1 1 1
Number of terminals 3 3 3 3 3 3 3 3 3 3
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum rms on-state current 10 A 10 A 10 A 10 A 10 A 10 A 10 A 10 A 10 A 10 A
Off-state repetitive peak voltage 400 V 200 V 400 V 600 V 200 V 200 V 400 V 600 V 200 V 600 V
surface mount NO NO NO NO NO NO NO NO NO NO
Terminal surface TIN TIN TIN TIN TIN TIN TIN TIN TIN TIN
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE SINGLE
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Trigger device type 4 QUADRANT LOGIC LEVEL TRIAC TRIAC TRIAC TRIAC TRIAC TRIAC TRIAC TRIAC 4 QUADRANT LOGIC LEVEL TRIAC 4 QUADRANT LOGIC LEVEL TRIAC
