CDP68HC05P1BE28 datasheet, PDF

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> CDP68HC05P1BE28

CDP68HC05P1BE28: DescriptionMicrocontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDIP28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size340KB，13 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

CDP68HC05P1BE28 Overview

Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDIP28

CDP68HC05P1BE28 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP28,.6
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
CPU series	6805
maximum clock frequency	4.2 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Number of I/O lines	21
Number of terminals	28
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	2320
ROM programmability	MROM
speed	4.2 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

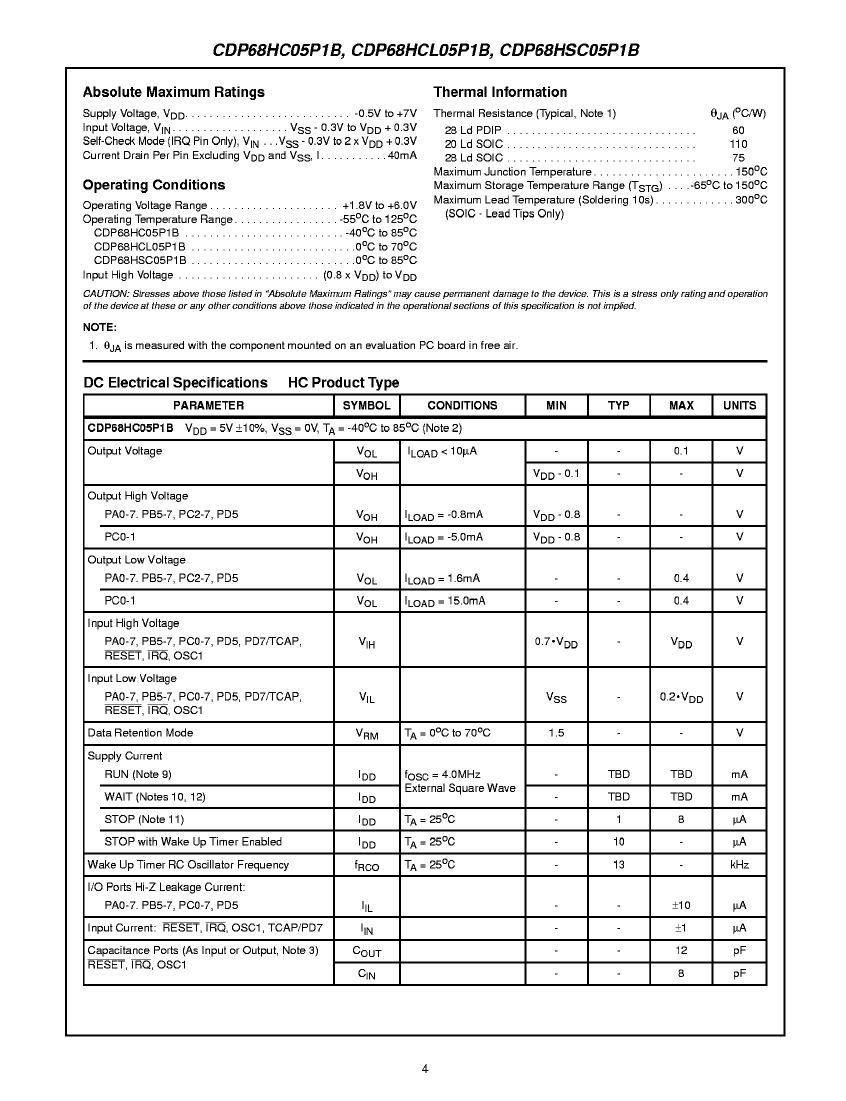

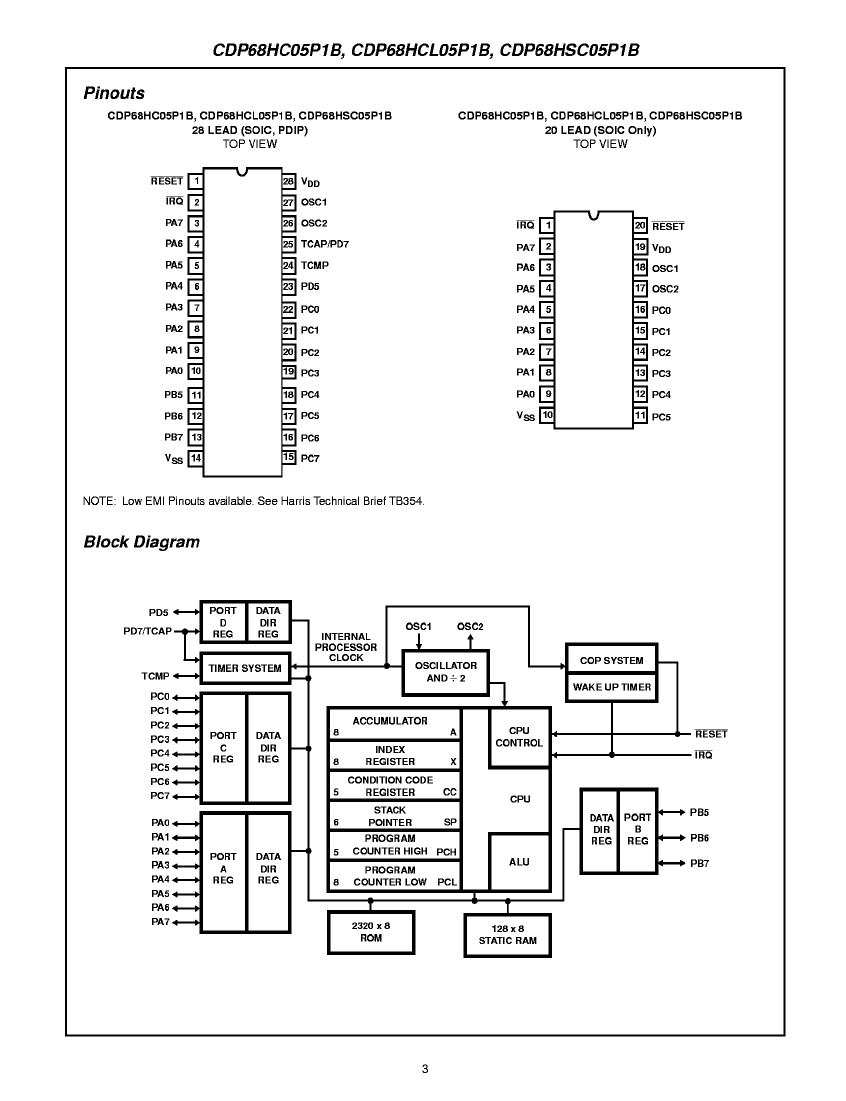

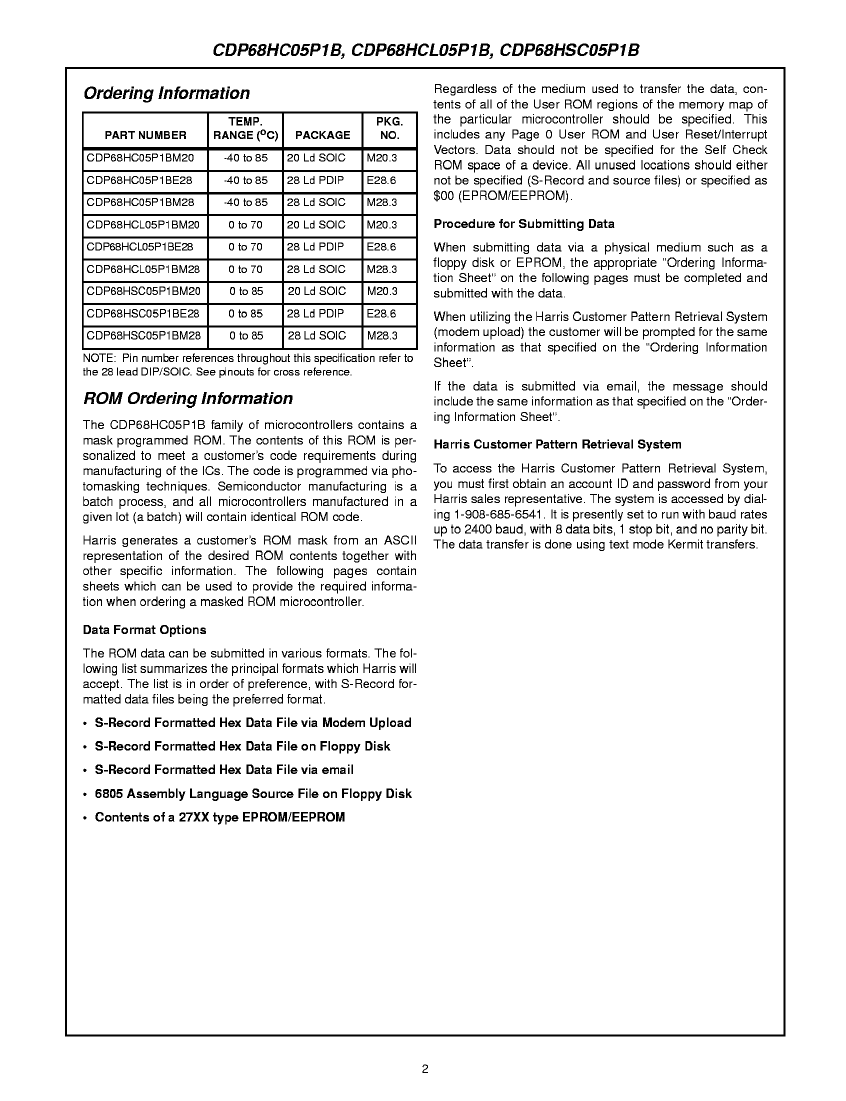

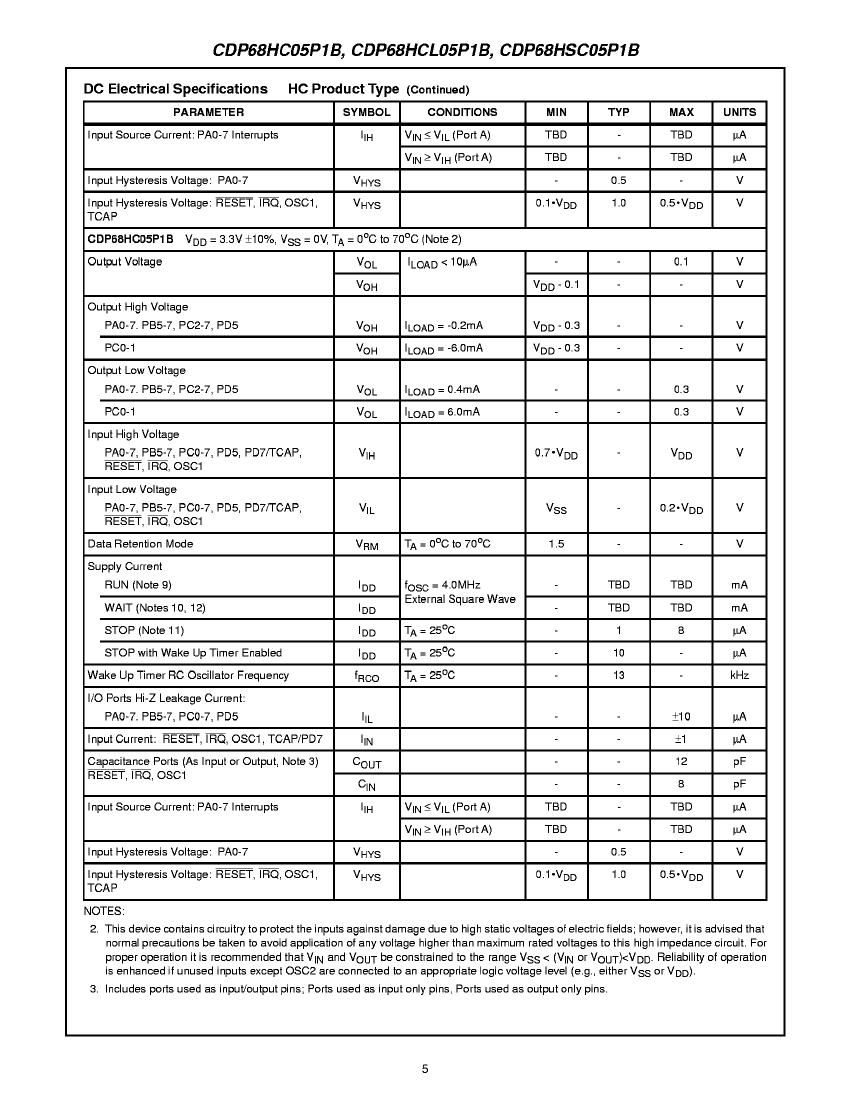

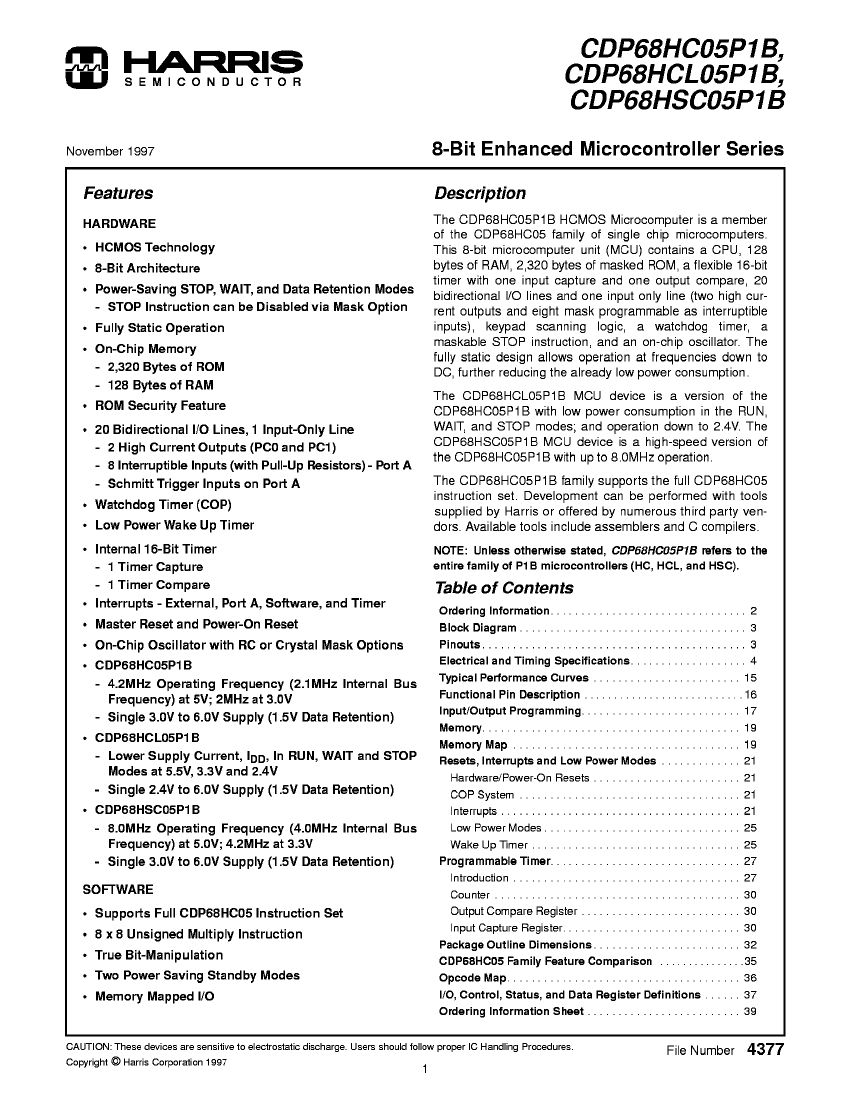

Preview

Download Datasheet

View All

CDP68HC05P1BE28 Related Products

	CDP68HC05P1BE28	CDP68HCL05P1BM20	CDP68HCL05P1BE28	CDP68HCL05P1BM28	CDP68HSC05P1BM20	CDP68HSC05P1BM28	CDP68HC05P1BM20	CDP68HSC05P1BE28	CDP68HC05P1BM28
Description	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDIP28	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDSO20	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDIP28	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDSO28	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDSO20	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDSO28	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDSO20	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDIP28	Microcontroller, 8-Bit, MROM, 6805 CPU, 4.2MHz, CMOS, PDSO28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP28,.6	SOP, SOP20,.4	DIP, DIP28,.6	SOP, SOP28,.4	SOP, SOP20,.4	SOP, SOP28,.4	SOP, SOP20,.4	DIP, DIP28,.6	SOP, SOP28,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	NO	NO	NO	NO	NO	NO	NO	NO	NO
bit size	8	8	8	8	8	8	8	8	8
CPU series	6805	6805	6805	6805	6805	6805	6805	6805	6805
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	R-PDIP-T28	R-PDSO-G20	R-PDIP-T28	R-PDSO-G28	R-PDSO-G20	R-PDSO-G28	R-PDSO-G20	R-PDIP-T28	R-PDSO-G28
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of I/O lines	21	21	21	21	21	21	21	21	21
Number of terminals	28	20	28	28	20	28	20	28	28
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	85 °C	85 °C	85 °C	85 °C	85 °C
PWM channel	NO	NO	NO	NO	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	SOP	SOP	SOP	SOP	DIP	SOP
Encapsulate equivalent code	DIP28,.6	SOP20,.4	DIP28,.6	SOP28,.4	SOP20,.4	SOP28,.4	SOP20,.4	DIP28,.6	SOP28,.4
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3/5 V	2/5 V	2/5 V	2/5 V	3/5 V	3/5 V	3.3/5 V	3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128	128	128	128	128	128	128
rom(word)	2320	2320	2320	2320	2320	2320	2320	2320	2320
ROM programmability	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM	MROM
speed	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	YES	YES	YES	YES	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	OTHER	OTHER	INDUSTRIAL	OTHER	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	Harris	Harris	Harris	Harris	-	-	Harris	Harris	Harris
Base Number Matches	-	1	1	1	1	1	-	-	-
