CDP6818AE datasheet, PDF - EEWORLD Datasheet

CDP6818AE: DescriptionReal Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size766KB，19 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

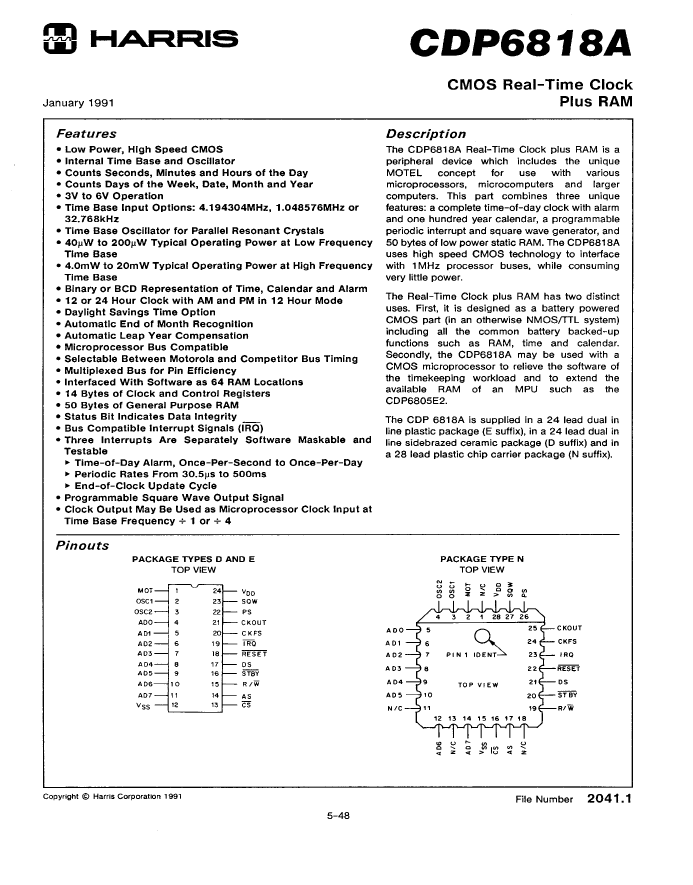

CDP6818AE Overview

Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harris
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	1 MHz
External data bus width	8
Information access methods	PARALLEL, MUXED BUS
interrupt capability	Y
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Number of digits	8
Number of terminals	24
Number of timers	1
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
shortest time	SECONDS
Volatile	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK

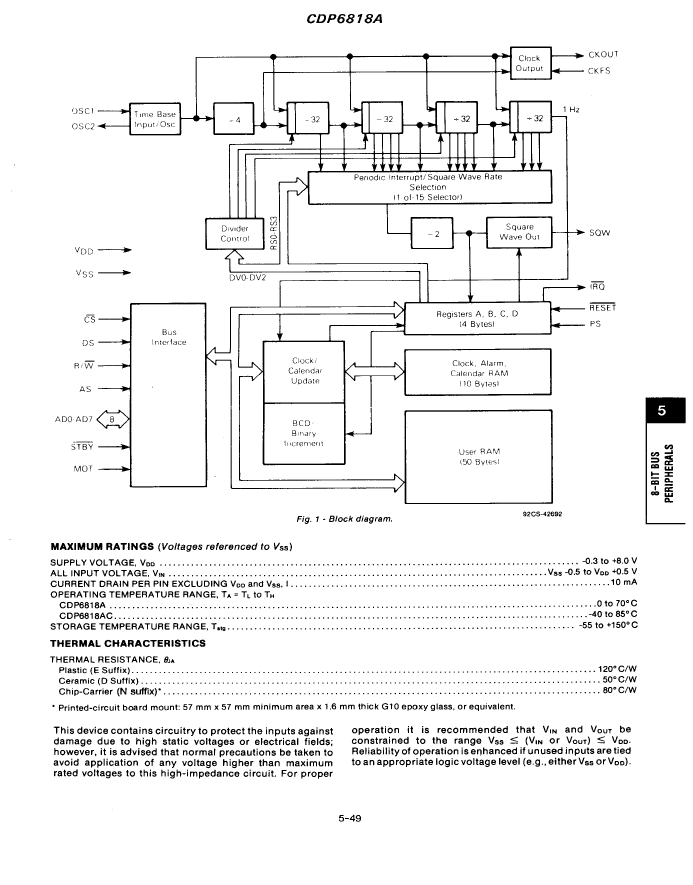

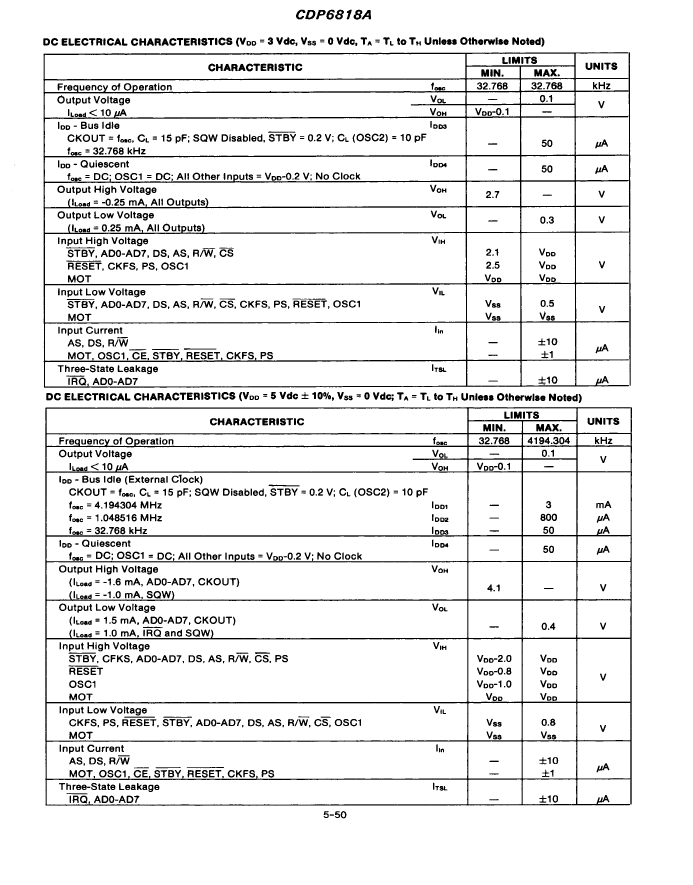

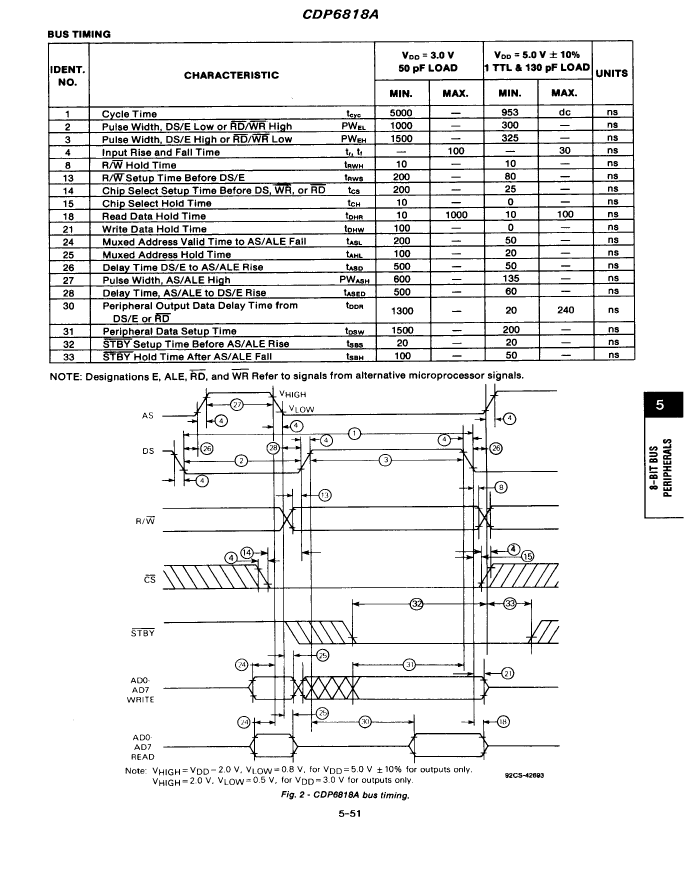

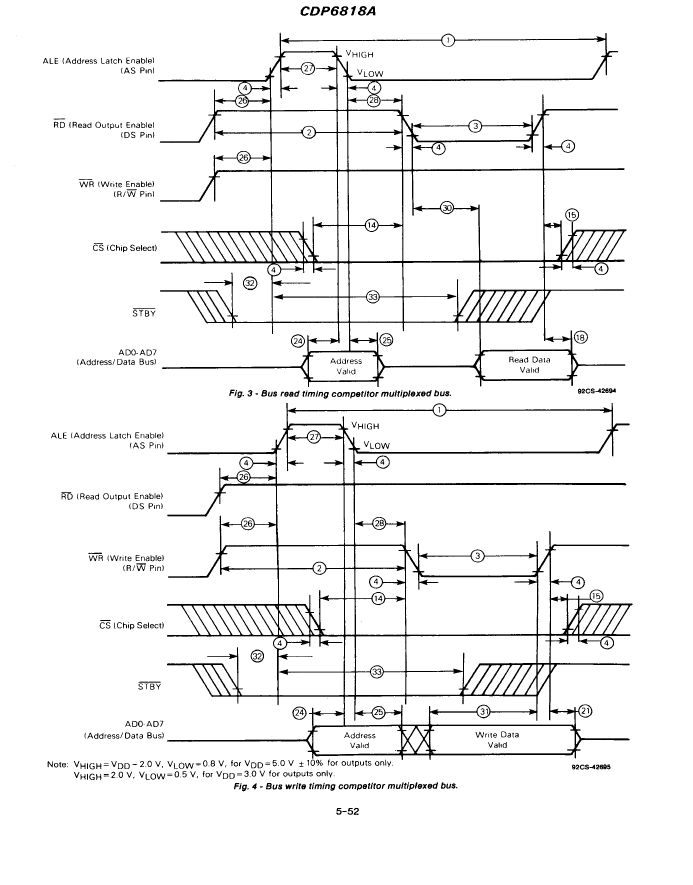

This Material Copyrighted By Its Respective Manufacturer

	CDP6818AE	CDP6818AD
Description	Real Time Clock, Volatile, 1 Timer(s), CMOS, PDIP24	Real Time Clock, Volatile, 1 Timer(s), CMOS, CDIP24
Is it Rohs certified?	incompatible	incompatible
Maker	Harris	Harris
package instruction	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
maximum clock frequency	1 MHz	1 MHz
External data bus width	8	8
Information access methods	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS
interrupt capability	Y	Y
JESD-30 code	R-PDIP-T24	R-CDIP-T24
JESD-609 code	e0	e0
Number of digits	8	8
Number of terminals	24	24
Number of timers	1	1
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
shortest time	SECONDS	SECONDS
Volatile	YES	YES
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
