SI8440AA-D-IS1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Analog mixed-signal IC> SI8440AA-D-IS1

SI8440AA-D-IS1: DescriptionSPECIALTY ANALOG CIRCUIT, PDSO16; Categorysemiconductor Analog mixed-signal IC; File Size493KB，38 Pages; ManufacturerSILABS; Websitehttp://www.silabs.com

Download Datasheet Parametric View All

SI8440AA-D-IS1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SI8440AA-D-IS1	-	-	View	Buy Now

SI8440AA-D-IS1 Overview

SPECIALTY ANALOG CIRCUIT, PDSO16

SI8440AA-D-IS1 Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 Cel
Minimum operating temperature	-40 Cel
Maximum supply/operating voltage	5.5 V
Minimum supply/operating voltage	2.7 V
Rated supply voltage	3.3 V
Processing package description	ROHS COMPLIANT, SOIC-16
state	ACTIVE
Craftsmanship	CMOS
packaging shape	RECTANGULAR
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
Terminal spacing	1.27 mm
terminal coating	NOT SPECIFIED
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Temperature level	AUTOMOTIVE
Analog IC other types	ANALOG CIRCUIT

Preview

Download Datasheet

View All

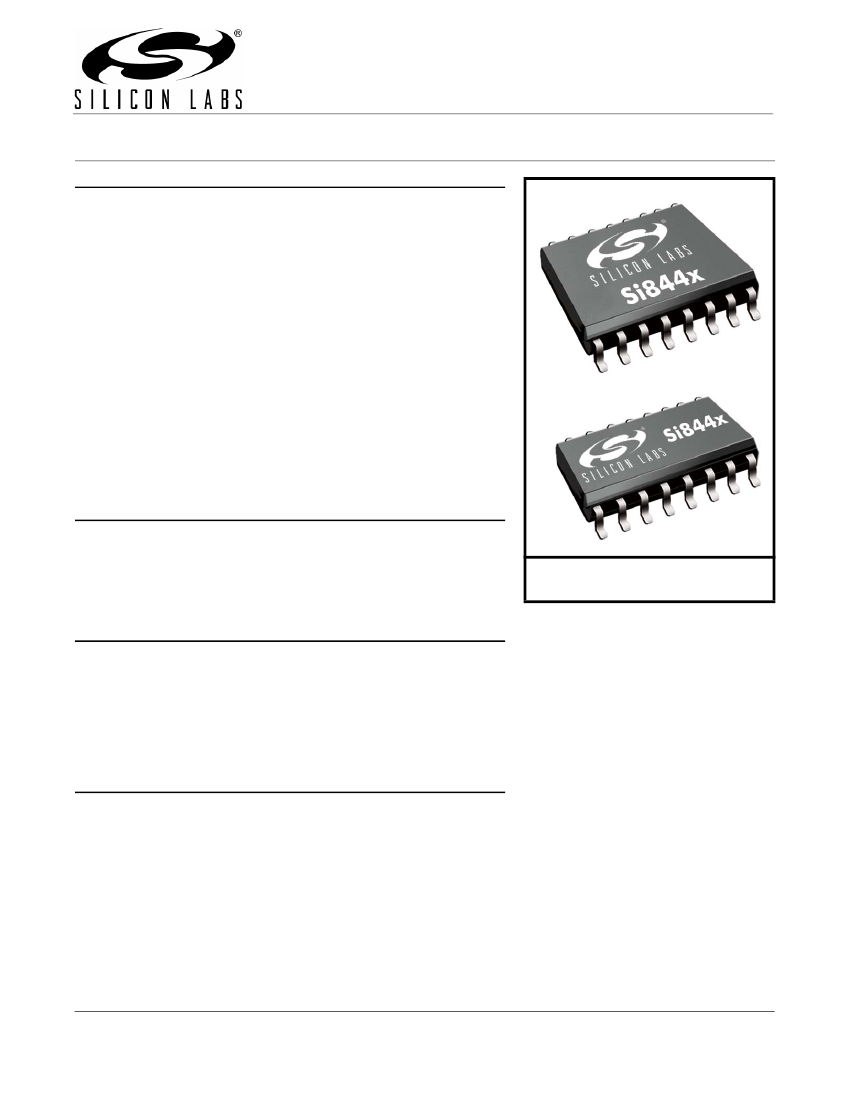

Si8440/41/42/45

O W

- P

O W E R

U A D

- C

H A N N E L

I G I TA L

S O L A T O R

Features



High-speed operation





Up to 2500 V

RMS

isolation

60-year life at rated working

No start-up initialization required

voltage

Wide Operating Supply Voltage:



Precise timing (typical)

2.70–5.5 V



<10 ns worst case

Wide Operating Supply Voltage:



1.5 ns pulse width distortion

2.70–5.5V



0.5 ns channel-channel skew



2 ns propagation delay skew

Ultra low power (typical)



6 ns minimum pulse width

5 V Operation:



Transient Immunity 25 kV/µs



< 1.6 mA per channel at 1 Mbps



< 6 mA per channel at 100 Mbps



AEC-Q100 qualified

2.70 V Operation:



Wide temperature range



to 150 Mbps

1.4 mA per channel at 1 Mbps



–40 to 125 °C at 150 Mbps



< 4 mA per channel at 100 Mbps



RoHS-compliant packages



High electromagnetic immunity



SOIC-16 wide body



SOIC-16 narrow body

Applications



Industrial automation systems



Hybrid electric vehicles



Isolated switch mode supplies



Isolated ADC, DAC



Motor control



Power inverters



Communications systems

Ordering Information:

See page 27.

Safety Regulatory Approvals



UL 1577 recognized





VDE certification conformity



IEC

to 2500 V

RMS

for 1 minute

CSA component notice 5A

approval



IEC

60747-5-2

(VDE0884 Part 2)

60950-1, 61010-1

(reinforced

insulation)

Description

Silicon Lab's family of ultra-low-power digital isolators are CMOS

devices offering substantial data rate, propagation delay, power, size,

reliability, and external BOM advantages when compared to legacy

isolation technologies. The operating parameters of these products

remain stable across wide temperature ranges throughout their

service life. For ease of design, only VDD bypass capacitors are

required.

Data rates up to 150 Mbps are supported, and all devices achieve

worst-case propagation delays of less than 10 ns. All products are

safety certified by UL, CSA, and VDE and support withstand voltages

of up to 2.5 kVrms. These devices are available in 16-pin wide- and

narrow-body SOIC packages.

Rev. 1.5 3/12

Si8440/41/42/45

Si8440/41/42/45

ABLE O F

ONTENTS

Section

Page

1. Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2. Functional Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.1. Theory of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2.2. Eye Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

2.3. Device Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

2.4. Layout Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

2.5. Typical Performance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

3. Errata and Design Migration Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

3.1. Enable Pin Causes Outputs to Go Low (Revision C Only) . . . . . . . . . . . . . . . . . . . . 25

3.2. Power Supply Bypass Capacitors (Revision C and Revision D) . . . . . . . . . . . . . . . . 25

3.3. Latch Up Immunity (Revision C Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4. Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5. Ordering Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

6. Package Outline: 16-Pin Wide Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7. Land Pattern: 16-Pin Wide-Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8. Package Outline: 16-Pin Narrow Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

9. Land Pattern: 16-Pin Narrow Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10. Top Marking: 16-Pin Wide Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

10.1. 16-Pin Wide Body SOIC Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

10.2. Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

11. Top Marking: 16-Pin Narrow Body SOIC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

11.1. 16-Pin Narrow Body SOIC Top Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

11.2. Top Marking Explanation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Document Change List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Contact Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Rev. 1.5
