USB Series Varistor
Multilayer Varistors for Universal Serial BUS Protection
GENERAL DESCRIPTION
USB Series varistors are designed to protect the high speed data lines
against ESD transients. They have very low capacitance and fast turn on
times that make this series ideal for data and transmission lines with high
data rates. The unique design enables these devices to meet the rigorous
testing criteria of the
IEC 61000-4-2
standards. New and improved manu-
facturing process has created these USB series to be one of the best plat-
ed varistors in the market today.
FEATURES
• Zinc Oxide (ZnO) based ceramic semiconductor devices with non-linear
voltage-current characteristics
• Bi-directional device, similar to back-to-back Zener diodes plus an EMC
capacitor in parallel
• Entire structure made up of conductive ZnO grains surrounded by electri-
cally insulating barriers, creating varistor-like behavior
• Electrical advantages over Zener diodes are repetitive strike capability,
high in rush current capability, fast turn-on-time and EMI attenuation
• Protects against ESD to meet
IEC 61000-4-2
15kV (air) and 8kV
(contact)
• Low capacitance for high speed data lines
• Available in discrete and array packages (2 and 4 element)
• Low Clamping Voltage
• Low Operating Voltage
• Response time is < 1ns

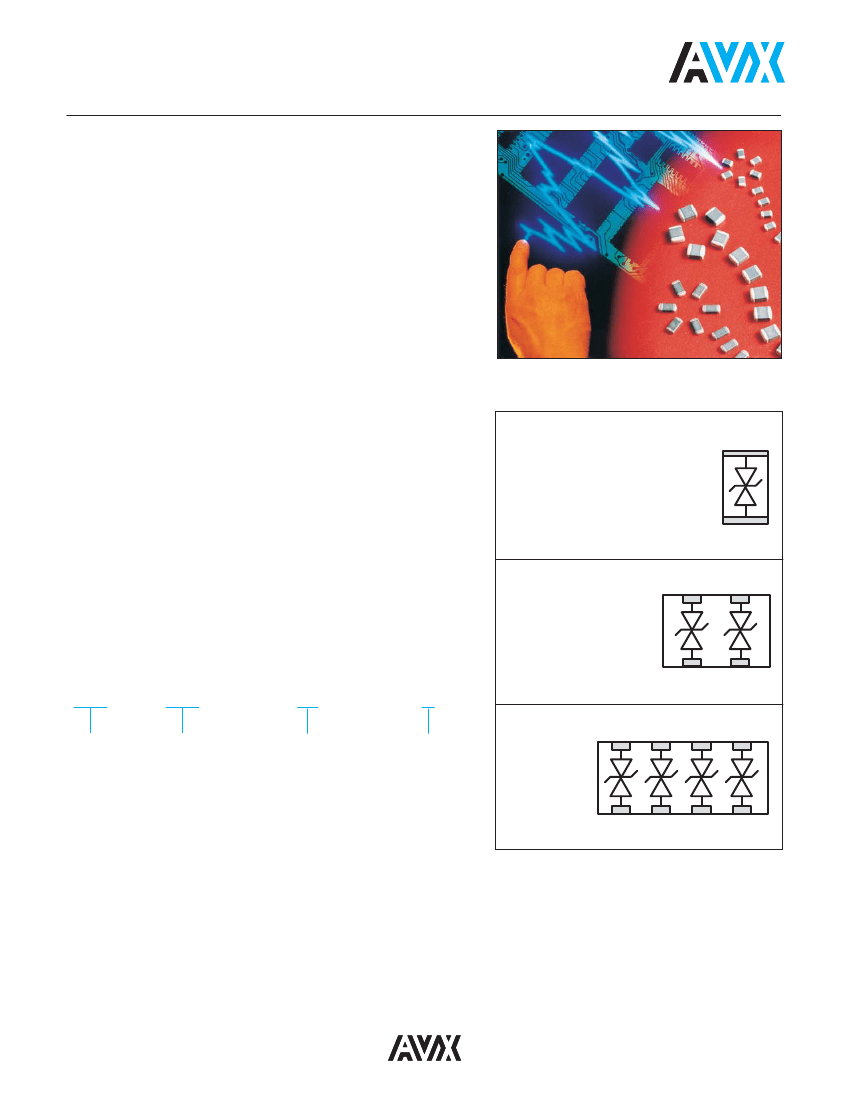

PINOUT CONFIGURATION
USB0001/0005/0006
0603 and 0402 (Single)
MECHANICAL CHARACTERISTICS
• Available in EIA 0603 (Single), 0405 (Dual) and 0612 (Quad) cases
• Plated Tin over Nickel Barrier
• Packaged in Tape & Reel
USB0002
0405 (Dual)
PART NUMBERING
USB
Style
0001
Case Size
0001 = 0603 (Single)
0002 = 0405 (2-Element)
0004 = 0612 (4-Element)
0005 = 0402 (Single)
0006 = 0402 (Single)
D
Packaging Code
(Reel Size)
D = 7" (1,000 pcs.)
R = 7" (4,000 pcs.)
T = 13" (10,000 pcs.)
W = 7" (10,000 pcs.
0402 only)
P
Termination
P = Ni/Sn Alloy (Plated)
M = Ni/Sn Pb (Plated)
USB0004
0612
(Quad)
TYPICAL APPLICATIONS
• USB BUS Lines/Firewire Data
BUS Lines
• I/O BUS Lines
• 10/100/1000 Ethernet
Transmission Lines
•
•
•
•
Video Card Data Lines
Handheld Devices
Laptop Computers
LCD Monitors
32
USB Series Varistor
Multilayer Varistors for Universal Serial BUS Protection
RATINGS
Air Discharge ESD
Contact Discharge ESD
Operating Temperature
Soldering Temperature
15kV
8kV
–55°C to +125°C
230°C
PERFORMANCE CHARACTERISTICS
AVX Part No.
USB0001_ _
USB0002_ _
USB0004_ _
USB0005_ _
USB0006_ _
V
W
(DC)
≤18
≤18
≤18
≤18
≤18
V
W
(AC)
≤14
≤14
≤14
≤14
≤14
V
B
120
70
100
300
65
I
L
2
2
2
2
2
E
T
0.015
0.015
0.015
0.015
0.015
I
P
4
4
4
4
4
Cap.
10
10
10
3
6
Case Size
0603
0405
0612
0402
0402
Elements
1
2
4
1
1
Termination Finish Code
Packaging Code
V
W
(DC)
V
W
(AC)
V
B
I
L
E
T
I
P
Cap
DC Working Voltage (V)
AC Working Voltage (V)
Typical Breakdown Voltage (V @ 1mA
DC
)
Maximum Leakage Current at the Working Voltage (µA)
Transient Energy Rating (J, 10x1000µS)
Peak Current Rating (A, 8x20µS)
Typical Capacitance (pF) @ 1 MHz and 0.5Vrms
USB TYPICAL S21 CHARACTERISTICS
0
-5
-10
Insertion Loss (dB)
-15
-20
-25
-30
-35
100
1000
Frequency (MHz)
10000
USB0001
USB0005
USB0006
USB0002
USB0004
Typical Pulse Rating Curve
Peak Power (W)
10000
1000
100
10
10
100
1000
10000
Pulse Duration (µS)
33
USB Series Varistor
Multilayer Varistors for Universal Serial BUS Protection
PHYSICAL DIMENSIONS AND PAD LAYOUT
USB0001/5/6 (Single)
T
P
W
T
T
USB0002 (Dual)
W
USB0004 (Quad)
W
P
BL
L
BW
BW
BL
L
BL
L
D
E
A
D
C
B
B
C
C
A
B
A
D
E
mm (inches)
L
USB0001
W
T
BW
N/A
mm (inches)
A
USB0001
0.89
(0.035)
BL
0.35±0.15
(0.014±0.006)
P
N/A
B
0.76
(0.030)
0.74
(0.029)
1.65
(0.065)
0.51
(0.020)
C
2.54
(0.100)
1.20
(0.047)
2.54
(0.100)
1.70
(0.067)
D
0.76
(0.030)
0.30
(0.012)
0.46
(0.018)
0.51
(0.020)
E
N/A
0.64
(0.025)
0.76
(0.030)
N/A
1.60±.15
0.80±0.15
0.90 Max
(0.063±0.006) (0.032±0.006) (0.035 Max.)
USB0002
1.00±0.15
1.37±0.15
0.66 Max
0.36±0.10
0.20±0.10
0.64 REF
(0.039±0.006) (0.054±0.006) (0.026 Max.) (0.014±0.004) (0.008±0.004) (0.025 REF)
USB0002
0.46
(0.018)
USB0004
1.60±0.20
3.20±0.20
1.22 Max
0.41±0.10
0.18
+0.25/–0.08
0.76 REF
(0.063±0.008) (0.126±0.008) (0.048 Max.) (0.016±0.004) (0.007
+.01/–.003
) (0.030 REF)
USB0004
0.89
(0.035)
0.61
(0.024)
USB0005 / USB0006
1.0±0.10
0.50±0.10
0.60 Max
(0.040±0.004) (0.020±0.004) (0.024 Max.)
N/A
0.25±0.15
(0.010±0.006)
N/A
USB0005 / USB0006
34
