Part Number

Search

DS21T16S

Description
SCSI Terminator, 9-Line, 110ohm, PDSO16, 0.173 INCH, PLASTIC, TSSOP-16
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size97KB,6 Pages
ManufacturerMaxim
Websitehttps://www.maximintegrated.com/en.html
Download Datasheet Parametric View All

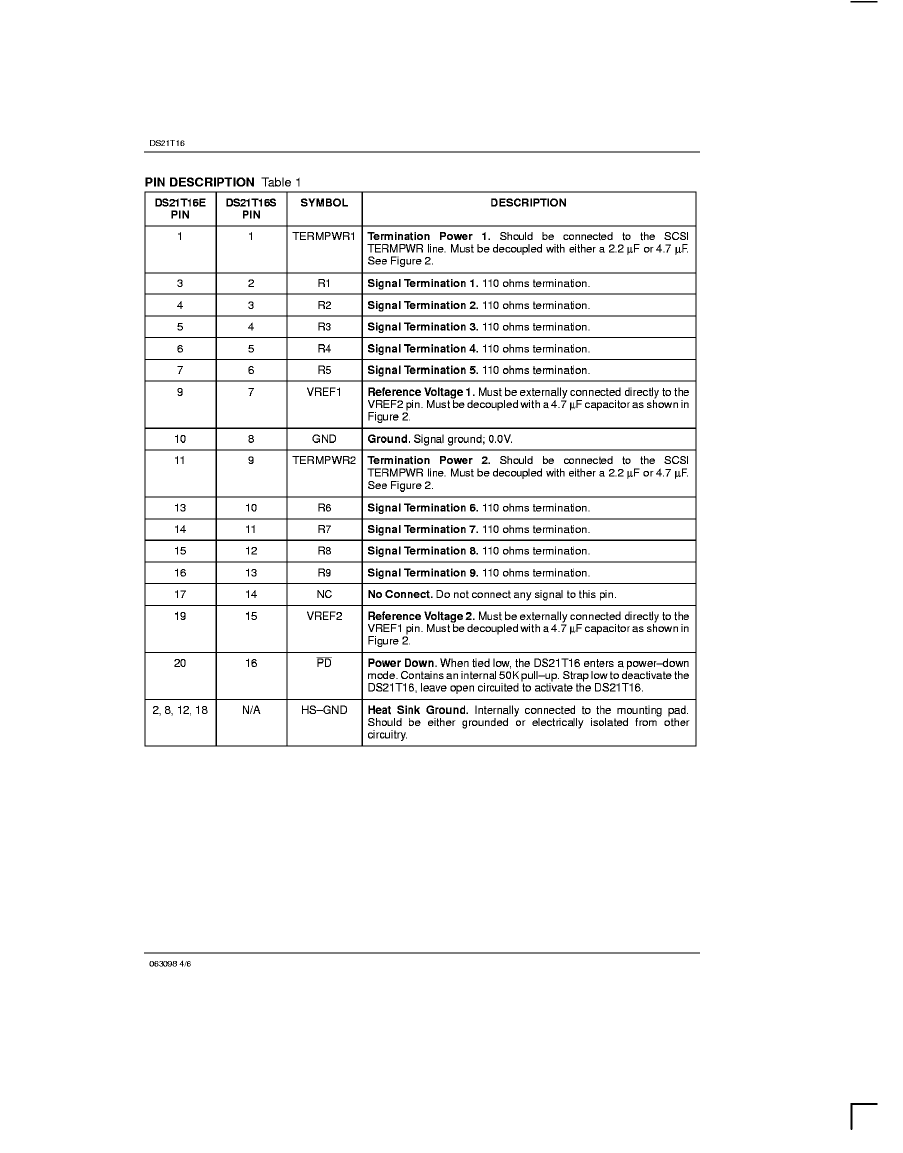

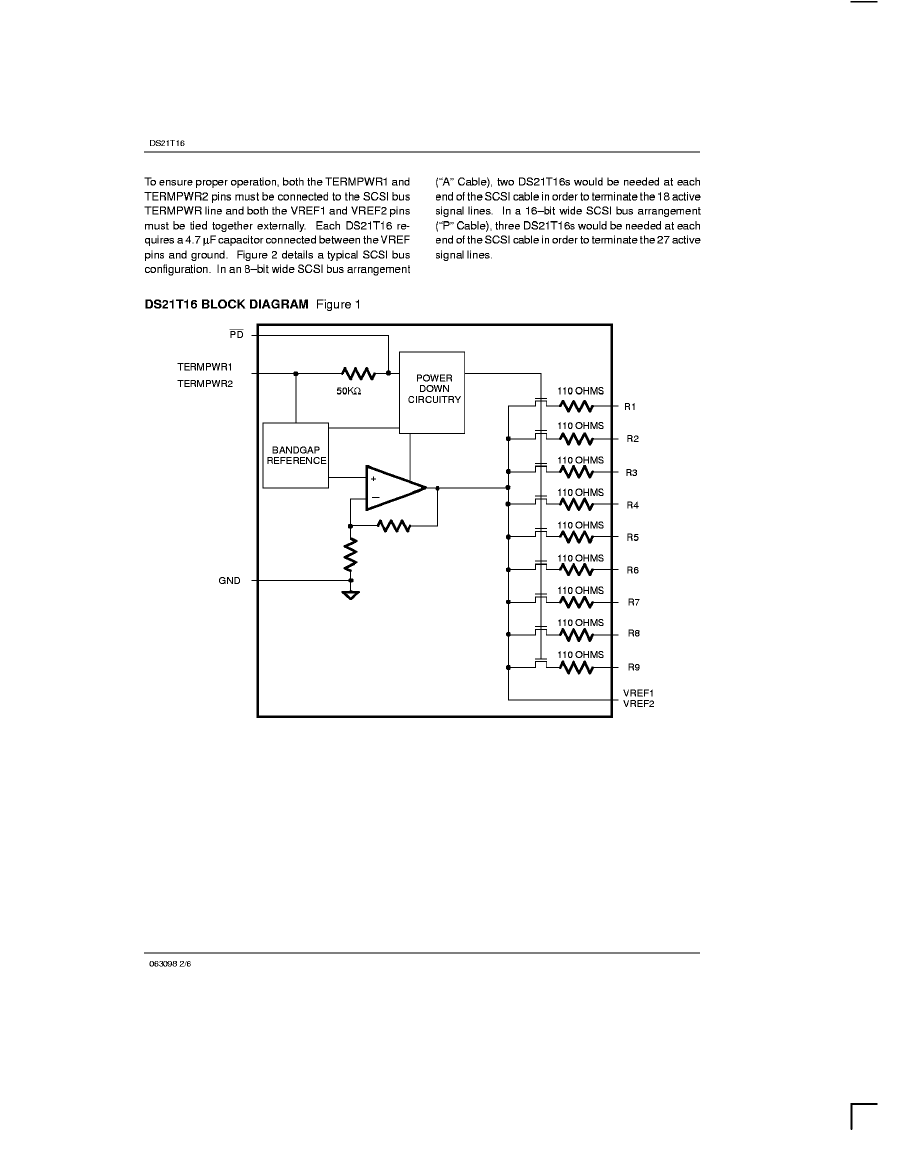

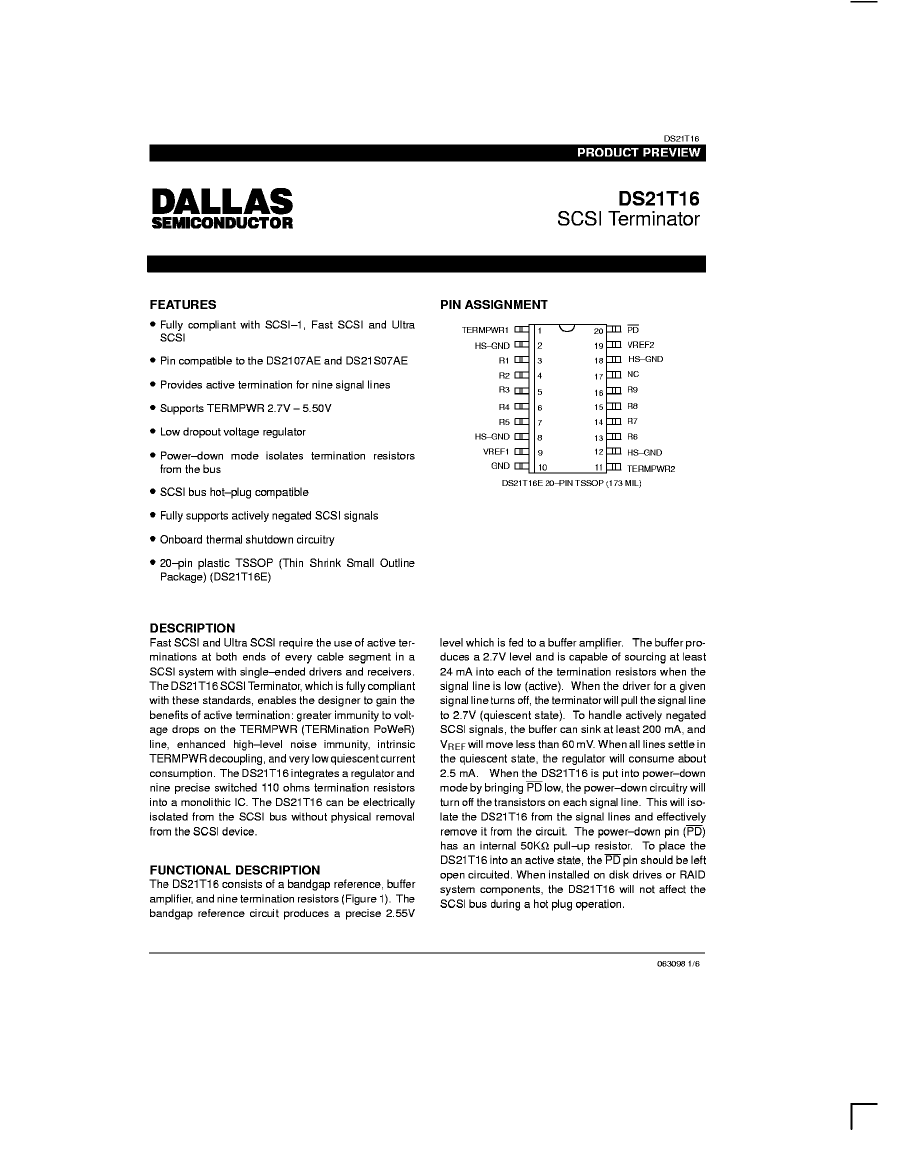

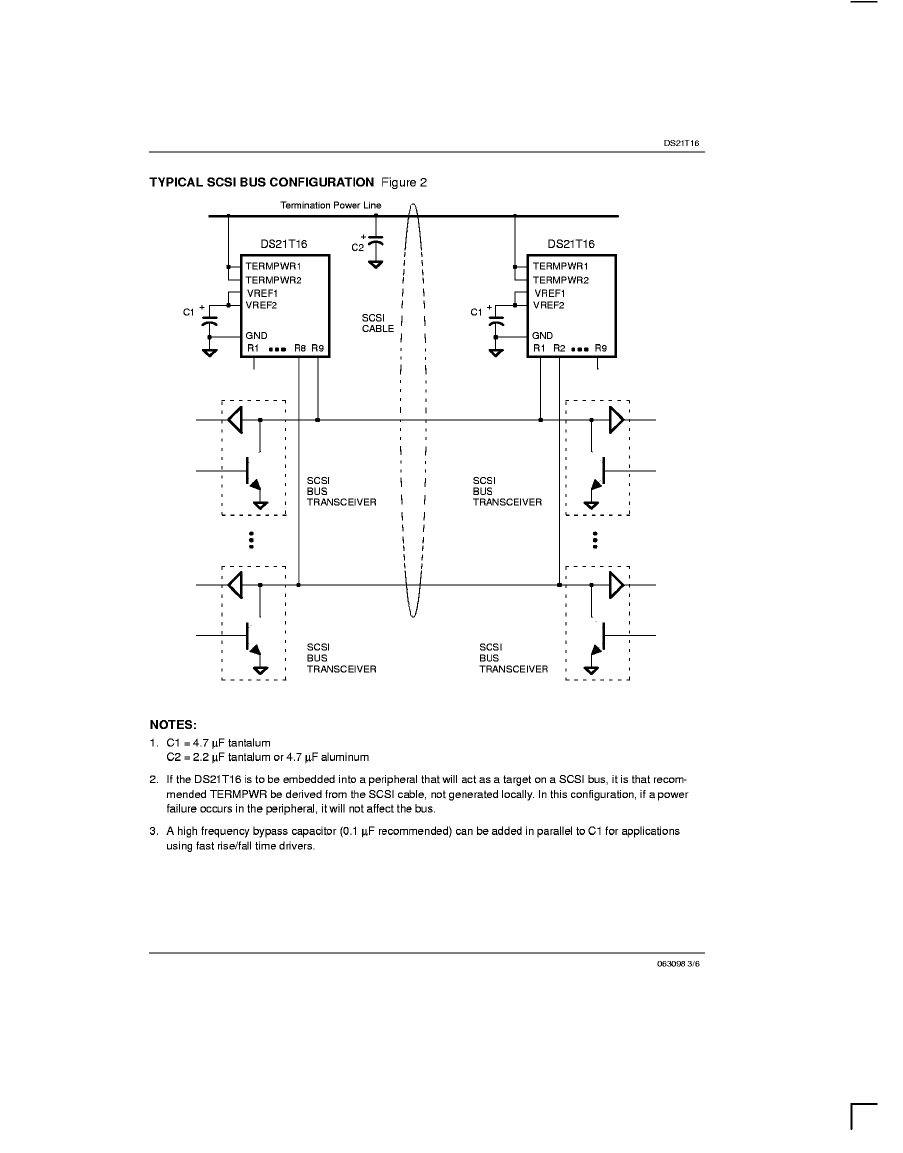

DS21T16S Overview

SCSI Terminator, 9-Line, 110ohm, PDSO16, 0.173 INCH, PLASTIC, TSSOP-16

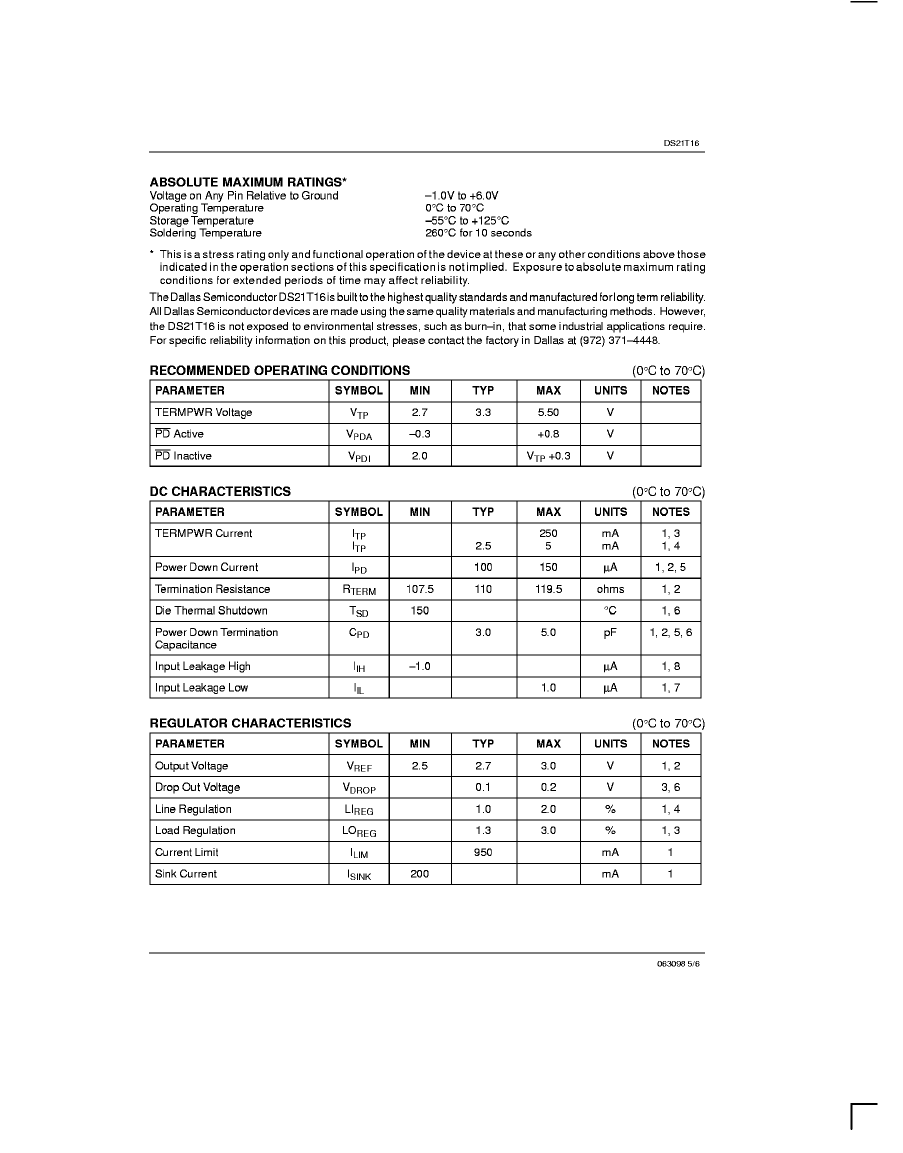

DS21T16S Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instructionTSSOP,
Reach Compliance Codecompli
ECCN codeEAR99
Differential outputNO
Interface integrated circuit typeSCSI BUS TERMINATOR
JESD-30 codeR-PDSO-G16
JESD-609 codee0
length5 mm
Humidity sensitivity level1
Number of functions1
Number of signal lines9
Number of terminals16
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)240
Nominal pull-up resistor110 Ω
Certification statusNot Qualified
Maximum seat height1.1 mm
Maximum supply voltage5.5 V
Minimum supply voltage2.7 V
Nominal supply voltage3.3 V
surface mountYES
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width4.4 mm
Base Number Matches1
