1.6x1.5mm BI-COLOR SMD CHIP LED LAMP
KPTB-1615SURKSGC
HYPER RED
SUPER BRIGHT GREEN
Features
1.6mmx1.5mm SMT LED, 0.7mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
RoHS COMPLIANT.
Description
The Hyper Red source color devices are made with DH
InGaAlP on GaAs substrate Light Emitting Diode.
The Super Bright Green source color devices are made
with Gallium Phosphide Green Light Emitting Diode.

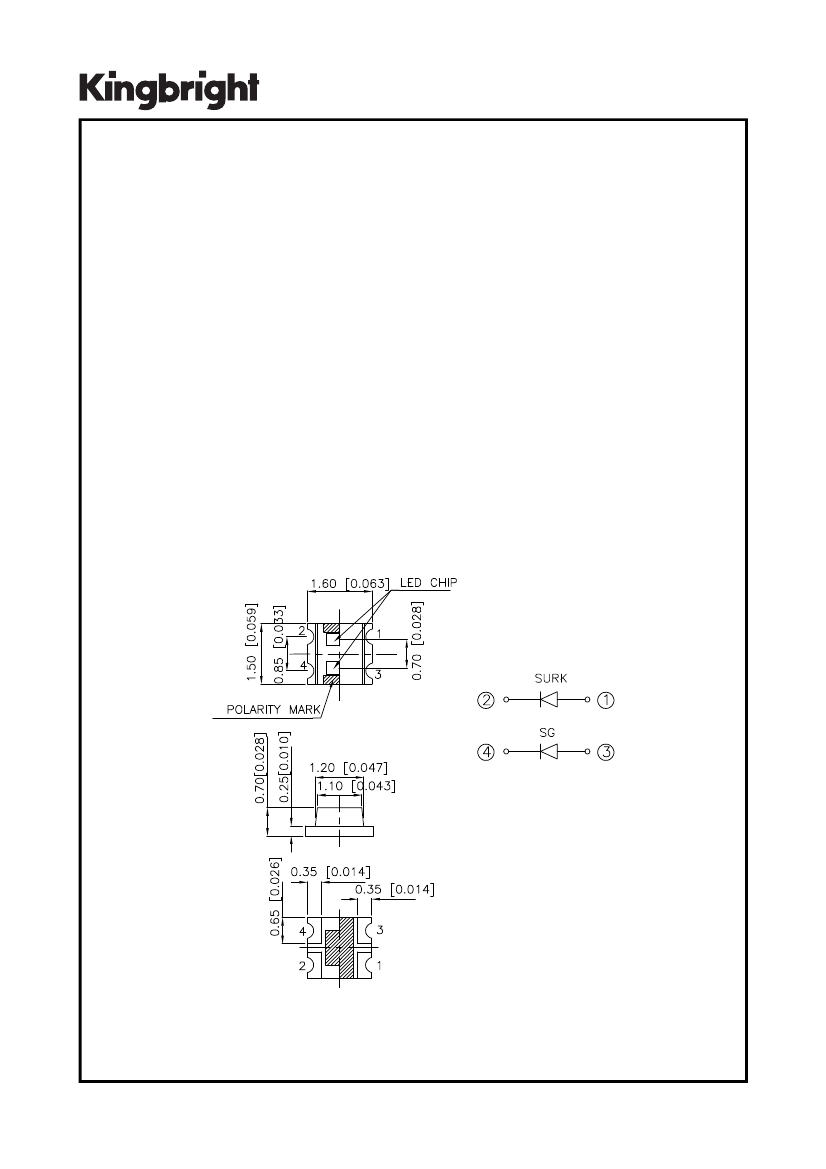

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.2(0.008")
unless otherwise noted.
3. Specifications are subject to change without notice.
SPEC NO:DSAB4508
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: AUG/11/2005
DRAWN: Y.W.WANG
PAGE: 1 OF 5
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 20mA
Min.
HYPER RED (InGaAlP)
KPTB-1615SURKSGC
SUPER BRIGHT GREEN (GaP)
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Viewing
Angle
2θ1/2
θ
120
°
Typ.
150
12
70
WATER CLEAR
4
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Hyper Red
Super Bright Green
Typ.
650
565
635
568
28
30
35
15
1.95
2.2
2.5
2.5
10
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/storage Temperature
Note:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
Hyper Red
170
30
185
5
Super Bright Green
105
25
140
Units
mW
mA
mA
V
-40°C To +85°C
SPEC NO:DSAB4508
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: AUG/11/2005
DRAWN: Y.W.WANG
PAGE: 2 OF 5
KPTB-1615SURKSGC
Hyper Red
SPEC NO:DSAB4508
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: AUG/11/2005
DRAWN: Y.W.WANG
PAGE: 3 OF 5

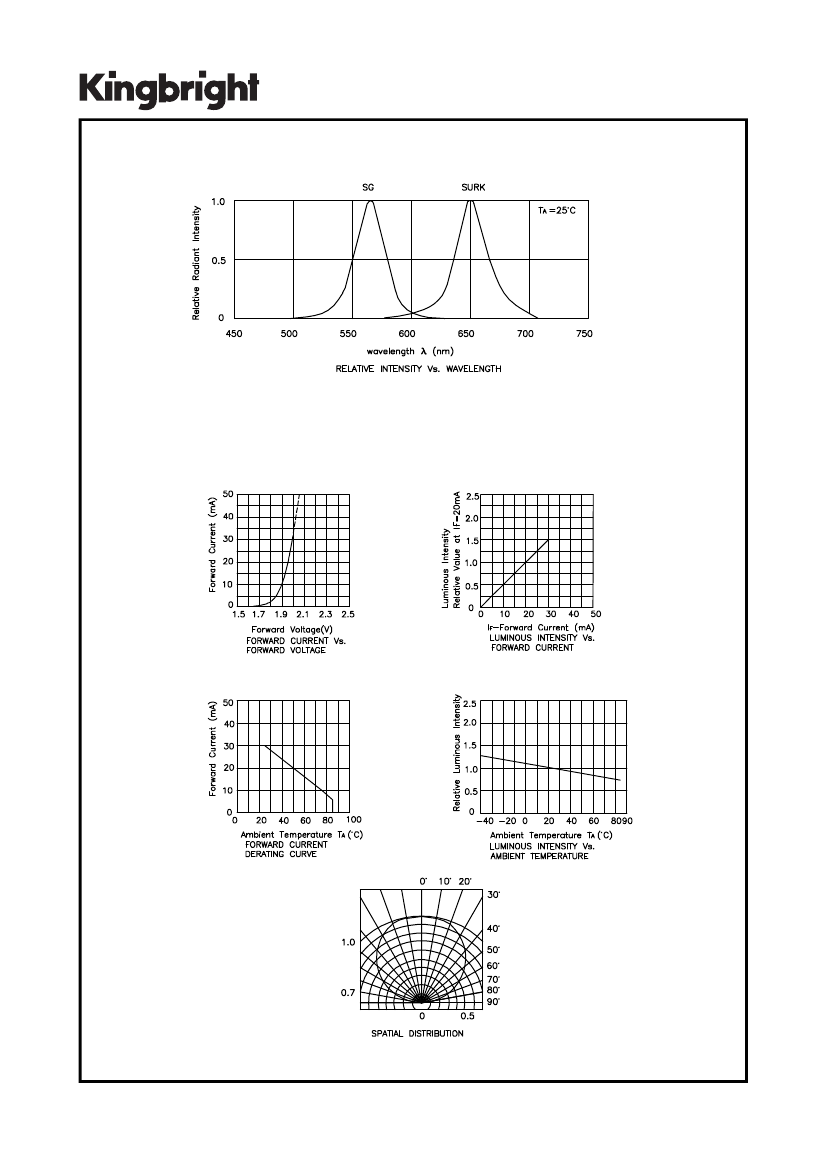

Super Bright Green
SPEC NO:DSAB4508
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: AUG/11/2005
DRAWN: Y.W.WANG
PAGE: 4 OF 5
KPTB-1615SURKSGC

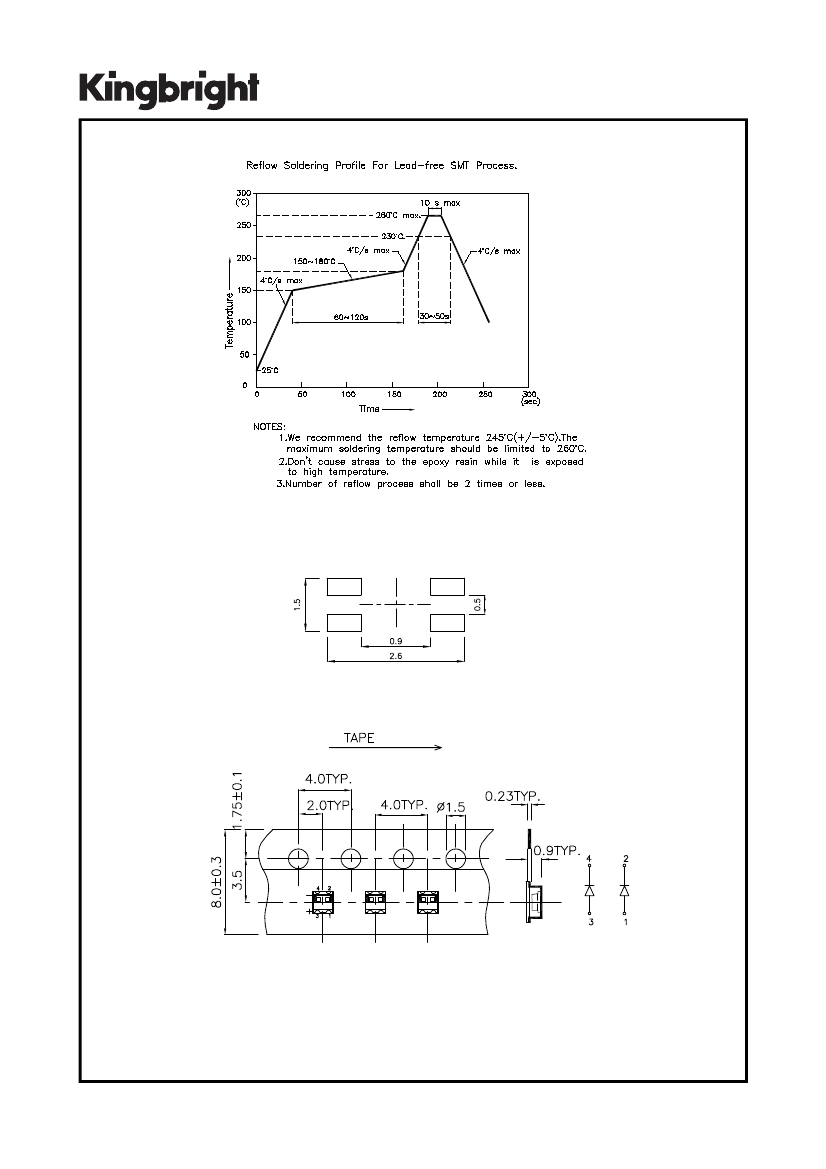

Recommended Soldering Pattern
(Units : mm)
Tape Specifications
(Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, Luminous intensity/ luminous flux, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous intensity/ luminous flux: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO:DSAB4508
APPROVED: J. Lu
REV NO: V.6
CHECKED: Allen Liu
DATE: AUG/11/2005
DRAWN: Y.W.WANG
PAGE: 5 OF 5
