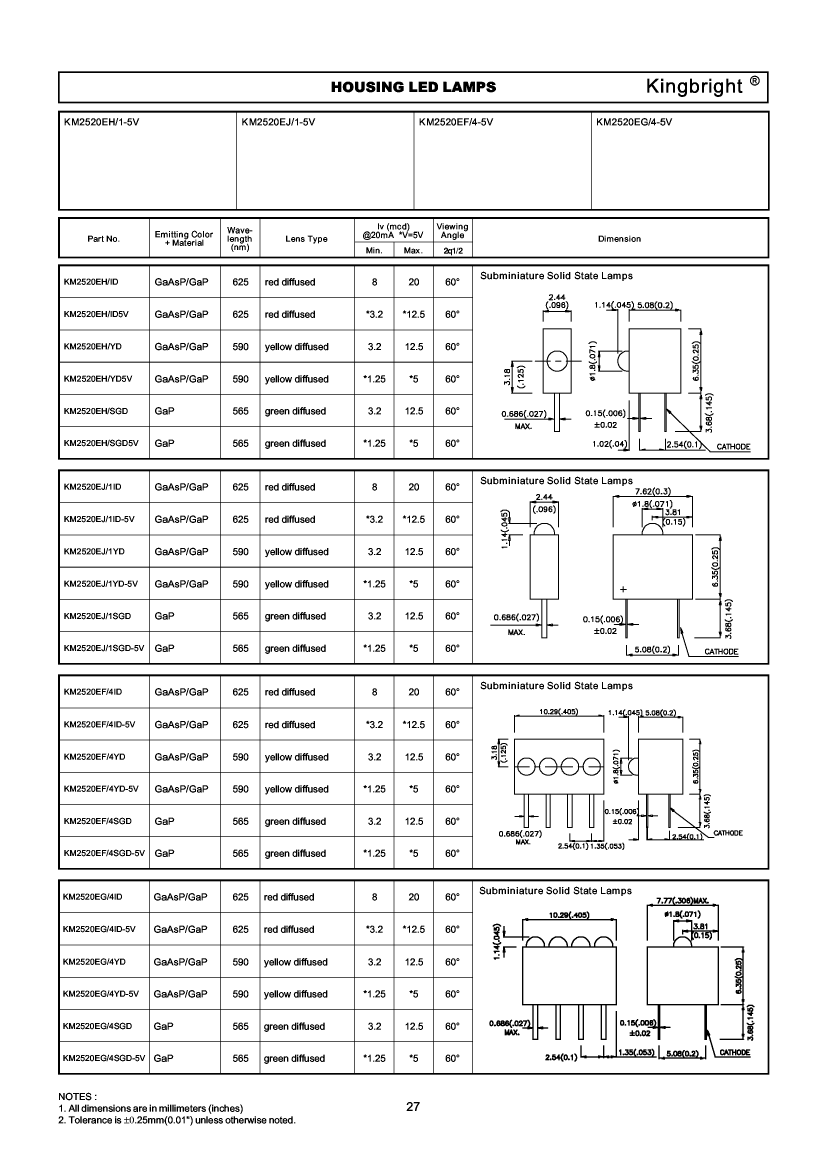

KM2520EH/ID: DescriptionSingle Color LED, Super Red, Red Diffused, 1.8mm, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size44KB，1 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com

Download Datasheet Parametric Compare View All

KM2520EH/ID Overview

Single Color LED, Super Red, Red Diffused, 1.8mm, 2 PIN

Parameter Name	Attribute value
Maker	Kingbright
package instruction	2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	SUPER RED
Configuration	SINGLE
Lens type	RED DIFFUSED
Nominal luminous intensity	14 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	6.35 mm
method of packing	BULK
peak wavelength	625 nm
shape	ROUND
size	1.8 mm
surface mount	NO
Terminal pitch	2.54 mm
perspective	60 deg

	KM2520EH/ID	KM2520EH/YD	KM2520EH/YD5V	KM2520EH/SGD	KM2520EH/SGD5V
Description	Single Color LED, Super Red, Red Diffused, 1.8mm, 2 PIN	SINGLE COLOR LED, YELLOW, 1.8mm, 2 PIN	SINGLE COLOR LED, YELLOW, 1.8mm, 2 PIN	Single Color LED, Super Green, Green Diffused, 1.8mm, 2 PIN	SINGLE COLOR LED, SUPER GREEN, 1.8mm, 2 PIN
Maker	Kingbright	Kingbright	Kingbright	Kingbright	Kingbright
package instruction	2 PIN	2 PIN	2 PIN	2 PIN	2 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
color	SUPER RED	YELLOW	YELLOW	SUPER GREEN	SUPER GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Lens type	RED DIFFUSED	DIFFUSED	DIFFUSED	GREEN DIFFUSED	GREEN DIFFUSED
Nominal luminous intensity	14 mcd	7.85 mcd	3.125 mcd	7.85 mcd	3.125 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	6.35 mm	6.35 mm	6.35 mm	6.35 mm	6.35 mm
method of packing	BULK	BULK	BULK	BULK	BULK
peak wavelength	625 nm	590 nm	590 nm	565 nm	565 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND
size	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm
surface mount	NO	NO	NO	NO	NO
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	5.08 mm	5.08 mm
perspective	60 deg	60 deg	60 deg	60 deg	60 deg
ECCN code	EAR99	EAR99	EAR99	EAR99	-
