KPK-3520VGC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> KPK-3520VGC

KPK-3520VGC: DescriptionSINGLE COLOR LED, GREEN, 2.3mm, 3.50 X 2 MM, 1.30 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size97KB，4 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

KPK-3520VGC Overview

SINGLE COLOR LED, GREEN, 2.3mm, 3.50 X 2 MM, 1.30 MM HEIGHT, SMD, 2 PIN

KPK-3520VGC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
package instruction	3.50 X 2 MM, 1.30 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	GREEN
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	120.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.3 mm
method of packing	TAPE AND REEL
peak wavelength	520 nm
shape	RECTANGULAR
size	2.3 mm
surface mount	YES
Terminal pitch	3.1 mm
perspective	120 deg

Preview

Download Datasheet

View All

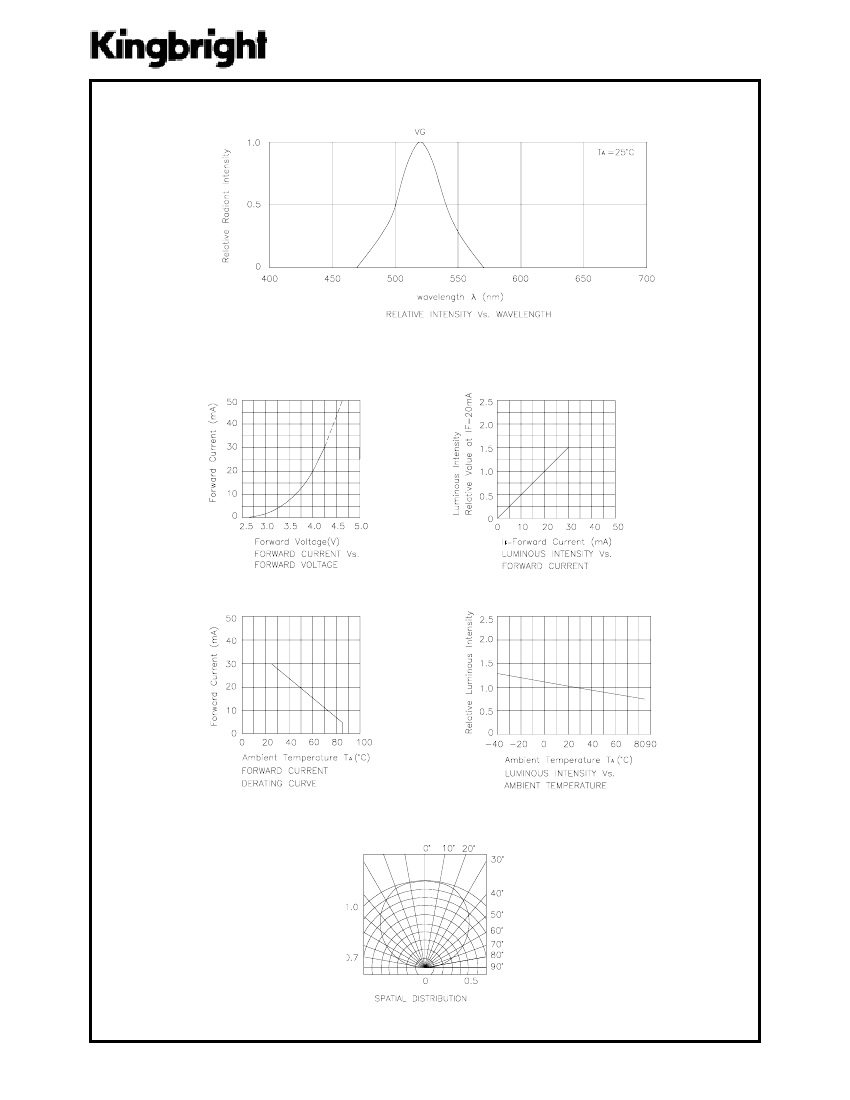

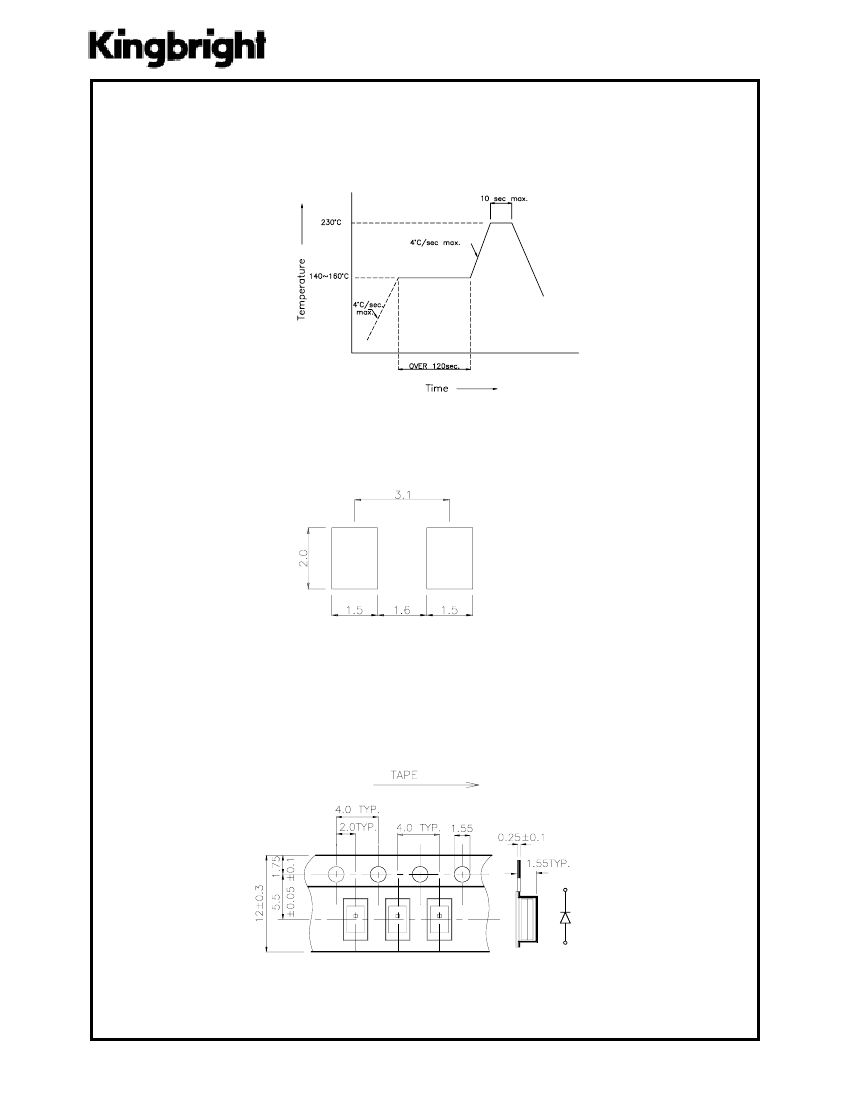

3.5x2.0mm SMD CHIP LED LAMP

KPK-3520VGC

GREEN

Features

3.5mmX2.0mm SMT

LOW

Description

LED, 1.3mm THICKNESS.

The Green source color devices are made with InGaN

on SiC Light Emitting Diode.

POWER CONSUMPTION.

VIEWING ANGLE.

FOR BACKLIGHT AND INDICATOR.

COLORS AND LENS TYPES AVAILABLE.

: 2000PCS / REEL.

WIDE

IDEAL

VARIOUS

PACKAGE

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.2(0.0079")

unless otherwise noted.

3. Specifications are subject to change without notice.

SPEC NO: DSAC0331

APPROVED : J. Lu

REV NO: V.2

CHECKED : Allen Liu

DATE: DEC/13/2002

DRAWN:L.ZHANG

PAGE: 1 OF 4
