REVISION C
NOTES:
1.
REPRESENTS A CRITICAL DIMENSION.
2. ALL ASSEMBLIES TO BE 100 % ELECTRONICALLY TESTED
FOR SHORTS AND OPENS.
3. ALL ASSEMBLIES TO BE 100 % HI-POT TESTED AT 630V.
4. TO BE MEASURED FROM SCORE LINE.
5. PARTS TO BE LAYER PACKAGED.
6. SI DATA AVAILABLE FOR STANDARD LENGTHS ONLY.
7. MAX CABLE LENGTH AVAILABLE WITHOUT FLAT.
RIBBONIZED SECTION IA 18.61 INCHES. CONTACT
SAMTEC FOR NUMBER OF FLAT SECTIONS IF LONGER
LENGTH IS REQUIRED.
C1
FMTP-XX-X-XX.XX-01-X-X-XX
No OF POSITIONS
-02- THRU -25
OPTION
-R: REVERSED CONNECTOR
(SEE FIG. 3)
STANDARD POLARIZATION NOTCH
-N: NOTCH
(ONLY AVAILABLE ON -T)
PLATING OPTIONS
LEAVE BLANK FOR STANDARD
(USE T-1S57-01-T AND C-67-L)
-F: FLASH SELECTIVE GOLD
(USE T-1S57-01-F AND C-67-F)
-S: SELECTIVE GOLD
(USE T-1S57-01-S AND C-67-S)
LEAD STYLE
-D: DOUBLE END
FIG. 1
FMTP-10-D-3.85-01-X
END ASSEMBLY
-D: DOUBLE END (SEE FIGS 1&3)
-T: TRANSFER END (SEE FIGS 2&4)
ASSEMBLY LENGTH
ONLY AVAILABLE IN THESE LENGTHS
03.85" (USE CBTP-68-30-7/38-025-2)
08.77" (USE CBTP-68-30-7/38-025-1)
18.00" (USE CBTP-68-30-7/38-025-4)
NOTCH DENOTES
FIRST POSITION
RED WIRE TO SIDE
OF 1ST POS INDICATOR
C1
"XX.XX"±.225
.250
- .050
(TYP)
(SEE NOTE 4)
+.150
C2
.120
REF
SCORE LINE
C5
DO NOT
SCALE FROM
THIS PRINT
FFMD-XX-01-X
(NO POS x .050) + .165
REF
.010 MAX
CABLE OVERHANG
SCALE 2:1
C3
.200±.010
'A'
DETAIL 'A'
SCALE 2 : 1
(NO POS x .050) + .165
REF
'B'
FMTP-10-T-3.85-01-X-N
(SAME AS FIG. 1 EXCEPT AS SHOWN)
-T: TRANSFER END
FIG. 2
.200
- .003
+.006
C4
DETAIL 'B'
SCALE 2 : 1
-R
FIG. 3
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
FFSD-XX-01-N
REVERSED CONNECTOR
FMTP-10-D-X.XX-01-X-R
(SAME AS FIG. 1 EXCEPT AS SHOWN)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
REVERSED CONNECTOR
INSULATOR: CELANEX 3314, COLOR: BLACK
CONTACT OR TERMINAL: PHOS BRONZE
CABLE: TWISTED PAIR
F:\DWG\MISC\MKTG\FMTP-XX-X-XX.XX-01-X-X-XX-MKT.SLDDRW

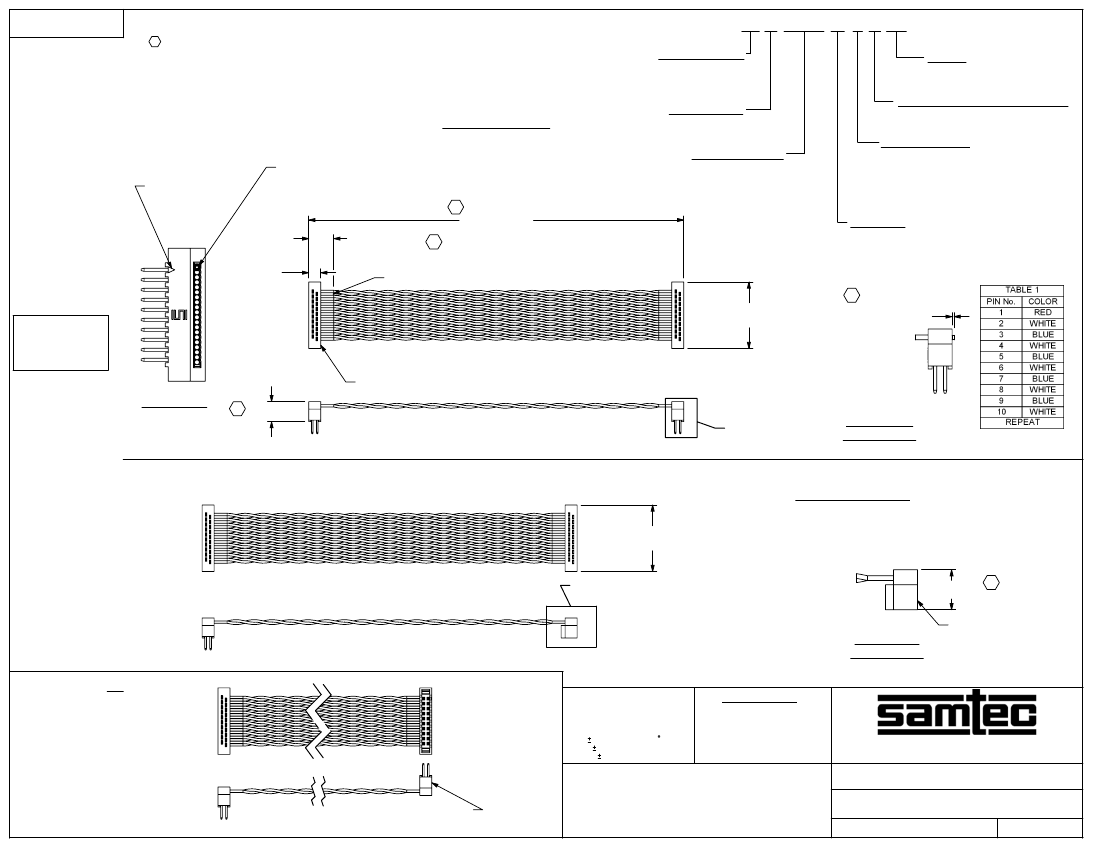

.050 X .050 C/L TWISTED PAIR MALE IDC ASSEMBLY
BY:
LENNY K
FMTP-XX-X-XX.XX-01-X-X-XX
3/16/07
SHEET
1
OF
2
REVISION C
FMTP-10-T-8.77-01-X-N
(SAME AS FIG. 4 EXCEPT AS SHOWN)
-T: TRANSFER END
FIG. 4
IN PROCESS
"XX.XX"±.225
C6
.250
- .100
C7
+.150
(SEE NOTE 4)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
.050 X .050 C/L TWISTED PAIR MALE IDC ASSEMBLY
F:\DWG\MISC\MKTG\FMTP-XX-X-XX.XX-01-X-X-XX-MKT.SLDDRW
BY:
LENNY K
FMTP-XX-X-XX.XX-01-X-X-XX
3/16/07
SHEET
2
OF
2
