MOS6020-472MSB

Description
General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 2724,
CategoryPassive components    inductor
File Size195KB,2 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Download Datasheet Parametric View All

MOS6020-472MSB Overview

General Purpose Inductor, 4.7uH, 20%, 1 Element, Ferrite-Core, SMD, 2724,

MOS6020-472MSB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerCOILCRAFT
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes2724
structureShielded
core materialFERRITE
DC Resistance0.05 Ω
Nominal inductance(L)4.7 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee0
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height2.4 mm
Package length6.8 mm
Package formSMT
Package width6 mm
method of packingTR
Maximum rated current3.1 A
self resonant frequency60 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceTin/Lead (Sn63Pb37)
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Document 287 -1

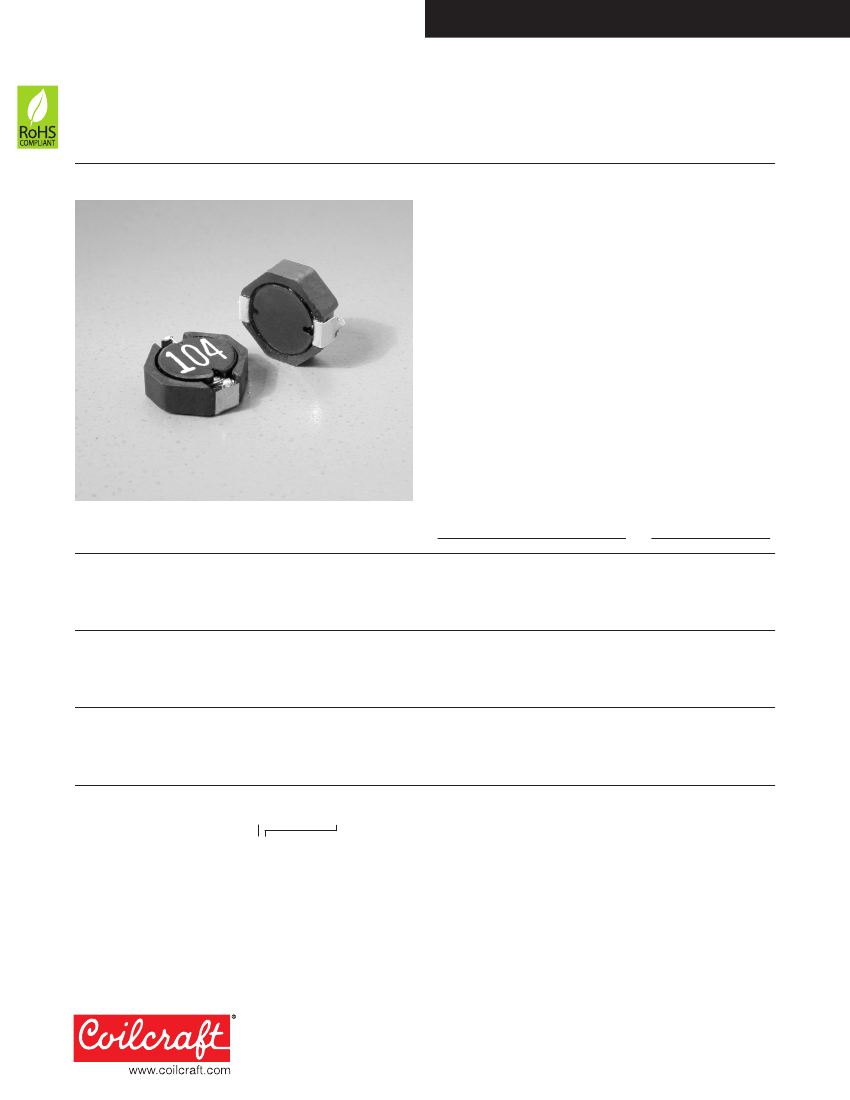

Shielded Power Inductors – MOS6020
• 6.0 × 7.1 mm footprint; 2.4 mm high shielded inductors
• Custom versions up to 4.7 mH are available.
Designer’s Kit C359
contains 3 of each value
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over phos bronze.
Other terminations available at additional cost.
Weight
0.21 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
500 per 7″ reel; 2000 per 13″ reel; Plastic tape: 16 mm wide,
0.3 mm thick, 12 mm pocket spacing, 2.5 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
Part number
1
MOS6020-222ML_
MOS6020-332ML_
MOS6020-472ML_
MOS6020-682ML_
MOS6020-822ML_
MOS6020-103ML_
MOS6020-153ML_
MOS6020-223ML_
MOS6020-333ML_
MOS6020-473ML_
MOS6020-683ML_
MOS6020-104ML_
MOS6020-154ML_
MOS6020-224ML_
MOS6020-334ML_
MOS6020-474ML_
Inductance
2
±20% (µH)
2.2
3.3
4.7
6.8
8.2
10
15
22
33
47
68
100
150
220
330
470
DCR max
(Ohms)
0.035
0.046
0.050
0.078
0.085
0.092
0.130
0.182
0.290
0.420
0.520
0.800
1.28
2.00
2.84
4.40
SRF typ
3
(MHz)
110
85
60
55
45
36
30
22
20
16
15
13
10
8
7
5
10% drop
2.86
1.90
1.46
1.32
0.94
0.79
0.83
0.79
0.57
0.45
0.37
0.35
0.26
0.22
0.18
0.15
Isat
(A)
4
20% drop
3.26
2.28
1.82
1.56
1.18
0.95
0.95
0.92
0.67
0.56
0.45
0.40
0.30
0.26
0.22
0.17
2
30% drop
3.56
2.46
1.94
1.72
1.30
1.06
1.03
0.97
0.74
0.62
0.51
0.44
0.33
0.28
0.24
0.19
Irms
(A)
5
20°C rise 40°C rise
3.0
4.1
2.6
3.6
2.3
3.1
1.9
2.7
1.7
2.3
1.6
2.2
1.3
1.8
1.0
1.4
0.80
1.1
0.50
0.7
0.45
0.63
0.40
0.56
0.35
0.49
0.30
0.42
0.25
0.35
0.22
0.29
1. When ordering, please specify
termination
and
packaging
codes:
Termination: L
=
Packaging:
C
=
B
=
D
=
MOS6020-104MLC
RoHS compliant matte tin over nickel over phos bronze.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
7″ machine-ready reel. EIA-481 embossed plastic
tape (500 parts per full reel).
Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (2000 parts per
full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/
HP 4263B LCR meter or equivalent.
3. SRF measured using Agilent/HP 8753D network analyzer.
4. DC current at which the inductance drops the specified amount from
its value without current.
5. Current that causes the specified temperature rise from 25°C ambient.
6. Electrical specifications at 25°C.

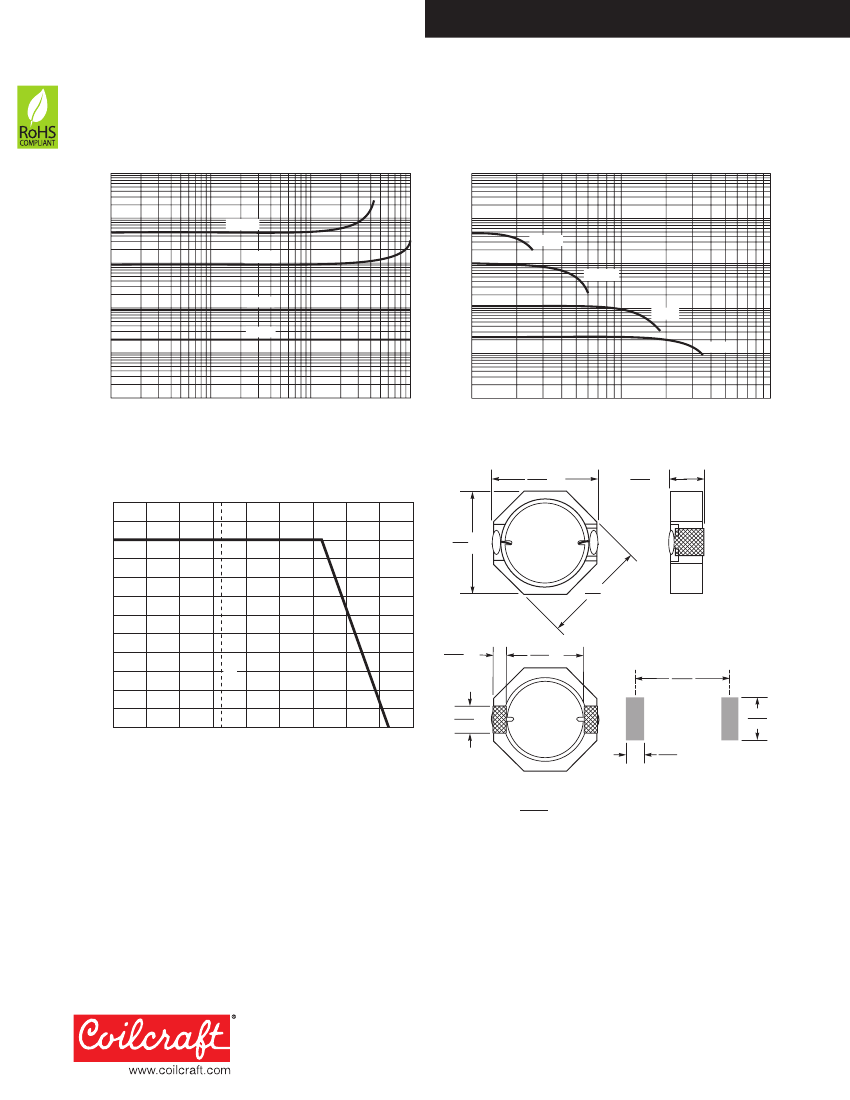

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 287-1
Revised 10/06/08
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
