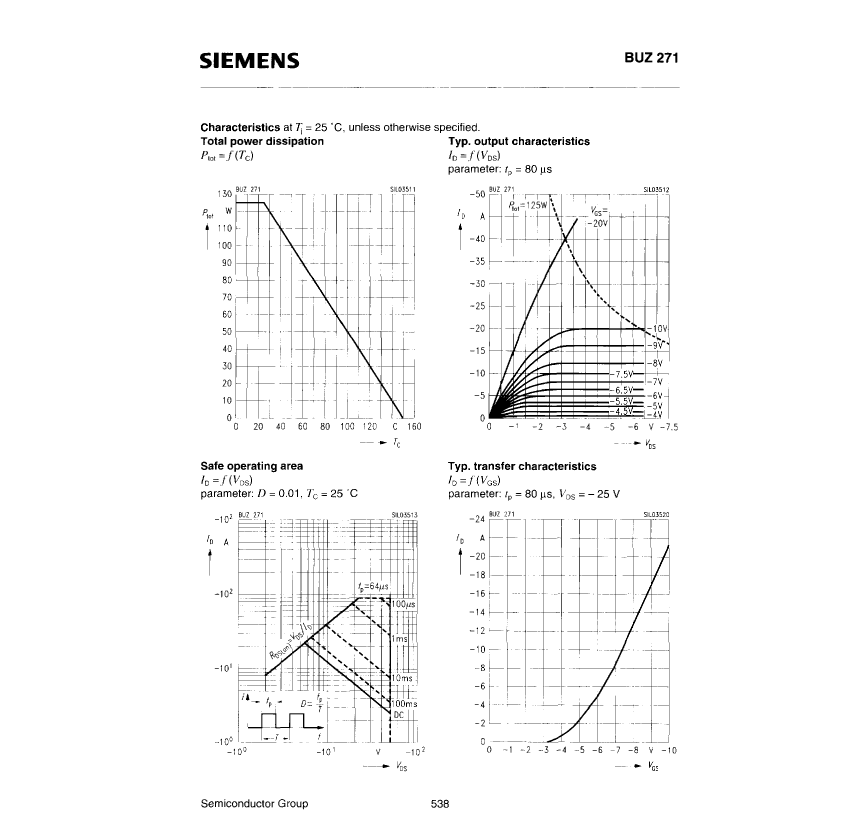

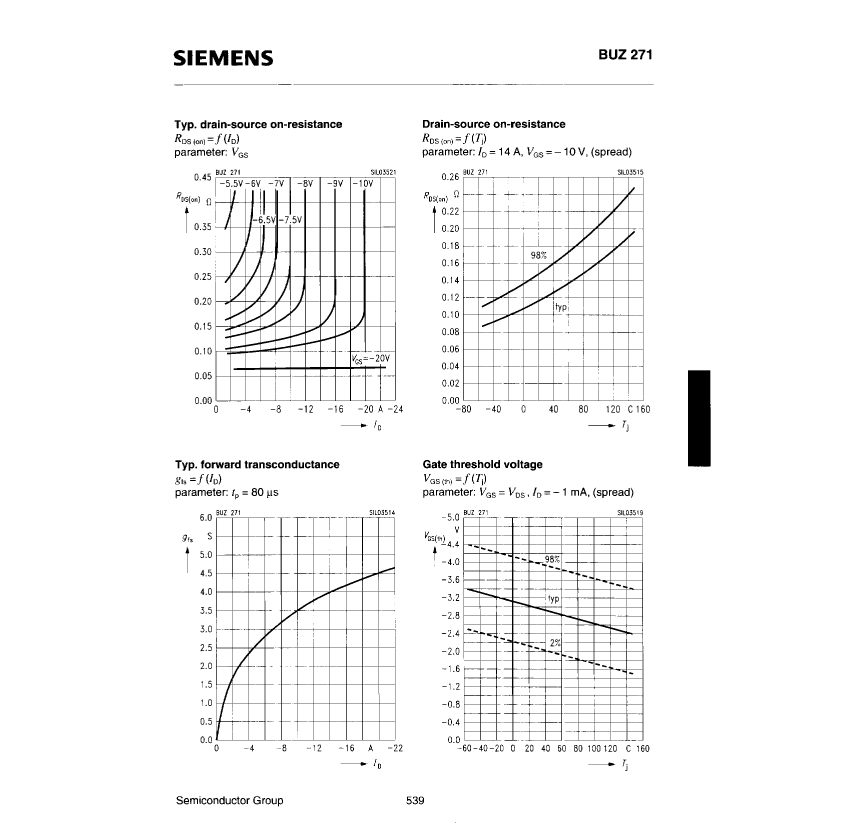

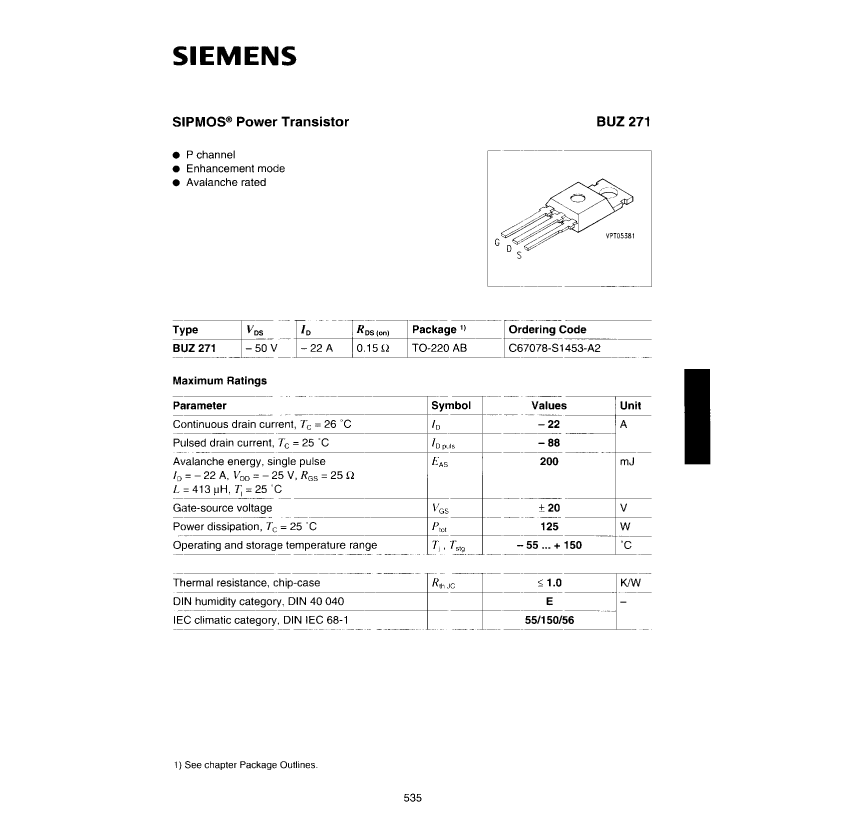

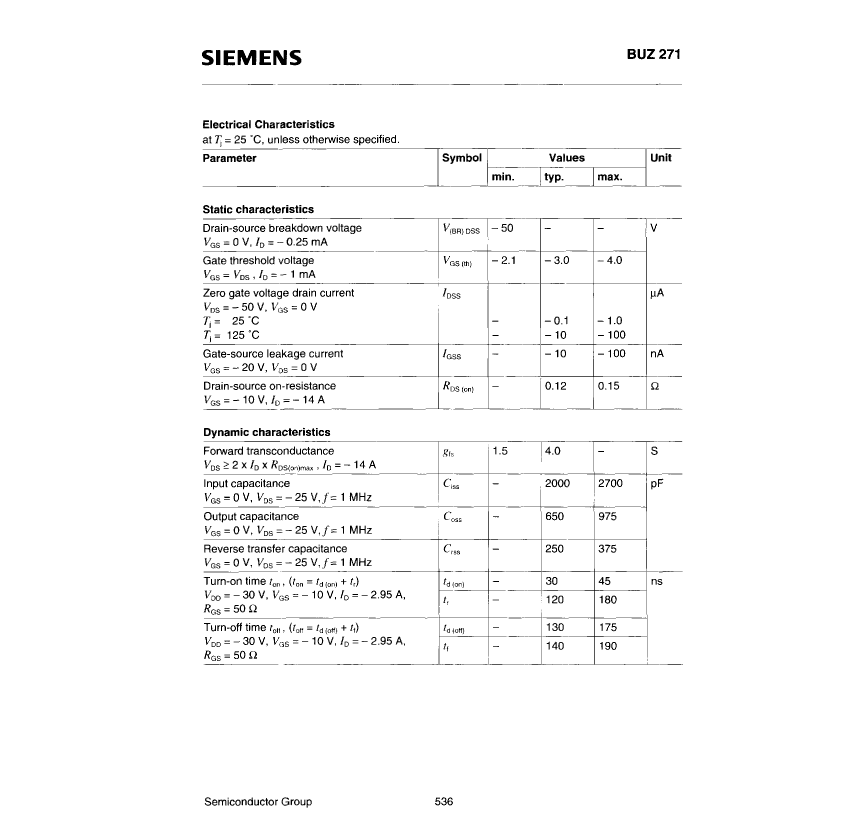

Power Field-Effect Transistor, 22A I(D), 50V, 0.15ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN
| Parameter Name | Attribute value |
| Maker | SIEMENS |
| Parts packaging code | TO-220AB |
| package instruction | SMALL OUTLINE, R-PSSO-G3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Avalanche Energy Efficiency Rating (Eas) | 200 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 50 V |
| Maximum drain current (ID) | 22 A |
| Maximum drain-source on-resistance | 0.15 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 375 pF |
| JESD-30 code | R-PSSO-G3 |
| Number of components | 1 |
| Number of terminals | 3 |
| Operating mode | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Polarity/channel type | P-CHANNEL |
| Maximum power consumption environment | 125 W |
| Maximum pulsed drain current (IDM) | 88 A |
| Certification status | Not Qualified |
| surface mount | YES |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| transistor applications | SWITCHING |
| Transistor component materials | SILICON |
| Maximum off time (toff) | 365 ns |
| Maximum opening time (tons) | 225 ns |
| BUZ271-E3044 | BUZ271-E3045 | BUZ271-E3046 | |
|---|---|---|---|
| Description | Power Field-Effect Transistor, 22A I(D), 50V, 0.15ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 4 PIN | Power Field-Effect Transistor, 22A I(D), 50V, 0.15ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN | Power Field-Effect Transistor, 22A I(D), 50V, 0.15ohm, 1-Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, TO-220AB, 3 PIN |
| Maker | SIEMENS | SIEMENS | SIEMENS |
| Parts packaging code | TO-220AB | TO-220AB | TO-220AB |
| package instruction | SMALL OUTLINE, R-PSSO-G3 | SMALL OUTLINE, R-PSSO-G2 | IN-LINE, R-PSIP-T3 |
| Contacts | 3 | 3 | 3 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Avalanche Energy Efficiency Rating (Eas) | 200 mJ | 200 mJ | 200 mJ |
| Configuration | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE | SINGLE WITH BUILT-IN DIODE |
| Minimum drain-source breakdown voltage | 50 V | 50 V | 50 V |
| Maximum drain current (ID) | 22 A | 22 A | 22 A |
| Maximum drain-source on-resistance | 0.15 Ω | 0.15 Ω | 0.15 Ω |
| FET technology | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR | METAL-OXIDE SEMICONDUCTOR |
| Maximum feedback capacitance (Crss) | 375 pF | 375 pF | 375 pF |
| JESD-30 code | R-PSSO-G3 | R-PSSO-G2 | R-PSIP-T3 |
| Number of components | 1 | 1 | 1 |
| Number of terminals | 3 | 2 | 3 |
| Operating mode | ENHANCEMENT MODE | ENHANCEMENT MODE | ENHANCEMENT MODE |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Polarity/channel type | P-CHANNEL | P-CHANNEL | P-CHANNEL |
| Maximum power consumption environment | 125 W | 125 W | 125 W |
| Maximum pulsed drain current (IDM) | 88 A | 88 A | 88 A |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | YES | NO |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal location | SINGLE | SINGLE | SINGLE |
| transistor applications | SWITCHING | SWITCHING | SWITCHING |
| Transistor component materials | SILICON | SILICON | SILICON |
| Maximum off time (toff) | 365 ns | 365 ns | 365 ns |
| Maximum opening time (tons) | 225 ns | 225 ns | 225 ns |
