AGC-1/2: DescriptionFAST BLOW ELECTRIC FUSE, 0.5A, 250VAC, 35A (IR), INLINE/HOLDER; CategoryCircuit protection; File Size181KB，3 Pages; ManufacturerBussmann (Eaton)

Download Datasheet Parametric View All

AGC-1/2 Overview

FAST BLOW ELECTRIC FUSE, 0.5A, 250VAC, 35A (IR), INLINE/HOLDER

AGC-1/2 Parametric

Parameter Name	Attribute value
Rated voltage (AC)	250 V
state	ACTIVE
Rated current	0.5000 A
terminal coating	NICKEL
Installation features	INLINE/HOLDER
Manufacturer Series	AGC
high	32 mm
length or diameter	6.3 mm
Terminal shape	END CAP
Electric fuse	ELECTRIC FUSE
Rated joule integral	0.2690 J
Fusing characteristics	FAST
Rated breaking capacity	35 V

Preview

Download Datasheet

View All

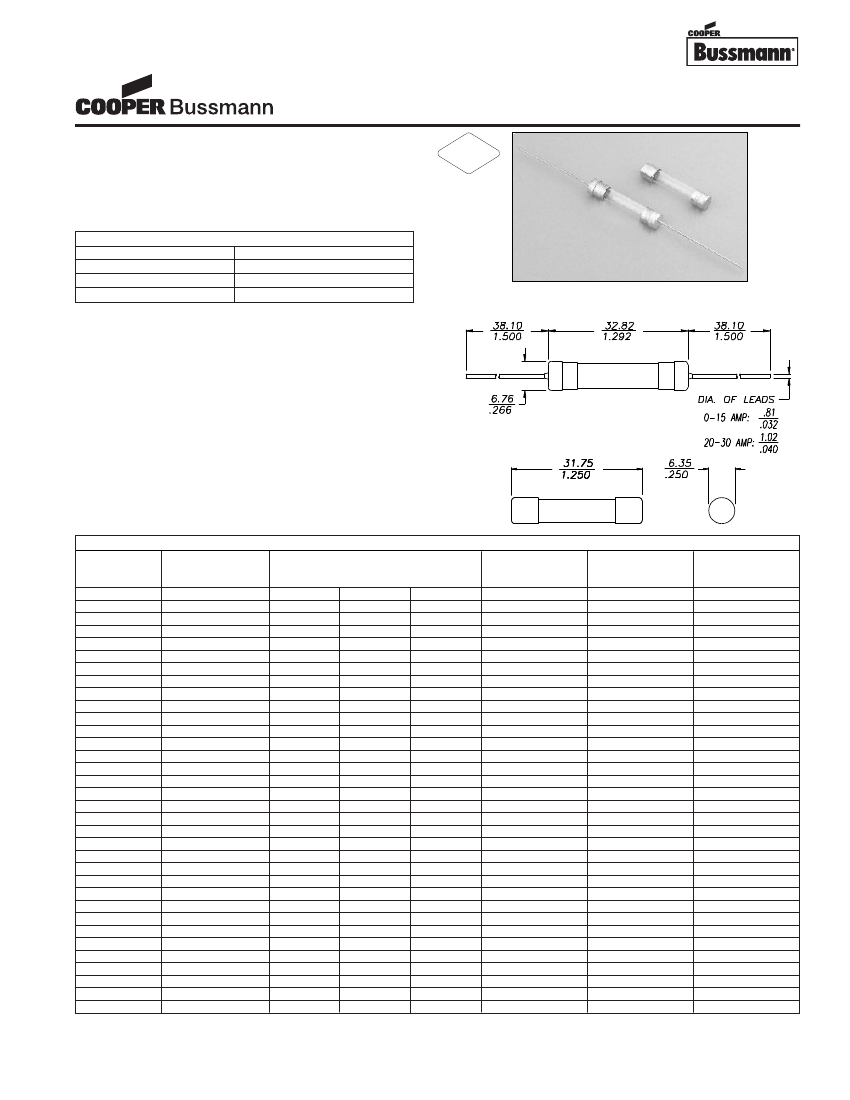

1/4" x 1-1/4" Fuses

AGC Series, Fast Acting, Glass Tube

Description

• Fast-acting, glass tube

• Optional axial leads available

• 1/4 x 1-1/4 (6.3mm x 32mm) physical size

• Glass tube, nickel-plated brass endcap construction

• UL Listed product meets standard 248-14

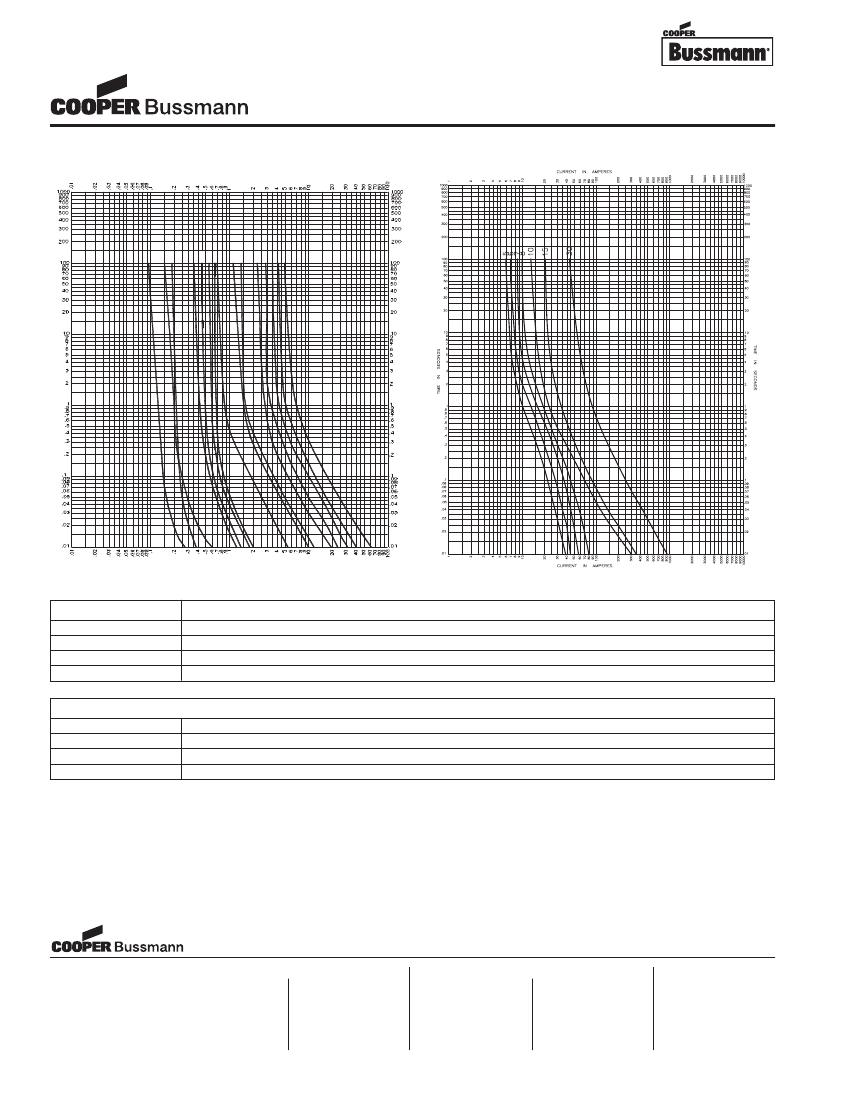

ELECTRICAL CHARACTERISTICS

% of Amp Rating

Opening Time

100%

None

135%

60 Minutes Maximum

200%

120 Seconds Maximum

RoHS

2002/95/EC

Dimensions

(

mm

⁄

in

)

Drawing Not to Scale

Agency Information

• UL Listed Card: AGC 1/500-10

• UL Recognition Card: AGC 11-45

• CSA Component Acceptance Card (Class No. 1422 30)

• CSA Certification Card (Class No. 1422 01)

Environmental Data

• Shock: 1/100A thru 3/4A – MIL-STD-202,

Method 213, Test Condition I; 1A thru 30A –

MIL-STD-202, Method 207, (HI Shock)

• Vibration: 1/100A thru 30A – MIL-STD-202,

Method 204, Test Condition A (Except 5g, 500HZ)

Ordering

• Specify packaging, product, and option code

Product Code

AGC-1/20

AGC-1/16

AGC-1/10

AGC-1/8

AGC-3/16

AGC-2/10

AGC-1/4

AGC-3/10

AGC-3/8

AGC-1/2

AGC-3/4

AGC-1

AGC-1-1/4

AGC-1-1/2

AGC-2

AGC-2-1/4

AGC-2-1/2

AGC-3

AGC-4

AGC-5

AGC-6

AGC-7

AGC-7-1/2

AGC-8

AGC-9

AGC-10

AGC-12

AGC-14

AGC-15

AGC-20

AGC-25

AGC-30

AGC-35

AGC-40

Voltage

Rating

AC

250V

32V

250V

35A

100A

200A

-

AC Interrupting

Rating

125V

10000A

-

SPECIFICATIONS

32V

-

1000A

70A

80A

Typical DC Cold

Resistance**

(ohms)

4.500

29.000

12.565

6.800

4.900

3.360

2.300

1.670

1.203

0.615

0.312

0.190

0.145

0.115

0.078

0.067

0.057

0.045

0.030

0.024

0.020

0.017

0.0146

0.014

0.012

0.008

0.0070

0.0062

0.006

0.004

0.003

0.002

0.0014

0.0019

Typical

Melting I

2

t†

AC

0.00773

0.000181

0.000787

0.00131

0.00637

0.00435

0.0148

0.0208

0.0321

0.269

0.815

1.615

0.018

0.0149

0.00509

0.00588

0.00879

0.0167

0.0305

0.045

0.071

0.105

-

0.152

0.21

0.492

-

0.566

1.438

2.109

3.807

-

Typical

Voltage

Drop‡

0.67

10.41

6.00

4.67

4.12

4.51

0.89

2.88

4.59

0.59

0.37

0.31

0.35

0.27

0.28

0.26

0.31

0.25

0.22

0.23

-

0.19

0.18

0.20

-

0.14

0.12

0.11

0.12

-

** DC Cold Resistance (Measured at

≤10%

of rated current)

† Typical Melting I

2

t (A

2

Sec) (I

2

t was measured at listed interrupting rating and rated voltage.)

‡ Typical Voltage Drop (Voltage drop was measured at 25°C ambient temperature at rated current)

Recommended Resources

Car anti-theft system module circuit design based on fingerprint recognition

Class B power amplifier circuit

Zener diode regulated power supply circuit

Spike detection circuit

Differential amplifier circuit with a bandwidth of 20MHz

1. Power supply circuit diagram of AOC CM-312 color display
