SCBP-EDU0336: DescriptionBand Pass Filter, 8.5MHz, CASE YY161, 8 PIN; CategoryAnalog mixed-signal IC filter; File Size90KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

SCBP-EDU0336 Overview

Band Pass Filter, 8.5MHz, CASE YY161, 8 PIN

SCBP-EDU0336 Parametric

Parameter Name	Attribute value
Maker	Mini-Circuits
Reach Compliance Code	unknown
Maximum attenuation frequency	300 MHz
minimum attenuation frequency	7.8 MHz
Attenuation at maximum frequency	40 dB
Attenuation@frequency min	20 dB
average input power	0.4 W
Center frequency or cutoff frequency (fo/fc)	8.5 MHz
filter type	BAND PASS FILTER
input resistance	50 OHM
JESD-609 code	e0
Manufacturer's serial number	SCBP-EDU0336
Installation type	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Output impedance	50 OHM Ω
method of packing	TAPE AND REEL
Terminal surface	TIN LEAD
voltage standing wave ratio	1.7

Preview

Download Datasheet

View All

Engineering Development Model

Band Pass Filter

Surface Mount

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

SCBP-EDU0336

Please click "Back", and then click "Contact Us" for Applications support.

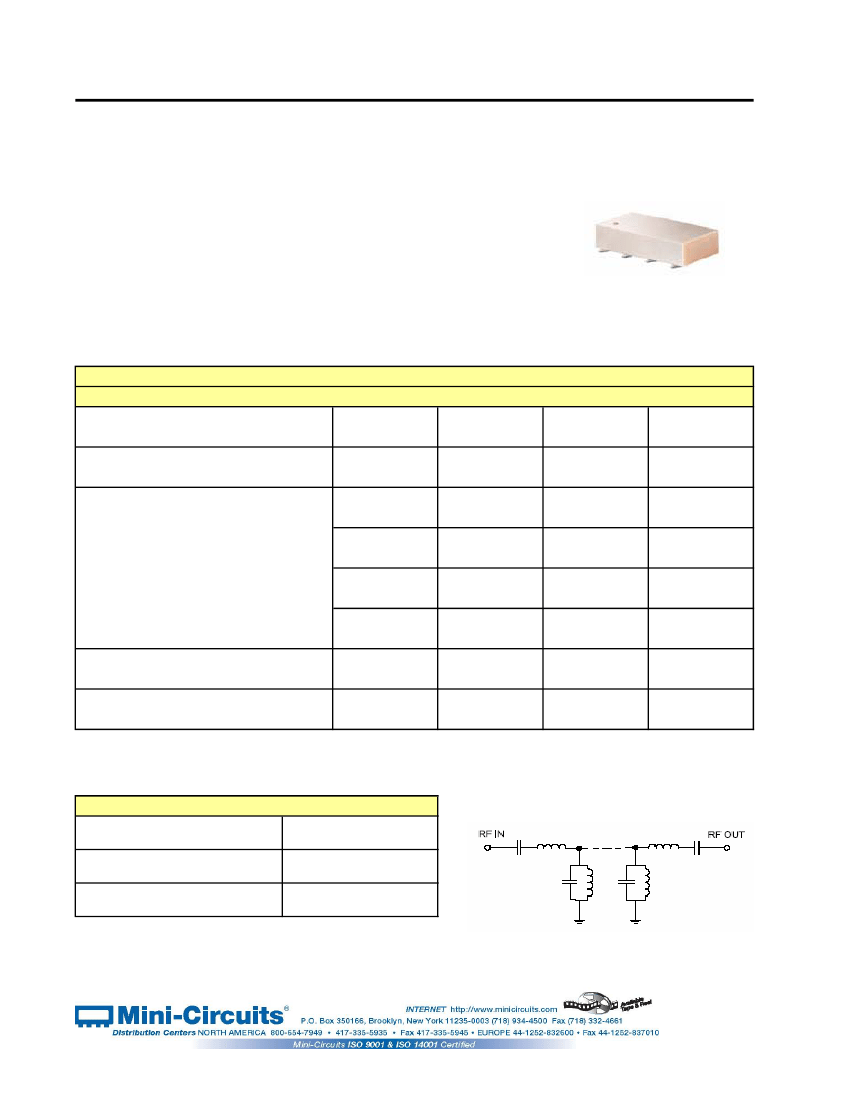

CASE STYLE : YY161

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Parameter

Passband

(Loss < 5dB)

Center Frequency

Stopband

Low Band (Loss > 20 dB)

Low Band (Loss > 40 dB)

High Band (Loss > 20 dB)

High Band (Loss > 40 dB)

Passband VSWR

Stopband VSWR

7.2

DC

9.5

12

1.7

18

Min.

8.4

8.5

7.8

7.2

12

300

Typ.

Max.

8.6

Units

MHz

(:1)

MAXIMUM RATINGS

Operating Temperature

Storage Temperature

RF Power Input

-55°C to 85°C

-55°C to 100°C

0.4W at 25°C

Functional Schematic

REV. X2

SCBP-EDU0336

070103

Page 1 of 1
