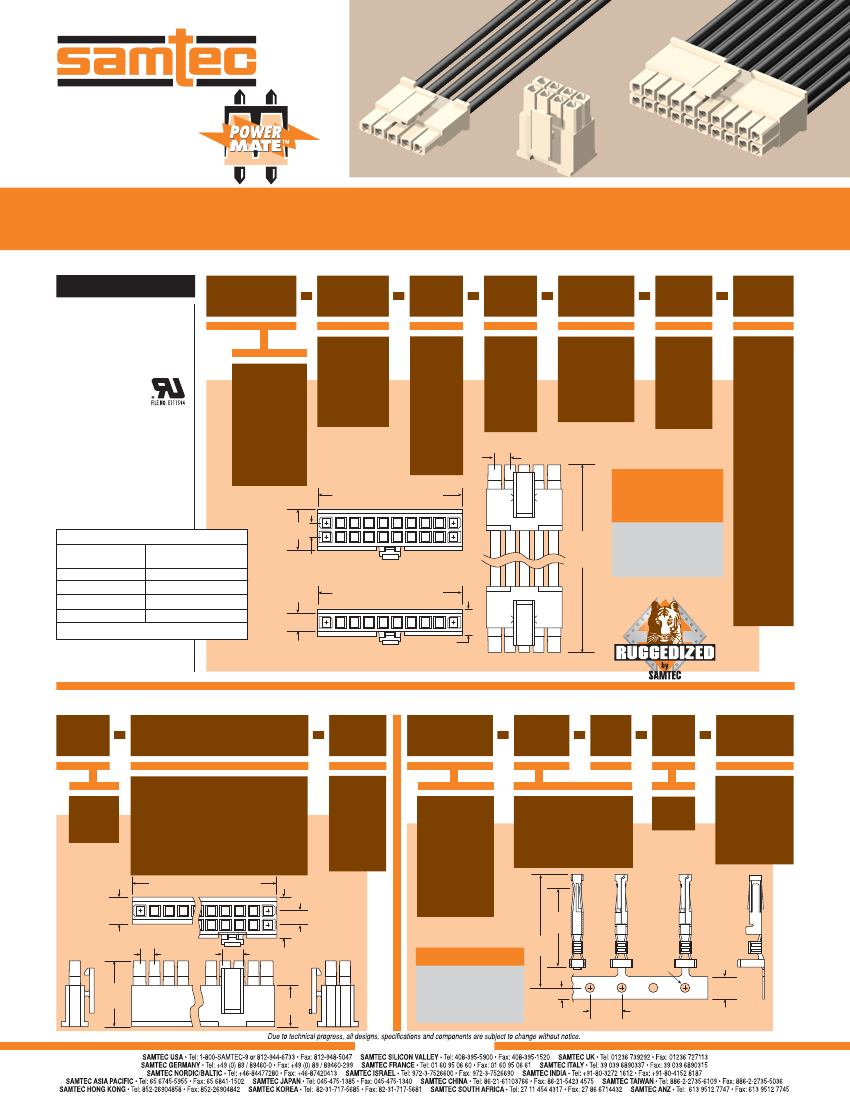

PMSS–05–18–SP–03.50–S
F-208-1
IPBD–04–D
PMSD–10–18–SP−03.50−D−LUS
POWER MATE CABLE
SPECIFICATIONS
Mates with:
IPBT
For complete specifications
see www.samtec.com?PMSD,
www.samtec.com?PMSS or
www.samtec.com?IPBD
Insulator Material:
Valox 457
Contact Material:
−SP= Phosphor Bronze
−HP= High Copper Alloy
Plating:
Sn over 50µ" (1,27µm) Ni
Operating Temp Range:
-40°C to +105°C
Voltage Rating:
22 & 24 AWG = 300 VAC
16, 18 & 20 AWG = 600 VAC
Wire:
16 to 24 AWG
RoHS Compliant:
Yes
CURRENT RATING
AMBIENT
TEMP
20°C
40°C
60°C
75°C
PMSS/IPBT
8.9A
8.2A
6.8A
5.5A
™
PMSD, PMSS,
IPBD SERIES
ASSEMBLED
LENGTH
END
OPTION
TYPE
PINS
PER ROW
WIRE
GAUGE
LEAD
STYLE
OPTION
PMSD
= Double Row
–02, –03,
–04, –05,
–10, –15
(Call Samtec
for other sizes)
–16
–18
–206
(20 AWG/
600 volts)
–SP
= Standard
Power
–“XX.XX”
= Wire
Length
in Inches
(88,90mm)
03.50" min.
–S
= Single
End
–HP
= High
Power
–D
= Double
End
PMSS
= Single Row
(–02, –03,
–04, –05)
(Call Samtec
for other sizes)
(Available
on –D end
option only.
Applies
to End 2
housing)
–22
–24
No. of Positions x (4,19) .165
+ (1,02) .040
10
02 01
–LUS
= Latch up,
straight
(4,19) .165
APPLICATION
SPECIFIC
OPTION
Assembled
Length
± (3,18)
.125
–LDS
= Latch
down,
straight
(12,14)
.478
(4,19)
.165
20
11
PMSD
No. of Positions x (4,19) .165
+ (1,02) .040
10
02 01
• Color coded cables
• 20 AWG/300 Volts
Call Samtec.
–LUX
= Latch up,
crossed
–LDX
(5,41)
.213
(7,95) .313
= Latch
down,
crossed
6 POSITIONS (SP) IN LINE POWERED
Note:
Some lengths, styles
and options are non-standard,
non-returnable.
PMSS
–D–LUS
TYPE
POSITIONS
PER ROW
ROW
OPTION
TYPE
WIRE
GAUGE
01
T
LEAD
STYLE
IPBD
= Body,
Loose
–02, –03, –04, –05,
–10, –15
(–D only)
–S
= Single
Row
–SP
CC69L
= Contact,
Loose
–2024
= 24 to 20 AWG
–T
= Tin
= Standard
Power
–02, –03, –04, –05
(–S only)
(Call Samtec for other sizes)
15
–D
= Double
Row
(4,19)
.165
CC69R
= Contact,
Full Reel
(4,000 Parts
per Reel)
–1620
= 20 to 16 AWG
–HP
= High Power
No. of Positions x (4,19) .165
+ (1,02) .040
02 01
(7,95)
.313
30
16
(13,21)
.520
(6,35) .250
(12,14)
.478
(4,19) .165
HAND TOOLS
16 to 20 AWG:
CAT-HT-169-1620-11
20 to 24 AWG:
CAT-HT-169-2024-11
WWW.SAMTEC.COM
(19,23)
.757
(1,57)
.062
DIA
(3,81)
.150
(19,56)
.770
(12,32)
.485
(1,91)
.075
(5,40)
.2125
