160016.2GT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 160016.2GT

160016.2GT: DescriptionElectric Fuse, Time Lag Blow, 2A, 305VAC, 250VDC, 1500A (IR), Surface Mount; CategoryCircuit protection Circuit protection; File Size228KB，1 Pages; ManufacturerSIBA

Download Datasheet Parametric Compare View All

160016.2GT Overview

Electric Fuse, Time Lag Blow, 2A, 305VAC, 250VDC, 1500A (IR), Surface Mount

160016.2GT Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Fusing characteristics	TIME LAG
body width	4.4 mm
body height	4.4 mm
Body length or diameter	16 mm
Circuit protection type	ELECTRIC FUSE
Joule integral nominal	13 J
Installation features	SURFACE MOUNT
method of packing	TR
physical size	16mm x 4.4mm x 4.4mm
Pre-discharge time - minutes	10 ms
Rated breaking capacity	1500 A
Rated current	2 A
Rated voltage (AC)	305 V
Rated voltage (DC)	250 V
Guideline	CUL; SEMKO; UL
surface mount	YES
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

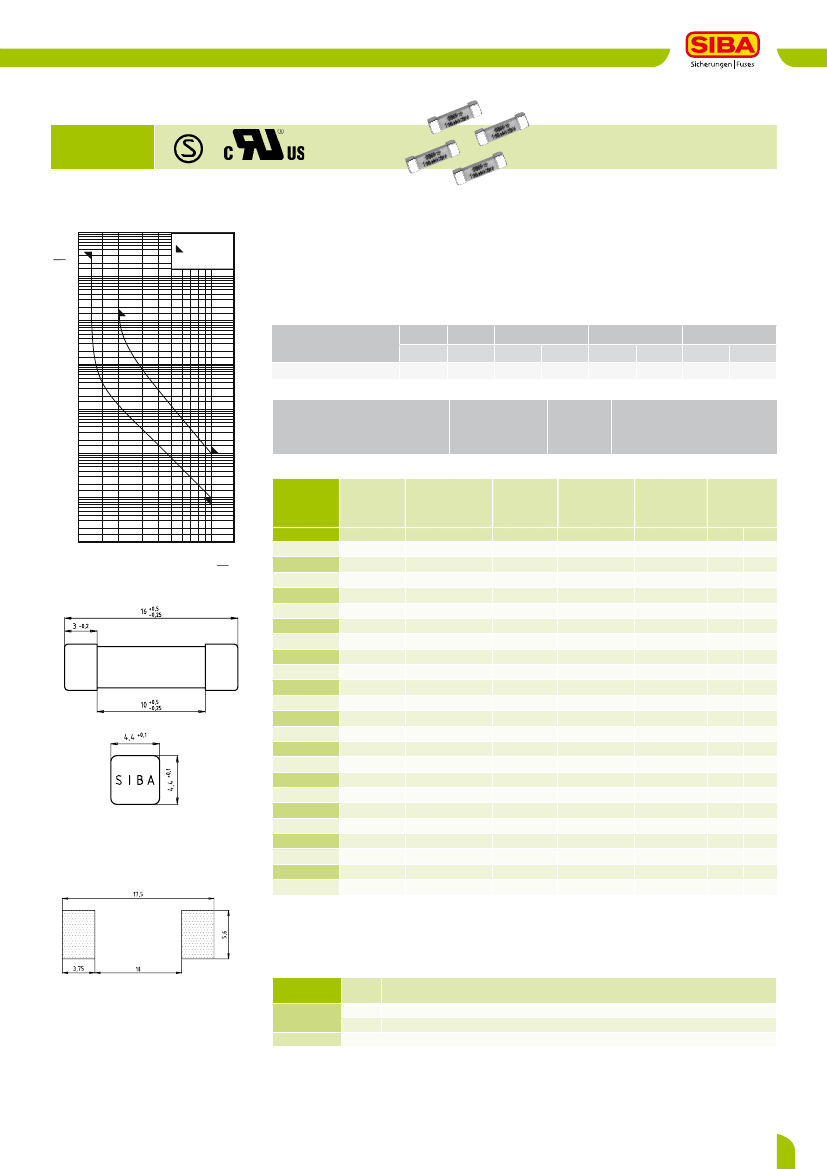

Kleinstsicherungen / Sub-miniature Fuses

Type

SICHERUNGEN / FUSES

160016

E167295

GSMB 4,5 x 16 mm T H 250 V

Zeit/Strom-Kennlinien

Time-Current Curves

Zeit/Strom-Kennlinien

Time-Current Characteristics

80mA - 10A

Aufbau / Construction

Isolierkörper / insulating body

Kontaktkappen / contact caps

Lötwärmebeständigkeit /

resistance to soldering heat:

Keramikrohr mit Füllung /

ceramic tube with filling

Kupferlegierung, versilbert / copper-alloy,

silver-plated

260

°C,

10 s (nach IEC 60068 / to IEC 60068)

sec.

Schmelzzeitgrenzwerte / Fusing time limits

Bemessungsstrom

Rated Current

1,25 I

min.

2 I

max.

2 min

2,75 I

min.

max.

4 I

min.

max.

10 I

min.

10 ms

max.

100 ms

80 mA - 10 A

IEC 60127-4/2

UL 248-14

4,5 x 16 mm

250 V

träge

time-lag

-1

Artikel-Nr.

-2

Article-no.

Bemessungs-

strom

Rated Current

-3

Irat.

160016.0,05

160016.0,08

160016.0,1

160016.0,125

160016.0,16

160016.0,2

160016.0,25

160016.0,315

160016.0,4

160016.0,5

160016.0,63

160016.0,8

160016.1

160016.1,25

160016.1,6

160016.2

160016.2,5

160016.3,15

160016.4

Bemessungs-

Spannungsfall Leistungsabgabe Schmelzintegral Approbationen

Ausschaltvermögen

Rated Breaking

Voltage Drop Power Dissipa-

I²t

Value

Approvals

Capacity

tion (@ 1,25 I

)

(@ 10 I

)

A²s Semko UL rec

2600

260

0,010

50 mA

1500 A @ AC 305 V



2050

270

0,025

80 mA 1500 A @ AC 305 V



1750

1430

1220

960

840

700

570

490

410

350

380

340

330

280

240

200

160

140

120

290

310

340

350

360

380

400

430

460

490

640

790

970

1060

1120

1200

1250

1300

1370

1250

1500

0,030

0,055

0,065

0,11

0,19

0,34

0,54

0,86

1,5

2,6

4,5

4,1

6,2

170

160

280



G60016-31

Rev. 0 / 45 / 30.03.2009

Abmessungen

Dimensions

100 mA

1500 A @ AC 305 V

125 mA

1500 A @ AC 305 V

160 mA 1500 A @ AC 305 V

200 mA

1500 A @ AC 305 V

250 mA

1500 A @ AC 305 V

315 mA

1500 A @ AC 305 V

400 mA 1500 A @ AC 305 V

500 mA

1500 A @ AC 305 V

630 mA 1500 A @ AC 305 V

800 mA 1500 A @ AC 305 V

1 A

1500 A @ AC 305 V

1,25 A 1500 A @ AC 305 V

1,6 A 1500 A @ AC 305 V

2 A

1500 A @ AC 305 V

2,5 A 1500 A @ AC 305 V

3,15 A 1500 A @ AC 305 V

4 A 1500 A @ AC 305 V

5 A

1500 A @ AC 277 V

Empfohlene Anschlussflächen

Recommended pad layout

160016.5

160016.6,3

160016.8

160016.10

6,3 A 1500 A @ AC 277 V

8 A 1500 A @ AC 250 V

10 A

1500 A @ AC 250 V

1500A @ DC 250V

Sonderausschaltvermögen - special breaking capacity 4000A @ AC 250V cos

= 0,7-0,8

Type

Abk.

Beschreibung

Abbr. Description

100 Stück / pieces

160016

1.500 Stück gegurtet / 1.500 pieces on tape

z.B./ e.g. 160016.1,25GT

Änderungen vorbehalten

160016.2GT Related Products

	160016.2GT	DKF5035
Description	Electric Fuse, Time Lag Blow, 2A, 305VAC, 250VDC, 1500A (IR), Surface Mount	NTC Diode Thermometrics Thermistors
