DBMAM25SF0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBMAM25SF0

DBMAM25SF0: Description25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size71KB，2 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DBMAM25SF0 Overview

25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE

DBMAM25SF0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	STANDARD: MIL-C-24308, COMPATIBLE CONTACTS: 031-1007-042; 031-1007-054; 031-1007-048
body width	0.494 inch
subject depth	0.156 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	YES
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED DIALLYL PHTHALATE
MIL compliance	YES
Manufacturer's serial number	DBM
Mixed contacts	NO
Installation option 2	LOCKING
Installation type	CABLE AND PANEL
Number of rows loaded	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	CHROMATE
Shell material	STEEL
Housing size	3/B
Termination type	CRIMP
Total number of contacts	25
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

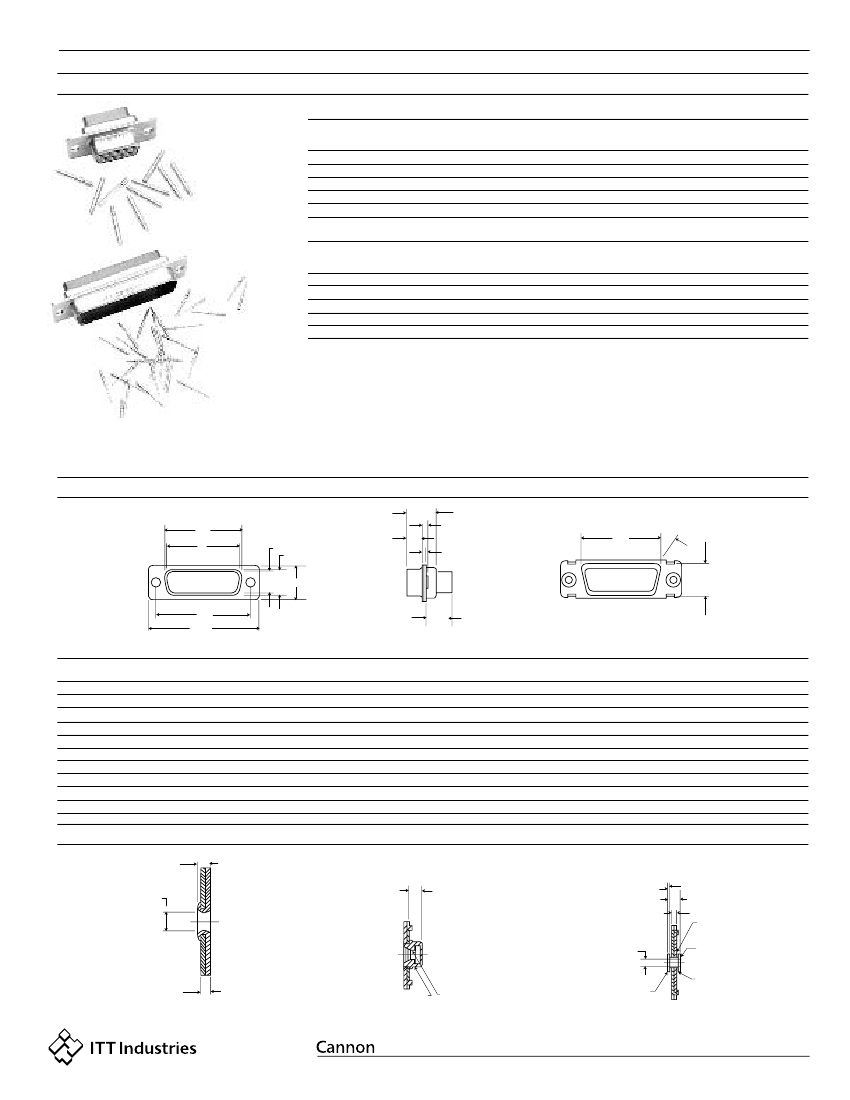

Preview

Download Datasheet

View All

Crimp Snap D

How to Order - Crimp Connectors (contacts are removable)

Receptacles (Includes Socket Contacts) With .120" Through-Mounting Holes

Number of

Contacts

(Shell Size)

9 (E)

15 (A)

25 (B)

37 (C)

50 (D)

Military

Version

DEMAM9S

DAMAM15S

DBMAM25S

DCMAM37S

DDMAM50S

D*MA

Standard

DEMA9S

DAMA15S

DBMA25S

DCMA37S

DDMA50S

M24308 Cross

Reference

M24308/2-1

M24308/2-2

M24308/2-3

M24308/2-4

M24308/2-5

Plugs (Includes Pin Contacts)* With .120" Through-Mounting Holes

Number of

Contacts

(Shell Size)

9 (E)

15 (A)

25 (B)

37 (C)

50 (D)

Military

Version

DEMAM9P

DAMAM15P

DBMAM25P

DCMAM37P

DDMAM50P

M24308 Cross

Reference

M24308/4-1

M24308/4-2

M24308/4-3

M24308/4-4

M24308/4-5

Standard

DEMA9P

DAMA15P

DBMA25P

DCMA37P

DDMA50P

To receive these connectors without contacts. add "F0" to end of

part number.

Example: DBMA25SF0, DBMAM25SF0.

Non-Magnetic/No Outgas-Add desired suffix code with

desired option to end of part number.

Example: DEMA9PSNMB

DEMA9PSNMB-K52

Crimp Connectors without contacts, add F0 to end of the part

number and change K52 to K47.

Assembly Instructions - Page 363.

Performance Specifications - Page 332.

Mounting Options Avalable:

4-40 Clinch Nut - Add "E" to Part Number After "M" or "A"

4-40 Fload Mount - Add "Y" to Part Number After "M" or "A"

(Can be used in front or rear panel mount applications)

Example: DBMAE25S

DBMAM255

DEMAY9P

DBMAMY9P

Dimensions - Crimp Connectors

B•

D•

MAX.

Rear

D•

+ .005 (0.13) + .005 (0.13)

.984 (24.99)

1.312 (33.32)

1.852 (47.04)

2.500 (63.50)

2.406 (61.11)

.311 (7.90)

.423 (10.74)

+ .005 (0.13)

.329 (8.36)

.441 (11.20)

+ .015 (0.38)

.494 (12.55)

.605 (15.37)

+ .010 (0.25)

.759 (19.28)

1.083 (27.51)

1.625 (41.27)

2.272 (57.71)

2.178 (55.32)

+ .010 (0.25)

.422 (10.72)

.534 (13.56)

+ .010 (0.25)

.030 (0.76)

.039 (0.99)

.030 (0.76)

.039 (0.99)

.030 (0.76)

.039 (0.99)

.030 (0.76)

+ .006 (0.15)

.235 (5.97)

.243 (6.17)

.235 (5.97)

.243 (6.17)

.230 (5.84)

.243 (6.17)

.230 (5.84)

.243 (6.17)

.230 (5.84)

.243 (6.17)

+ .013 (0.33)

.048 (1.22)

.060 (1.52)

.048 (1.22)

.060 (1.52)

.048 (1.22)

.060 (1.52)

.048 (1.22)

+ .010 (0.25)

.422 (10.72)

.429 (10.90)

.422 (10.72)

.429 (10.90)

.426 (10.82)

.429 (10.90)

.426 (10.82)

.429 (10.90)

.426 (10.82)

.429 (10.90)

Max.

.345 (8.76)

10˚ TYP.

Front

Part Number

by Shell Size

DEMA-9P

DEMA-9S

DAMA-15P

DAMA-15S

DBMA-25P

DBMA-25S

DCMA-37P

DCMA-37S

DDMA-50P

DDMA-50S

+ .015 (0.38)

1.213 (30.81)

1.541 (39.14)

2.088 (53.03)

2.729 (69.31)

2.635 (66.92)

B•

+ .005 (0.13)

.643 (16.33)

.971 (24.66)

1.511 (38.38)

2.159 (54.84)

2.064 (52.43)

+ .005 (0.13)

.666 (16.91)

.994 (25.24)

1.534 (38.96)

2.182 (55.42)

2.079 (52.81)

Mountign Option Dimensions - Crimp Components

.070 (1.78)

MAX.

.103 (2.62)

+ .023 (0.58)

.031 (0.79)

+ .005 (0.13)

.130 (3.30) MAX.

.049 (1.24)

MAX.

.031 (0.79) TOTAL

DIAMETRICAL FLOAT

WASHER

.120 + .005

(3.05 + 0.13)

.089 (2.26) + .003 (0.08)

DIA.

.049 (1.24)

MAX.

CLINCH NUT

NO. 4 (.112) 40 UNC

RIVET

OVERALL FREE

FLOAT .004-.012

(0.10)-(0.30)

Standard-Through-Hole

E-Clinch Nut

Y Float Mount

It is recommended that only one assembly, either pin or socket, be float mounted.

Dimensions are shown in inches (millimeters).

Dimensions subject to change.

www.ittcannon.com

334

DBMAM25SF0 Related Products

	DBMAM25SF0	DAMAM15PF0	DDMAM50SF0
Description	25 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, RECEPTACLE	15 CONTACT(S), MALE, D SUBMINIATURE CONNECTOR, PLUG	D Subminiature Connector, 50 Contact(s), Female, Crimp Terminal, Receptacle,
Reach Compliance Code	unknow	unknow	compliant
Other features	STANDARD: MIL-C-24308, COMPATIBLE CONTACTS: 031-1007-042; 031-1007-054; 031-1007-048	STANDARD: MIL-C-24308, COMPATIBLE CONTACTS: 330-5291-037;330-5291-055;330-5291-050	STANDARD: MIL-C-24308, COMPATIBLE CONTACTS: 031-1007-042; 031-1007-054; 031-1007-048
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO
empty shell	YES	YES	YES
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE	GLASS FILLED DIALLYL PHTHALATE
MIL compliance	YES	YES	YES
Mixed contacts	NO	NO	NO
Installation type	CABLE AND PANEL	CABLE AND PANEL	CABLE AND PANEL
Shell surface	CHROMATE	CHROMATE	CHROMATE
Shell material	STEEL	STEEL	STEEL
Housing size	3/B	2/A	5/D
Total number of contacts	25	15	50
Base Number Matches	1	1	1
body width	0.494 inch	-	0.605 inch
subject depth	0.156 inch	-	0.157 inch
body length	2.088 inch	-	2.635 inch
Contactor design	PREASSEM CONN	-	PREASSEM CONN
Contact to complete cooperation	AU ON NI	-	GOLD OVER NICKEL
Contact material	COPPER ALLOY	-	COPPER ALLOY
contact mode	STAGGERED	-	STAGGERED
Contact resistance	10 mΩ	-	10 mΩ
Contact style	RND PIN-SKT	-	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	-	1000VAC V
Manufacturer's serial number	DBM	DAM	-
Installation option 2	LOCKING	-	LOCKING
Number of rows loaded	2	-	3
Maximum operating temperature	150 °C	-	150 °C
Minimum operating temperature	-55 °C	-	-55 °C
Rated current (signal)	7.5 A	-	7.5 A
Guideline	UL	-	UL
reliability	COMMERCIAL	-	COMMERCIAL
Termination type	CRIMP	-	CRIMP
Maximum wire diameter	20 AWG	-	18 AWG
Minimum wire diameter	28 AWG	-	30 AWG
