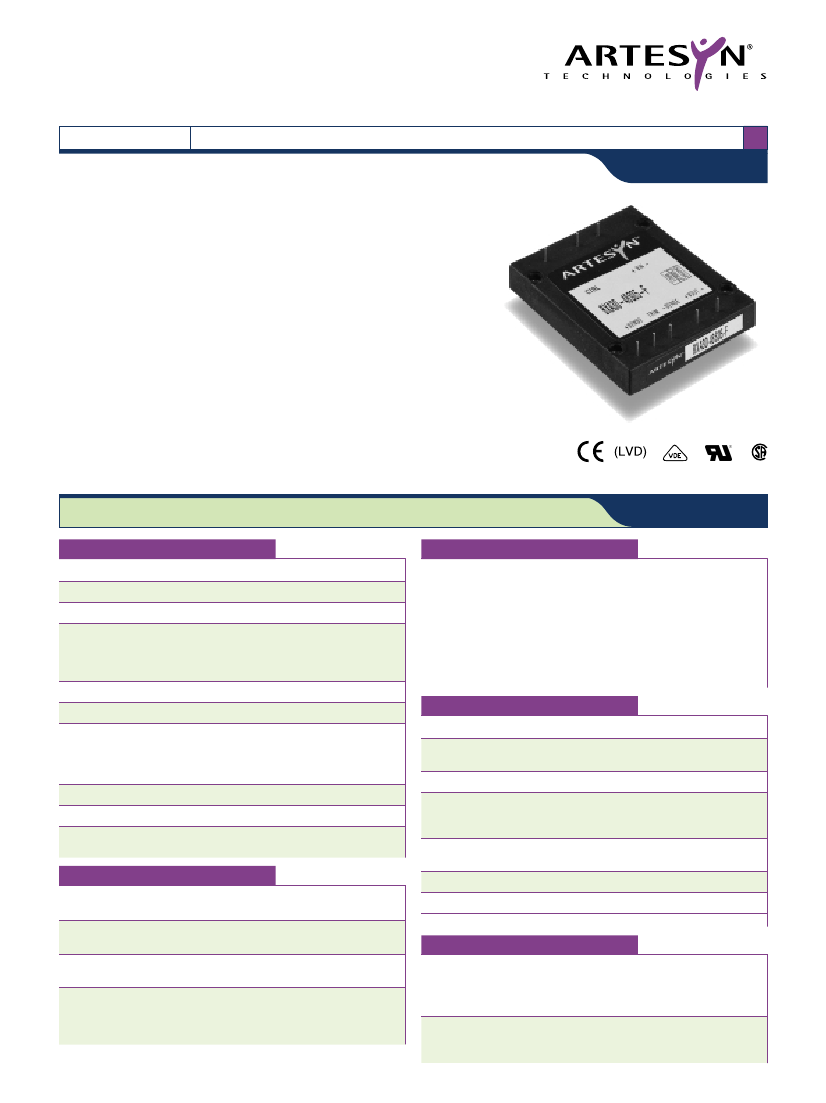

BXA30 Series
DC/DC CONVERTERS
Single and dual output
30W Wide Input DC/DC Converters
1
•
Designed to meet telecom power supply interface
standard ETS300-132-2
•
UL, VDE and CSA safety approvals
•
VDE0878 and EN55022 conducted emissions level A
•
EN61000-4-2, -3, -4, -5, -6 immunity compliant
•
Fixed frequency operation at 350kHz
•
MTBF in excess of 7,005,000 hours (demonstrated)
•
Basic insulation system
The BXA30 series, comprising 9 different models, has been conceived as an
applications-specific range of DC/DC converters, specifically addressing
telecommunications, industrial electronics, test equipment, mobile telecommunications
and distributed power applications. The series offers three wide input voltage ranges, 9-
18VDC and 36-75VDC, and is available in single and dual output versions. Designed to
meet ETSI telecoms interface standards ETS300-132-2 and BTR2511, together with
internal filtering to EN55022 level A, safety approval to EN60950 and UL1950, and
isolation of 1500VDC, the 48VDC models are ideal for telecommunications applications.
The 12V models are particularly suited to industrial, mobile telecom and test equipment
applications, featuring EN61000-4-2, -3, -4, -5 and -6 immunity compliant. Other
features include low output ripple, overvoltage protection, continuous short circuit
protection, remote enable and remote sense.
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
2 YEAR WARRANTY
SPECIFICATIONS
OUTPUT SPECIFICATIONS
Voltage adjustability
Line regulation
Load regulation
Ripple and noise
(20MHz bandwidth)
Singles
LL to HL (single/dual)
FL to NL (single/dual)
3.3V
5.0V
All others
All models
±10%
±0.2%/±0.4%
±0.2%/±0.4%
60mV pk-pk
50mV pk-pk
100mV pk-pk
20mV rms
±0.02%/°C
Transient
Singles
Duals (single short)
Duals (dual short)
Transient response
Voltage accuracy
Load cross regulation
Dual output
30% to 100% output variation
25% to 100% load
135% Vout
Continuous
(See BXA15/30
Design Note 100)
Continuous
4.0%
±1.5%
3.0%
EMC CHARACTERISTICS
Conducted emissions
EN55022, FCC part 15 (Note 4) Level A
EN55022, FCC part 15 (Note 5) Level B
VDE0878 (Note 4) (48V)
Level A
EN55022, FCC part 15
Level A
EN61000-4-2, level 3
Perf. criteria 2
EN61000-4-2, level 4
Perf. criteria 2
EN61000-4-5, level 3
Perf. criteria 2
EN61000-4-4, level 3
Perf. criteria 2
EN61000-4-3, level 3
Perf. criteria 2
EN61000-4-6, level 3
Perf. criteria 2
Temperature coefficient
Overvoltage protection
Short circuit protection
Radiated emissions
ESD air
ESD contact
Surge
Fast transients
Radiated immunity
Conducted immunity
GENERAL SPECIFICATIONS
Efficiency
Isolation voltage
Basic insulation
Switching frequency
Approvals and
standards
(See Note 12)
Case material
Material flammability
Input/output
input/case, 48V models
Fixed
See table
1500VDC
1500VDC
350kHz
VDE0805, EN60950
IEC950, UL1950
CSA C22.2 No. 950
Aluminum substrate
with plastic case
UL94V-0
120g (4.24oz)
Demonstrated @ 25°C
7,005,000 hours
INPUT SPECIFICATIONS
Input voltage range
Reverse voltage
protection (See Note 7)
Max. input rise and
fall time
Remote ON/OFF
Logic compatibility
ON
OFF
48V
12Vin nominal
48Vin nominal
9 to 18VDC
36 to 75VDC
Yes
5V/ms
ETS300-132
CMOS/TTL
Open circuit
<1VDC
Weight
MTBF (See Note 9)
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
Baseplate operating
temperature,
(See Notes 6, 8)
Non-operating
-25°C to +100°C
-55°C to +100°C
6.5°C/W
5.2°C/W
Thermal impedance
Free air convection,
baseplate to air
With heatsink (See Note 8)
File Name: BXA30.PDF Rev: 02 Oct 2002
BXA30 Series
DC/DC CONVERTERS
INPUT
VOLTAGE
9-18VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
36-75VDC
OUTPUT
VOLTAGE
5.0V
3.3V
3.3V
5.0V
12.0V
15.0V
±5.0V
±12.0V
±15.0V
OUTPUT
CURRENT (MAX.)
5.0A
6.0A
8.0A
5.0A
2.5A
2.0A
±2.5A
±1.25A
±1.0A
Single and dual output
30W Wide Input DC/DC Converters
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
INPUT
CURRENT
100mA
30mA
30mA
30mA
30mA
30mA
30mA
30mA
30mA
(1)
TYPICAL
EFFICIENCY
80%
75%
81%
80%
85%
87%
80%
84%
86%
REGULATION
LINE
(2)
MODEL
(3)
LOAD
NUMBER
(4,6)
±0.2%
±0.2%
±0.2%
±0.4%
±0.2%
±0.2%
±0.4%
±0.4%
±0.4%
±0.2%
±0.2%
±0.2%
±1.0%
±0.2%
±0.2%
±0.4%
±0.4%
±0.4%
BXA30-12S05
BXA30-48S3V3
BXA30-48S3V3/8
BXA30-48S05
BXA30-48S12
BXA30-48S15
BXA30-48D05
BXA30-48D12
BXA30-48D15
(11)
Notes
1
2
3
4
Nominal, at no load.
Low line to high line.
Full load to no-load. For duals, the value stated is for balanced loads.
An optional internal filter is available, which will meet VDE0871 level A,
VDE0878 level A and EN55022 level A. Add the suffix ‘-F’ to the model
number, e.g.
BXA30-48S12-F.
See BXA15 and BXA30 Design Note 100.
For conducted noise operation of the BXA30 to VDE0871, VDE0878 and
EN55022 level B, see BXA15 and BXA30 Design Note 100.
For extended operating temperature, include the heatsink option, ‘-1’ in the
model number. Max. heatsink height is 12.5mm, e.g.
BXA30-48S15-1
Reverse voltage protection can be implemented by putting a slow blow
fuse on the negative input rail. Rate the fuse for 48VDC at 1.5A and 12VDC
at 6A.
The maximum operating ambient temperature, without derating depends
on internal power dissipation and hence efficiency and cooling method.
BXA15 and BXA30 Design Note 100 provides detailed thermal calculations
and design-in details.
Test results to-date are 1,590,000 hours @ 46˚C. The MTBF figure shown
includes a calculated acceleration factor of 4.1 based on an activation
energy of -0.55 eV.
Visit the Artesyn website to download a copy of Design Note 100.
This model has the same electrical pin-out and pin pitch spacings as the
drawing on the following page. Dimensions are 76.2 x 76.2 x 14.2mm,
±
0.3mm.
This product is only for inclusion by professional installers within other
equipment and must not be operated as a stand alone product.
If remote sense is not used, connect +sense to +vout and -sense to -vout.
5
6
7
8
9
10
11
12
13
International Safety Standard Approvals
VDE0805/EN60950/IEC950 File No. 14501-3336-7006
Licence No. 6231
UL1950 File No. E174104
CSA C22.2 No. 950 File No. LR41062C
Please consult our website for the following items:
✔
Design Note
www.artesyn.com
File Name: BXA30.PDF Rev: 02 Oct 2002
BXA30 Series
DC/DC CONVERTERS
PIN CONNECTIONS
PIN NUMBER
1
2
3
4
5
6
7
8
SINGLE OUTPUT
+ Vin
– Vin
+ Sense
Trim
– Sense
+ Vout
– Vout
Remote ON/OFF
(13)
Single and dual output
30W Wide Input DC/DC Converters
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
EXTERNAL OUTPUT TRIMMING
DUAL OUTPUT
+ Vin
– Vin
+ Vout
Common
3
3
Single output models can be
externally trimmed by ±10%
using either method shown.
5
5
TRIM
UP
4
TRIM
DOWN
4
10KΩ
TRIMPOT
– Vout
No Pin
No Pin
Remote ON/OFF
2.50
(63.5)
3.02
(76.30
±
0.30)
0.20
(5.08)
0.302
(7.67±0.30)
0.76
(19.20±0.30)
0.20 (5.08)
3
4
5
1
6
8
0.95
(24.13)
0.80 (20.32)
0.50 (12.70)
0.6 (15.24)
0.70 (17.78)
0.30 (7.62)
BOTTOM
VIEW
0.4 (10.16)
2
1.30
(33.02)
1.15
(29.21)
2.41
(61.10±0.30)
7
Ø 1.000
8 Places
Case/Metal Inserts M3.0
(Typ. 4 Places)
2.00
(50.80)
ALL DIMENSIONS IN INCHES (mm)
Tolerance .XX
±0.02
.XXX
±0.005
0.52
(13.30±0.30)
SIDE VIEW
