DBMAMF25SF0: DescriptionD Type Connector, 25 Contact(s), Female, Crimp Terminal, #4-40, Plug; CategoryThe connector The connector; File Size41KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

DBMAMF25SF0 Overview

D Type Connector, 25 Contact(s), Female, Crimp Terminal, #4-40, Plug

DBMAMF25SF0 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
Other features	FLOAT MNT FOR REAR PANEL MNT
body width	0.494 inch
subject depth	0.345 inch
body length	2.088 inch
Body/casing type	PLUG
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	8 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1250VAC V
Insulator color	WHITE
insulator material	DIALLYL PHTHALATE
MIL compliance	YES
Manufacturer's serial number	DB
Installation option 1	#4-40
Installation option 2	FLOAT MOUNT
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	5 A
Guideline	UL
reliability	MIL-C-24308
Shell surface	YELLOW CHROMATE
Shell material	STEEL
Termination type	CRIMP
Total number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

This is issued in strict confidence on condition that it is not used as a basis for manufacture or sale, and that it is not copied,

reprinted or disclosed to a third party either wholly or in part without prior written consent of ITT Cannon.

Selected hardware option

with 4-40 threads

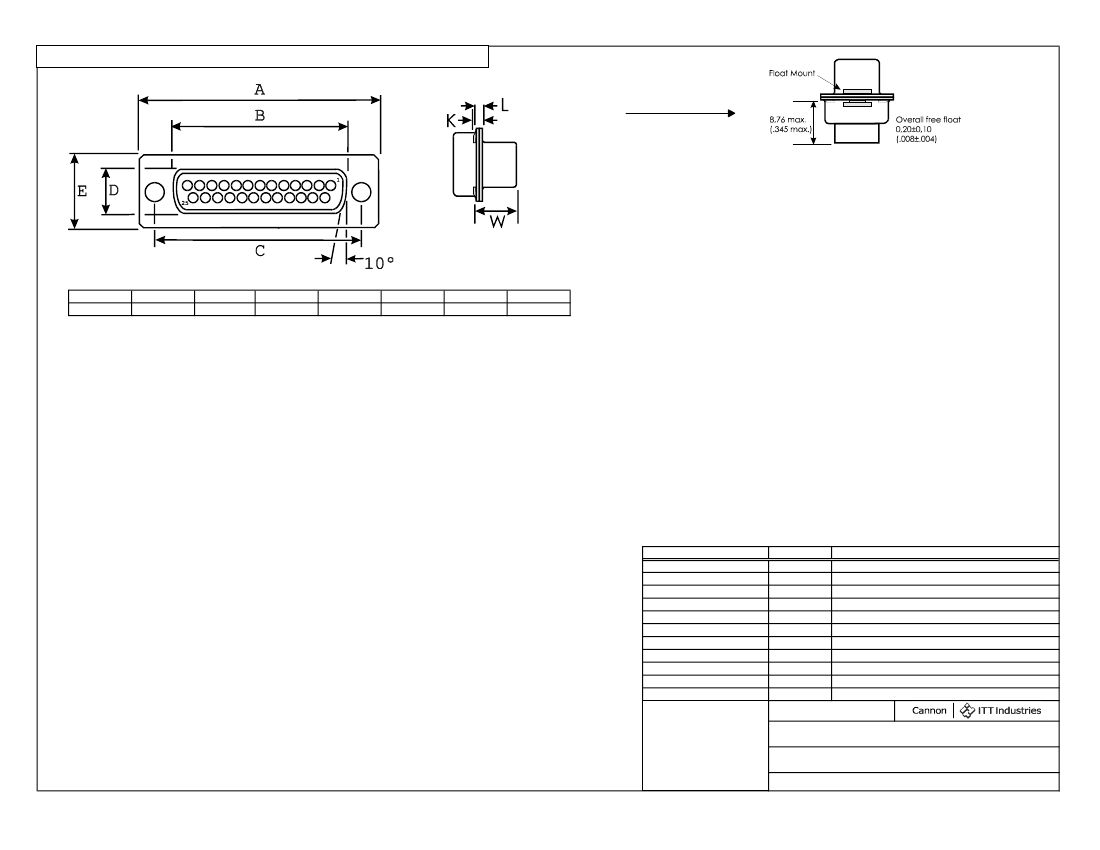

A ± 0,38 (.015)

B ± 0,13 (.005)

C ± 0,13 (.005)

D ± 0,13 (.005)

E ± 0,38 (.015)

L ± 0,25 (.010)

W ± 0,41 (.016)

K ± 0,51 (.020)

53,04 (2.088)

38,38 (1.511) 47,04 (1.852)

7,90 (.311)

12,55 (.494)

0,76 (.030)

6,94 (.273)

1,27 (.050)

0.00

0

Part to be Marked DBMAMF25S

DESCRIPTION

Insulator

Shells

Rivets

Washers

MATERIAL

DAP 2 Piece

Steel

Stainless Steel

FINISH

None, (Color White), Copper alloy retention clips

Yellow Chromate over Zinc

Passivated

Unless otherwise specified,

dimensions are in mm & (in.)

Tolerances are (.XXX = mm)

Decimals

Angles

.X

± 0,20 (.008) X

o

± 1.0

o

.XX ± 0,10 (.004)

.XXX ± 0,05 (.002)

Issue Date:

21-Aug-99

CONNECTOR, RECEPTACLE, ELECTRICAL

D-SUBMINIATURE 25 POSITION CRIMP

PART NO.

DBMAMF25SF0

Config Rev 8.25

Customer Use Drawing
