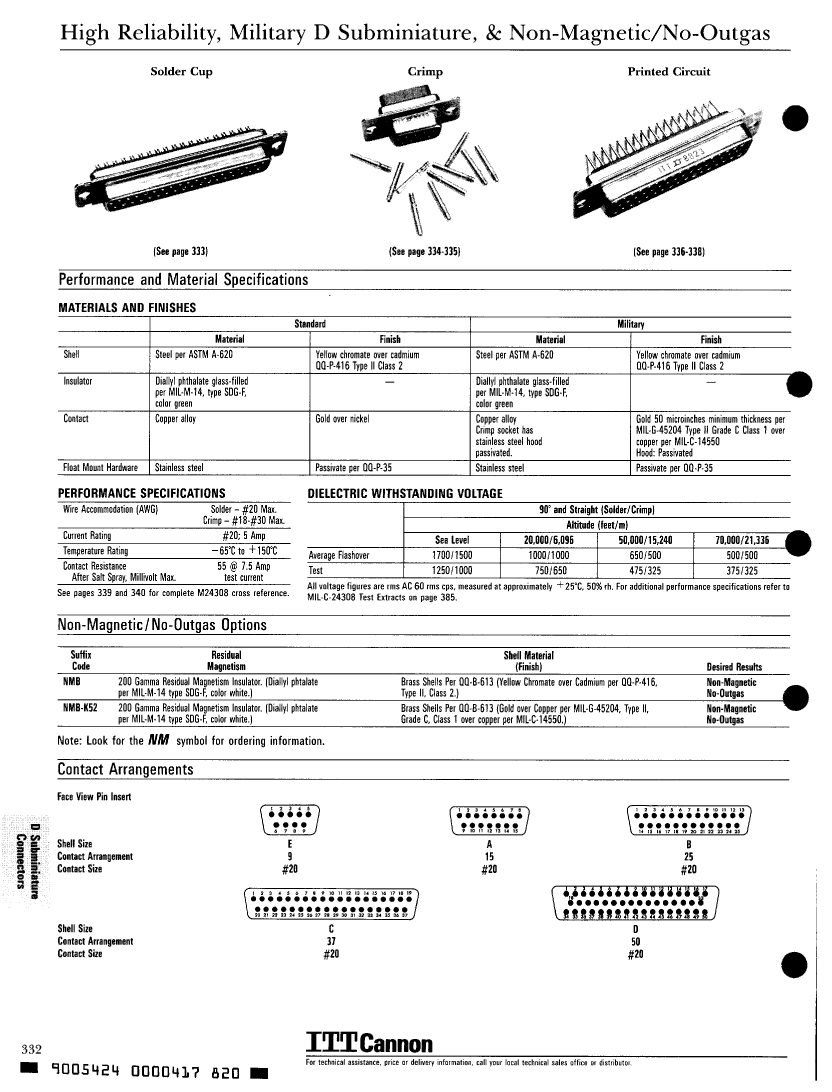

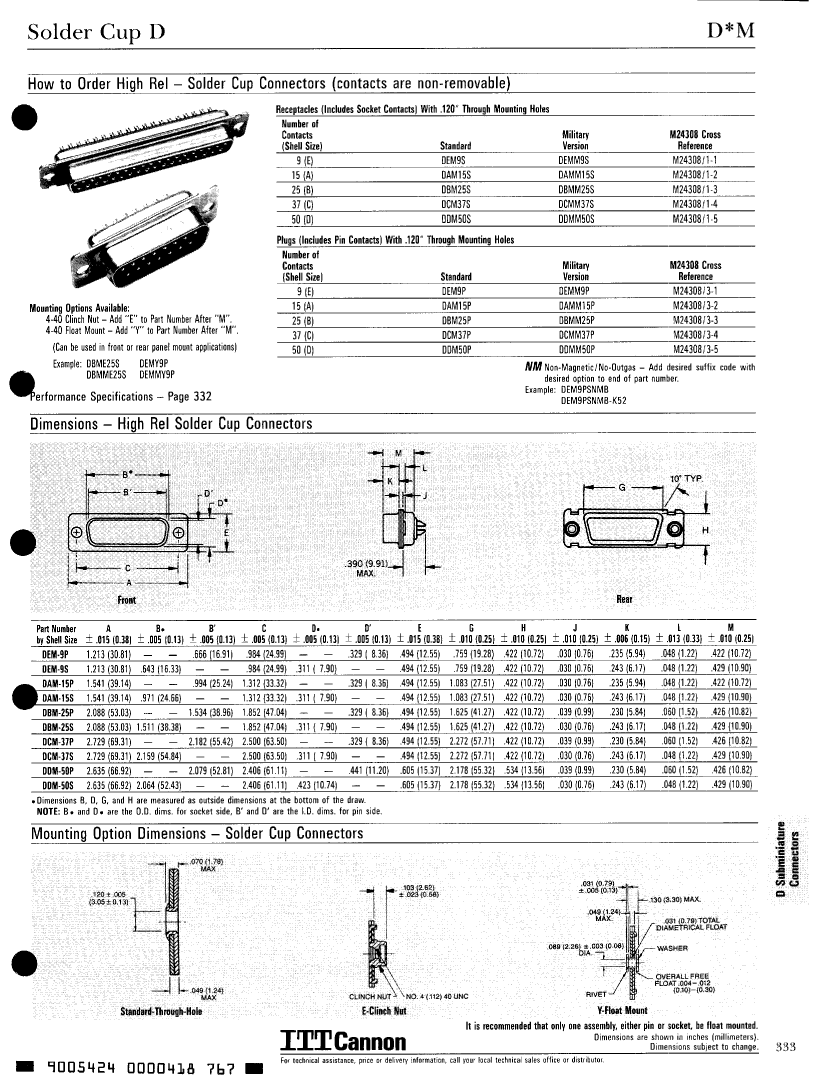

D Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .138-.163, Receptacle

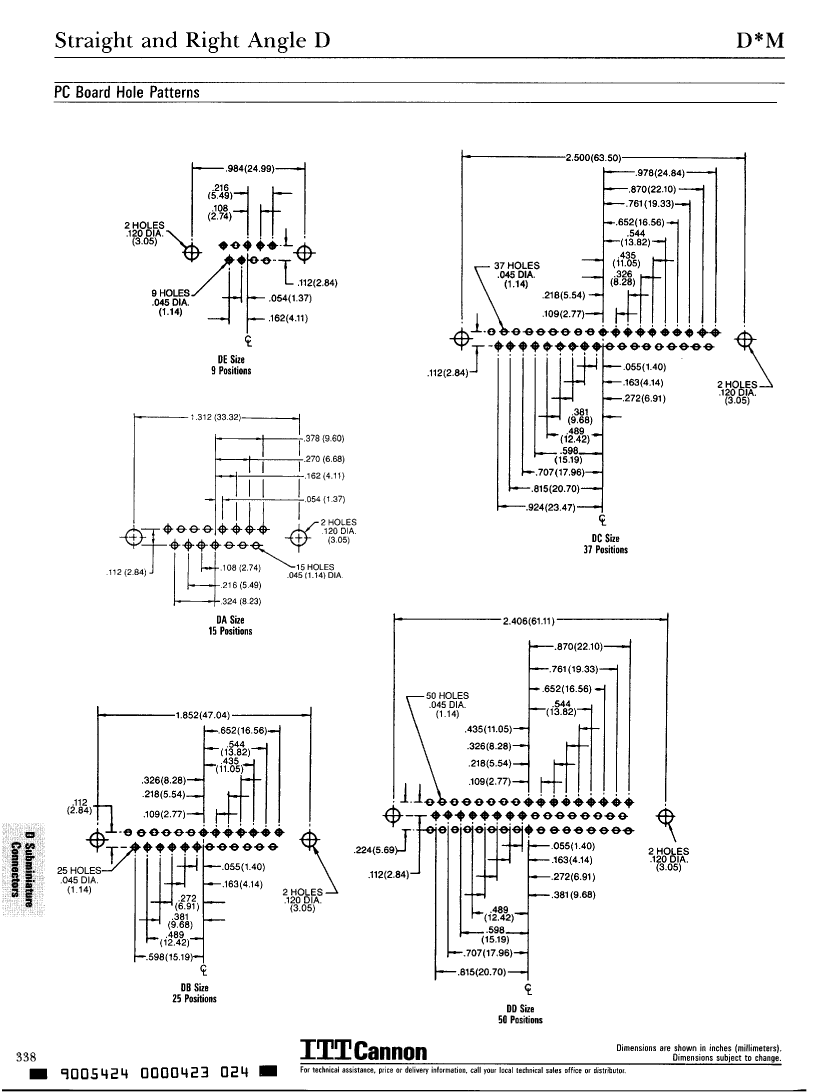

| Parameter Name | Attribute value |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Factory Lead Time | 17 weeks |
| body width | 0.494 inch |
| subject depth | 0.157 inch |
| body length | 1.541 inch |
| Body/casing type | RECEPTACLE |
| Contact to complete cooperation | AU ON NI |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| contact mode | STAGGERED |
| Contact resistance | 7.3 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 1700VAC V |
| Insulator color | GREEN |
| insulator material | GLASS FILLED DIALLYL PHTHALATE |
| MIL compliance | YES |
| Manufacturer's serial number | DA |
| Plug contact pitch | 0.108 inch |
| Match contact row spacing | 0.112 inch |
| Installation option 1 | HOLE .138-.163 |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 150 °C |
| Minimum operating temperature | -65 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.8448 mm |
| Rated current (signal) | 5 A |
| Guideline | UL |
| reliability | MIL-C-24308 |
| Shell surface | YELLOW CHROMATE |
| Shell material | STEEL |
| Terminal length | 0.158 inch |
| Terminal pitch | 2.7432 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Base Number Matches | 1 |
| DAMMK15PM | DAMMK15S | DAMK15SH | |
|---|---|---|---|
| Description | D Type Connector, 15 Contact(s), Male, 0.108 inch Pitch, Solder Terminal, Hole .138-.163, Receptacle | D Type Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Lug Terminal, Hole .138-.163, Plug | D Type Connector, 15 Contact(s), Female, 0.108 inch Pitch, Solder Lug Terminal, Hole .138-.163, Plug |
| Reach Compliance Code | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 |
| body width | 0.494 inch | 0.494 inch | 0.494 inch |
| subject depth | 0.157 inch | 0.156 inch | 0.156 inch |
| body length | 1.541 inch | 1.541 inch | 1.541 inch |
| Body/casing type | RECEPTACLE | PLUG | PLUG |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI |
| Contact point gender | MALE | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| contact mode | STAGGERED | STAGGERED | STAGGERED |
| Contact resistance | 7.3 mΩ | 8 mΩ | 8 mΩ |
| Contact style | RND PIN-SKT | RND PIN-SKT | RND PIN-SKT |
| Dielectric withstand voltage | 1700VAC V | 1700VAC V | 1700VAC V |
| Insulator color | GREEN | GREEN | GREEN |
| insulator material | GLASS FILLED DIALLYL PHTHALATE | GLASS FILLED DIALLYL PHTHALATE | GLASS FILLED DIALLYL PHTHALATE |
| Manufacturer's serial number | DA | DA | DA |
| Plug contact pitch | 0.108 inch | 0.108 inch | 0.108 inch |
| Match contact row spacing | 0.112 inch | 0.112 inch | 0.112 inch |
| Installation option 1 | HOLE .138-.163 | HOLE .138-.163 | HOLE .138-.163 |
| Installation option 2 | LOCKING | LOCKING | LOCKING |
| Installation type | BOARD | PANEL | PANEL |
| Number of rows loaded | 2 | 2 | 2 |
| Maximum operating temperature | 150 °C | 150 °C | 150 °C |
| Minimum operating temperature | -65 °C | -65 °C | -65 °C |
| Rated current (signal) | 5 A | 5 A | 5 A |
| Guideline | UL | UL | UL |
| reliability | MIL-C-24308 | MIL-C-24308 | COMMERCIAL |
| Shell surface | YELLOW CHROMATE | YELLOW CHROMATE | YELLOW CHROMATE |
| Shell material | STEEL | STEEL | STEEL |
| Terminal length | 0.158 inch | 0.233 inch | 0.233 inch |
| Termination type | SOLDER | SOLDER LUG | SOLDER LUG |
| Total number of contacts | 15 | 15 | 15 |
| Base Number Matches | 1 | 1 | 1 |
| Factory Lead Time | 17 weeks | 12 weeks | - |
| MIL compliance | YES | YES | - |
| Contactor design | - | PREASSEM CONN | PREASSEM CONN |
| Maximum wire diameter | - | 20 AWG | 20 AWG |
