AD380SH/883B: DescriptionIC OP-AMP, 1000 uV OFFSET-MAX, 300 MHz BAND WIDTH, MBCY12, HERMETIC SEALED, TO-8, 12 PIN, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size3MB，6 Pages; ManufacturerADI; Websitehttps://www.analog.com

Download Datasheet Parametric Compare View All

AD380SH/883B Overview

IC OP-AMP, 1000 uV OFFSET-MAX, 300 MHz BAND WIDTH, MBCY12, HERMETIC SEALED, TO-8, 12 PIN, Operational Amplifier

AD380SH/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	TO-8
package instruction	HERMETIC SEALED, TO-8, 12 PIN
Contacts	12
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.0001 µA
Maximum bias current (IIB) at 25C	0.0001 µA
Nominal Common Mode Rejection Ratio	60 dB
frequency compensation	NO
Maximum input offset voltage	1000 µV
JESD-30 code	O-MBCY-W12
JESD-609 code	e0
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	12
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	METAL
encapsulated code	QIP
Encapsulate equivalent code	QUAD12,.4SQ
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power	YES
power supply	+-15 V
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
minimum slew rate	200 V/us
Nominal slew rate	330 V/us
Maximum slew rate	15 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	WIRE
Terminal pitch	2.54 mm
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	300000 kHz
Minimum voltage gain	25000
broadband	YES

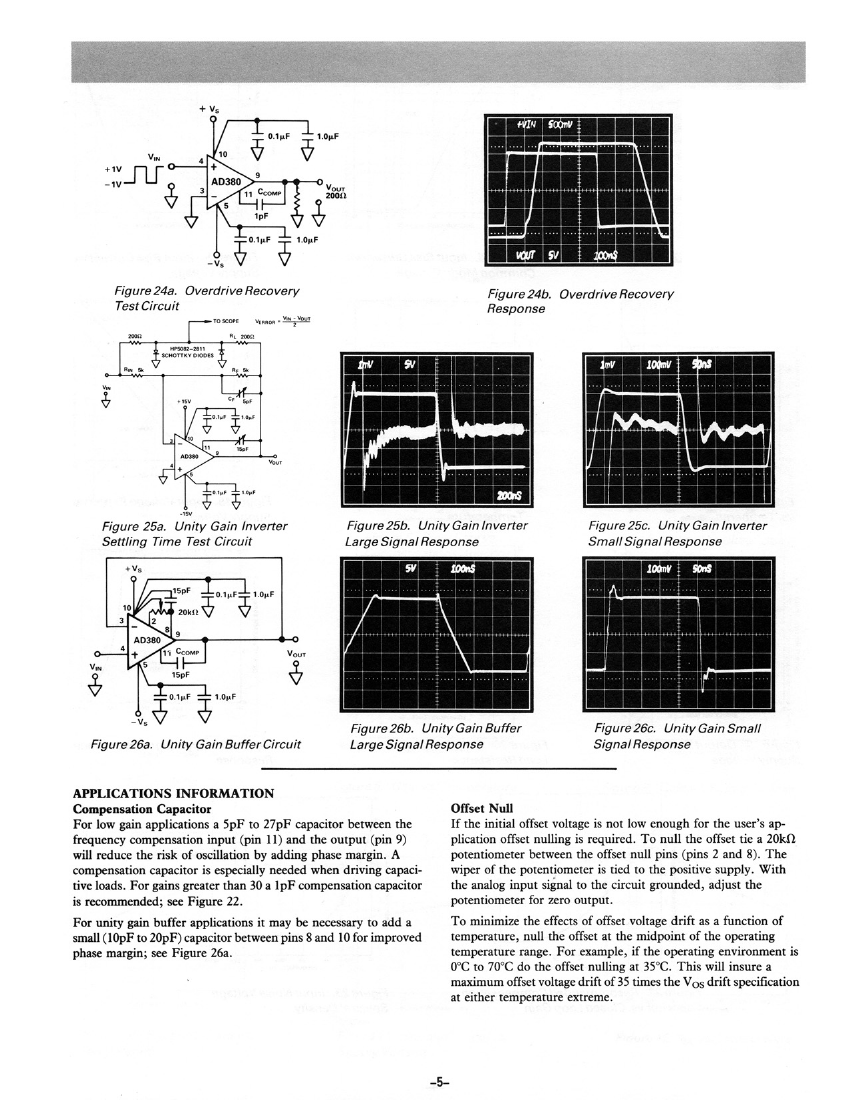

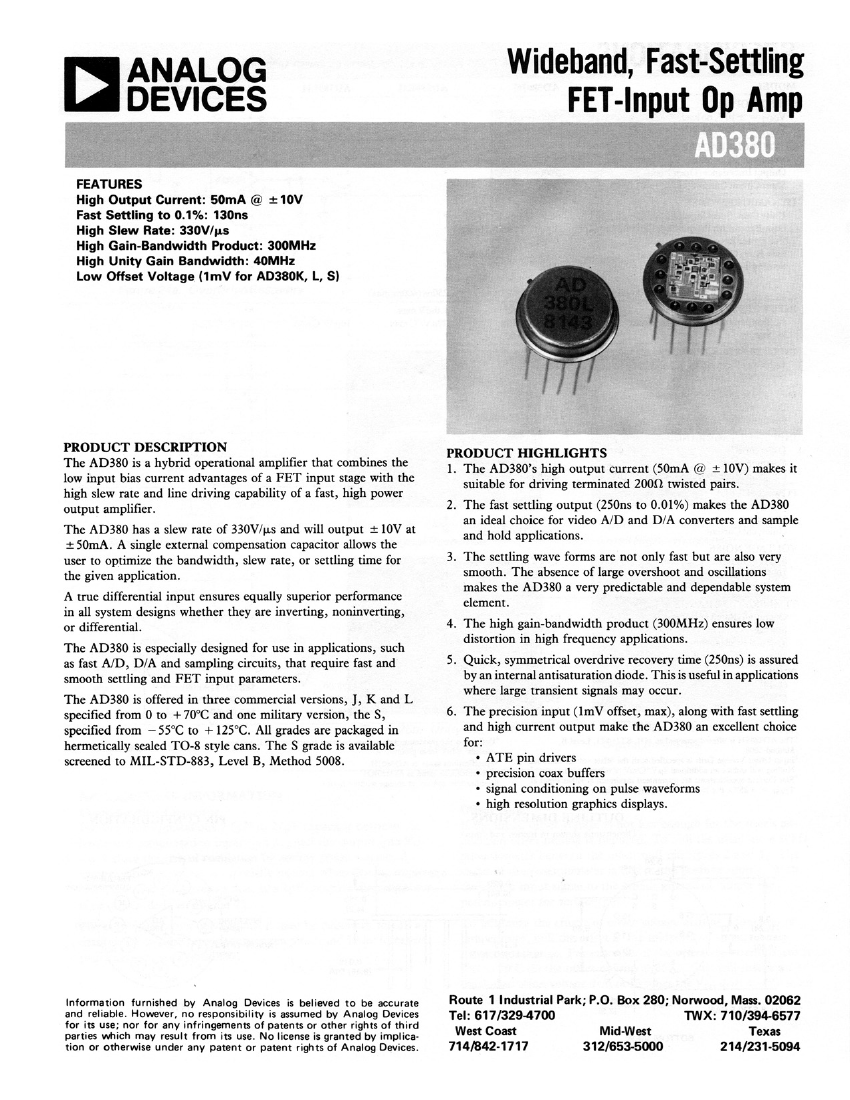

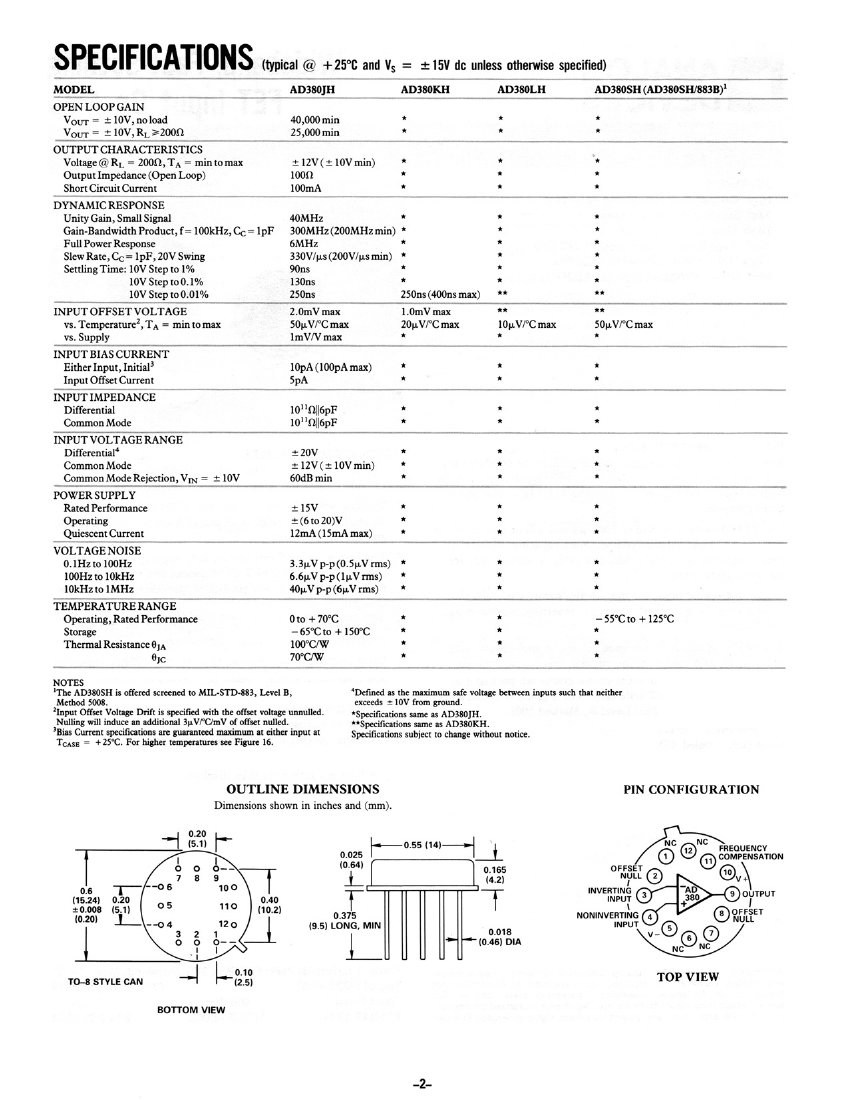

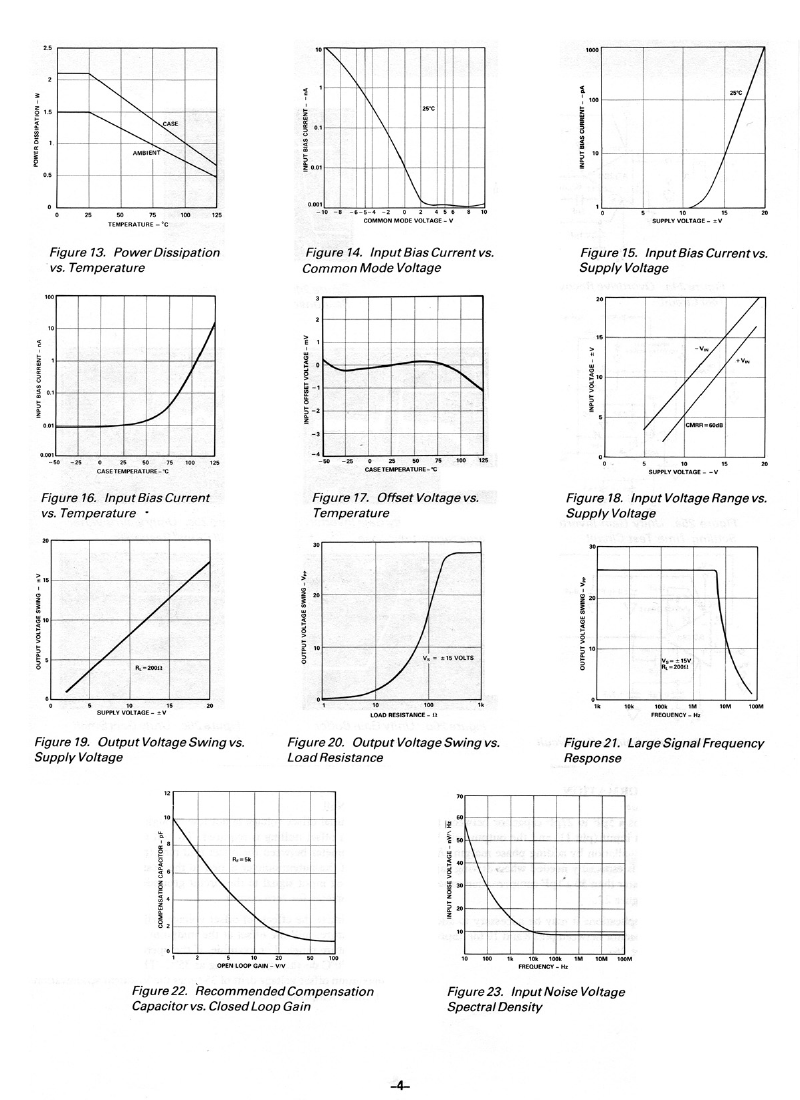

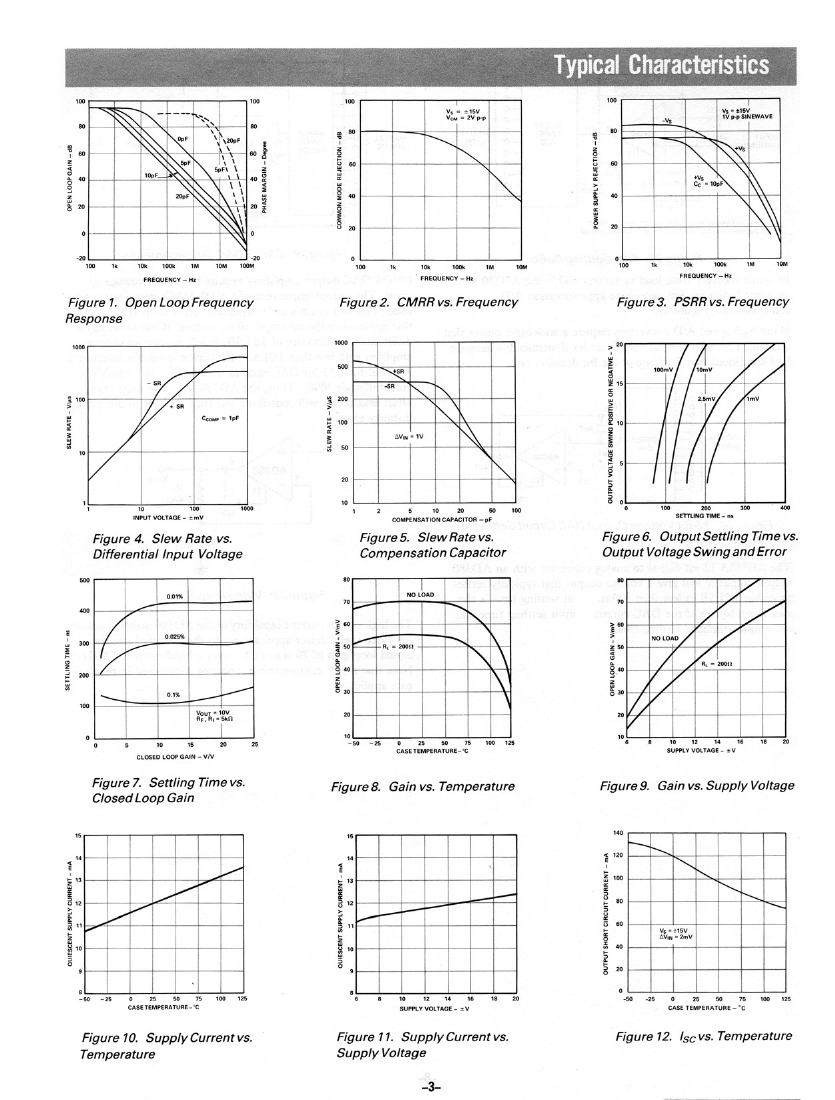

AD380SH/883B Preview
