PN9700: Description200 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM11, 4 PIN; CategoryWireless rf/communication Radio frequency and microwave; File Size631KB，1 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

PN9700 Overview

200 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM11, 4 PIN

Parameter Name	Attribute value
Maker	Spectrum Microwave
Reach Compliance Code	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	10.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	200 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

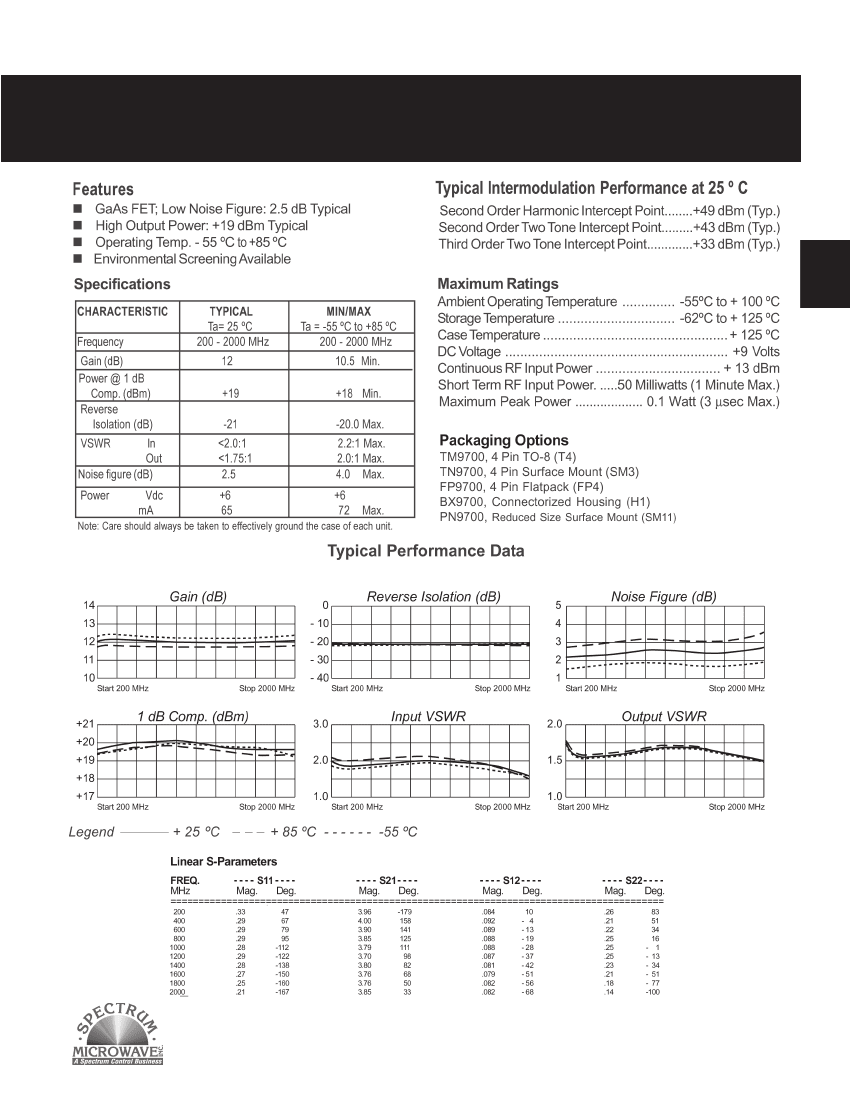

RF Amplifier

High Output Power: +19 dBm

Model TM9700

200 to 2000 MHz

(see Appendix)

SPECTRUM MICROWAVE • 2144 Franklin Drive N.E. • Palm Bay, Florida 32905 • Phone: (888) 553-7531 • Fax: (888) 553-7532

www.specwave.com

SPECTRUM CONTROL GmbH • Hansastrasse 6 • 91126 Schwabach, Germany • Phone: (49)-9122-795-0 • Fax: (49)-9122-795-58

483

Amplifiers

	PN9700	TM9700	BX9700
Description	200 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, SM11, 4 PIN	200 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, T4, TO-8, 4 PIN	200 MHz - 2000 MHz RF/MICROWAVE WIDE BAND LOW POWER AMPLIFIER, H1
Maker	Spectrum Microwave	Spectrum Microwave	Spectrum Microwave
Reach Compliance Code	unknown	unknown	unknown
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COMPONENT	COAXIAL
Gain	10.5 dB	10.5 dB	10.5 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm
Maximum operating frequency	2000 MHz	2000 MHz	2000 MHz
Minimum operating frequency	200 MHz	200 MHz	200 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
