05418
Only One Name Means ProTek’Tion™

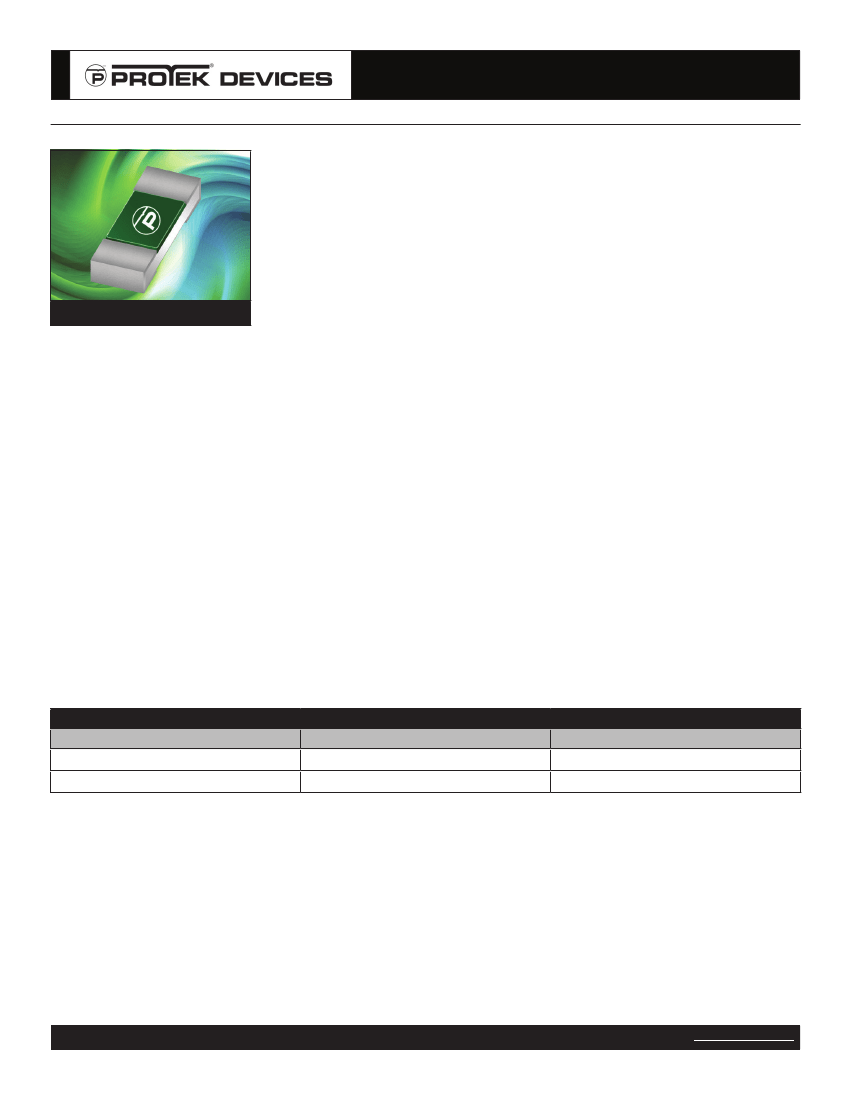

PF1206F Series
FaSt acting chiP FuSeS
DeScRiPtion
The PF1206F Series are fast acting chip fuses that are designed to protect consumer electronics, computers and tele-
commincations equipment and devices from the risk of fire or shock caused by over-currents.
The PF1206F Series is available in a rugged ceramic and glass package. These devices have excellent environmental
performance.
FuSe
FeatuReS
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Fast Acting for Excessive Current
Compatible with Reflow and Wave Solder
Excellent Environmental Performance
RoHS & REACH Compliant
Halogen-Free Material
Life Test: MIL-STD-202, Method 108D
Humidity Bias: MIL-STD-202, Method 103
Moisture Resistance Test: MIL-STD-202, Method 106G
Thermal Shock: MIL-STD-202, Method 107G
Terminal Strength: AEC-Q200-006
Board Flex: AEC-Q200-005
Vibration: MIL-STD-202, Method 204C
Mechanical Shock: MIL-STD-202, Method 213C
Solderability: MIL-STD-202, Method 208H
Resistance to Solder Heat: MIL-STD-202, Method 210B
aPPlicationS
Telecommications Equipment - DSL/Cable Modems
SMART Phones and other Handheld Devices
Computers - Laptops, Desktops, Servers
Computer Peripherials - Printers, LCD Panels, Scanners
Consumer Electronics - Digital Cameras, DVR, LCD Televisions, Game
Consoles
• Other - GPS, LED Lighting, Audio Systems
•
•
•
•
•
Mechanical chaRacteRiSticS
•
•
•
•
Ceramic and Glass Package
Approximate Weight: 0.009 grams
Lead-Free
Soldering Method
Wave Soldering: 260°C, 10s Max
Reflow Soldering: 260°C, 30s Max
electRical chaRacteRiSticS
aMPeRe Rating
250mA - 8A
250mA - 8A
% oF aMP Rating
100%
250%
oPening tiMe
4 Hours Maximum
5 Seconds Maximum
05418.R0 6/13
Page 1
www.protekdevices.com
05418
Only One Name Means ProTek’Tion™
PF1206F Series
tyPical Device chaRacteRiSticS
electRical SPeciFicationS
PaRt
nuMBeR
MaRking
coDe
cuRRent
Rating
aMPS
PF1206F250
PF1206F375
PF1206F500
PF1206F750
PF1206F1
PF1206F1.25
PF1206F1.5
PF1206F1.75
PF1206F2
PF1206F2.5
PF1206F3
PF1206F3.5
PF1206F4
PF1206F4.5
PF1206F5
PF1206F6
PF1206F7
PF1206F8
noteS
D
E
F
G
H
J
K
M
N
O
P
R
S
X
T
Y
U
8
0.250
0.375
0.500
0.750
1.00
1.25
1.50
1.75
2.00
2.50
3.00
3.50
4.00
4.50
5.00
6.00
7.00
8.00
voltage
Rating
ac
voltS
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
32
inteRRuPting
Rating
(note 1)
ac/Dc
Dc
voltS
aMPS
63
63
63
63
63
63
63
63
63
63
63
32
32
32
32
32
32
32
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
tyPical
ReSiStance
(note 2)
ohMS
4.10
2.21
1.50
0.60
0.26
0.24
0.12
0.10
0.072
0.051
0.038
0.025
0.020
0.017
0.016
0.012
0.010
0.008
tyPical
Melt i
2
t
(note 3)
Dc (a
2
s)
0.0004
0.0008
0.0018
0.0055
0.030
0.046
0.083
0.090
0.110
0.240
0.255
0.280
0.305
0.395
0.500
2.064
2.720
4.630
tyPical
voltage DRoP
(note 4)
voltS
1.30
0.93
0.76
0.68
0.32
0.27
0.19
0.18
0.19
0.16
0.16
0.14
0.13
0.12
0.12
0.10
0.10
0.10
1. AC Interrupting Rating - measured at rated voltage with a unity power factor; DC Interrupting Rating - measured at rated voltage, time constant of less than 50 microseconds, battery
source.
2. DC Cold Resistance - measured at 10% of rated current.
3. Typical Melting I2t - measured with a battery bank at rated DC voltage, 10x-rated current, not to exceed IR, time constant of calirated circuit less than 50 microseconds. 6A, 7A and 8A
measured at interrupting rating.
4. Typical Voltage drop - measured at rated current after temperature stabilizes. Device designed to carry rated current for four hours minimum. An operating current of 75% or less of
rated current is recommended, with further derating required at elevated ambient temperatures.
05418.R0 6/13
Page 2
www.protekdevices.com

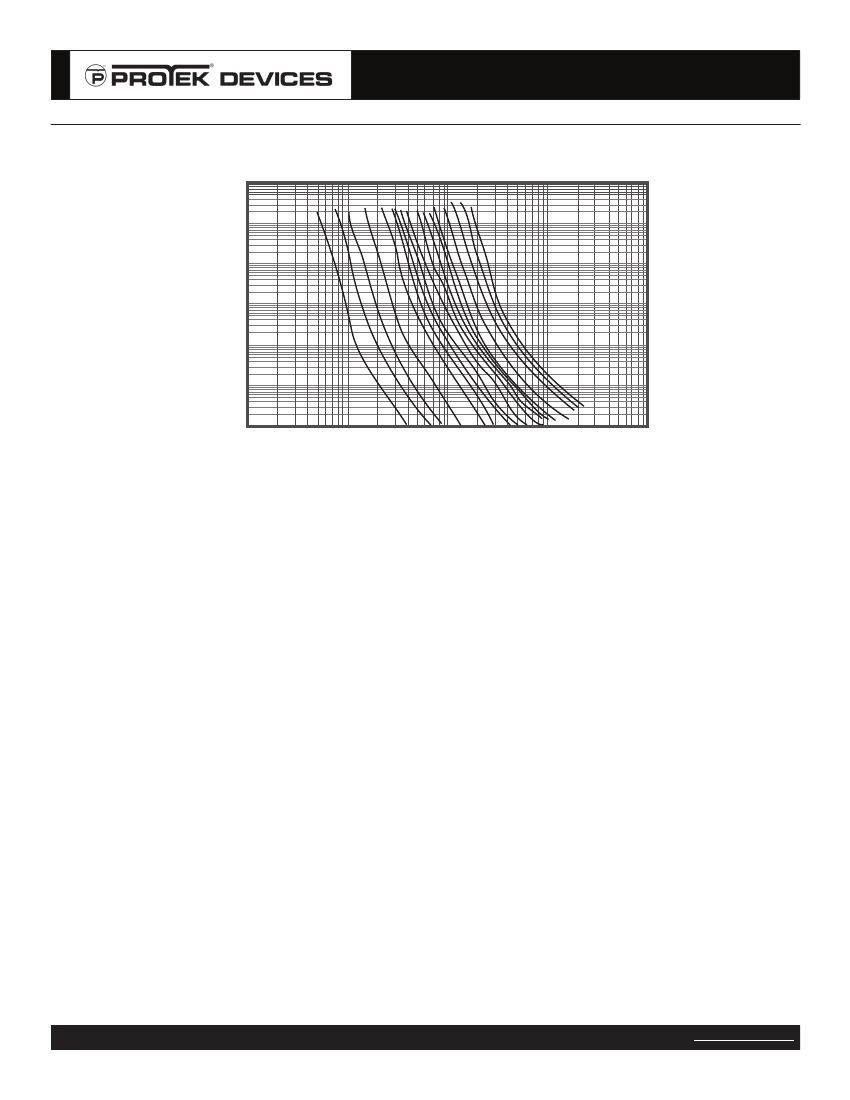

05418
Only One Name Means ProTek’Tion™
PF1206F Series
taPe anD Reel
10 Pitches Cumulative
Tolerance on tape ± 0.2
E
t
D
P2
P0
Top Cover
Tape
K0
A0
B0
F
W
P
User Direction of Feed
SPeciFicationS
Reel Dia.
178mm (7”)
1.
2.
3.
4.
taPe
WiDth
8mm
a0
B0
k0
D
e
F
W
P0
P2
P
tmax
0.25
1.50 ± 0.10 3.09 ± 0.10 0.51 ± 0.10 1.50 ± 0.10 1.75 ± 0.10 3.50 ± 0.05 8.00 ± 0.30 4.00 ± 0.10 2.00 ± 0.05 4.00 ± 0.10
noteS
Dimensions are in millimeters.
Surface mount product is taped and reeled in accordance with EIA-481.
Suffix - T7 = 7” Reel - 5,000 pieces per 8mm tape.
Marking on Part - marking code.
BaSe PaRt nuMBeR
(xx = voltage)
PF1206Fxx
oRDeRing inFoRMation
leaDFRee SuFFiX
N/A
taPe SuFFiX
-T7
Qty/Reel
5,000
Reel SiZe
7”
tuBe Qty
N/A
This device is only available in a Lead-Free configuration.
05418.R0 6/13
Page 5
www.protekdevices.com
