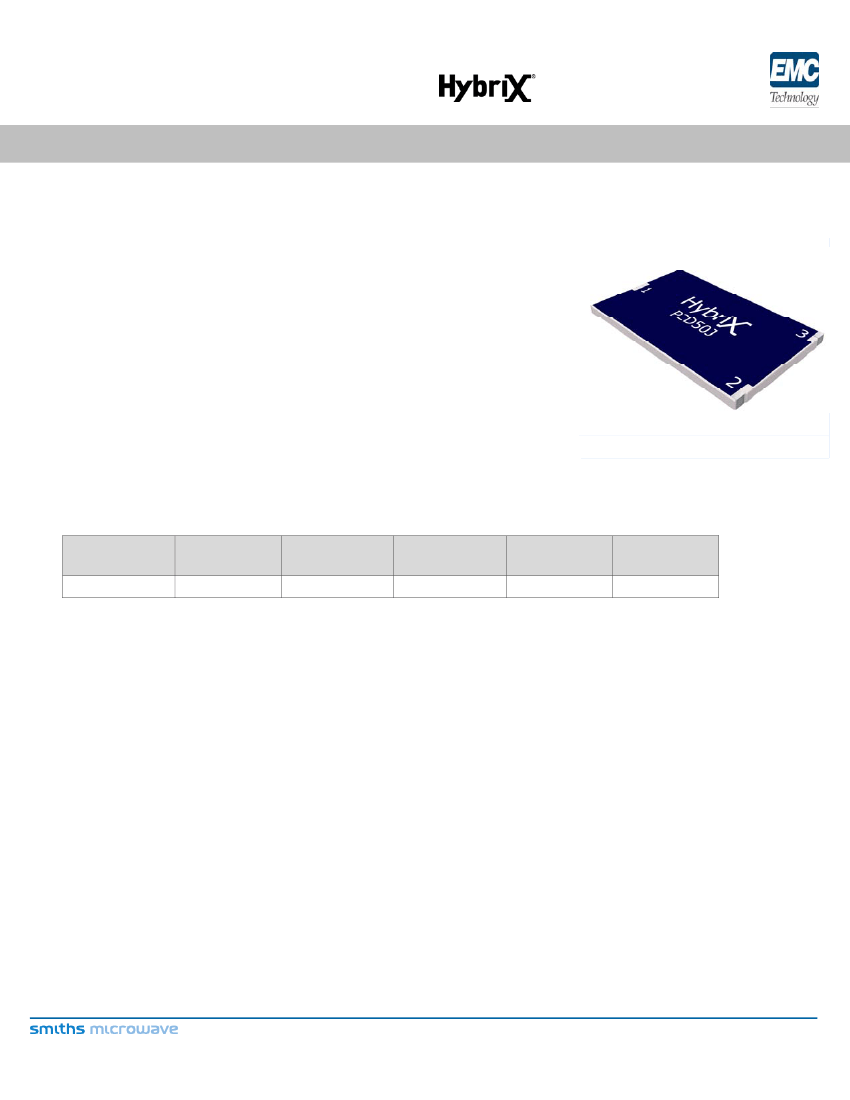

POWER DIVIDER
2 WAY 50 WATT
DATA SHEET
FEATURES
Products available for 3G and 4G bands
urface mountable
Small footprint
High power handling
Low insertion loss
Excellent isolation and low VSWR
Alumina construction
PART SERIES: P2D50J
APPLICATIONS
LTE, AWS, UMTS, GSM, and PCS base stations
Antenna feed network
Modulators
Signal distribution nodes
Combiners and splitters
SHEET 1 OF 2
Dwg P2D50J
EN 13-3674
Revision -
GENERAL DESCRIPTION
Hybrix Wilkinson SMT Power Dividers are high power in-phase devices capable of combining
and dividing 2-, 3-, and 4-way signals. The devices provide excellent isolation and low VSWR in
a small surface mount package. Packaging options are tube or tape and reel.
ORDERING INFORMATION
Part Identifier:
P2D50J
SPECIFICATIONS
1.0 ELECTRICAL
Frequency
1.7 – 2.0 GHz
VSWR:
Nominal Impedance:
Isolation
20 dB Min
Insertion
Loss
0.30 dB Max
Amplitude
Balance
±0.20 dB Max
Phase
Balance
±2° Max
Power
Handling
50 Watts
PORT 1 1.40:1 Max
PORT 2,3 1.30:1 Max
50 OHMS
2.0 ENVIRONMENTAL
Operating Temperature:
-55ºC to +150ºC
3.0 MARKING
Hybrix and part number
4.0 QUALITY ASSURANCE
Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.
Visual and Mechanical Examination for Conformance To Outline Drawing Requirements.
Measure Amplitude Balance and VSWR
Test Data Requirements
No Test Data Required
Data Retention – 12 months
5.0 PACKAGING
Standard Packaging:
Tube
Note: Specifications are subject to change.
423F112
Rev-
Cage Codes: 24602 / 2Y194
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
POWER DIVIDER
2 WAY 50 WATT
DATA SHEET
PART SERIES: P2D50J
SHEET 2 OF 2
Dwg P2D50J
EN 13-3674
Revision -
6.0 MECHANICAL
Substrate Material:
Resistive Film:
Terminal Material:
Metric Dimensions:
Alumina
Thick Film
Thick Film, Nickel barrier solder plated
Provided for reference only
0.560
[14.22 mm]
0.025
[0.64 mm]
3X 0.036
[0.92 mm]
0.065
[1.65 mm]
0.080
[2.03 mm]
0.350
[8.89 mm]
2X 0.050
[1.27 mm]
0.215
[5.46 mm]
2X 0.057
[1.45 mm]
2X 0.082
[2.08 mm]
0.090
[2.29 mm]
Unless Otherwise Specified:
TOLERANCE: X.XX = ± 0.02
X.XXX = ± 0.010
Note: Specifications are subject to change.
423F112
Rev-
Cage Codes: 24602 / 2Y194
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
