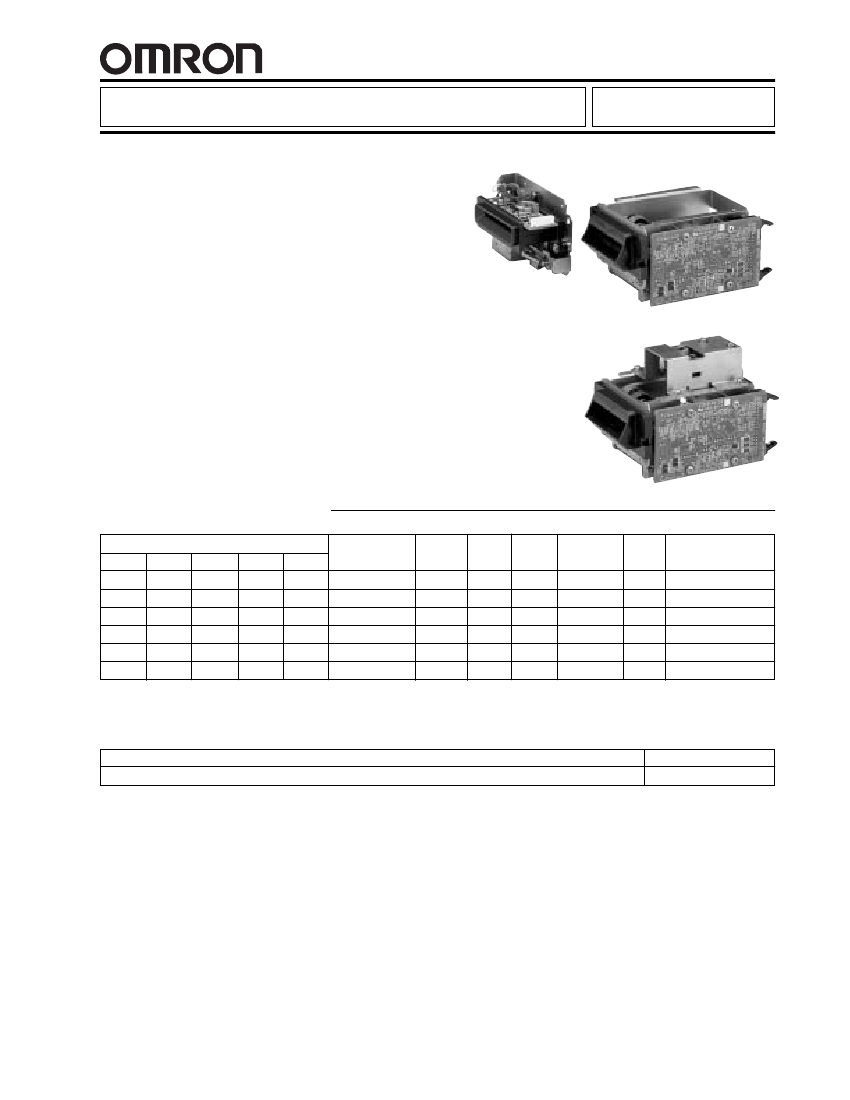

Motor Driven Card Reader
Versatile Reader/Writer Reliably Handles
Read Function for Magnetic Cards or
Read/Write Function for IC Cards
■
Compact size and light weight allow
■
■
■
■
3S4YR-MBR/MCR
easy installation in any terminal
Single and triple track capability
Heavy-duty construction for secure
environments
High speed card transport
Shutter available to prevent insertion of
foreign objects and improper cards
Ordering Information
Magnetic Tracks Supported (R, R/W)
1
R
R
—
—
—
—
2
R
R
R
R
—
—
3
R
R
—
—
—
—
Center
—
—
—
—
—
—
JIS II
—
—
—
—
—
—
IC Contact
No
No
No
No
ISO 7816
ISO 7816
Interface
TTL
TTL
TTL
TTL
TTL
TTL
Built-in
Shutter
No
Yes
No
Yes
No
Yes
Cover/
Cable
No
No
No
No
No
No
Card
Ejection
Front/Rear
Front/Rear
Front/Rear
Front/Rear
Front/Rear
Front/Rear
Color
Black
Black
Black
Black
Black
Black
Part Number
3S4YR-MBR1
3S4YR-MBR1D
3S4YR-MBR4
3S4YR-MBR4D
3S4YR-MCR0JCB
3S4YR-MCR0JDB
■
ACCESSORIES
Description
Shutter for MBR (Prevents tampering and incorrect card insertion)
Part Number
Shutter MCD4N
■
TYPICAL APPLICATIONS
• ID Card Checkers
• Access Control
• Automatic Gate Machines
• EFT
• POS
• Vending Machines
• Kiosks
3S4YR-MBR/MCR
3S4YR-MBR/MCR
Specifications
Part number
Recommended card type
Recording method
Card feeding speed
Motor type
Service life
(See note)
Magnetic head
IC contact
Transport roller
Drive belt
Entire unit
Operating power supply
Max. current consumption
3S4YR
Waiting
Operating
Start-up, reverse
Mounting location
Ambient temperature
Ambient humidity
Vibration (when not in use)
Operation
Storage
Operation
Storage
Magnetic card
IC Card
3S4YR-MBR/MCR
ISO 7810, 7811/1-5, 7812, 7813
ISO 7816/1-2
FM decoding (F2F)
40 cm/sec (15.7 in/sec)
DC motor
1,000,000 passes
300,000 times
1,000,000 passes or 5 years
1,000,000 passes or 5 years
1,000,000 passes (excluding the above mentioned parts)
24 VDC
±
10%
MBR
25 mA
350 mA
2A
MBR D
30 mA
550 mA
2A
MCR0JCB
20 mA
500 mA
2A
MCR0JDB
25 mA
700 mA
2A
Indoors — away from wind, rain, and sunlight
-5° to 55°C (23° to 131°F)
-25° to 70°C (-13° to 158°F)
45% to 85% RH without condensation
20% to 90% RH
Single amplitude: 0.75 mm
Max acceleration: 100 mm/sec
2
;
10 to 150 Hz for 30 minutes in X, Y, and Z directions
300 m/sec
2
(30 G) three times in each of X, Y, and Z directions
3S4YR
Length
Width
Height
MBR
122 mm
(4.80 in)
90 mm
(3.54 in)
62 mm
(2.44 in)
MBR
550 g
(19.4 oz)
MBR D
147 mm
(5.79 in)
90 mm
(3.54 in)
62 mm
(2.44 in)
MBR D
750g
(26.5 oz)
(2.44 in)
MCR0JCB MCR0JDB
122 mm
(4.80 in)
90 mm
(3.54 in)
95 mm
(3.74 in)
900 g
(31.7 oz)
147 mm
(5.79 in)
105 mm
(4.13 in)
95 mm
(3.74 in)
1,100 g
(38.8 oz)
Shock (when not in use)
Dimensions
Weight
3S4YR
MCR0JCB MCR0JDB
Note: One pass denotes one-way travel of card feed.
3S4YR-MBR/MCR
3S4YR-MBR/MCR
Engineering Data
■
OUTPUT CIRCUIT DIAGRAM
Input Circuit
+5 V
10 kΩ
74HC14/04 or equivalent
Output Circuit, cont.
• S1~3, SHE, WS
74HC04 or equivalent
10 kΩ
470 P
100
Ω
I/F Board
Output Circuit
• RCP1~3, RDP1~3 F2F recorder output
I/F Board
• SHD
I
OL
+5 V
4.7 K
Digital Transistor
100
Ω
I/F Board
I
OH
= -1 mA MAX (V
OH
= 3.5 V MIN)
I
OL
= 4 mA MAX (V
OL
= 0.4 V MAX)
I/F Board
I
OL
= 10 mA MAX (V
OL
= 0.4 V MAX)
■
I/O INFORMATION
3S4YR-MBR1/1D/4/4D
Card reader side: Hirose Electric HIF3BA-26PA-2, 54DS (male)
Cable side: Connector socket conforming to MIL-C-83503 (female);
Berg 66900-266 or 65846-002; 3M 3399-6500SC+3448-3926J
(connector + strain relief, cable-side connector is not included).
3S4YR-MCROJCB/DB
Card reader side: Hirose Electric HIF3BA-26PA-2, 54DS (male)
Cable side: Connector socket conforming to MIL-C-83503 (female);
Berg 66900-226 or 65846-002; 3M 3399-6500SC+3448+3026J
(connector + strain relief, cable-side connector is not included).
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Signal
24V
24V
POV
POV
MFS
MRS
S1
S2
S3
—
RDP1
RCP1
RDP2*
RCP2*
RDP3*
RCP3*
—
—
—
—
WS**
SHD**
SO**
SHE**
—
0 VDC
Input/Output
—
—
—
—
Input
Input
Output
Output
Output
—
Output
Output
Output
Output
Output
Output
—
—
—
—
Output
Output
Input
Output
—
—
Description
24 VDC
24 VDC
0 VDC
0 VDC
Motor forward signal
Motor reverse signal
Card location sensor 1
Card location sensor 2
Card location sensor 3
—
Read data, track 1
Read clock, track 1
Read data, track 2
Read clock, track 2
Read data, track 3
Read data, track 3
—
—
—
—
Card width switch
Sense head detector
Shutter open/close
Shutter echo switch
—
0 VDC (GND)
Pin #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
Signal
24V
24V
POV
POV
MFS
MRS
S1
S2
S3
IVCC
IRST
ICIO
IGND
ICLX
IVVP
IRS1
IRS2
IECO***
IECS***
ISO1***
WS**
SHD**
SO**
SHE**
ISO2***
0 VDC
Input/Output
—
—
—
—
Input
Input
Output
Output
Output
◆
◆
◆
◆
◆
◆
◆
◆
Output
Output
Input
Output
Output
Input
Output
Input
—
Description
24 VDC
24 VDC
0 VDC
0 VDC
Motor forward signal
Motor reverse signal
Card location sensor 1
Card location sensor 2
Card location sensor 3
IC card VCC
IC card RESET
IC card IN/OUT
IC card GND
IC card PROGRAM
IC card CLOCK
IC card RESERVE 1
IC card RESERVE 2
IC card contact press echo
Stopper release sensor
echo (rear ejection only)
IC card contact press
Card width switch
Sense head detector
Shutter open/close
Shutter echo switch
IC card stopper release
(rear ejection only)
0 VDC (GND)
* Signals applicable for the MBR1 and MBR1D only.
** Signals applicable when shutter is attached.
*** Signals applicable for rear ejection models only.
◆
= Direct IC Contact
3S4YR-MBR/MCR
3S4YR-MBR/MCR
Dimensions
Unit: mm (inch)
■

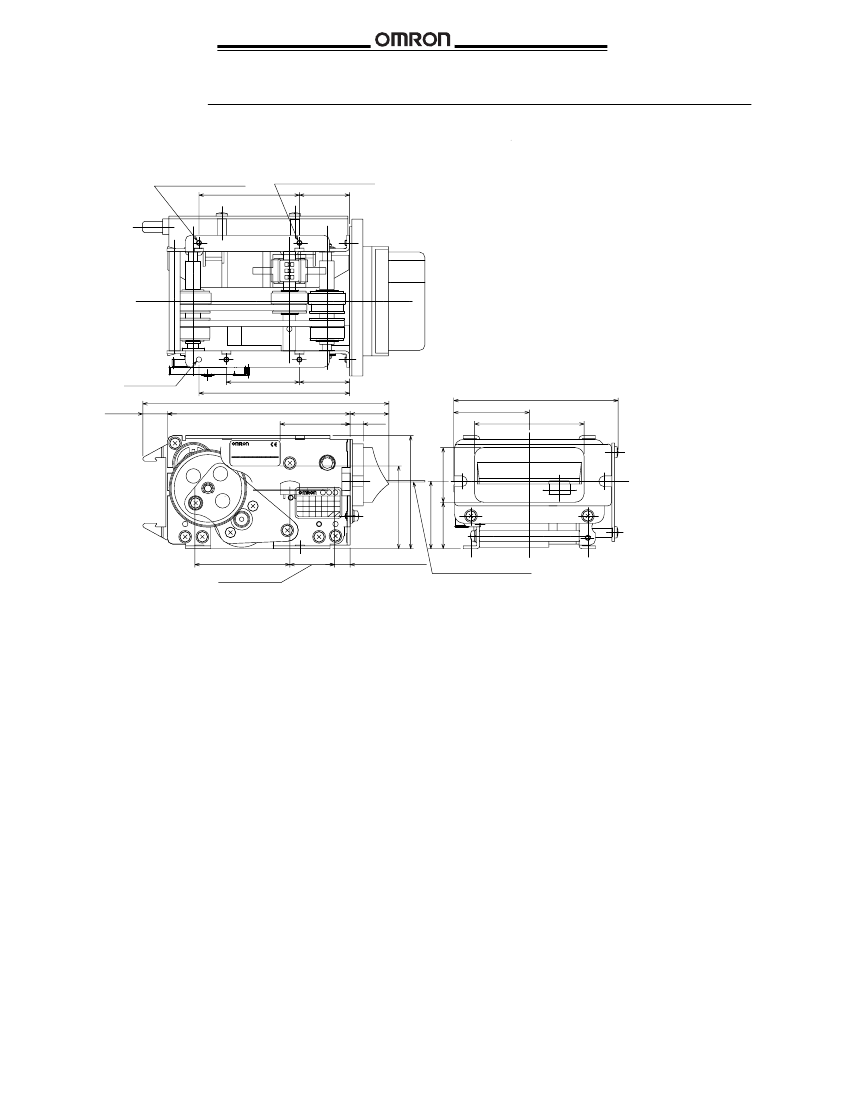

3S4YR-MBR1
6-M3 Mounting Screw
55
Same Screw at bottom
27.5
Bottom side
(13.5)
40
82.5
134.7
100
27.5
90
(38.3)
21.2
7.2
41.5
60±1
3S4YR-MBR1
SERIAL NO.############
OMRON Corporation
MADE IN PHILIPPINES
30±0.7
62
1
2
3
(45.4)
A
H
O
V
B
I
P
W
C
J
Q
X
D
K
R
Y
E F G
L M N
S T U
Z
37
25.5
52 (S3 Sensor)
24.5 (S2 Sensor)
8.5 (S1 Sensor)
Magnetic stripe side (ISO)
NOTE. Tolerances unless otherwise noted +/-1.5mm
Fig.1 Dimensional Outline Drawing (without shutter unit)
3S4YR-MBR/MCR
3S4YR-MBR/MCR
Dimensions
■

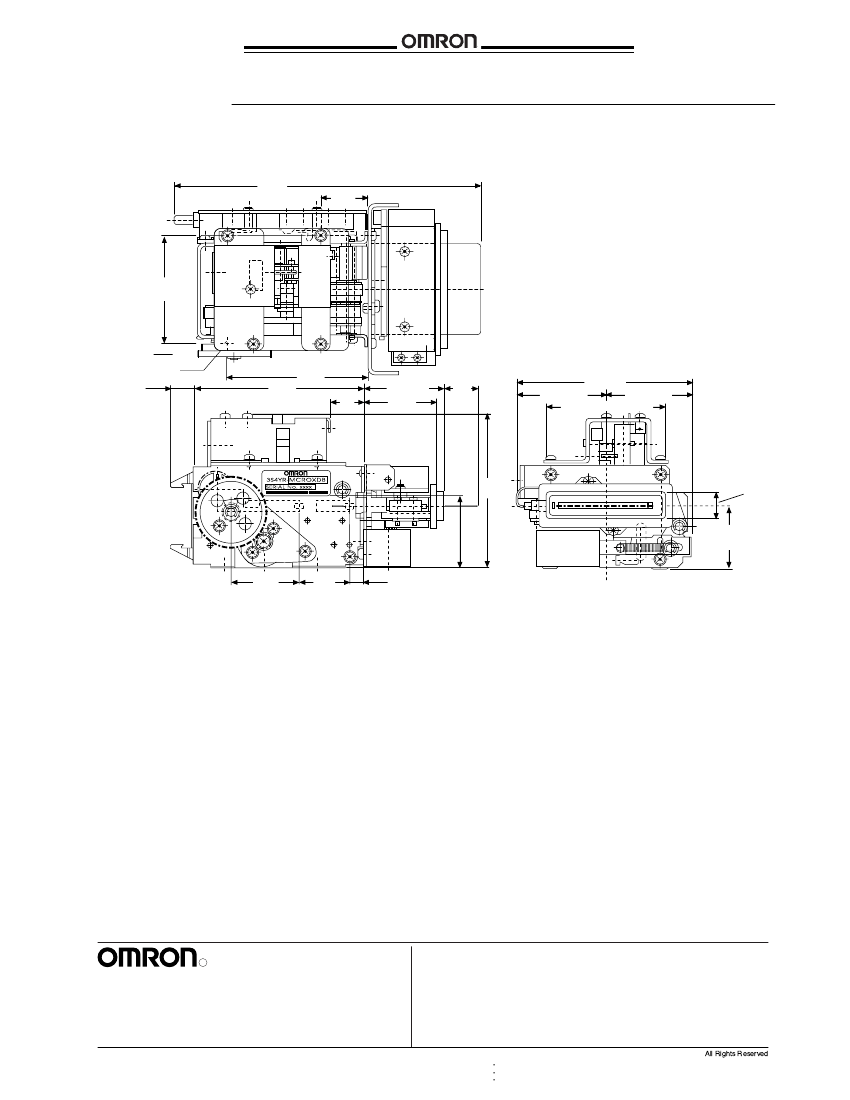

3S4YR-MCR0JDB
180.5
(7.11)
27.5
(1.08)
IC
Card
64
(2.52)
2-M3
Mounting
screw
13.5
(0.53)
82.5
100 (3.25)
(3.94)
20
(0.79)
47.0 (1.85)
42.9
(1.69)
20.0
(0.79)
105 (4.13)
52.5 (2.07)
50 (1.97)
70.2
±
0.2 (2.76
±
0.01)
92
(3.62)
1.7
±
0.3
0.07
±
0.01
43
(1.69)
37
(1.46)
40(S3)
(1.57)
29.5(S2)
(1.16)
8.5(S2)
(0.34)
Contact our nearest representative at
R
Card Business Promotion Division
Card Reader Components Dept.
C
⃝
OMRON Corporation
Ｇ ½ City Ohsaki, West Tower 14F 1-11-1, Ohsaki, Shinagawa-Ku Tokyo, 141-0032 JAPAN
½½
TEL. 81-3-5435-2012 FAX. 81-3-5435-2017
URL : http://www.omron.com/card/cardreader
CAT. No. IW-01
C
⃝
OMRON Corporation 2002
All Rights Reserved
¥
This catalog is valid as of April 2002.
¥
Real products may slightly differ in color from catalog products, due to catalog printing methods.
¥
All specifications may be subject to change without notice.
