REVISION J
DO NOT
SCALE FROM
THIS PRINT
Pb THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
RFB8T-XXXXX-XXXXXX-XXXX
OVERALL CABLE LENGTH
MILLIMETERS OF CABLE
0300 MIN. (SEE NOTE 8 & 9)
END 2 PLATING OPTION
2: ALTERNATE GOLD / NICKEL
3: ALTERNATE GOLD / NICKEL
4: GOLD / NICKEL COMBINATION
5: GOLD / NICKEL COMBINATION
6: GOLD / NICKEL COMBINATION
8. ALTERNATE HEAVY GOLD / GOLD FLASH /NICKEL
(SEE SHEET 2 FOR PLATING SPECIFICS)
(LEAVE BLANK FOR -SING OR -XXXXXX
END 2 PREPARATION)
END 2 CONNECTOR OR PREPARATION
-78SP: DIN7A-PP-C-XX-ST-CA8 (SEE SHEET 2)
-79SP: MBNC7-P-C-XX-ST-CA8 (SEE SHEET 2, SEE NOTE 18)
-79RP: MBNC7-P-C-XX-RA-CA8 (SEE SHEET 2, SEE NOTE 18)
-H4SP: HDBNC-P-C-XX-ST-CA8 (SEE SHEET 2)
-SING: SINGLE ENDED (ONE END ONLY, SEE NOTE 11)
-XXXXXX: STRIPPED AND TINNED (ONE END ONLY-
SEE NOTES 11-16, SHEET 2, FIG 3)

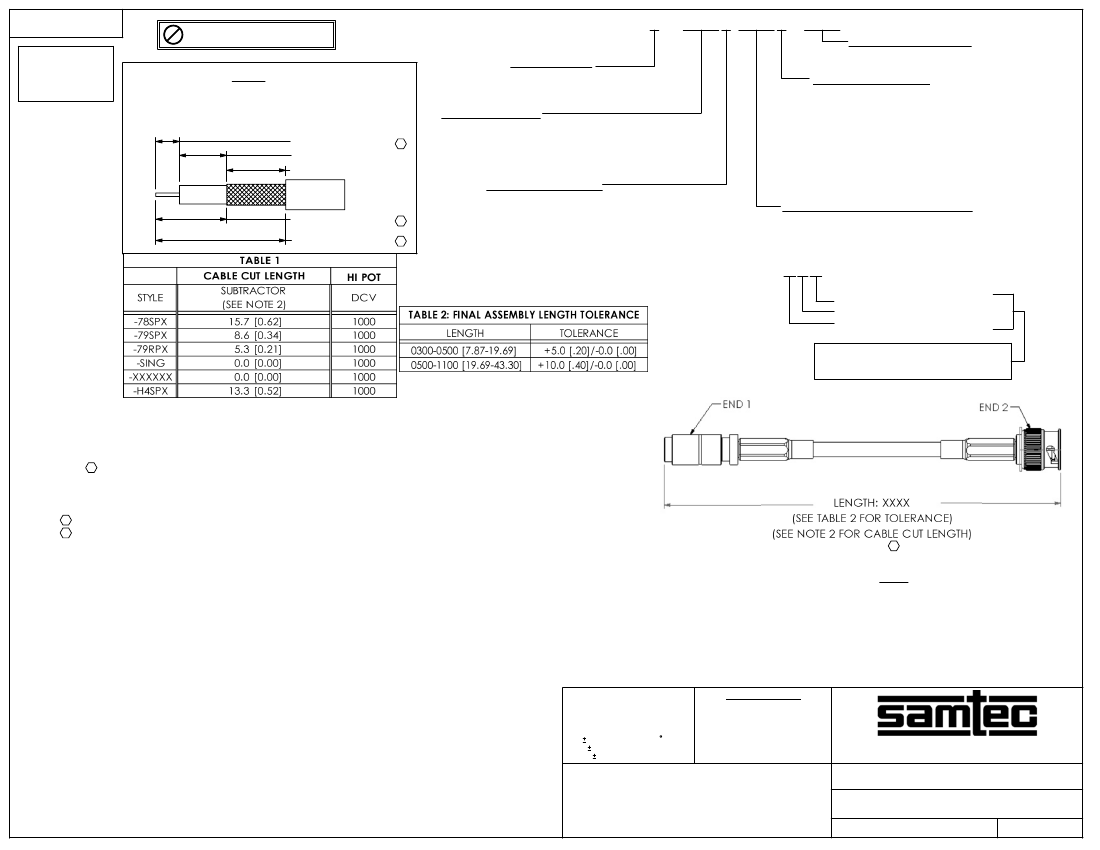

CABLE STRIPPING DIMENSIONS
(STRIPPED AND TINNED OPTION ONLY)
(SEE NOTES 12, 13, 14, &15)
"A" mm
"B" mm
"C" mm
C
FIG. 2
CABLE CALLOUT
B: CCA-1855A (BELDEN 1855A CABLE)
END 1 CONNECTOR
-78SP: DIN7A-PP-C-XX-ST-CA8 (SEE SHEET 2)
-79SP: MBNC7-P-C-XX-ST-CA8 (SEE SHEET 2, SEE NOTE 18)
-79RP: MBNC7-P-C-XX-RA-CA8 (SEE SHEET 2, SEE NOTE 18)
-H4SP: HDBNC-P-C-XX-ST-CA8 (SEE SHEET 2)
END 1 PLATING OPTION
2: ALTERNATE GOLD / NICKEL
3: ALTERNATE GOLD / NICKEL
4: GOLD / NICKEL COMBINATION
5: GOLD / NICKEL COMBINATION
6: GOLD / NICKEL COMBINATION
8. ALTERNATE HEAVY GOLD / GOLD FLASH /NICKEL
(SEE SHEET 2 FOR PLATING SPECIFICS)
"D" mm
"E" mm
C
C
(SEE FIG. 2) "C" FORMAT: X.X mm
(SEE FIG. 2) "B" FORMAT: X.X mm
(SEE FIG. 2) "A" FORMAT: X.X mm
DO NOT LEAVE ANY SPACE BLANK,
EACH MUST CONTAIN A
NUMERIC CHARACTER 0 THRU 9.
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2) + 12.0 MM*
(SEE TABLE 1 FOR SUBTRACTORS)
(* = ONLY APPLICABLE IF USING A SEMI-AUTOMATED COAXIAL CABLE STRIPPER TO PROVIDE A CLEAN CUT EDGE)
C
3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS
C
4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1, THE TEST VOLTAGE FOR THE ASSEMBLY
SHOULD BE SET TO THE END OPTION WITH THE LOWEST TEST VOLTAGE RATING.
C
5. AFTER FINAL ELECTRICAL TEST, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL-ET
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-RF-WI-3040-M.
FIG 1
LOCK WASHERS AND NUTS TO BE SHIPPED UNASSEMBLED. GASKETS TO BE INSTALLED ON CABLE.
RFB8T-78SPX-79SPX-XXXX SHOWN
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS
9. S.I. TEST DATA IS PUBLISHED FOR LENGHTS OF 300MM AND 1000MM. TESTING OF OTHER
CABLE STRIPPING DIMENSIONS
SPECIFIC LENGTHS IS BY REQUEST.
PER END 1 AND END 2 ASSEMBLY PRINTS
10. MINIMUM BEND RADIUS FOR BELDEN 1855A = 38.1[1.5]
OR STRIPPED AND TINNED
11. FOR SING ENDED OR STRIPPED AND TINNED ASSEMBLIES: MAKE A DOUBLE ENDED
(SEE NOTES 11-15, SHEET 2, FIG 3)
ASSEMBLY AT TWICE THE CABLE LENGTH AND TEST BEFORE CUTTING ASSEMBLY IN HALF.
12. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm.
13. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A
14. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B
F:\DWG\MISC\MKTG\RFB8T-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
15. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C
UNLESS OTHERWISE SPECIFIED,
PROPRIETARY NOTE
16. FOR STRIP AND TIN OPTION, ONLY THE CENTER CONDUCTOR IS TINNED.
DIMENSIONS ARE IN
THIS DOCUMENT CONTAINS INFORMATION
17. CONNECTORS TO BE ORIENTED ACCORDING TO CO-RF-WI-3048-M.
MILLIMETERS [INCHES].
CONFIDENTIAL AND PROPRIETARY TO
TOLERANCES ARE:
18. AVAILABLE TO EXISTING CUSTOMERS ONLY
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
DECIMALS
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
SEE END 1 AND END 2 ASSEMBLY PRINTS
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
TRUE 75 OHM, RF8T CABLE ASSEMBLY
RFB8T-XXXXX-XXXXXX-XXXX
SHEET
1
OF
2
BY:
BROWNING 05/13/2010
J.
REVISION J

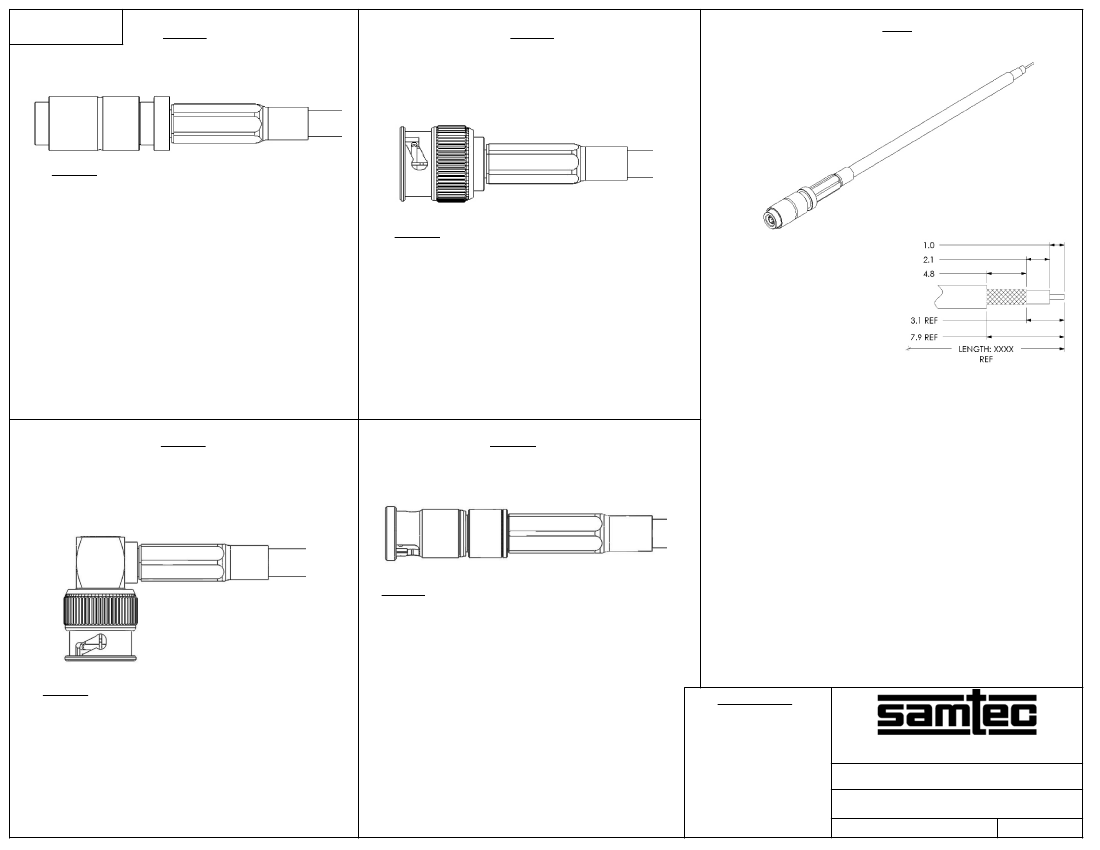

(STRAIGHT PLUG)
-78SP
(STRAIGHT PLUG)
(USE DRAWING No. MBNC7-P-C-XX-ST-CA8
FOR ASSEMBLY INSTRUCTIONS)
-79SP
RFB8T-78SPX-102148-XXXX SHOWN
(SEE NOTE 11)
FIG 3
(USE DRAWING No. DIN7A-PP-C-XX-ST-CA8
FOR ASSEMBLY INSTRUCTIONS)
AVAILABLE TO EXISTING CUSTOMERS ONLY
PLATING
4: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: DIN7A-PP-C-GF-ST-CA8)
5: 10μ" MIN. GOLD CENTER CONTACT
10μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: DIN7A-PP-C-GG-ST-CA8)
6: 30μ" MIN. GOLD CENTER CONTACT
30μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: DIN7A-PP-C-HH-ST-CA8)
8: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: DIN7A-PP-C-HF-ST-CA8)
NOTE: ALL CRITICAL DIMENSIONS ON DIN7A-PP-C-XX-ST-CA8
THAT APPLY MUST BE VERIFIED.
PLATING
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MBNC7-P-C-HN-ST-CA8)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MBNC7-P-C-GN-ST-CA8)
NOTE: ALL CRITICAL DIMENSIONS ON MBNC7-P-C-XX-ST-CA8
THAT APPLY MUST BE VERIFIED.
(RIGHT ANGLE PLUG)
(USE DRAWING No. MBNC7-P-C-XX-RA-CA8
FOR ASSEMBLY INSTRUCTIONS)
-79RP
(STRAIGHT PLUG)
(USE DRAWING No.
HDBNC-P-C-XX-ST-CA8
FOR ASSEMBLY INSTRUCTIONS)
-H4SP
AVAILABLE TO EXISTING CUSTOMERS ONLY
PLATING
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: HDBNC-P-C-HN-ST-CA8)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: HDBNC-P-C-GN-ST-CA8)
4: 10μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: HDBNC-P-C-GF-ST-CA8)
8: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: HDBNC-P-C-HF-ST-CA8)
NOTE: ALL CRITICAL DIMENSIONS ON HDBNC-P-C-XX-ST-CA8
THAT APPLY MUST BE VERIFIED.
F:\DWG\MISC\MKTG\RFB8T-XXXXX-XXXXXX-XXXX-MKT.SLDDRW
PLATING
2: 30μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MBNC7-P-C-HN-RA-CA8)
3: 10μ" MIN. GOLD CENTER CONTACT
100μ" MIN. NICKEL OUTER CONTACT
100μ" MIN. NICKEL REMAINING METAL PARTS
(END CONNECTOR P/N: MBNC7-P-C-GN-RA-CA8)
NOTE: ALL CRITICAL DIMENSIONS ON MBNC7-P-C-XX-RA-CA8
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
TRUE 75 OHM, RF8T CABLE ASSEMBLY
BY:
J. BROWNING 05/13/2010
SHEET
2
OF
2
RFB8T-XXXXX-XXXXXX-XXXX
