XC6402
Series
High Current, High Speed LDO Regulators, Voltage Detector Function
ETR1001_001
The XC6402 series are precise, low noise, high current, positive voltage low dropout regulators with built-in voltage detector.
They are fabricated using Torex’s CMOS process. The series features a voltage reference, an error amplifier, a current
limiter, a voltage detector and a phase compensation circuit plus a driver transistor.
The output voltage of the LDO and detect voltage of the detector is selectable in 50mV increments within the range of 0.8V to
5.0V. With a low ON resistance driver transistor built-in, batteries can be used until input-output voltage differential is minimal
and can accordingly be used for a longer time.
The series is also compatible with low ESR ceramic capacitors which give added output stability. The series provides options
to the user to select from a variety of circuit features, such as detector monitoring, detector output logic, EN pin input logic,
and internal pull-up / down resistance (semi-custom). The IC's internal regulator circuit can be placed in stand-by mode via
the EN function (XC6402C series). In the stand-by mode, power consumption is greatly reduced. The XC6402F series
offers the option of a delay on the detector output: the delay time can be controlled by the use of an external capacitor.
■GENERAL
DESCRIPTION
■APPLICATIONS
●CD-ROM,
CD-R / RW drive
●DVD
drive
●HDD
drive
●Cameras,
Video recorders
●Portable
AV equipment
●Battery
powered equipment
■FEATURES
: More than 700mA
(800mA limit)
(1.6V≦V
ROUT(T)
≦5.0V)
Dropout Voltage
: 50mV @ 100mA
100mV @ 200mA
Maximum Operating Voltage
: 1.5V ~ 6.0V
VR Output Voltage Range
: 0.8V ~ 5.0V (50mV increments)
VD Detect Voltage Range
: 0.8V ~ 5.0V (50mV increments)
More than 1.5V (V
IN
sensing)
Highly Accurate
: ± 2%
Low Power Consumption
: 35μA (TYP.)
High Ripple Rejection
: 60dB @1kHz
Ambient Temperature
: - 40℃ ~ 85℃
Low ESR Capacitor
: Ceramic capacitor compatible
Ultra Small Packages
: SOT-25, SOT-89-5, USP-6B,
* VD: Voltage Detector
Maximum Output Current

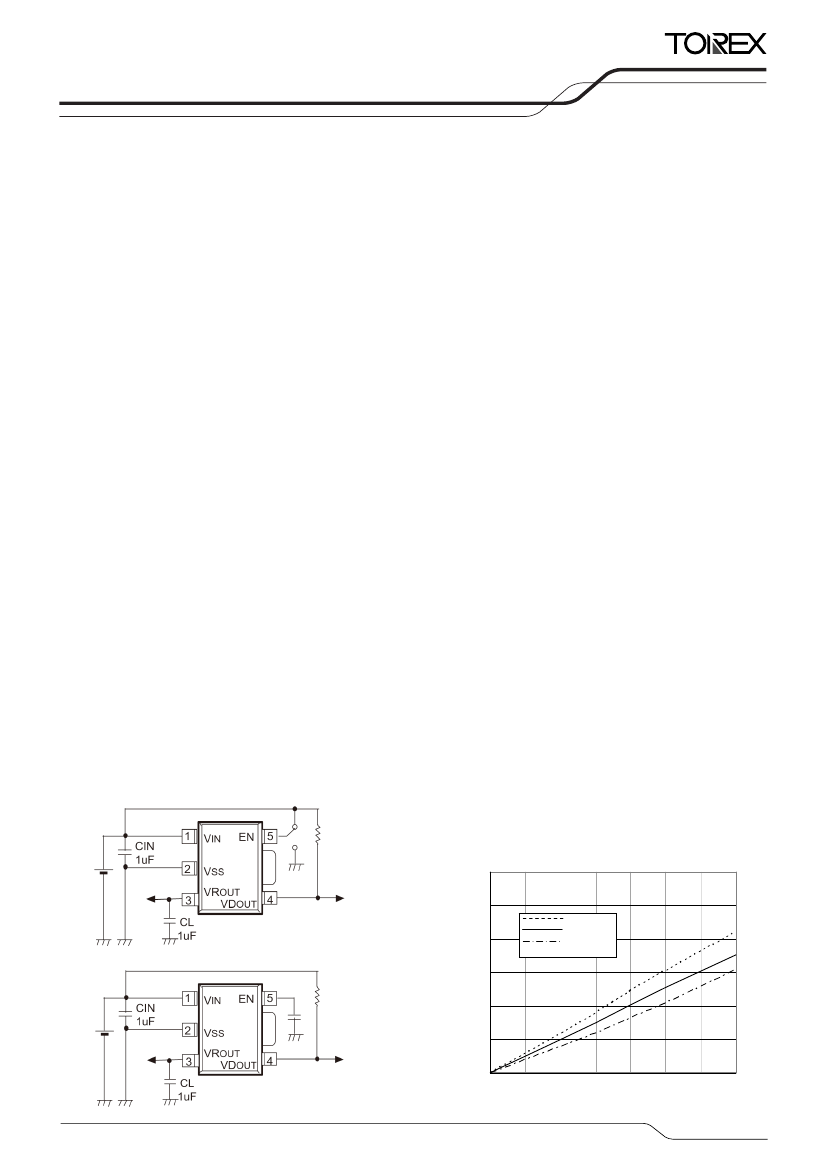

■TYPICAL
APPLICATIONS CIRCUITS
●XC6402C
Series
Rpull-up
220kΩ
■TYPICAL
PERFORMANCE
CHARACTERISTICS
●Dropout
Voltage vs. VR Output Current
XC6402 Series (VR:3.0V)
0.6
CIN=1.0uF(ceramic),CL=1.0uF(ceramic)
0.5
Topr= - 40
O
C
Topr= 25
O
C
Topr= 85
O
C
Dropout Voltage Vdif(V)
0.4
●XC6402F
Series
Rpull-up
220kΩ
0.3
0.2
0.1
0.0
0
100
200
300
400
500
VR Output Current IROUT(mA)
600
700
1/31
XC6402
Series

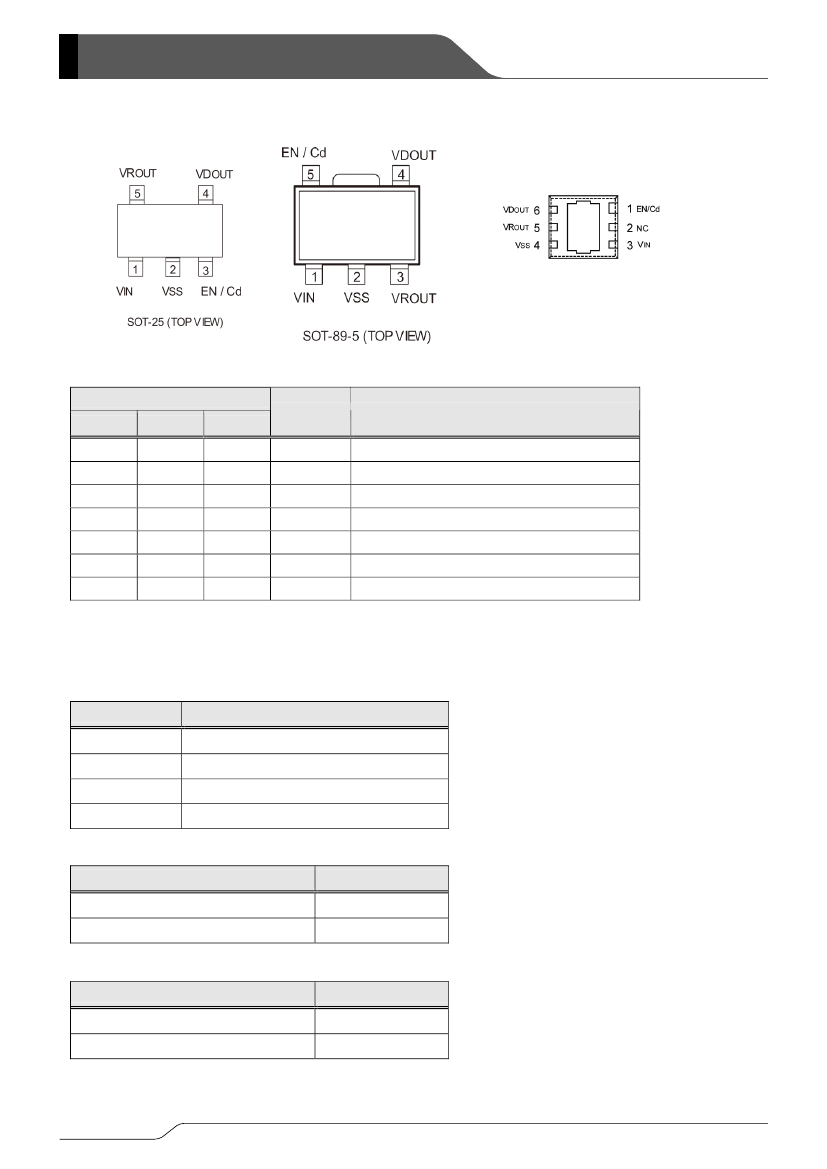

■PIN
CONFIGURATION
USP-6B (BOTTOM VIEW)
*The dissipation pad for the USP-6B package
should be solder-plated in recommended mount
pattern and metal masking so as to enhance
mounting strength and heat release.
If the pad needs to be connected to other pins, it
should be connected to the V
SS
pin.
■PIN
ASSIGNMENT
PIN NUMBER
SOT-25
1
2
5
4
3
3
-
SOT-89-5
1
2
3
4
5
5
-
USP-6B
3
4
5
6
1
1
2
PIN NAME
V
IN
V
SS
V
ROUT
V
DOUT
EN
Cd
NC
FUNCTION
Power Input
Ground
VR Output
VD Output
VR ON/OFF Control (C Series)
Delay Capacitor Connection (F Series)
No Connection
■PRODUCT
CLASSIFICATION
●Selection
Guide
1. EN Input Logic, Internal Pull-up / down as option
SERIES
XC6402 * A ~ D
XC6402 * E ~ K
XC6402 * L ~ P
XC6402 * R ~ U
2. VD Sense as option
SERIES
XC6402 * A, B, E, F, L, M, R, S, V, X
XC6402 * C, D, H, K, N, P, T, U, Y, Z
3. VD Output Logic as option
SERIES
XC6402 * A, C, E, H, L, N, R, T, V, Y
XC6402 * B, D, F, K, M, P, S, U, X, Z
VD OUTPUT LOGIC
Detect L
Detect H
VD SENSE PIN
V
IN
V
ROUT
CE INPUT LOGIC
High Active with pull-down resistance
High Active with no pull-down resistance
Low Active with pull-up resistance
Low Active with no pull-up resistance
2/31
XC6402
Series
■PRODUCT
CLASSIFICATION (Continued)
●Ordering
Information
XC6402
①②③④⑤⑥
DESIGNATOR
①
②
DESCRIPTION
Operational Function
Type of Regulator
Output Voltage & Detect
Voltage
SYMBOL
C
F
-
: EN function
: Cd Pin
: As in the chart below
: Internally set sequential number relating to output
voltage and detect voltage.
VR setting output voltage range: 0.8V ~ 5.0V
Detect voltage setting range: 0.8V ~ 5.0V
50mV increments are available
: SOT-25 (SOT-23-5)
: SOT-89
: USP-6B
: Embossed tape, standard feed
: Embossed tape, reverse feed
DESCRIPTION
③ ④
-
M
⑤
Package
P
D
⑥
Device Orientation
R
L
PIN NUMBER :
②
Types
②
A
B
C
D
E
F
H
K
L
M
N
P
R
S
T
U
V
X
Y
Z
EN FUNCTION
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Functional
Nonfunctional
Nonfunctional
Nonfunctional
Nonfunctional
EN LOGIC
High Active
High Active
High Active
High Active
High Active
High Active
High Active
High Active
Low Active
Low Active
Low Active
Low Active
Low Active
Low Active
Low Active
Low Active
-
-
-
-
PULL UP/DOWN
RESISTANCE
Pull-down Function
Pull-down Function
Pull-down Function
Pull-down Function
Nonfunctional
Nonfunctional
Nonfunctional
Nonfunctional
Pull-up Function
Pull-up Function
Pull-up Function
Pull-up Function
Nonfunctional
Nonfunctional
Nonfunctional
Nonfunctional
-
-
-
-
VD SENSE PIN
V
IN
V
IN
V
ROUT
V
ROUT
V
IN
V
IN
V
ROUT
V
ROUT
V
IN
V
IN
V
ROUT
V
ROUT
V
IN
V
IN
V
ROUT
V
ROUT
V
IN
V
IN
V
ROUT
V
ROUT
VD OUTPUT
LOGIC
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
Detect L
Detect H
F Series
C Series
PIN NUMBER
①
3/31
XC6402
Series

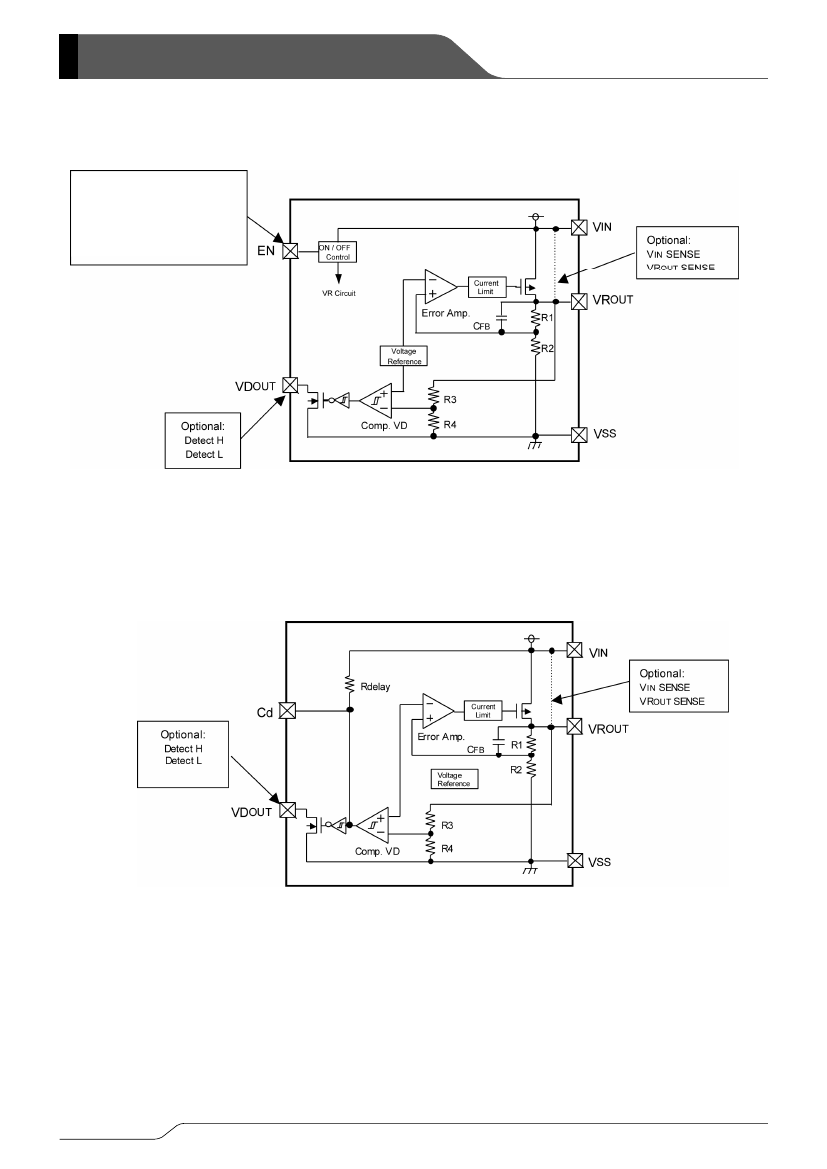

■BLOCK
DIAGRAMS
Optional:
High Active with pull-down R
High Active with no pull-down R
Low Active with pull-up R
Low Active with no pull-up R
XC6402C Series
XC6402F Series
4/31
XC6402
Series
■ABSOLUTE
MAXIMUM RATINGS
PARAMETER
Input Voltage
VR Output Current
VR Output Voltage
VD Output Current
VD Output Voltage
V
EN
/ Cd Pin Voltage
SOT-25
Power Dissipation
SOT-89-5
USP-6B
Operating Temperature Range
Storage Temperature Range
SYMBOL
V
IN
I
ROUT
V
ROUT
I
DOUT
V
DOUT
V
EN
/ Cd
Pd
Topr
Tstg
RATINGS
6.5
800
V
SS
-0.3 ~ V
IN
+0.3
50
V
SS
-0.3 ~ 6.5
V
SS
-0.3 ~ V
IN
+ 0.3
250
500
100
- 40 ~ + 85
- 55 ~ + 125
Ta = 25℃
UNITS
V
mA
V
mA
V
V
mW
℃
℃
■ELECTRICAL
CHARACTERISTICS
XC6402C Series
PARAMETER
Output Voltage
(*2, 3)
Maximum Output
Current
[V
ROUT(E)
≧1.6V]
Maximum Output
Current
[V
ROUT(E)
<1.6V]
Load Regulation
SYMBOL
V
ROUT(E)
I
ROUTMAX
I
ROUTMAX
△V
ROUT
Vdif1
Dropout Voltage (*4)
VOLTAGE REGULATOR (V
ROUT
=1.8V)
Vdif2
Supply Current
(CA/CB/CC/CD type)
Supply Current
(CL/CM/CN/CP type)
Supply Current
(CE/CF/CH/CK type)
Supply Current
(CR/CS/CT/CU type)
Line Regulation
Input Voltage
Output Voltage
Temperature
Characteristics
Ripple Rejection
Rate
Current Limiter
[V
ROUT(E)
≧1.6V]
Current Limiter
[V
ROUT(E)
<1.6V]
Short-Circuit Current
I
DD
I
DD
I
DD
I
DD
△
V
ROUT
△
V
IN
・
V
ROUT
Ta=25℃
CONDITIONS
V
IN
=V
ROUT(T)+
1.0V, I
ROUT
=30mA
V
IN
=V
ROUT(T)
+1.0V
V
EN
=ON(V
IN
or V
SS
)
V
IN
=V
ROUT(T)
+1.0V
V
EN
=ON(V
IN
or V
SS
)
1mA≦I
ROUT
≦100mA
I
ROUT
=30mA
I
ROUT
=100mA
V
EN
=V
IN
=V
ROUT(T)
+1.0V,
I
ROUT
=0mA
V
EN
=V
ROUT(T)
+1.0V, V
IN
=V
SS
,
I
ROUT
=0mA
V
EN
=V
IN
=V
ROUT(T)
+1.0V,
I
ROUT
=0mA
V
EN
=V
ROUT(T)
+1.0V, V
IN
=V
SS
,
I
ROUT
=0mA
V
ROUT(T)
+1.0V≦V
IN
≦6.0V
V
EN
=ON(V
IN
or V
SS
),
I
ROUT
=30mA
MIN.
×0.98
(-30m)
700
500
-
TYP.
MAX.
UNITS CIRCUIT
×1.02
V
ROUT(T)
(+30mV)
-
-
15
E-1
-
-
60
V
mA
mA
mV
①
①
①
①
mV
E-2
E-3
E-3
-
-
-
1.5
I
ROUT
=30mA
-40℃≦Topr≦85℃
V
IN
=[V
ROUT(T)
+1.0]V
DC
+0.5V
p-pAC
When V
ROUT(T)
≧4.75V
→
V
IN
=5.75V+0.5V
p-pAC
I
ROUT
=30mA, f=1kHz
V
IN
= V
ROUT(T)
+1.0V
V
EN
=ON(V
IN
or V
SS
)
V
IN
= V
ROUT(T)
+1.0V
V
EN
=ON(V
IN
or V
SS
)
V
IN
= V
ROUT(T)
+1.0V
V
EN
=ON(V
IN
or V
SS
)
-
-
700
-
-
35
35
0.01
-
±100
70
70
0.20
6.0
-
-
-
-
-
μA
μA
μA
μA
%/V
V
ppm
/
℃
dB
mA
mA
mA
①
②
②
②
②
①
-
①
V
IN
△V
ROUT
△
Topr・V
ROUT
PSRR
I
Rlim
I
Rlim
I
Rshort
60
800
800
30
③
①
①
①
5/31
