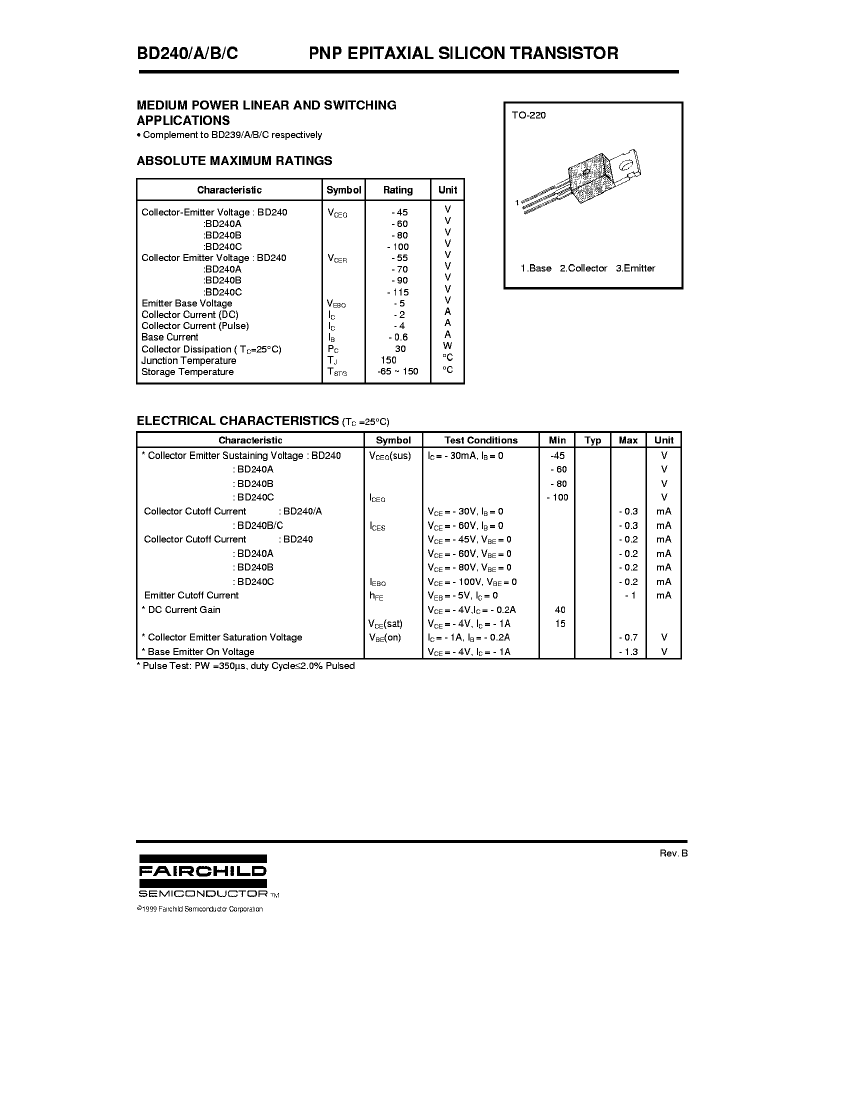

BD240AJ69Z

Description
Power Bipolar Transistor, 2A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size47KB,2 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

BD240AJ69Z Overview

Power Bipolar Transistor, 2A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN

BD240AJ69Z Parametric

Parameter NameAttribute value
MakerFairchild
Parts packaging codeSFM
package instructionTO-220, 3 PIN
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum collector current (IC)2 A
Collector-emitter maximum voltage60 V
ConfigurationSINGLE
Minimum DC current gain (hFE)15
JEDEC-95 codeTO-220AB
JESD-30 codeR-PSFM-T3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Polarity/channel typePNP
Certification statusNot Qualified
surface mountNO
Terminal formTHROUGH-HOLE
Terminal locationSINGLE
transistor applicationsSWITCHING
Transistor component materialsSILICON

BD240AJ69Z Related Products

BD240AJ69Z BD240BJ69Z
Description Power Bipolar Transistor, 2A I(C), 60V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN Power Bipolar Transistor, 2A I(C), 80V V(BR)CEO, 1-Element, PNP, Silicon, TO-220AB, Plastic/Epoxy, 3 Pin, TO-220, 3 PIN
Maker Fairchild Fairchild
Parts packaging code SFM SFM
package instruction TO-220, 3 PIN FLANGE MOUNT, R-PSFM-T3
Contacts 3 3
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Maximum collector current (IC) 2 A 2 A
Collector-emitter maximum voltage 60 V 80 V
Configuration SINGLE SINGLE
Minimum DC current gain (hFE) 15 15
JEDEC-95 code TO-220AB TO-220AB
JESD-30 code R-PSFM-T3 R-PSFM-T3
Number of components 1 1
Number of terminals 3 3
Maximum operating temperature 150 °C 150 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT
Polarity/channel type PNP PNP
Certification status Not Qualified Not Qualified
surface mount NO NO
Terminal form THROUGH-HOLE THROUGH-HOLE
Terminal location SINGLE SINGLE
transistor applications SWITCHING SWITCHING
Transistor component materials SILICON SILICON
