CT0805HS-311G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> CT0805HS-311G

CT0805HS-311G: DescriptionGeneral Purpose Inductor, 0.39uH, 2%, 1 Element, Ceramic-Core, SMD, CHIP; CategoryPassive components inductor; File Size274KB，2 Pages; ManufacturerCT [ Central Technologies ]

Download Datasheet Parametric View All

CT0805HS-311G Overview

General Purpose Inductor, 0.39uH, 2%, 1 Element, Ceramic-Core, SMD, CHIP

CT0805HS-311G Parametric

Parameter Name	Attribute value
Maker	CT [ Central Technologies ]
Reach Compliance Code	unknown
ECCN code	EAR99
core material	CERAMIC
DC Resistance	1.7 Ω
Nominal inductance(L)	0.39 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CT0805HS
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Minimum quality factor (at nominal inductance)	48
Maximum rated current	0.27 A
self resonant frequency	450 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	Q MEASURED AT 250
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	100 MHz
Tolerance	2%

Preview

Download Datasheet

View All

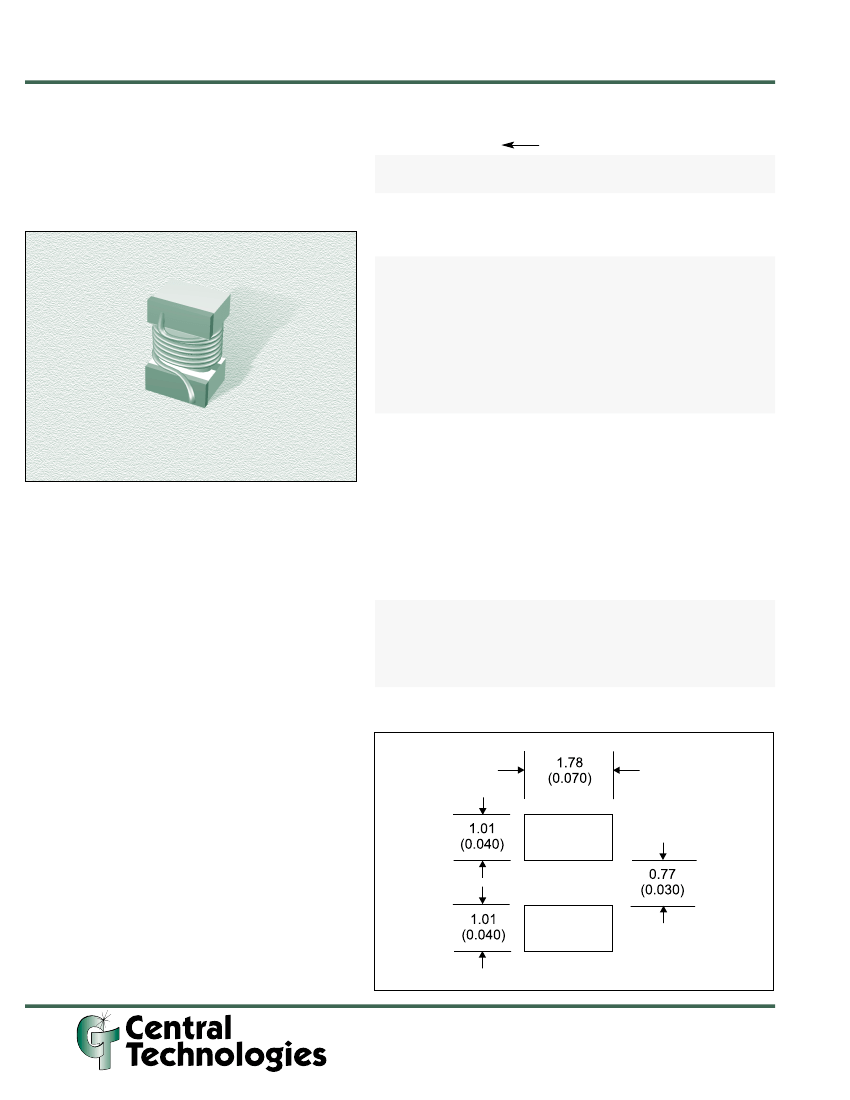

SMD Wire-wound Chip Inductors

www.ctparts.com

CT0805HS Series

From 2.2 nH to 2700 nH

Not shown at actual size.

Ordering Info

Please specify tolerance code when ordering.

CT0805HS-120_

G = ±2%, J = ±5%, K = ±10%, M = ±20%

Central Tech

Part

Number

CT0805HS-020_

CT0805HS-030_

CT0805HS-060_

CT0805HS-080_

CT0805HS-120_

CT0805HS-150_

CT0805HS-180_

CT0805HS-220_

CT0805HS-270_

CT0805HS-330_

CT0805HS-390_

CT0805HS-470_

CT0805HS-560_

CT0805HS-680_

CT0805HS-820_

CT0805HS-101_

CT0805HS-121_

CT0805HS-151_

CT0805HS-181_

CT0805HS-221_

CT0805HS-271_

CT0805HS-331_

CT0805HS-311_

CT0805HS-471_

CT0805HS-561_

CT0805HS-681_

CT0805HS-821_

CT0805HS-911_

CT0805HS-102_

CT0805HS-122_

CT0805HS-152_

CT0805HS-182_

CT0805HS-222_

CT0805HS-272_

Inductance

(nH)

2.2

3.3

6.8

8.2

100

120

150

180

220

270

330

390

470

560

680

820

910

1000

1200

1500

1800

2200

2700

L Test

Freq.

(MHz)

250

200

150

100

7.9

Fact.

Min.

Q Test

Freq.

(MHz)

1500

1000

500

250

100

7.9

SRF

Min.

(MHz)

>6000

5500

4700

4000

3400

3300

2600

2500

2050

2000

1650

1550

1450

1300

1200

1100

920

890

850

800

790

450

380

340

260

220

160

140

120

100

DCR

Max.

Ω

(Ω)

.07

.12

.10

.14

.13

.15

.19

.15

.22

.25

.28

.30

.36

.38

.40

.45

.55

.64

.80

1.0

1.5

1.7

1.9

2.1

2.2

2.3

2.4

2.5

2.7

2.9

Rated

(mA)

600

500

400

340

300

270

250

230

190

180

170

160

150

Characteristics

Operating Temperature:

-40°C to +125°C

Inductance Tolerance:

±2%, ±5%, ±10%, ±20%

Material:

Ceramic wire-wound core

Packaging:

Tape & Reel, 2,000 parts per reel

Solderability:

Wave & Reflow soldering

Testing:

Tested on a HP4286A with a SMD-A test fixture

Coated:

Epoxy resin on top of the part to permanently set

the coil

Additional Information:

Parts are also available with a

clear plastic cap. Additional values available upon request

Pad Layout

5/16/00

Volume Manufacturer of Quality Inductors,

Chokes & Coils

For more information contact our distributor:

Inductors Inc.,

5 Technology Drive, Irvine, CA 92618

Inside US 800-533-8295

Outside US 949-623-2460

Fax 949-623-1401
